Introduction

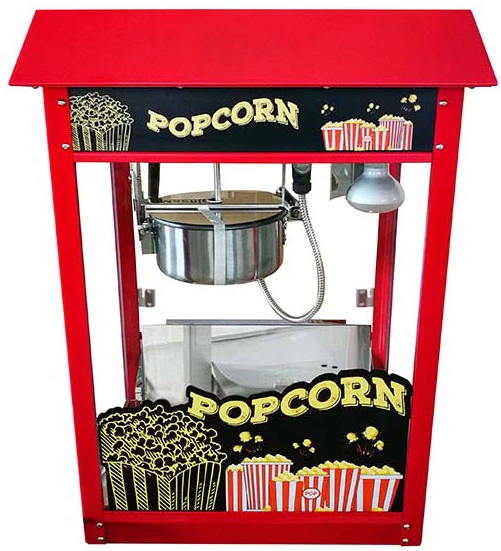

The Adcraft 3O Popcorn Machine PCM-8L is a commercial-grade popcorn maker designed to deliver delicious, freshly popped popcorn quickly and efficiently. Featuring an 8-ounce kettle, it can produce up to 150 servings per hour, making it perfect for theaters, events, or home use. The machine boasts a stainless-steel construction for durability and easy cleaning, along with a built-in warming light to keep popcorn fresh and warm. The Adcraft Popcorn Machine is priced at approximately $300.

Detailed Specifications

Description

The Adcraft 3O Popcorn Machine PCM-8L is designed with both functionality and aesthetics in mind. Its stainless steel body gives it a sleek and professional appearance, making it suitable for display in any commercial setting. The machine's large capacity and efficient heating system allow it to produce batch after batch of fluffy, delicious popcorn with minimal downtime. The built-in stirring system ensures that the kernels are evenly heated, reducing waste and improving overall popcorn quality. The non-stick coating on the kettle makes cleaning a breeze, while the removable serving tray adds to the convenience of serving fresh popcorn to customers.

To Install

1. Take unit out of the box and remove all packing material.
2. Place unit on a solid and level table that is the appropriate height for use.
3. Before first use, please wash all of the glass surfaces and wipe down the interior with a clean, damp sponge.

How To Use

1. Hang the kettle pot on the popper so that its roller bar is on the door side of the unit.
2. Plug the power cord into the electrical outlet of the appropriate voltage.
3. Turn the light and heater to the ON setting before adding butter or oil to the kettle.  Please don’t use more than .5 oz of oil or butter in the kettle.
   NOTE: Only use butter or oil with this unit.  Liquid sugar or any other sweetener can cause damage to the pot and potential injury to the user
4. Allow the kettle to pre-heat for 3-4 minutes or until steam is visible.
5. Open the lid to the kettle and add the kernels into the pre-heated pot.  Once popcorn is in the kettle, close the lid.  Please use caution as the lid to the kettle will be very hot.
6. Turn ON the stirrer button and close the main units door.  The popcorn inside the kettle will begin pop-ping after 2-3 minutes.
7. When the popping has fi nished, turn the stirrer and heat to OFF.
8. To empty the contents of the kettle completely, gently turn the roll bar.
9. Leave on warming light to keep the popcorn inside the unit warm and ready to serve.  Turn off the heat and stir buttons to prevent motor burnout.

Setup Guide

To set up the Adcraft 3O Popcorn Machine PCM-8L,

1. Start by carefully unpacking and inspecting the machine for any damage. Next, place the machine on a stable, flat surface and plug it into a suitable electrical outlet.
2. Fill the kettle with the recommended amount of popcorn kernels and oil, then close the lid. Turn on the machine and allow it to preheat for a few minutes.
3. Once the green light indicates that the machine is ready, add the kernels and let the machine do the rest.
4. The built-in stirring system will ensure that the kernels are evenly heated. Once the popping cycle is complete, pour the freshly made popcorn into the serving tray for immediate serving. Always refer to the user manual for detailed instructions and safety precautions.

CLEANING & MAINTENANCE

NOTE: To maintain cleanliness and increase service life, this item should be cleaned daily.  Do not immerse the unit in water or any other liquid. If liquid enters the electrical compartment it may cause a short circuit or electrical shock.

1. Turn off all switches on the unit and unplug the unit to let cool down.
2. Add a kettle cleaner directly into the kettle and follow cleaning directions on the bottle
3. Turn on the heater and stirrer and allow for the water to boil for 2 minutes.
4. Turn off the heater and stirrer after 2 minutes of boiling and then dump out water into a pan and discard.
5. Wipe the kettle with a damp cloth.
6. For the cabinet, use a degreaser and damp cloth to wipe the interior and exterior.

NOTE: Once you fi nish popping, unplug the unit from the power supply and allow for the unit to cool down completely.  When removing the pot, please use caution near the heat lamp bulb.
NOTE: It is recommended to clean the kettle pot after every 3 to 4 uses or before it goes into storage for an extended period of time.

WARNINGS

• Do not touch any hot surfaces
• Plug only into a 3-hole grounded electrical outlet of the appropriate voltage
• Do not immerse unit, cord or plug in liquid at any time
• Unplug cord from outlet when not in use and before cleaning
• Do not operate unattended
• Do not use this unit for anything other than intended use
• Do not use outdoors
• Always use on a fi rm, dry and level surface
• Do not use if unit has a damaged cord or plug, in the event the appliance malfunctions, or has been damaged in any manner
• Keep children and animals away from unit
• Any incorrect installation, alterations, adjustments and/or improper maintenance can lead to property loss and injury.  All repairs should be done by authorized professionals only.

TROUBLESHOOTING

Wiring Diagram for the Popcorn Machine

• R2 - Heat tube 115V/1000W
• FR1 - Temperature Limiter
• R1 - Insulating Tube 115V/300W
• FR2 - Temperature Limiter
• T - Light 60W
• D - Stir Motor 115V/14W
• K1 - Warm & Light Switch
• K2 - Heating Switch
• K3 -Stiring Motor Switch
• FR3 - Thermostat
• FU - Protective Tube 20A

ACE Equipment 6-Month Warranty

ACE Equipment is warranted for one year, effective from the date of purchase by the original owner. A copy of the original receipt or other proof of purchase is required to obtain warranty coverage. This warranty applies to the original owner only, and is not assignable.

“THE FOREGOING WARRANTY IS IN LIEU OF ANY AND ALL WARRANTIES EXPRESSED OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILTY OR FITNESS FOR PARTICULAR PURPOSES AND CONSTITUES THE ENTIRE LIABILITY OF ACE. IN NO EVENT DOES THE LIMITED WARRANTY EXTEND BEYOND THE TERMS STATED HEREIN.”

Pros & Cons

Pros

• High-Volume Production: Ideal for commercial settings requiring large quantities of popcorn.
• Durable Construction: Built with stainless steel for long-lasting use.
• Efficient Heating: 1300-watt heating element and built-in thermostat ensure even and quick heating.
• Easy Cleaning: Non-stick coating on the kettle and removable parts make cleaning simple.
• Convenient Serving: Large capacity hopper and removable serving tray for easy serving.

Cons

• High Cost: The machine is a significant investment, priced around $1,500 to $2,000.
• Large Footprint: Requires considerable space due to its size and capacity.
• Noisy Operation: Like many popcorn machines, it can be noisy during operation.
• Maintenance Requirements: Regular cleaning and maintenance are necessary to ensure optimal performance.

Customer Reviews

Customers praise the Adcraft 3O Popcorn Machine PCM-8L for its high production capacity and durable construction. Many users appreciate the easy cleaning and maintenance features. However, some reviewers mention the high cost and the need for significant space as drawbacks. Common complaints include the noise level during operation and the occasional need for replacement parts.
