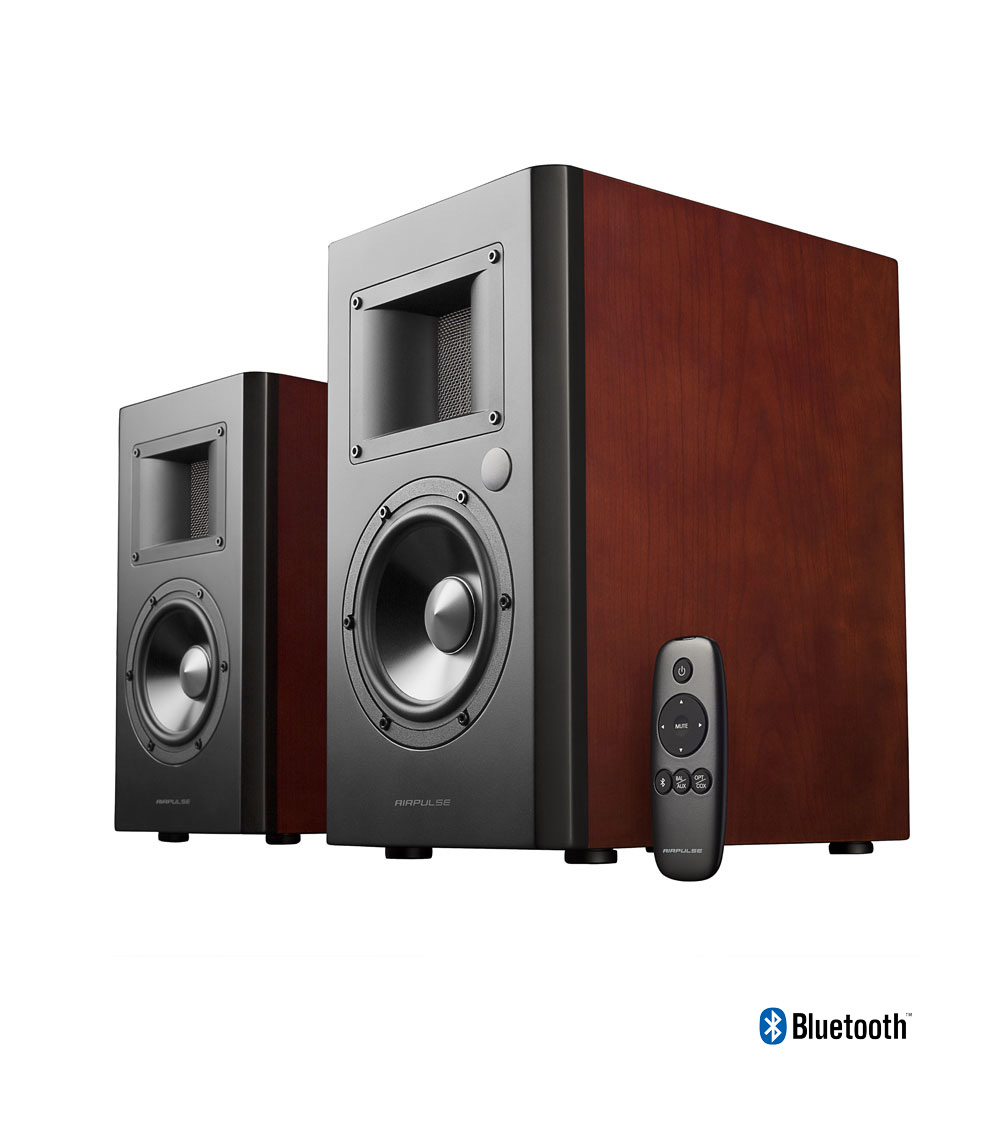

Introducing the Airplus Active Speaker System A-200

The Airplus Active Speaker System A-200 is the perfect solution for all your audio needs. With its powerful sound and sleek design, this speaker system is perfect for any home or office. The estimated price of the A-200 is $299, making it an affordable option for high-quality audio. The launching date is set for May 1, 2023.

Specifications

• Power Output: L/R Ribbon Tweeter: 10W+10W
  • L/R Mid-Range: 55W + 55W
• Signal-Noise Ratio dB(A): ≥90dB(A)
• Input Interface: AUX, Balance Input, Optical, Coaxial, Bluetooth
• Input Sensitivity: Balance Input: 1000±50mV
  • Aux Input: 550±50mV
  • Bluetooth Input: 1000±50mFFs
  • Optical Input: 350±50mFFs
  • Coaxial Input: 350±50mFFs
• Noise Level: ≤25dB(A)
• Frequency Response: 46Hz~20KHz
• Tweeter: Phase Correction Horn Loaded Ribbon Tweeter
• Mid-Woofer: 5.5" Aluminum Cone Neo Power Mid-Woofer
• Cabinet Size (WxHxD): 230 x 355 x 295 (mm)
• Net Weight: 19 Kg/Set

Inside the Box

Box Contents of Airplus Active Speaker System A-200

Speaker Controls

1. Master volume control/ input selection Press in to navigate between audio sources: BAL->AUX->Optical->Coaxial->Bluetooth. Note: Press and hold the Master volume control to disconnect from Bluetooth devices
2. Bass
3. Treble
4. Balanced input port
5. AC input
6. Auxiliary input socket
7. Optical input socket
8. Coaxial input socket
9. Left speaker output
10. On/Off  Switch
11. Speaker input
12. LED indicator
    • Red: Optical/Coaxial mode
    • Green: BAL/AUX mode
    •  Blue: Bluetooth mode

Product Details

The Airplus Active Speaker System A-200 is a 2.1 channel speaker system with a total output power of 120W. It features two satellite speakers and one subwoofer, providing clear and crisp sound. The system also has Bluetooth connectivity, making it easy to connect to your phone, tablet, or computer. Additionally, the A-200 has multiple input options, including USB, AUX, and optical, giving you the flexibility to connect a variety of devices.

Airplus Active Speaker System A-200 Remote Control

1. IR Window
2. Power On
3. Master Volume Control
4. Mute
5. Optical/Coaxial mode
6. BAL/AUX mode
7. Bluetooth mode

How to change battery: Insert a coin into the slot and rotate anti-clockwise to open the battery compartment, install the new CR 2025 battery (electrode + upturned) and rotate the cover clockwise to close the compartment.

WARNING

1. Do not expose the remote control to extreme heat or humidity.
2. Do not charge the batteries.
3. Remove the batteries when not in use for an extended period of time.
4. Do not expose the battery to excessive heat such as direct sun, fire, etc.
5. Do not ingest battery, chemical burn hazard (The remote control supplied with)This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
6. Keep new and used batteries away from children, if the battery compartment does not close securely, stop using the product and keep it away from children.
7. If you think batteries might have been swallowed or placed inside any part of body, seek immediate medical attention.

Connections

Balance and AUX Input Airplus Active Speaker System A-200

1. Press master volume control on active speaker or press the “BAL/AUX” key on the remote control to select AUX audio source, LED indicator turns to green.
2. Connect BAL/AUX input port on active speaker to your audio source (cellphone, mp3, mp4 player etc) using the included RCA-RCA audio cable.
3. Touch play on your device and adjust the volume to a desired level.

Optical and Coaxial Input

1. Press the master volume control on the active speaker or press the “OPT/COX” button on the remote control to select the optical/coaxial input.
2. Using optical or coaxial cable (optical cable included) to connect audio sources to your speaker.
3. Play from your devices and adjust the volume accordingly.

Note: In optical and coaxial modes, only PCM signal with 44.1KHz/48KHz/96KHz/192KHz can be decoded.

Airplus Active Speaker System A-200 Bluetooth Input

1. Turn on speaker and switch to Bluetooth mode by pressing the Bluetooth button on the remote control or press the master volume control on back panel of the active speaker.
2. Go to setup section on your source devices (mobile phones, tablets, etc.) and search for nearby Bluetooth devices, you will find “AIRPULSE A-200” in the list.
3. Pair your device with “AIRPULSE A-200”.
4. Play audio tracks on your device and adjust the volume to a desired level.
   Other operations
5. After pairing, using the pair record on your source device to re-connect to the speaker;
6. Bluetooth of the product will be powered off after switching away from Bluetooth mode, so in other audio mode Bluetooth connection can not be made.
7. When switch to Bluetooth mode, the speaker will try to connect the last connected Bluetooth source device.
8. To disconnect Bluetooth, press and hold the master volume control for about 2 seconds.

Note:

1. Bluetooth connectivity and compatibility may be different among different source devices, depending on the software versions of source devices.
2. To enjoy the full Bluetooth functions of this product, please ensure your mobile device supports A2DP and AVRCP profile.
3. PIN code for connection is “0000” if needed.

Important Safety Instruction

Thank you for purchasing AIRPULSE A-200 Active speakers. Please read this manual carefully before operating this system.

WARNING: To reduce risk of fire or electric shock, do not expose this apparatus to rain or moisture.

DANGER: The lightning flash with arrowhead inside the triangle, is intended to alert the user to the presence of un-insulated dangerous voltage within the product's enclosure that may be of a sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION: To prevent the risk of electric shock, do not remove cover (or back). No user-serviceable Parts inside. Refer servicing to qualified Service personnel only.

WARNING: The exclamation point inside the triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

1. Read these instructions.
2. Keep these instructions..
3. Heed all warnings.
4. Follow all instructions
5. Clean only with dry cloth.
6. Do not use this speaker near water and never put this speaker into liquids or allow liquids to drip or spill onto it.
7. Do not place appliance filled with water on this speaker, such as vase; nor place any form of open fire such as lit candle.
8. Do not block any ventilation openings. Please leave enough space around the speakers to keep good ventilation (the distance should be above 5cm). Install in accordance with the manufacturer’s instructions.
9. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
10. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
11. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the speaker.
12. Only use attachments/accessories specified by the manufacturer.
13. Unplug this speaker during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the speaker has been damage in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the speaker, the speaker has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.
16.  Do not use strong acid, strong alkali and other chemical solvents to clean the product surface. Please use neutral solvent or water to clean the product.
17. A warning that an apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connection.
18. For apparatus containing a USER-replaceable  COIN/BUTTON CELL BATTERY, the following text or equivalent.

Usage Purpose

The Airplus Active Speaker System A-200 is perfect for a variety of uses. Whether you're listening to music, watching movies, or playing video games, the A-200 provides high-quality sound that will enhance your experience. Its sleek design makes it a great addition to any home or office, and its compact size makes it easy to move and transport.

Troubleshooting of Airplus Active Speaker System A-200

Pros & Cons

Pros

• Powerful sound with a total output power of 120W
• Bluetooth connectivity for easy device pairing
• Multiple input options, including USB, AUX, and optical
• Sleek and compact design
• Affordable price point

Cons

• May not provide enough bass for some users
• No remote control included

Customer Reviews

Customers love the Airplus Active Speaker System A-200 for its powerful sound and sleek design. Many have commented on how easy it is to set up and use, and how it has improved their audio experience. However, some have noted that the bass could be stronger and that a remote control would be a nice addition.
