Setup: Airtight 12V Mini Tire Inflator User Manual

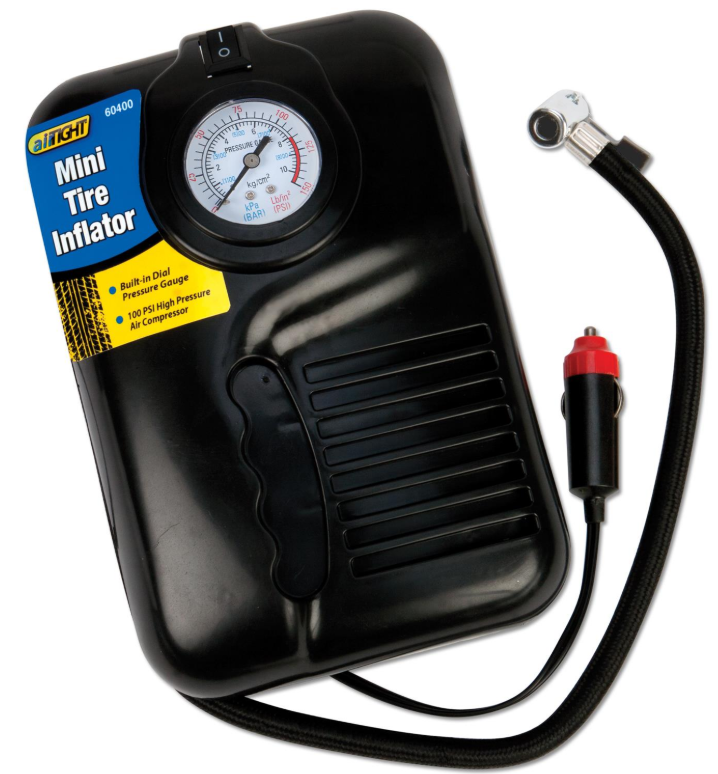

 Airtight 12V Mini Tire Inflator

Introduction

The airtight 12V Mini Tire Inflator is a compact, portable solution designed to quickly and efficiently inflate car, SUV, bicycle, and light truck tires. This mini air compressor leverages a standard 12V DC power source—typically your vehicle's cigarette lighter port—making it ideal for emergency roadside tire inflation and everyday maintenance. Its small size and lightweight construction allow easy storage in glove compartments or trunks, ensuring you’re always prepared for unexpected low tire pressure.

Key benefits include fast inflation times, precise pressure monitoring via built-in gauges, and versatile nozzle adapters to accommodate various tire valves and inflatables like sports balls or pool toys. The product is especially valuable for commuters, RV owners, cyclists, and outdoor enthusiasts who require a reliable, easy-to-use tire inflator that fits in small spaces.

Prices for quality airtight 12V mini tire inflators typically range from $25 to $80, depending on features such as digital pressure gauges, hose length, and included accessories. Widely available through automotive retailers, online marketplaces, and specialty stores, these inflators offer an affordable, convenient solution for tire maintenance and emergency preparedness.

FEATURES

• Dial Pressure Gauge
• On/Off Switch
• Storage Compartment
• Air Accessories Include: Sports Ball Needle, Raft & Toy Inflator Nozzles, Presta Valve Adapter
• 17.5” Air Hose
• 9 Ft. Power Cord with 12V Power Cord - Plugs into any 12V vehicle power outlet: Input 12V with 15A fuse

OPERATING INSTRUCTIONS - TIRES

1. Confirm that the power switch on the inflator is in the “O” (OFF) position.
2. Remove the valve cap from the stem.
3. Attach the universal adapter from the inflator to the valve stem with the lever in the up position. Be sure to press the universal adapter down over the valve stem threads completely. When the universal adapter is firmly in place, press the locking lever down to lock onto the valve stem.
4. Plug the power cord into a 12V DC power outlet. WARNING: For use with any 12V DC  power outlet rated 15-amps or higher. Do NOT use with older 8-Amp cigarette lighter receptacles.
5. Turn the inflator power switch to the “I” (ON)  position and inflate to the manufacturer’s recommended air pressure.
6. Once the desired pressure is reached, turn the power switch to the “O” (OFF) position.
7. Unplug the power cord from the 12V DC power outlet.
8. Remove the universal connector from the tire valve.
   When inflating truck or trailer tires requiring pressure greater than 50 psi, it is recommended that the tire be deflated manually to 40 psi or less before beginning inflation. This operation allows the inflator to gradually reach the desired pressure and prevents the inflator’s pump from stalling.

OPERATING INSTRUCTIONS - INFLATABLES

1. Confirm that the power switch on the inflator is in the “O” (OFF) position.
2. To use the inflation accessories, snap either piece into the universal adapter and push the lever to lock into place. The inflation accessory will fit securely.
3. Plug the power cord into a 1A 2V DC power outlet.
   WARNING: For use with any 12V DC power outlet rated 15-amps or higher. Do NOT use with older 8-Amp cigarette lighter receptacles.
4. Insert the appropriate inflation accessory into the inflatable object (tire, football, raft, etc.).
5. Turn the inflator power switch to the “I” (ON) position and inflate to the manufacturer’s recommended air pressure.
6. When the object is firm, turn the power switch to the “O” (OFF) position. DO NOT OVERINFLATE OBJECTS.
7. Unplug the power cord from 1the 2V DC power outlet.

TROUBLE SHOOTING

INFLATOR DOES NOT WORK WHEN SWITCHED TO “ON”

• The power cord may not be plugged in completely. Check the connection.
• Check the vehicle power outlet and power plug terminals for dirt. Use a non-conductive probe, not fingers or metal, to clean.
• Check the vehicle power outlet fuse, which should be a minimum of 15 Amps.
• Fuse may have blown. Check the fuse in the power plug adaptor and replace it if necessary with one of the same amperage. NEVER replace a blown fuse with a fuse having a higher rating.

UNIT IS RUNNING BUT THE TIRE IS NOT INFLATING

• Check that the air hose connector is attached properly to the tire valve stem.
• Check for tire leaks or damage, and check the air hose for breaks and leaks at fittings.

INFLATOR FEELS HOT OR RUNS SLOWLY

• The unit may have overheated. Shut the unit off and allow it to cool for 20-25 minutes.
• NEVER use this inflator for more than 10 minutes continuously.
• Voltage may be too low. Check the condition of the vehicle battery.

Technical Specifications and Features of the Airtight 12V Mini Tire Inflator

• Power Source: 12V DC via vehicle cigarette lighter socket
• Maximum Pressure: Typically up to 50-150 PSI, suitable for cars, SUVs, and light trucks
• Inflation Speed: Approximately 6 minutes to inflate a standard car tire from flat to full (varies by model)
• Pressure Gauge: Built-in analog or digital dial for accurate pressure readings
• Air Hose Length: Ranges from 1 to 17 feet, allowing easy access to all tires without moving the inflator
• Size and Weight: Compact dimensions around 6.5 x 2.4 x 5.3 inches; lightweight between 1.5 to 2 pounds for portability
• Included Accessories: Multiple nozzle adapters, including needle tips for sports balls and plastic tips for inflatables
• Additional Features: Some models feature built-in LED lights for night-time use and thermal protection to prevent overheating

Compared to similar products, the airtight 12V mini tire inflator offers competitive inflation speeds and sufficient PSI limits for most passenger vehicles, with a balance of portability and power. Models like the Lifeline AAA Mini Inflator provide a maximum of 50 PSI and convenient cord storage, while others, such as the Slime Pro Power Compact Inflator, offer higher PSI and longer hoses for extended reach

Pros & Cons of the Airtight 12V Mini Tire Inflator

Pros

• Portability: Small size and lightweight design make it easy to carry and store in vehicles.
• Ease of Use: Simple plug-and-play operation with straightforward pressure gauges and quick inflation.
• Versatility: Includes multiple adapters suitable for tires, sports balls, and inflatables.
• Affordability: Offers excellent value for money compared to larger, more expensive air compressors.
• Emergency Ready: Ideal for roadside tire inflation and minor repairs without professional help.

Cons

• Limited PSI Capacity: Some models max out at 50 PSI, which may not be sufficient for larger truck tires.
• Inflation Time: While generally fast, inflation can take up to 6 minutes or more for a fully flat tire.
• Power Cord Reach: The cable length may restrict access to all tires on larger vehicles unless repositioned.
• Gauge Accuracy: Analog gauges may have a margin of error (3-4 PSI), so digital options are preferred for precision.

When compared with alternatives such as cordless battery-powered inflators, the airtight 12V mini tire inflator relies on vehicle power but typically costs less and has fewer maintenance needs. However, inflation speed and portability trade-offs exist between corded and cordless options.

Customer Reviews and Feedback on the Airtight 12V Mini Tire Inflator

Users consistently praise the airtight 12V Mini Tire Inflator for its compactness and reliability in emergencies. Many highlight how the device easily fits in their car and inflates tires promptly, providing peace of mind during unexpected flats. The built-in pressure gauge and included adapters receive positive comments for simplifying inflation across different uses.

Common complaints include limited cord length, which can make reaching all tires inconvenient on larger vehicles, and occasional minor inaccuracies in pressure readings, especially on analog models. Some users note that inflation from fully flat tires can take longer than expected, but agree it is acceptable given the device's size and portability.

Overall, the product maintains an average rating of 4 to 4.5 stars, with recommendations for anyone seeking a budget-friendly, compact tire inflator suitable for everyday use and emergencies.s
