Introduction

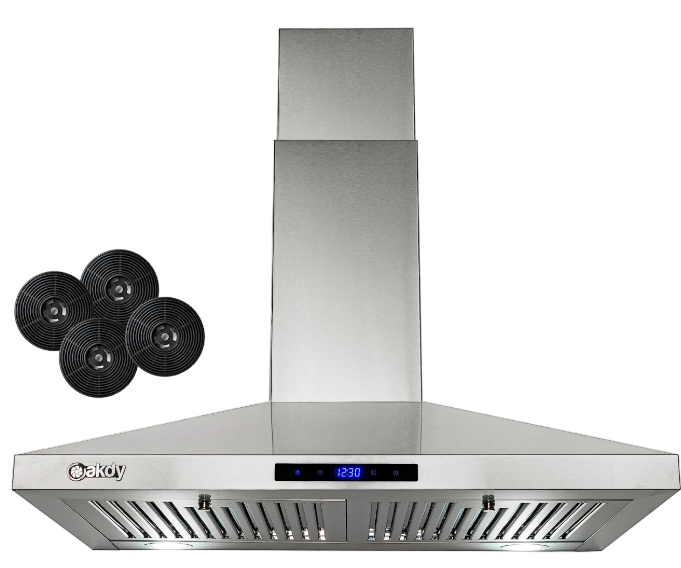

The Akdy Stainless Steel Range Hood ATOP001 is a sleek and functional addition to any modern kitchen. Designed with durability and efficiency in mind, this range hood is made from high-quality stainless steel that resists corrosion and maintains its shine over time. The ATOP001 model is intended to provide effective ventilation, capturing cooking fumes, grease, and moisture to keep your kitchen clean and fresh.

This range hood is equipped with powerful motors that ensure robust airflow, making it suitable for both residential and commercial use. With its contemporary design, it complements various kitchen styles, adding a touch of sophistication and elegance. The estimated price of the Akdy Stainless Steel Range Hood ATOP001 falls in the mid-to-high range, typically between $300 to $500, depending on the retailer and any additional features or accessories.

The product was launched in recent years, making it a relatively new but highly sought-after option in the market. Its popularity stems from its performance, design, and the brand's reputation for producing high-quality kitchen appliances.

Important Safety  Instructions

• WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, READ THE FOLLOWING:
• Use this unit only in the manner intended by the manufacturer. If you have a question, please contact the manufacturer.
• Before servicing or cleaning the unit, switch the power off and lock the service panel. This will prevent the power from accidentally turning on. If the service panel does not lock, secure a warning label, such as a tag, to the service panel.• Installation work and electrical wiring must be done by a qualified professional(s) in accordance with all applicable codes, standards, and fire-rated constructions
• Do not operate any fans with a damaged cord or plug. Discard the fan or return to an authorized service facility for further examination and/or repair.
• To prevent backdraft, sufficient air is needed for proper combustion. Gas from fuel-burning equipment needs to be exhausted through the flue (chimney). Follow the heating equipment manufacturer's guidelines and safety standards,,s such as those published by the National F.. Fire.
• Protection Association (NFPA), the American Society for Heating, Refrigeration, Ventilation, and Air Conditioning
• Engineers (ASHRAE), and the local code authorities.
• When cutting or drilling into walls or ceilings, be aware of electrical wires, piping, and other utilities.
• Ducted fans must always be vented outdoors.
• CAUTION: For general ventilation use only. Do not use too exhaust hazardous or explosive materials and vapors.
• CAUTION: To reduce the risk of fire and properly exhaust air, be sure to duct air outside - DO NOT vent exhaust air into attics, crawl spaces, garages, or within walls and ceilings.
• WARNING: TO REDUCE THE RISK OF A RANGETOP GREASE FIRE, READ THE FOLLOWING:
• Never leave surface units unattended at high settings. Boil-over can cause smoke and grease to spill over, which may ignite. Heat oils slowly on low or medium settings.
• Always turn the hood ON when cooking at high heat or when flambéing food (i.e.,, Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
• Clean ventilation fans frequently. Grease should not be allowed to accumulate on the fan or filter.
• Use the proper pan size. Always use cookware appropriate for the size of the surface element.WARNING: TO REDUCE THE RISK OF INJURY. IN THE EVENT OF A RANGE TOP GREASE FIRE, READ

The Following:

• SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately , EVACUATE AND CALL THE FIRE DEPARTMENT.
• NEVER PICK UP A FLAMING PAN - you may be burned.
• DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
• Use an extinguisher ONLY if:
• You know you have a class ABC extinguisher, and you already know how to operate it.
• The fire is small and contained in the area where it started.
• The fire department is being called.
• You can fight the fire with your back to an exit.
• Based on "Kitchen Fire Safety Tips" published by NFPA.
• WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.
• Your safety and the safety of others are very important.
• We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
• This is the safety alert symbol.
• This symbol alerts you to potential hazards that can kill or hurt you and others.
• All safety messages will follow the safety alert symbol and either the word "DANGER" or “WARNING.”
• These words mean:
• DANGER
  You can be killed or seriously injured if you don't immediately follow instructions.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
2.  Before servicing or cleaning the unit, switch the power off at the service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service didisconnectingeans cannot be locked; securely fasten a prominent warning device, such as a
3. tag, to the service panel.
4.  Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
5. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel-burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guidelines and safety standards, such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
6. When cutting or drilling into the wall or ceiling, do not damage electrical wiring and other hidden utilities.
7.  Ducted fans must always be vented to the outdoors.
8. Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit (ceiling installation only).
9. This unit must be grounded.

CAUTION

1. For general ventilating use only. Do not use it to exhaust hazardous or explosive materials and vapors.
2. This product can be installed on a wall if mounted 8-ft. or more above the floor.
3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc., off the over unit.
4. Please read the specification label on the product for further information and requirements.

 Cleaning & Maintenance

Cleaning Mesh or Baffle Filters
Mesh and baffle filters can be cleaned with regular household dishwashing soap and hot water. Please wear gloves while cleaning filters to protect against scrapes or cuts. Exercise caution around sharp metal edges and corners.
Ingredients

• Very hot or boiling water
•  Dishwashing soap or degreaser
• Baking soda
• Non-abrasive scrubbing  brush or pad
• Dishcloth or paper towels

DetailedSpecifications

• Material: High-quality stainless steel
• Motor Power: 2x 60W motors for dual fan operation
• Airflow Rate: Up to 400 CFM (cubic feet per minute)
  • 3-speed push-button control
  • LED lights for illumination
  • 30 inches wide, 18 inches deep, and 10 inches high
  • Stainless steel baffle filters, dishwasher safe

Instructions

1. Remove the Filters from the Hood: Using the included latch (on mesh filters only), remove them from underneath the range hood.
2. Fill Your Sink with Hot or Boiling Water: Hot water will help dissolve hard grease and oil built up on the filters.
3. Add Dishwashing Soap or Degreaser: Pour in a generous amount of cleaning solution and make sure it is completely dissolved in the water.
4. Add Baking Soda: Pour in baking soda into the solution,
5. Soak Mesh Filters: Place your filters into the solution and let them soak for up to 30 minutes.
6. Scrub the Filters: After soaking, take a scrubbing brush or pad to further remove grease and oil.
7. Rinse and Let Dry: Thoroughly rinse with clean water and let them dry with a cloth or paper towels.
8. Reinstall the Filters: Carefully reinstall the metal filters once fully dry.

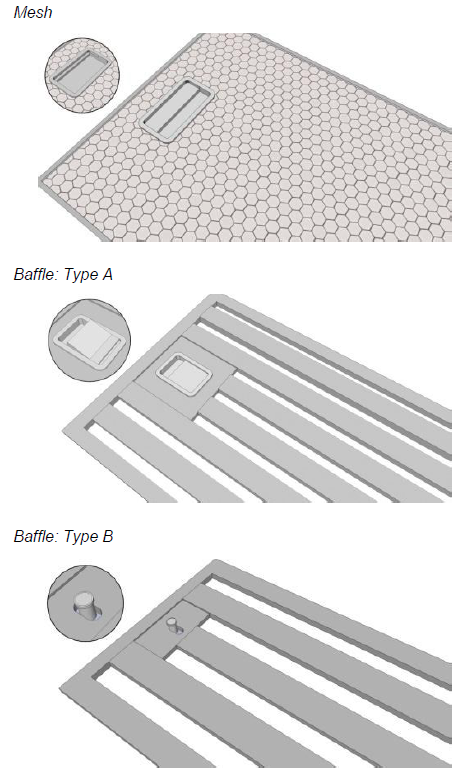

Types of Metal Filters

Interior Range Hood Cleaning
The unit must be turned off before being cleaned. Also,, avoid spraying cleaner directly onto the light bulb or light bulb socket. You can clean the interior of the vent hood with a standard household degreaser/cleaner and a sponge or rag; it will probably get quite dirty, so make sure to use something that you don't mind throwing away afterward.

Exterior Oven Vent Cleaning
The exterior of a vent hood may also be cleaned with a standard household degreaser/cleaner or a non-abrasive cleanser. Since exterior range hood cleaning is a lot easier to do, you may want to incorporate it into your daily or weekly cleaning routine. If your vent hoods have never been cleaned, you may want to call in a professional to do the job the first time, as it is very likely that it will be pretty messy.

AKDY Island Mount Range Hood: Type A (L-Brackets)

Installation Steps

For best results, please watch our accompanying installation video on YouTube: https://www.youtube.com/watch?v=0rD9pmHi7R.g.

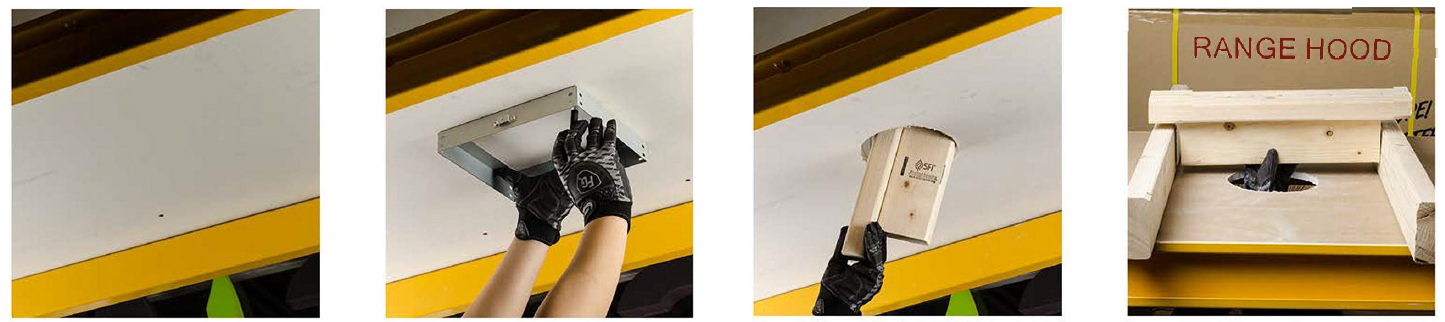

1. Begin by locating the area of the ceiling where the island mount range hood will be installed at.
2. Take the included ceiling plate and mark the location by tracing along the inside.
3. Using a rotary tool, cut a six-inch round hole through the ceiling (only if required). Insert 2x4 wood supports into the ceiling. 2x45 will be used to create a ceiling support system to secure the island hoodwhere studs are not available.

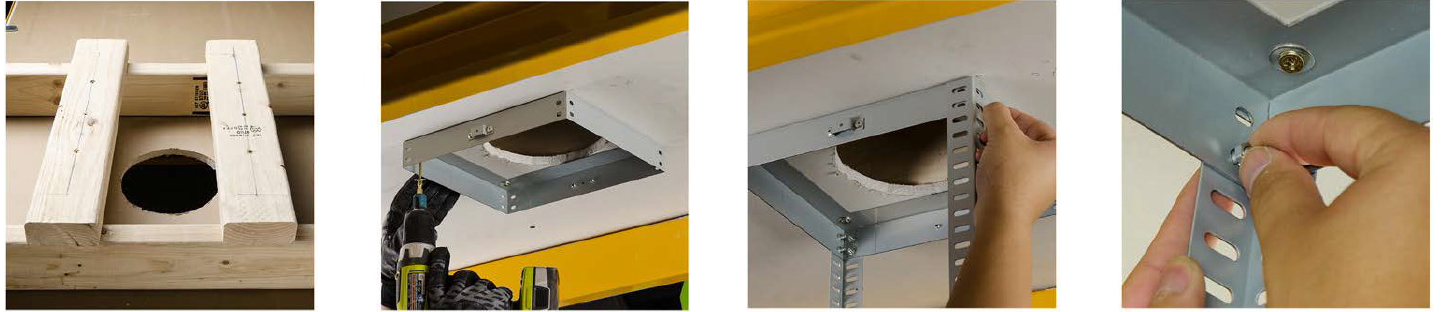

4. Arrange the 2x4s as shown. Two L-shaped pieces should be placed across from each other. T-shaped pieces are added next to form a square base around the perimeter of the exhaust hole. You may need roof access.s



5. The T-shaped 2x4s should align and meet above the holes for the ceiling plate.
6. Using the included hardware, secure the ceiling plate to the wooden support created earlier. Ensure the screws are fastened into the 2x4s.

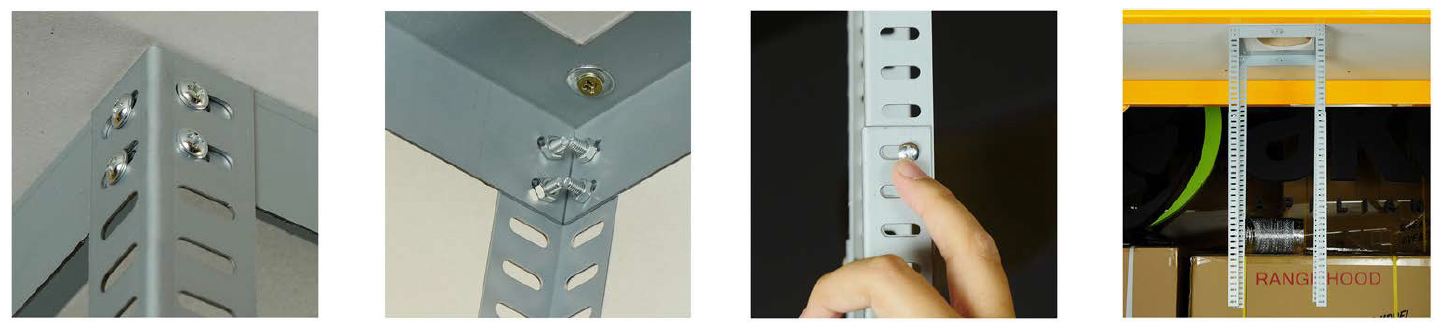

7. Take the included L-brackets and position them into place.

8. As needed, use an additional screwdriver to fasten the L-bracket.



9. Each L-bracket requires 4 screws and nuts for every corner.
10. Once the initial 4 L-brackets are installed, proceed with the remaining L-brackets. You may need to measure and adjust the dropdown length depending on our kitchen. en
11. As needed, use an additional screwdriver to fasten the L-bracket.

12. The completed support frame will look as pictured.

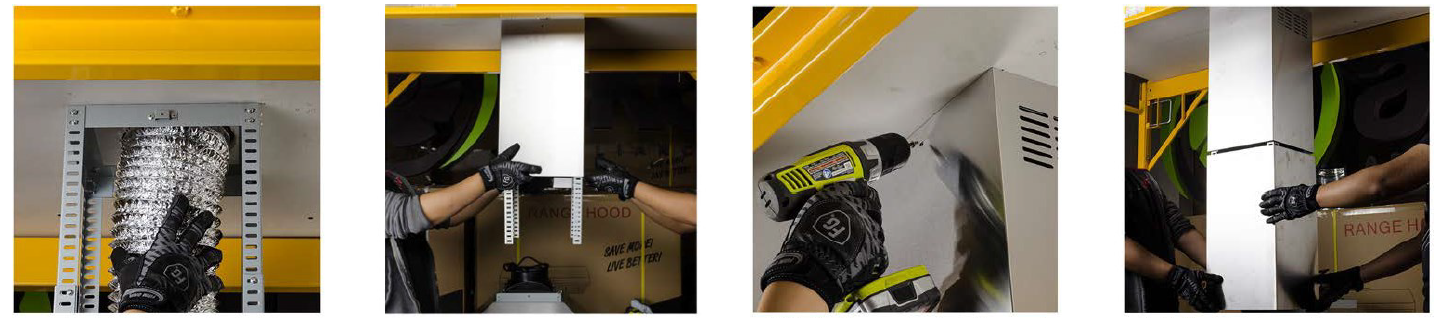

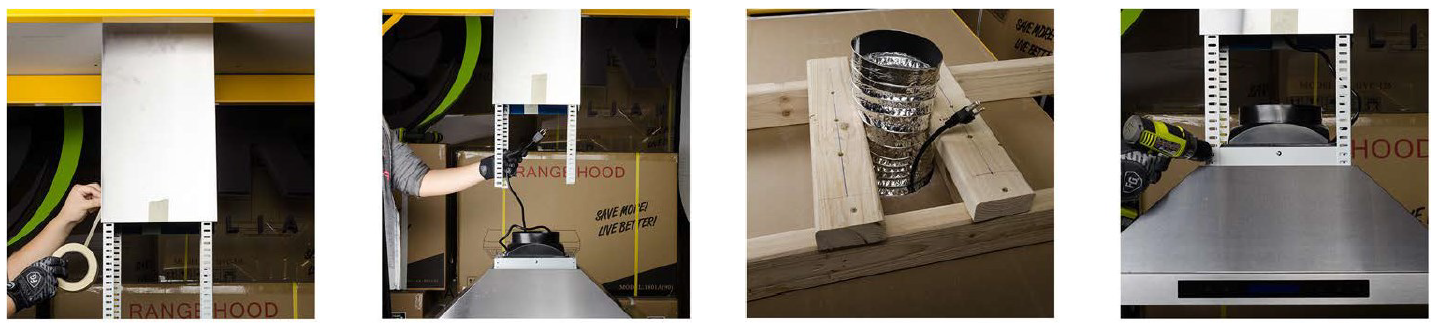

13. Using the included duct pipe, insert it through the hole in the ceiling and connect it to your existing ductwork applicable  ). You may need roof access.
14. Insert the inner chimney cover over the support system, followed by the outer chimney. You may require an extra set of hands for this step. Note the location of thescrew hole on the ceiling plate and the corresponding maybe requirede a hole in the inner chimney cover.

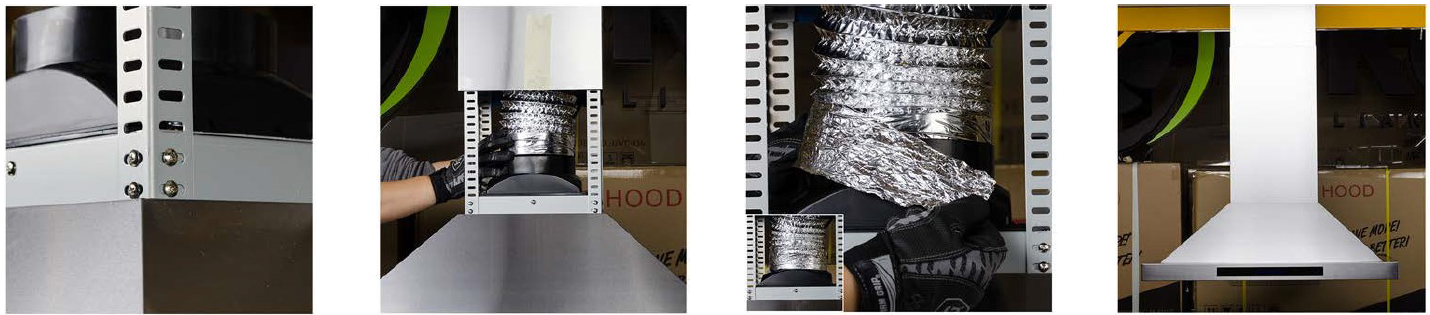

15. Position the range hood onto the support frame.

16. Use the included screws to secure the main unit to the support frame. You may require an extra set of hands for this step.



17. As pictured, each corner uses 4 screws to secure the main unit to the support frame.e
18. Connect the duct to the damper/airflapper on the main unit.
19. Secure the duct to the damper/air flapper with HVAC foil tape (as pictured) or ducttapee

20. Feed the power cord through the ceiling hole.



21. Take the inner chimney cover and slide it up flush with the ceiling plate.
22. Secure the inner chimney cover to the ceiling plate with the included screws.
23. Plug in the power cord to the outlet in the ceiling. If no outlet is available, one will need to be installed. The outlet can also be installed outside of the ceiling, but a modification to the inner chimney will be required to accommodate the power cord.

24. Make any necessary adjustments to the wooden supports and studs to ensure it is rigid and strong.

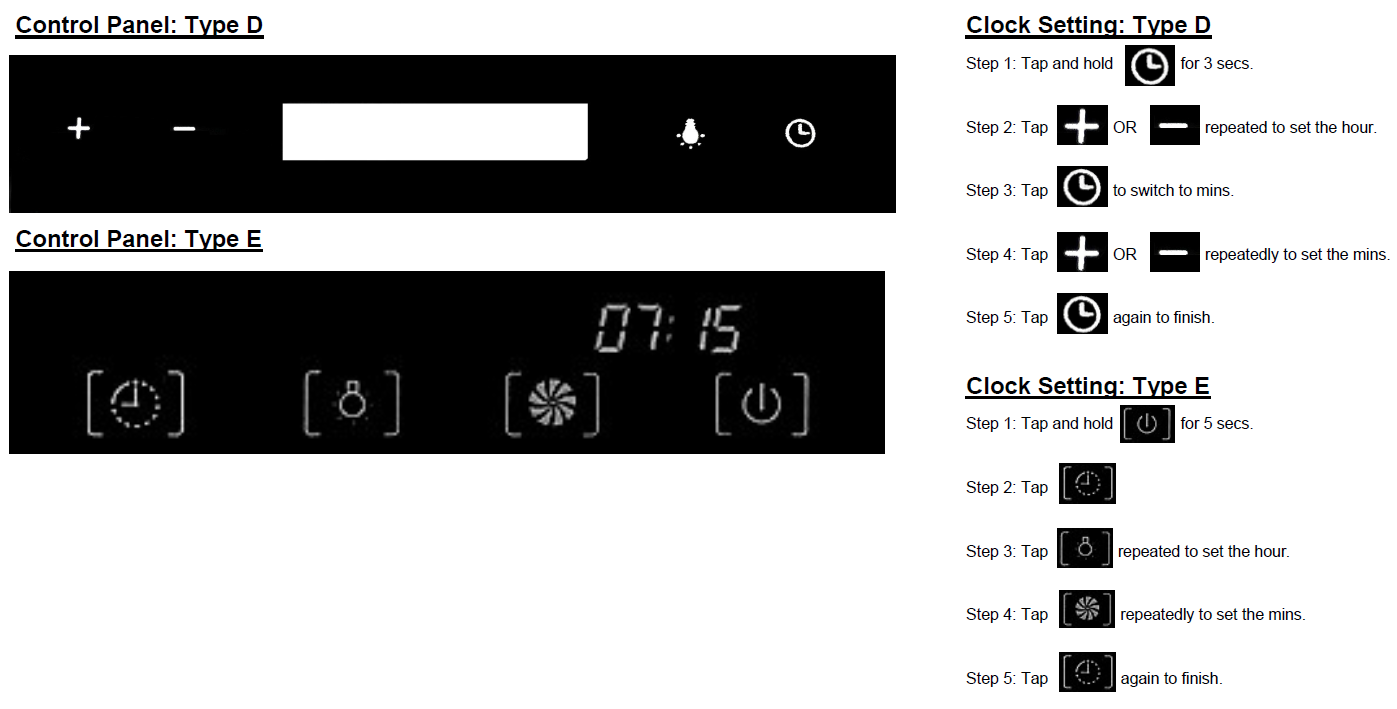

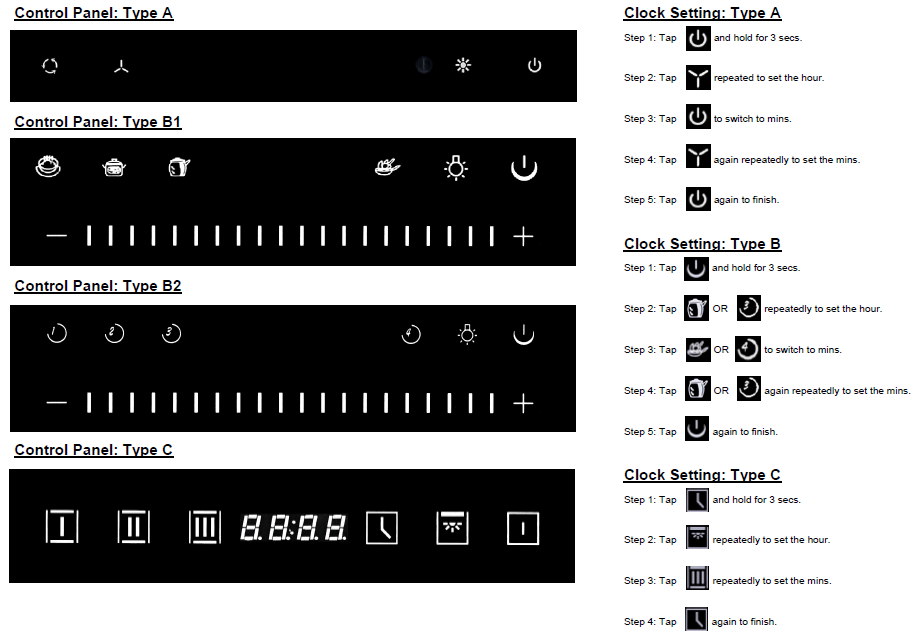

Adjusting the Clock

 Return & Warranty

• We thank you for your purchase. If you are not satisfied with your purchase or have an issue with our product, please kindly let us know. Our full returns policy is outlined below. Carefully read over our terms before contacting us. If you have questions, our customer service team can be reached at: +1 (626) 321-9834 or support@shoprangehoods.com.
• For 1-3 years from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, ShopRangeHoods.com will pay for Factory Specified Parts. This limited warranty is valid only in the United States or
• Canada and applies only when the major appliance is used in the country in which it was purchased. Outside the United States and Canada, this limited warranty is null and void. Proof of original purchase date is required to obtain service under this limited warranty.
• DISCLAIMER OF IMPLIED WARRANTIES: LIMITATION OF REMEDIES
• CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED
• TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. SHOPRANGE-HOODS.COM SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
• CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU
• MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Manufacturers Warranty

• ShopRangeHoods.com provides a 3-year limited parts warranty for all range hoods, and a 1-year limited parts warranty for all bathtubs, tub fillers, kitchen sinks, kitchen sinks, shower heads, shower wands, and shower panels. Under this warranty, you (the customer), entitled to replacement parts at no cost to repair and restore functionality if any part of the product were to fail. No labor is provided. Certain consumables that are not covered under this warranty include:
• Lights (halogen and LEDs)
• Carbon Filters
• Mesh or Baffle Filters
• Ducting
• The above parts are guaranteed to last one year beginning from the date of purchase. If they fail prematurely or are defective within 1 year of purchase, ShopRangeHoods.com will replace them at no charge.
• If a main unit or complete replacement has to be sent, ShopRangeHoods.com will require that the customer pay for shipping. Shipping for parts is free under the warranty period.

Return, Damages, Missing Parts

• Ground Shipments – Range Hoods, Shower Heads/Wands, Sinks, Tub Fillers
• We accept all returns within 30 days, with return shipping to be paid by the customer if the item was:
• deemed unsuitable
• the wrong size
• purchased but not used
• an accidental purchase
• buyer’s remorse
• Resolution Process for Damages or Missing Items (Ground Shipments)
  • Customer provides images of damage (mandatory)
  • Customer notifies us (ShopRangeHoods.com) of missing parts or items
  • We send a replacement unit (discretionary)
  • We send replacement parts

Customer is provided a new tracking number for the replacement or parts shipped via Ground shipping or Parcel

• Freight Shipments – Bathtubs, Oversized Range Hoods
• All bathtubs will ship via freight. Due to the large size and weight, please allow approximately 2 weeks for the item to arrive. If you have received a freight shipment, please kindly:
•  inInspector damages (ex, cracks, chips, etc.)
• Inspect for missing parts or items part of a bundle
• Resolution Process for Damages or Missing Items (Freight Shipments)
  • Customer provides images of damage (mandatory)
  • Customer notifies us (ShopRangeHoods.com) of missing parts or items
  • We send a replacement unit (discretionary)
  • We send replacement parts
• Customer is provided a new tracking number via our 3r3rd-partyTL carrier for the replacement or parts
• If the customer contacts us after the 30-day window for a return, ShopRangeHoods.com will require a 15-40% restocking fee to be applied to the return, depending on the condition of the item and the number of days passed the standard 30-day window. If
• Shipping damage is noticeable upon arrival. Please immediately reject the package, take pictures of the damage, and contact customer support for assistance.
• If the item is delivered and arrives damaged, we will either send a replacement and take back the damaged item, or send parts to repair the item,, depending on the severity of the damage. A full replacement will be issued only at our discretion. Under certain authorized vendors who carry our products, shipping damage that requires a full replacement will require contacting the seller and not ShopRangeHoods.com .
• All shipping damages must be reported within 30 days of delivery. Missing or lost items must be reported within 7 days of delivery. The customer must also notify the local authorities to obtain a police report if the tracking information shows the item as being delivered, but not received. A replacement part or unit will be shipped out only if these rules are met. After the 30-day window for damaged items or 7 days for lost and missing packages, ShopRangeHoods.com reserves the right not to ship replacement parts or complete units. No exceptions will be made, and we will not be held responsible.

Warranty Exclusions
The included warranty is null/void and does not cover the following conditions:

1. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs, air filters ,  or water filters. Consumable parts are excluded from warranty coverage.
3. Repairs when your major appliance is used for other than normal, single-family household use or when it is used in a manner that is contrary to published user or operator instructions and/or installation instructions.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of consumables or cleaning products not approved by us.
5. Cosmetic damage, including scratches, dents, chips, , or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to us within 30 days from the date of purchase.
6. Any food loss due to refrigerator or freezer product failures.
7. Costs associated with the removal from your home of your major appliance for repairs. This major appliance is designed to be repaired in the home, and only in-home service is covered by this warranty.
8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
9. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.
10. Major appliances with original model/serial numbers that have been removed, altered,, or cannot be easily determined. This warranty is void if the factory-applied serial number has been altered or removed from your major appliance. The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

Troubleshooting

If you encounter issues with your Akdy Stainless Steel Range Hood ATOP001, here are some common problems and solutions:

• No Power: Check electrical connections and ensure the range hood is properly plugged in.
• Clean or replace the filters as necessary. Ensure ductwork is clear of obstructions.
• Replace the LED bulbs if they are dim or not functioning. Check wiring for any damage.

Always refer to the user manual for specific troubleshooting instructions and safety precautions.

Pros & Cons

Pros:

• Durable Construction: Made from high-quality stainless steel for long-lasting use.
• The dual fan system provides robust ventilation.
• Dishwasher-safe filters and easy-to-clean surface.
• Sleek and contemporary look that complements any kitchen.

Cons:

• Some users find the fans to be slightly noisy at higher speeds.
• Pricier than some other range hood models on the market.
• Requires careful installation to ensure proper function and safety.

Customer Reviews

Customers have generally praised the Akdy Stainless Steel Range Hood ATOP001 for its performance and design. Many appreciate its powerful airflow and ease of maintenance. However, some have noted that the installation process can be complex and that the fan can be noisy at higher speeds.

Common complaints include the higher price point compared to other models and the need for precise installation to avoid any issues with airflow or electrical connections.
