Amazon 6-Sheet Cross Cut Paper & Card Shredder User Manual

cover-image

Content

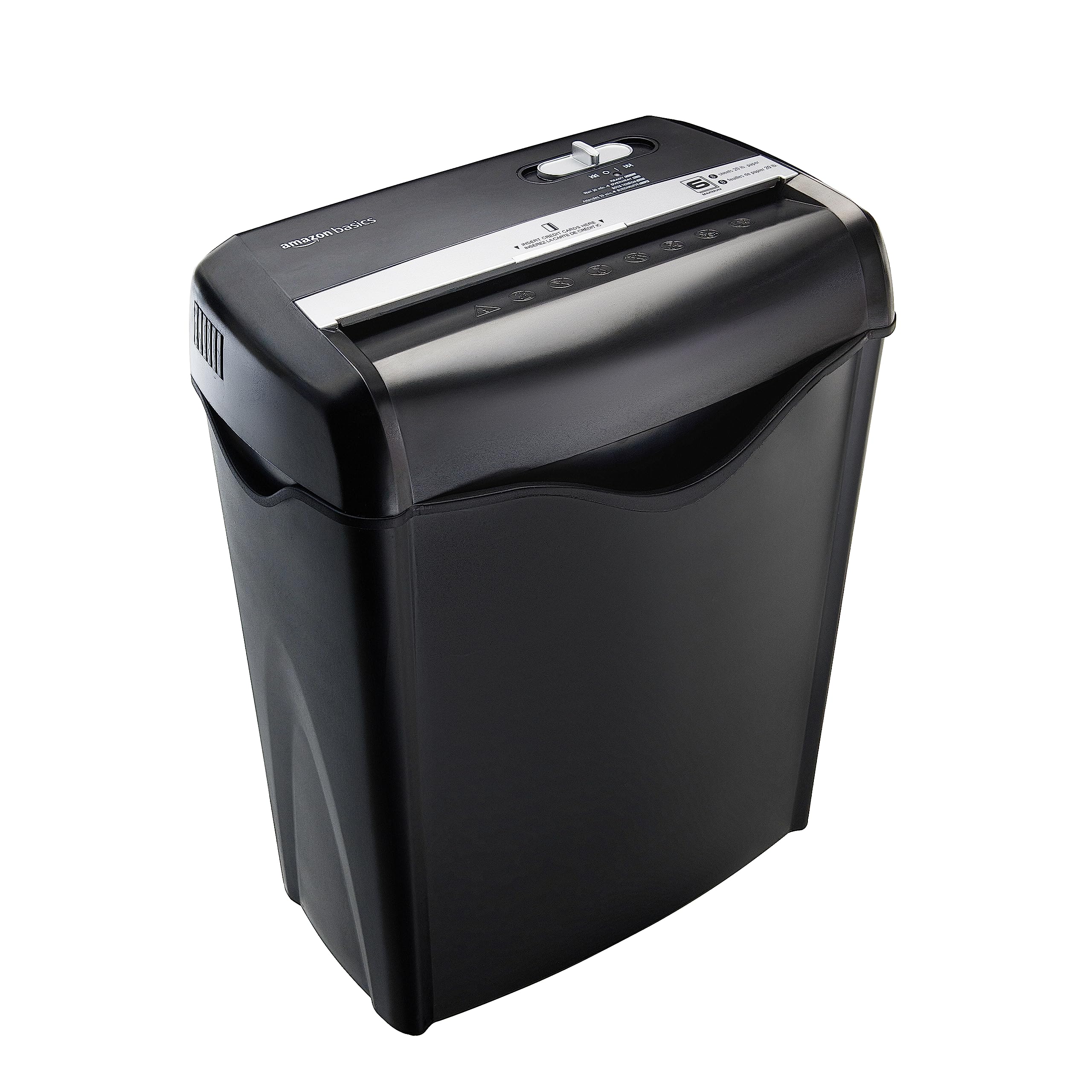

Introduction of Amazon 6-Sheet Cross Cut Paper & Card Shredder

The Amazon 6-Sheet Cross Cut Paper & Card Shredder is a powerful and efficient solution for securely destroying sensitive documents and cards. This shredder offers cross-cut capabilities, handling up to six sheets of paper at a time, ensuring peace of mind for users concerned about privacy and data protection. With an estimated price of $89.99 and its recent launch, this product is an excellent addition to any home or office.

Detailed Specifications

Key features of the Amazon 6-Sheet Cross Cut Paper & Card Shredder include:

  • Cross-cut shredding technology: Capable of cutting paper into 397 particles (5/32" x 1-27/32") for enhanced security.
  • High capacity: Handles six sheets of paper in a single pass, saving time and increasing productivity.
  • Credit card shredding: Equipped with a separate slot for securely shredding credit cards, ID cards, and other small plastic items.
  • Manual reverse function: Allows for easy removal of paper jams, ensuring continuous operation.
  • Auto start/stop: Automatically starts shredding when paper is inserted and stops when the bin is full or when paper is removed.
  • Overheat and overload protection: Prevents motor damage and extends the shredder's lifespan.
  • 12-liter bin: Accommodates a large volume of shredded material, reducing the need for frequent emptying.

Installation of Amazon 6-Sheet Cross Cut

  1. This model includes a built-in safety interlock mechanism, which requires the shredder to be correctly mounted on to the included wastebasket.
    THE SHREDDER WILL NOT OPER-ATE OR FUNCTION PROPERLY UNLESS IT IS PROPERLY MOUNTED AS PICTURED.
  2. A socket-outlet should be near the equipment and be easily accessible.
  3.  Connect the power cord to any standard 220-240 volt wall AC outlet.


Caution: Crosscut shredders have very sharp exposed blades on the underside. Care should be taken while mounting the shredder on the wastebasket.

Paper & Card Shredder Operation

  1. Control Switch
    Using the switch located on the unit, select one of the following settings by sliding the switch either left or right.

    • AUTO / ON
      This setting allows the shredder to be automatically started by in-serting paper into the feed slot. Always feed the paper as straight as possible. When the paper has passed through, the shredder will automatically stop.
    • OFF
      This setting turns off all features of the shredder. For safety reasons, we recommend that you leave the shredder in the “Off” position whenever the shredder is unattended or not in use.
    • REV (REVERSE)
      In the unlikely event of a paper jam, the reverse setting can be used to help clear the cutters of paper that did not pass through. Never attempt to clear a jam by using the reverse function until you have emptied the wastebasket.
  2. LED Status Indicators


    Ready (Power On) / Overheat

    • Ready (Power On): The Green LED light indicates the shredder is “On” and ready to operate when paper is inserted.
    • Overheat: The Red LED light indicates that the shredder has shred continuously beyond the maximum running time has overheated and, the unit will automatically shut off. If this happens, switch the shredder off for 30 minutes or longer before resuming normal operation.
  3. Paper / Credit Card Entry
    • Make sure you do not exceed sheet count per pass (6 sheets  max). Insert paper as straight as possible into feed slot and release.
    • Insert one credit card at a time into the middle of the feed slot.


Note

  • Always turn off and unplug the shredder when not in use.
  • This shredder will shred staples and small paper clips. It is recommended that you remove paper clips whenever possible to extend the lifespan of your shredder.
  • Only shred credit cards by feeding them vertically i nto the middle of the feed slot, releasing when shredding begins. Never feed more than one credit card at a time.
  • Overfeeding the shredder: Shredding beyond the specified sheet capacity can result in extensive damage to the shredder. Overfeeding will strain the machine and quickly wear and break the cutting blades and internal components.
  • Overheating with extended use: In the event that the shredder has shred continuously beyond the maximum running time and overheating, the unit will automatically shut off. If this happens, switch the shredder off for 30 minutes or longer before resuming normal operation.

Important Safety Instructions

Before Using!

  1. Read all instructions carefully before installing or using the shredder.
  2. Avoid touching the feed slot with hands.
  3. Product is not intended for use by children (product is not a toy).
  4. Do not insert foreign objects into the feed slot.
  5. Do not spray or keep any aerosol products in or around the shredder.
  6. Keep loose clothing or jewelry away from the feed slot.
  7. Avoid getting hair near the feed slot.

Warning: Read Safety Instructions

  • Always turn the shredder off and unplug the power cord from the AC outlet when not in use, before cleaning, moving, or emptying the waste basket.
  • RISK OF FIRE. Never use any petroleum based or flammable oils or lubricants in or around the machine as some oils can combust causing serious injury.
  • NEVER dispose of flammable chemicals OR materials that have come into contact with flammable chemicals (for example, nail polish, acetone and gasoline) in the shredder basket.
  • Never shred large paper clips, window or insulated envelopes, continuous forms, newsprint, bound pages (for example: notepads, checkbooks, magazines, etc...), transparencies, laminated documents, cardboard, any items with adhe-sives, hard materials or plastic (except Credit Cards).
  • A socket-outlet should be near the equipment and be easily accessible.
  • Never let the waste basket become full. This will lead to shredded material being pulled back up into the shredder and cause jams.
  • Never place the shredder near water or any heat source.
  • Do not use the shredder if the power cord is damaged in any way.
  • Do not attempt to service this product yourself as doing so may expose you to sharp cutting blades and/or electricity and will void the manufacturer's warranty.
  • Never try to clean or clear the shredder blade.
  • Never shred beyond the specified sheet capacity. This may result in extensive damage to the Paper Shredder.

One Folded Sheet of Paper equals two (2) Sheets of Paper
Heavier paper, humidity or other than rated voltage may reduce shredding capacity.

SpecificationDetail
Sheet Capacity5 sheets of 80 gsm paper* 6 sheets of 70 gsm paper
Paper Shred Size7/32 in. x 1 27/32 in. pieces (5.6 mm x 47 mm pieces)
Paper Entry Width220 mm
Credit Card Capacity1 at a time
Duty Cycle2 min. on / 30 min. off
Voltage220-240V / 50-60Hz 1.0A

Amazon 6-Sheet Cross Description

The Amazon 6-Sheet Cross Cut Paper & Card Shredder is designed to cater to both personal and professional needs. It offers high-security cross-cut shredding, effectively destroying confidential documents, credit cards, and other sensitive materials. The shredder's powerful motor, combined with its ability to handle six sheets at once, makes it an ideal choice for busy home offices, small businesses, or anyone seeking a reliable shredding solution.

Setup Guide

Setting up the Amazon 6-Sheet Cross Cut Paper & Card Shredder is a straightforward process:

  1. Unbox the shredder and remove all packaging materials.
  2. Place the shredder on a stable, flat surface near a power outlet.
  3. Insert the power cord into the shredder and plug it into the outlet.
  4. Turn on the shredder by pressing the power button.
  5. Feed paper into the shredder's input slot, ensuring that sheets are aligned and not overlapping.
  6. For credit cards, use the separate slot designed for shredding small plastic items.
  7. Empty the bin when it becomes full, and ensure that the shredder is turned off before doing so.

Maintenance

Warning: Failure to maintain the shredder as per instructions provided herein will render the manufacturer’s warranty void. Oil the shredder blades every month with basic vegetable, cooking oil or shredder oil. Follow below outlined oiling procedure (FIGURE 3). It helps to keep the shredder blades operating well over many years of use.

Oiling procedure

  1. Turn off shredder.
  2. Apply shredder oil across feed slot.
  3. Turn shredder in reverse mode for 3~5 seconds.

Note: Shredder oil is NOT included.

CAUTION

  • Do not spray or keep any aerosol products in or around shredder.
  • DO NOT USE CANNED AIR ON SHREDDER.

Cleaning

  • Never use anything flammable to clean the shredder. This may result in serious injury or damage to the product.
  • ALWAYS UNPLUG THE SHREDDER BEFORE CLEANING!
  • Only clean the shredder by carefully wiping the unit with a dry soft cloth or towel.
  • Do not clean or immerse shredder in water. Having the unit wet may result in damage or malfunction to the electrical components. If the shredder happens to get wet, be sure to com-pletely dry the unit immediately with a cloth or towel, before using.

Troubleshooting

If there is a problem with your shredder, check below for the symptoms and steps to resolve. If you continue to have problems, contact customer support.

WARNING: DO NOT ATTEMPT TO REPAIR BY OPENING THE SHREDDER HEAD. This will completely render the manufacturer’s warranty void.

Shredder does not work at all

  1. Make sure the unit is plugged in and that the outlet is in good working order.
  2. Overheating with extended use: In the event that the shredder has shred continuously beyond the maximum running time and overheated, the unit will automatically shut off. If this happens, switch the shredder off for 30 minutes or longer before resuming normal operation.

  3. Make sure the shredder head is correctly seated onto the included wastebasket, with all the words and icons facing towards you. The head unit is particularly designed to work only with the integrated wastebasket. The shredder is equipped with a safety interlocking mechanism, which prevents the shredder from working when the head unit is lifted, removed, or accidentally knocked over. The shredder will not function unless the head unit is properly mounted as pictured.
  4. If using a plastic bag to line the wastebasket, please remove it. This may cause the shredder not to operate properly.
  5. The activation sensor of the shredder is located near the center of the feed slot. Be sure to feed directly into the center area to activate the machine (especially applies to smaller pieces of paper or credit cards).

Shredder runs in “Rev (Reverse)” mode but not in “Auto (On)” mode
While in “Auto” mode, the motor will not start running until paper is inserted into the feed slot. Set the unit to “Auto” and insert paper to shred. The sensor that activates the shred-der in Auto mode is located directly in the center of the slot. If the paper you are inserting is narrow, it may not be activating the optical sensor. It is also possible that the feed slot has become blocked with paper. Insert an index card or any rigid sheet of cardstock (old greeting card or folded file folder), directly in the center of the feed slot, while applying force to help push the jammed paper through. This will usually clear any paper blockage.
How to clear a paper jam in the shredder

  1. Switch the shredder to Reverse (REV) mode. While in Reverse, the shredder will back up and loosen the jammed paper. If required, you may need to tug and remove several sheets to effectively clear the machine. When jammed paper is loosened or removed, switch back to the Auto-On mode to continue shredding. Repeat above steps if needed.
  2. With stubborn situations where the reverse function does not help, you may loosen the jammed paper with shredder oil (cooking oil is acceptable, DO NOT USE AEROSOL). Start by drizzling oil into the feed slot where the paper is jammed. Let it soak for about 30 minutes to completely saturate. Return the shredder back to Auto-On mode. If required, an index card or a rigid sheet of cardstock (old greeting card or folded file folder) can be fed into the shredder to help push the jammed paper through.


Shredder is constantly running while in “Auto (On)” mode

  1. It is possible that the activation sensor, which starts the shredder, has become blocked with paper. Insert an index card or any rigid sheet of cardstock (old greeting card or folded file folder), di-rectly in the center of the feed slot, while applying force to help push the jammed paper through. This will usually clear any paper blocking the activation sensor and feed slot.
  2. The activation sensor is being triggered by dust, debris, or oil. A cotton swab may be used to clean the sensor. DO NOT USE CANNED AIR. The activation sensor of the shredder is located around the center of the feed slot.

Pros & Cons

Pros

  • High-security cross-cut shredding technology
  • Ability to shred six sheets at once
  • Credit card shredding functionality
  • Manual reverse function for easy paper jam removal
  • Auto start/stop and overload protection features

Cons

  • Not suitable for shredding large volumes of paper continuously
  • May require more frequent bin emptying compared to larger shredders

Customer Reviews and Common Complaints about Amazon 6-Sheet Cross

Customers generally praise the Amazon 6-Sheet Cross Cut Paper & Card Shredder for its performance, ease of use, and security features. However, some users have reported issues with jamming or the shredder overheating during extended use. Regular maintenance and adhering to the recommended usage guidelines can help minimize these issues.

PDF

Faqs

How to set up the Amazon 6-Sheet Cross Cut Paper & Card Shredder for first-time use?

Unpack the Amazon 6-Sheet Cross Cut Paper & Card Shredder , place it on a stable surface, plug it into an appropriate power outlet, and switch it to 'Auto' mode to begin.

How should I operate the Amazon 6-Sheet Cross Cut Paper & Card Shredder safely?

Make sure the Amazon 6-Sheet Cross Cut Paper & Card Shredder is turned off when not in use, keep your fingers away from the paper entering slot, and don't insert more sheets than the suggested amount.

How can I keep the Amazon 6-Sheet Cross Cut Paper & Card Shredder operating at peak efficiency?

Empty the waste bin before it fills up, lubricate the shredder blades on a regular basis, and refrain from shredding anything larger than is advised.

How should I use the Amazon 6-Sheet Cross Cut Paper & Card Shredder to properly shred credit cards?

If you have an Amazon 6-Sheet Cross Cut Paper & Card Shredder, insert one credit card at a time into the dedicated credit card slot, and utilise the central feed slot in "Auto" mode.

How can I unclog the paper jam in my 6-Sheet Cross Cut Paper & Card Shredder from Amazon?

After turning off and unplugging the shredder, carefully remove any extra paper, then back out the remaining paper using the reverse function.

How should the Amazon 6-Sheet Cross Cut Paper & Card Shredder's shredded waste be disposed of?

Dispose of paper and plastic from the Amazon 6-Sheet Cross Cut Paper & Card Shredder using the designated bin and the recycling regulations in your area.

Is it possible to use small paper clips and staples with the Amazon 6-Sheet Cross Cut Paper & Card Shredder?

Staples and tiny paper clips can usually be shredded by the Amazon 6-Sheet Cross Cut Paper & Card Shredder, but it's recommended to take them out to preserve the blade's sharpness.

How can the Amazon 6-Sheet Cross Cut Paper & Card Shredder be kept in optimal condition?

Operate Amazon 6-Sheet Cross Cut Paper & Card Shredder within the recommended sheet capacity, perform regular maintenance, and do not exceed the duty cycle.

What should be done if the Amazon 6-Sheet Cross Cut Paper & Card Shredder overheats?

If the Amazon 6-Sheet Cross Cut Paper & Card Shredder overheats, turn it off, unplug, and allow it to cool for the specified period before resuming operation.

If the shredder starts making strange noises while operating, how can I adjust Amazon 6-Sheet Cross Cut Paper & Card Shredder?

Unusual noises frequently point to a jam or require maintenance. Switch Amazon 6-Sheet Cross Cut Paper & Card Shredder off and check whether there are any blockages or lubrication needs.
