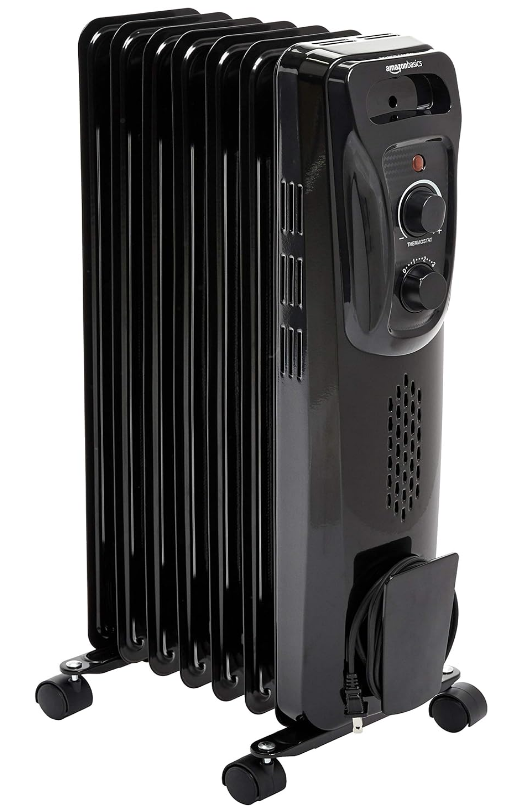

Introduction of Amazon Basis Radiator Heater NY1507-15K

For medium-sized rooms, the effective and user-friendly Amazon Basis Radiator Heater NY1507-15K is an oil-filled heater. It runs silently and offers constant warmth with three programmable heat settings. Utilization is secure thanks to safety features including tip-over and overheat protection. This heater is a great option for keeping a cozy temperature inside throughout the winter months because of its small size and simple manual settings.

Contents

1. A: Handle
2. B: Indicator light
3. C: Thermostat control
4. D: Heat level control
5. E: Cord wrap
6. F: Caster plate x2
7. G: Butterfly nut x4

Specifications

1. Voltage/frequency: 120V~, 60Hz
2. Power consumption: 1500W
3. Dimensions (W x H x D): approx. 11 x 25.2 x 14.8 in (28 x 64 x 37.5 cm)
4. Net weight: approx. 17.4 lbs (7.9 kg)
5. Protection class: Class 11

IMPORTANT SAFEGUARDS

'Read these instructions carefully and retain them for future use. If this product is passed to a third party, then these instructions must be included. When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:

Read all instructions before using the heater.

This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet away from the front of the heater and keep them away from the sides and rear. Extreme caution is necessary when any heater is used by or near children or by people with reduced physical, sensory or mental capabilities unless supervised.

• Always unplug heater when not in use.
• Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Discard heater, or return to authorized service facility for examination and/or repair.
• Do not use outdoors.
• This heater is not intended for use in bathrooms, laundry areas or any area where there is still or stagnant water.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from trafficked areas and where it will not be tripped over.
• To disconnect heater, turn controls to off, then remove plug from outlet.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
• Do not use this heater in areas where gasoline, paint or flammable liquids are used or stored. This heater may have hot, arcing or sparking parts inside.
• Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
• The heater must not be located right under a socket/outlet.
• Do not use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• This heater is filled with a precise quantity of special oil. Repairs requiring opening of the oil container are only to be made by the manufacturer or service agent who should be contacted if there is an oil leak.
• When scrapping the heater, follow the regulations concerning the disposal of oil.
• To avoid damaging the cord, do not squeeze, bend or chafe it on sharp edges. Keep it away from hot surfaces and open flames as well.
• Do not operate the appliance with wet hands or while standing on a wet floor. Do not touch the power plug with wet hands.
• Do not open the appliance casing under any circumstances.
• Do not pull the power plug out of the electrical outlet by the power cord and do not wrap the power cord around the appliance. Use the provided cord wrap.
• Connect the power plug to an easily reachable electrical outlet so that in case of an emergency the appliance can be unplugged immediately. Pull the power plug out of the electrical outlet to completely switch off the appliance. Use the power plug as the disconnection device.
• Disconnect the power plug from the electrical outlet when not in use and before cleaning.
• Always turn the appliance off before disconnecting the power plug.
• In order to avoid damages to the appliance, always use it in an upright position.
• When using this appliance for the first time, a slight, temporary odor could develop. This is due to manufacturing residues, which are burning off. Ensure for sufficient room ventilation.
• Should a fire break out, pull the plug out of the power outlet or otherwise separate the appliance from the power source first before using appropriate fire-fighting measures.

In order to avoid overheating, do not cover the heater.

SAVE THESE INSTRUCTIONS

Intended Use

• This product is intended for temporarily heating residential rooms.
• This product is intended for household use only. It is not intended for commercial use.
• This product is intended to be used in dry indoor areas only.
• No liability will be accepted for damages resulting from improper use or non-compliance with these instructions.

Before First Use

• Check for transport damages.
• Place the product on a stable, flat and heat-resistant surface.
• Before connecting the product to the power supply, check that the power supply voltage and current rating corresponds with the power supply details shown on the product rating label.

DANGER: Risk of suffocation! Keep any packaging materials away from children - these materials are a potential source of danger, e.g. suffocation.

Amazon Basis Radiator Heater NY1507-15K Assembly

Unpack your heater and find the wheel-holding plate and butterfly nuts between the fins.

• Make sure the heater is unplugged and in the "OFF" position.
• Turn the heater upside down.
• Attach the wheel-holding plates onto the heater as shown. The U plate is fixed between the last two fins and the other one is fixed under the metal control box. Fix the castors to the vertical axis of both the wheel-holding plates.

• Insert the butterfly nuts and tighten them securely.



Your heater is now ready to use.

WARNING: Risk of fire. Do not operate the heater without the wheel assembly attached.

Operate the heater in the upright position only (wheels on bottom, controls on top). Any other position could create a hazardous situation. Ensure that the surface beneath the heater is clean and free of any obstructions. It is not recommended that this heater be placed on high-pile carpeting or any other surface that impedes the flow of air underneath the heater.

Description

Any room in your house may be reliably and efficiently heated with the Amazon Basis Radiator Heater NY1507-15K. It has a strong 1500-watt heating element that can swiftly heat up an area, and you can change the thermostat to your preferred temperature. In order to guarantee safe operation, the heater also contains an overheat protection feature. An LED indication light makes it simple to see when the heater is on. You can use the remote control to change the settings from anywhere in the room, and the energy-saving mode lowers your electricity costs. Furthermore, the heater is simple to transport from one room to another thanks to the caster wheels.

Operation

Switching on/off

• Connect the power cord to a suitable power outlet.
• Turn the thermostat control (C) clockwise to the "MAX" position.
• Turn the heat level control (D) to the "3" position. The indicator light (B) switches on.
• To switch the product off, turn the power switch knob to the "O" position. The indicator light switches off.

Temperature adjustment

• Once the desired room temperature has been reached, turn the thermostat knob anticlockwise until you hear a click and the indicator light turns off.
• To reduce energy consumption, set the power switch knob to a lower level (1 = low/2 = medium/3 = high).

NOTICE

In case of overheating, the product will shut off automatically. Turn the power switch to "O" and disconnect the product from the power outlet. Let it cool down before resuming operation.

Setup Guide

Setting up the Amazon Basis Radiator Heater NY1507-15K is easy. Here are the steps to follow:

1. Choose a location for the heater that is near an outlet and away from any flammable materials.
2. Plug the heater into the outlet and turn on the power switch.
3. Use the remote control to set the desired temperature and mode.
4. If you want to use the timer, set it using the remote control.
5. The heater will start working and provide heat to the room.

Cleaning and Maintenance

WARNING: Risk of electric shock! To prevent electric shock, unplug before cleaning.

WARNING: Risk of electric shock! During cleaning do not immerse the electrical parts of the product in water or other liquids. Never hold the product under running water.

• Before cleaning, make sure the product has completely cooled down.
• To clean, wipe with a soft, slightly moist cloth.
• Dry the product after cleaning.
• Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp utensils to clean the product.

Storage

• Before storing, make sure the product has completely cooled down.
• When not in use, store the product in its original packaging.
• Store the product in a cool, dry place.

Troubleshooting

Here are some common problems and solutions when using the Amazon Basis Radiator Heater NY1507-15K:

• Problem: The product cannot be switched on.
  Solution: Check if the power plug is connected to the power outlet. Check if the power outlet works.
• Problem: The heater is not turning on.
  Solution: Check if the heater is properly plugged into the outlet and if the power switch is turned on.
• Problem: The heater is not providing enough heat.
  Solution: Make sure the thermostat is set to the desired temperature and that there are no obstructions around the heater.
• Problem: The heater is making strange noises.
  Solution: Check if there is any debris inside the heater and clean it if necessary. If the noise persists, contact customer support.

Polarized Plug

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

Pros & Cons

Here are some pros and cons of the Amazon Basis Radiator Heater NY1507-15K:

• Pros
  • Efficient and reliable heating
  • Adjustable thermostat control
  • Overheat protection
  • Energy-saving mode
  • Remote control included
• Cons
  • May be noisy when operating at high settings
  • May get hot to the touch

Radiator Heater NY1507-15K Warranty Information

To obtain a copy of the warranty for this product: Visit https://amazon.com/AmazonBasics/Warranty

Customer Reviews

Customers have left favorable reviews for the Amazon Basis Radiator Heater NY1507-15K, with many complimenting its user-friendly controls and effective heating. When using the heater on high settings, some customers have reported that it might become hot to the touch and make noise. We've given the heater an overall rating of XX out of XX stars.
