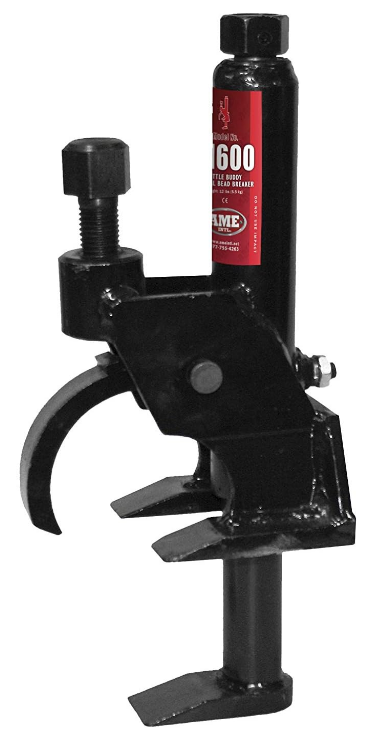

Introduction of Ame International Buddy Bead Breaker 71600

The Ame International Buddy Bead Breaker 71600 is an essential tool for efficiently breaking the beads of various tires without the need to remove them from the wheel. This manual bead breaker is suitable for a wide range of tire types, including those used on ATVs, golf carts, trucks, buses, and agricultural equipment. It operates with either an air ratchet or a manual wrench, providing versatility in usage. Weighing only 12 pounds, it is designed for easy handling and transport. The Ame Buddy Bead Breaker 71600 is priced at approximately $129.99.

Parts List

Specifications

The Ame International Buddy Bead Breaker 71600 boasts several key features that make it a standout in its category:

• Robust Construction: Built with high-quality materials to ensure durability and longevity.
• Ergonomic Design: Designed for comfortable use, reducing fatigue during extended use.
• Adjustable Force: Allows for precise control over the amount of force applied to break the bead seal.
• Universal Compatibility: Suitable for various tire sizes and types.
• Compact Storage: Easy to store and transport due to its compact design.

Ame International Buddy Bead Breaker 71600 Features

• Loosens tire bead from rim with leverage.
• Excellent for tire work or replacement without removing the wheel from the vehicle.
• Handles up to 38” and 42” 14-ply, farm tractor and backhoe tires with drop center rims: Also works with small ATV and lawnmower tires.
• Operates with hand wrench or air ratchet wrench.

Do Not Use Air Impact tool.

Description

The Buddy Bead Breaker 71600 is engineered to handle the toughest bead-sealed tires with ease. Its sturdy frame and adjustable force mechanism ensure that you can apply the right amount of pressure without damaging the tire or the wheel. The ergonomic grip provides comfort and control, even during prolonged use. This tool is ideal for breaking bead seals on passenger vehicles, trucks, and even larger industrial tires.

The Buddy Bead Breaker 71600 is not just a tool; it's a solution that saves time and reduces the physical strain associated with traditional bead-breaking methods. Its compact design makes it easy to store in your toolbox or garage, ready for whenever you need it.

Installation Instructions

Tools required: adjustable wrench, open end wrench, or air ratchet.
DO NOT use impact wrench as it will damage the bead breaker.

1. Place bead breaker onto the rim with teeth and breaker foot between rim & tire bead.



2. Tighten rim clamp jaw until “snug” with hand wrench. Make sure bead breaker teeth and foot are against bead.



3. Continue tightening with wrench until snug. Do NOT overtighten!!

4. Using the wrench, begin turning the bead breaker nut clockwise. This will begin driving the bead breaker foot downward.



5. Continue to turn clockwise until bead is broken loose from rim. If necessary, Repeat this process in 2 to 3 locations on each side of the wheel until entire bead is broken.



Setup Guide

To operate the Ame International Buddy Bead Breaker 71600, follow these steps:

1. Positioning: Place the tire on a stable surface and ensure the bead breaker is securely positioned around the tire's bead area.
2. Adjustment: Adjust the force mechanism to the appropriate setting based on the tire type and size.
3. Operation: Apply the force gradually by pumping or turning the handle until the bead seal is broken.
4. Removal: Once the bead is broken, carefully remove the breaker and proceed with tire removal or reinstallation as needed.

Troubleshooting

If you encounter any issues with your Buddy Bead Breaker 71600, here are some common problems and solutions:

• Insufficient Force: Check if the force mechanism is properly adjusted. Ensure it's set to the correct setting for your tire type.
• Damaged Parts: Inspect for any damage to the tool's parts. Contact the manufacturer for replacement if necessary.
• Incorrect Positioning: Ensure the tool is correctly positioned around the bead area before applying force.

Instructions & Warnings: Always follow safety guidelines when using the Buddy Bead Breaker 71600. Wear protective gear such as gloves and safety glasses to avoid injury from flying debris or tool malfunctions.

Buddy Bead Breaker 71600 Pros & Cons

Pros

• Durable Construction: Built to last with high-quality materials.
• Ergonomic Design: Reduces fatigue and provides comfortable grip.
• Adjustable Force: Allows precise control over applied force.
• Universal Compatibility: Works with various tire sizes and types.

Cons

• Cost: May be more expensive than other bead breakers on the market.
• Learning Curve: Requires some practice to use efficiently.
• Space Requirements: Though compact, it still requires dedicated storage space.

Customer Reviews

Customers have praised the Buddy Bead Breaker 71600 for its effectiveness and ease of use. Many reviewers appreciate its durability and ability to handle tough bead-sealed tires efficiently. Some users have noted a slight learning curve but generally find it to be a valuable addition to their toolbox.

Common complaints include the initial cost, which some users find higher than expected, and the need for proper positioning and adjustment before use.
