Introduction

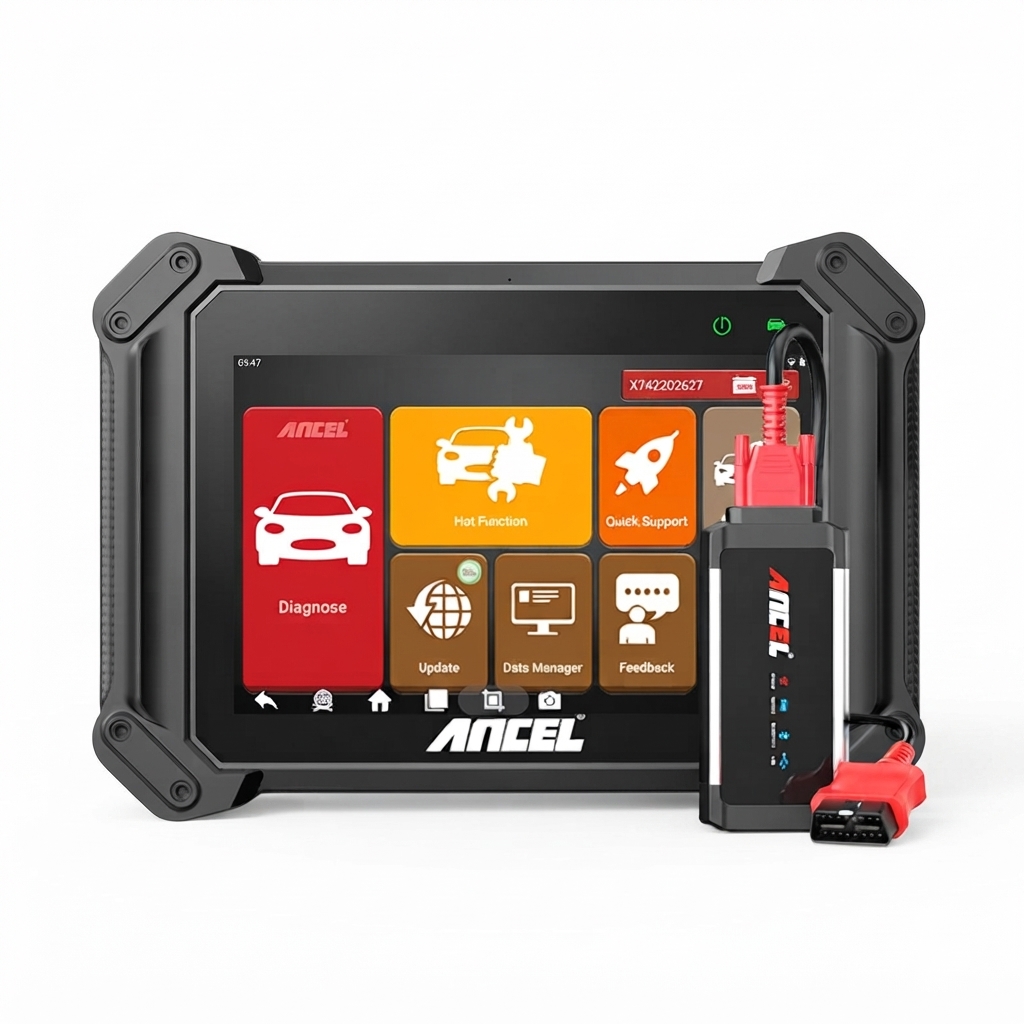

The Ancel Bluetooth Diagnostic Tool V6 Pro is a powerful automotive scanner that offers advanced diagnostic capabilities for both professional mechanics and DIY enthusiasts. With full system diagnostics, bidirectional control, and support for over 10,000 vehicle models, it provides comprehensive insights into vehicle performance. The tool is equipped with an intuitive interface and operates on an Android 10.0 platform. Priced at approximately $440, it delivers exceptional value for its range of features and functionalities.

Specifications

The Ancel Bluetooth Diagnostic Tool V6 Pro boasts several key features that set it apart in the automotive diagnostic market. Here are some of its detailed specifications:

• Bluetooth Connectivity: Seamlessly connects to smartphones and tablets via Bluetooth 4.0 for real-time data transmission.
• Multi-Brand Support: Compatible with over 40 vehicle brands, including Ford, GM, Toyota, Honda, and Volkswagen.
• OBD-II Protocols: Supports all standard OBD-II protocols, ensuring compatibility with a wide range of vehicles.
• Trouble Code Reading: Reads and clears trouble codes, including generic and manufacturer-specific codes.
• Live Data Streaming: Monitors live data from the vehicle's onboard computer system, providing real-time readings on engine performance.
• Battery Test: Includes a built-in battery test function to diagnose battery health.

Product Description

Product Overview

Ancel V6 Series (including V6, V6 BT, V6 Pro) is a proffessional efficient and convenient diagnostic tool for passenger car.

• Powerful quad-core Cortex-A53 2.0GHz processor with faster 2GB LPDDR4 and reliable 32GB On-board memory
• Android 10.0 OS running on 8.0 inch IPS Multi-touch capacitive touch screen
• Unique ergonomic design with rubberized outer protection and a rugged internal housing
• Built-in rechargeable lithium-polymer battery for up to 10 hours of continuous operation
• OE-Level full-systems coverage for more than 80 vehicle makes
• Supporting 15 (V6) / 15 (V6 BT) / 25 (V6 Pro) most commonly used service Reset Functions, more to cover soon
• Remote Technical Support via Teamviewer

Differences between V6 Series

VCI Model for V6 BT

VCI Box Parameters

VCI Model for V6 Pro

VCI Box Parameters

Host Model

2.5-1 The front of host

2.5-2 The top of host for V6

2.5-3 The top of host for V6 BT & V6 Pro

2.5-3 The back of host

Product Specifications

Description

Compact and lightweight, the Ancel Bluetooth Diagnostic Tool V6 Pro is capable of fitting comfortably in the palm of your hand. Its robust design guarantees dependability and endurance, even in the most challenging workshop conditions. The device includes a micro-USB interface for firmware updates and charging, as well as a rechargeable battery. The program, which is compatible with Android as well as iOS phones, provides a user-friendly interface that facilitates the navigation of a variety of diagnostic functions.
The Ancel V6 Pro is a comprehensive tool for vehicle maintenance and repair, as it also supports a variety of sophisticated diagnostic functions, including ABS, SRS, and transmission system checks. This utility offers the requisite insights to diagnose and resolve issues efficiently, regardless of whether you are a professional mechanic or a DIY enthusiast.

Product software introduction

The software homepage show the functional module: Diagnosis, Hot Function, Quick Support, DTC Query, Update, Data Manager, Feedback, Settings.

Diagnosis

Extensive vehicle coverage for more than 80 Europe, America, Asia, China and Australia vehicle makes.

Hot function

• V6 supporting 15 most commonly used service Reset Functions: OILREST, ABS BLEEDING, BATTERY, DPF, EPB, INJECTOR, SAS, THROTTLE, TPMS, IMMOKEYS, AT SET, GEAR, HEADLIGHT, SUSPENSION, SUNPROOF.
• V6 BT supporting 15 most commonly used service Reset Functions: OILREST, ABS BLEEDING, BATTERY, DPF, EPB, INJECTOR, SAS, THROTTLE, TPMS, IMMOKEYS, AT SET, GEAR, HEADLIGHT, SUSPENSION, SUNPROOF.
• V6 Pro supporting 25 most commonly used service Reset Functions: OILREST, ABS BLEEDING, BATTERY, DPF, EPB, INJECTOR, SAS, THROTTLE, TPMS, IMMOKEYS, AT SETTING, GEAR, HEADLIGHT, SUSPENSION, SUNROOF, A/F SET, DOOR&WINDOWS, LANGUAGE, NOX SET, PUMP START, SEAT SET, START&STOP, TIRE SET, TRANSPORT, UREA SET.

Update

Logging in the Update function, you can download the vehicle data and service function data, you can select all and one-click upgrade.

Data Manager

Here can manage the screenshot pictures, record video, vehicle software, testing report, data playback and function list.

Quick Support

Remote technical support via Teamviewer QuickSupport.

DTC Query

The fault information corresponding to the fault code can be quickly retrieved to help the repairer locate the component fault.

Feedback

This function allows you upload vehicle diagnostics problems encountered by users during the use of the software. It can help engineers repair software errors quickly.

Settings

View or set the Run mode, Unit, Search engine, System Info, Version Update, Languages.

Product Activation in Ancel Bluetooth Diagnostic Tool V6 Pro

1. Click the Update function on the home page



2. Please activate the product in the first login



3. Fill in the activation information, and click ACTIVATION



4. The activation request sent, your mailbox has received the activation link.



5. Log in to the mailbox where you just filled in the activation information and click the activation link to complete the activation.



Setup Guide

To operate the Ancel Bluetooth Diagnostic Tool V6 Pro, follow these steps:

1. Connect the Device: Plug the Ancel V6 Pro into your vehicle's OBD-II port, usually located under the steering column.
2. Download the App: Download and install the Ancel app from the Apple App Store or Google Play Store.
3. Pair the Device: Open the app, go to settings, and pair the device via Bluetooth. Ensure your smartphone or tablet is in close proximity to the Ancel V6 Pro.
4. Start Diagnostics: Once paired, you can begin using the app to read trouble codes, monitor live data, and perform various diagnostic tests.

Cleaning and maintenance

1. Do not disassemble it, try to handle it gently to avoid impact.
2. Place the fault diagnosis device in a flat, dry, temperature-friendly and dust-free place and avoid high temperature and humidity, excessive smoke, easy vibration, direct sunlight, and strong magnetic field storage environment.
3. If the vehicle test operation is not performed for a long time, please run the main machine regularly to avoid moisture.
4. Unplug the power plug when not in use to avoid aging of electrical components caused by long-term power.
5. When the host is dirty, please disconnect the power before cleaning.
6. Do not use a cleaning agent with a corrosive function or any rough cloth to clean the main unit. Only use a soft cloth and a neutral detergent.
7. The surface of the screen can be cleaned with a special wiper for the LCD screen.
8. Do not place anything on the screen to avoid cracking of the screen or damage to internal components.

Troubleshooting

Common problems and their solutions include:

• Connection Issues: Ensure that the Ancel V6 Pro is properly connected to the OBD-II port and that Bluetooth is enabled on your device. Restart both the device and your smartphone/tablet if necessary.
• App Crashes: Update the app to the latest version and ensure that your device meets the minimum system requirements.
• Data Inconsistencies: Clear any existing trouble codes and restart the diagnostic process. If issues persist, consult the user manual or contact customer support.

Instructions and Warnings: Always ensure the vehicle is parked in a safe location and the engine is turned off before performing diagnostics. Follow all safety guidelines outlined in the user manual to avoid any potential risks or damage to the vehicle or device.

Warranty

Beginning on the date of purchase(subject to valid purchase proof and effective warranty card of the product), if the product suffers performance failure within one year which is not caused by deviation from the recommended operation or by uncontrollable environmental events, you can choose to have evaluation via our maintenance service or replacement of the product with the same model. After that, there is one year warranty service for the main unit, connectors and power adapter.

Product acceptance
When you receive the product, please be sure to open the package check.

Ancel Bluetooth Diagnostic Tool Pros & Cons

Pros

• Wide Compatibility: Supports a broad range of vehicle brands and models.
• User-Friendly Interface: Easy to use with an intuitive app interface.
• Advanced Diagnostic Capabilities: Includes features like live data streaming and battery testing.
• Affordable: Priced competitively compared to other diagnostic tools on the market.

Cons

• Intermittent Connectivity Issues: Some users have reported occasional Bluetooth connection drops.
• Limited Advanced Features for Some Brands: Advanced features may not be available for all supported vehicle brands.
• No PC Connectivity Option: The device is designed to work exclusively with smartphones and tablets via Bluetooth.

Customer Reviews

Customers have praised the Ancel Bluetooth Diagnostic Tool V6 Pro for its ease of use and comprehensive diagnostic capabilities. Many users appreciate its ability to read and clear trouble codes efficiently, saving time and money on vehicle repairs. However, some users have reported occasional connectivity issues and limitations in advanced features for certain vehicle brands.

Common complaints include intermittent Bluetooth connection drops and the lack of PC connectivity options. Despite these minor drawbacks, the Ancel V6 Pro remains a popular choice among automotive enthusiasts and professionals due to its overall performance and value for money.
