Setup: Anyhill UM-2 Electric Kick Scooter User Manual

Anyhill UM-2 Electric Kick Scooter

Introduction

The Anyhill UM-2 Electric Kick Scooter is a cutting-edge, eco-friendly transportation solution designed for urban commuters and adventure seekers alike. Launched in the summer of 2023, this scooter is packed with innovative features that make it stand out in the market. With an estimated price range of $499 to $599, it offers a balance of affordability and high-quality performance.

The UM-2 is intended for short to medium distance travel, making it ideal for daily commutes, running errands, or enjoying leisurely rides. Its sleek design and robust construction ensure durability and comfort, while its advanced technology enhances safety and efficiency.

Whether you're navigating through city streets or exploring off-road trails, the Anyhill UM-2 Electric Kick Scooter is a versatile and reliable choice. Its launch has generated significant interest among scooter enthusiasts and environmentally conscious consumers.

Specifications

• Motor Power: 350W Brushless Motor
• Top Speed: Up to 18.6 mph (30 km/h)
• Range: Up to 15.5 miles (25 km) on a single charge
• Battery: 36V 7.5Ah Lithium-ion Battery
• Charging Time: Approximately 4-5 hours
• Weight Capacity: 220 lbs (100 kg)
• Brake System: Dual Brake System (E-Brake + Mechanical Brake)
• Tires: 8.5-inch Pneumatic Tires

Saftey Instructions

• DO NOT allow anyone to ride your scooter on his/her own unless they have  carefully read this manual. The safety of new riders is your responsibility. Assist  new riders until they are comfortable with the basic operation of the scooter. Make sure the new rider wears a helmet and other protective gears.
• For safety concerns, the top speed of this scooter is electronically limited to approximately 19 mph (31 km/h), which can be affected by the rider's weight, inclines, road surface condition, tire inflation, wind level, and battery charge level. ALWAYS slow down when passing uneven ground surface. ALWAYS ride with walking speed over speed bumps, thresholds, or any other bumps.
• DO NOT apply the electronic brake violently due to the nature of such braking system. It may rapidly decrease riding speed and the related kinetic energy may cause riders to fall. Please brake carefully and practice. ALWAYS lean your body backward while applying the electronic brake, or encounter a sudden drop in speed. DO NOT touch the brake components or hub motor on your scooter when in use or immediately after riding, as these parts can become very hot.
• BE ALERT! Ride defensively, watch out for obstacles that could catch your wheel or force you to swerve suddenly or lose control. Be careful to avoid pedestrians, skaters, skateboards, scooters, bikes, children or animals that may enter your path.
• DO NOT ride in the snow, in the rain, or on low traction surfaces or roads, which are wet, muddy, icy, or slippery for any reason. This could result in a loss of balance or traction and could cause a fall. Avoid sharp bumps, drainage grates, and sudden surface changes.
• ALWAYS hold tight to the handle bar and make sure steering is in control at all  times. DO NOT take your hands off the handlebar while riding or ride with one hand only. DO NOT use your phone or other electronic devices while you are riding the scooter, stay focus on the road. DO NOT do stunts, wheelies, or tricks on your scooter. This scooter is not made to withstand abuse from misuse, including  jumping, curb grinding, or any other type of stunts.
• DO NOT modify your scooter. Use only Anyhill approved parts and accessories. Modifications to your scooter will interfere with the operation functionality and stability, which could result in serious injury or damage. Any tuning measures will void the Limited Warranty and make your ANYHILL UM-2 unsuitable for riding on public roads.
• DO NOT put your scooter outdoors for a long time. Excessive sunlight, overheating and overcooling will accelerate tire aging and compromise the scooter and the battery pack's lifespan. When the scooter is not in use, keep it indoors where it is dry and cool.

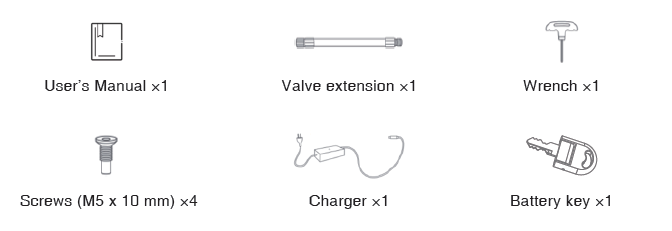

Scope Of Delivery

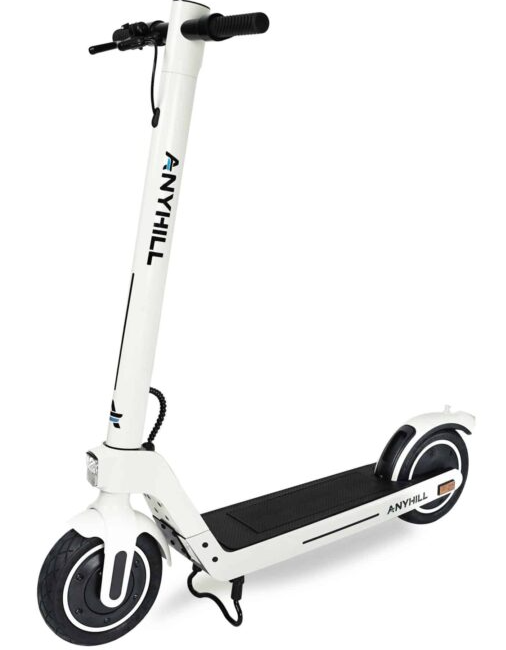

Presentation of the assembled ANYHILL UM-2

The scope of delivery includes the following：

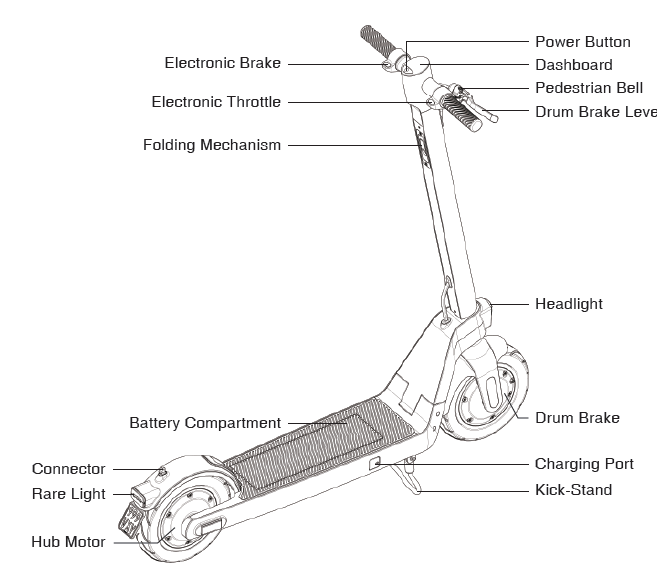

Overview

RIDING INSTRUCTIONS

• Practice your riding skills: To gain and maintain control over your ANYHILL UM-2, practice your first ride in an area without any obstacles.
• Turn on the ANYHILL UM-2 (press the power button once). Apply the disc brake  (rear brake) by pressing the brake lever on the right side of the handlebar, so that your ANYHILL UM-2 does not move unintentionally. Place one foot on the deck and your other foot on the ground.
• Release the brake, with your one foot on the ground; push and slide the scooter forward (as with non-motorized kick-scooters). Then pressing the throttle lever (with a blue tab) on the right side of the handlebars, the electric motor will start to operate.
• Always operate the throttle carefully and adapt to the current traffic situation. Slow down to reduce the risk of accidents. Always keep a safe distance between you and other people, vehicles, or obstacles when riding.
• Lean your body slightly forward while accelerating, lean your body slightly backward while braking. Avoid leaning your body on the handlebar when accelerating or braking.
• When riding downhill, your ANYHILL can reach a speed higher than 25 km/h. For your safety, please break your ANYHILL UM-2 down to maximum safety speed (25 km/h). Apply the separated-braking method to prevent the braking systems from overheating.
• When you riding on long curves, make your turn by slightly shifting your weight into the direction of the curve. Ride carefully and do not lean too close to the curve.
• When cornering, slow down to walking speed, carefully turn the handlebar to the desired direction. Before turning, make sure that other road users are not hindered and that there are no obstacles in the way.
• Always yield to the pedestrians and respect pedestrians' Right of Way. When approaching a pedestrian from the front, slow down and avoid startling them. When approaching from behind, ring your bell (pull the bell lever with your right index finger) or announce yourself to give them heads-up, and slow down to walking  speed when passing.
• Your ANYHILL UM-2 has a kickstand. You can fold it down and up with your foot. Only park your ANYHILL UM-2 on solid and even ground.

Main Components

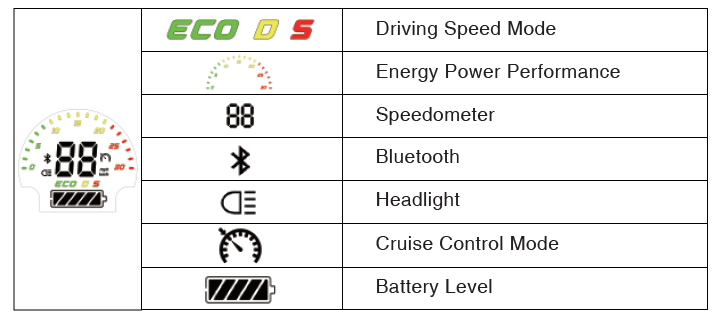

LCD Display
Your ANYHILL UM-2 has an LCD display that shows all the important information.

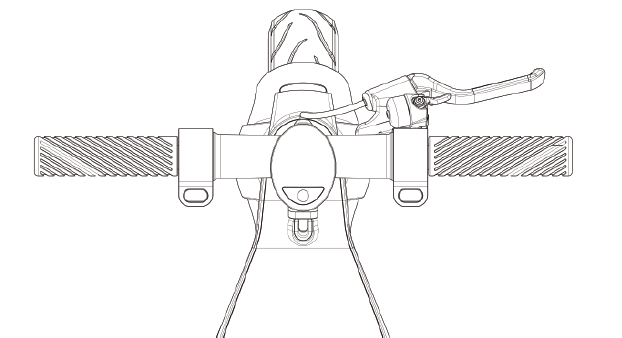

OPERATION

Care And Maintenance

Cleaning
Clean your ANYHILL after every trip with a damp cloth and mild detergent. DO NOT use a high-pressure washer for cleaning. DO NOT clean the scooter with alcohol, gasoline, kerosene, or other corrosive and volatile chemicals. During cleaning, make sure the product is turned off, the charging cable is unplugged, and the rubber flap is firmly closed.

Regular check

• Have your ANYHILL checked regularly; only original and approved replacement parts and components may be used. If you use unapproved parts, the full functionality and safety of your ANYHILL can no longer be guaranteed. This can lead to the loss of warranty claims. Contact support@anyhill.com for replacement parts.
• Check tires for wear and proper pressure. The tire pressure must be between 3.0 and 3.4 bar. The rims must not show any damage. Any defect can lead to serious accidents and damage.
• Disc brake system is subject to wear and tear during use. Visually inspect the rear brake pistons and the brake disc at least once a week. If you notice changes that deviate from the normal condition, contact support@anyhill.com.

How to use the extended nozzle adapter (valve extension)
Remove the screw-on cap from the valve, align and connect the extended nozzle adapter to the valve. Attach the pump and inflate to the PSI indicated on the tire sidewall. Remove valve extension immediately after inflating and put back the valve cap.

ANYHILL Limited Warranty

The manufacturer warranties this product, for warranty information please
visit www.anyhill.com. This Limited Warranty does not cover normal wear and tear, tires, tubes or cables, or any damage, failure, or loss caused by improper assembly, maintenance, storage, or misuse of the ANYHILL product.

Certificatons

European Market
ANYHILL products sold in the European Union comply with the EU RoHS Directive 2011/65/EU Annex II and its amendment (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
This product is in conformity with the essential requirements of the European Parliament and Council. This product meets the requirements and other relevant provisions of the directives 2006/42/EC, 2014/35/EU, 2014/30/EU.

North American Market

• ANYHILL products sold in North America comply with the FCC Rules and UL standards.
• The battery complies with UN/DOT 38.3. The charger complies with EMC requirements under EN 61000-6-1:2007 and EN 61000-6-3:2007+A1:2011.
• Declarations of conformity are available upon request. For more information, please contact support@anyhill.com.

Setup Guide

To assemble the Anyhill UM-2 Electric Kick Scooter, follow these steps:

1. Unpack all components from the box and ensure everything is included.
2. Attach the handlebar to the stem using the provided screws and Allen wrench.
3. Adjust the handlebar height to your comfort level.
4. Charge the battery fully before first use.
5. Turn on the scooter and select your desired speed mode using the control panel.

For pairing with the Anyhill app, download the app from your mobile store, turn on Bluetooth on your scooter, and follow the in-app instructions to connect.

Troubleshooting

If you encounter any issues with your Anyhill UM-2 Electric Kick Scooter, here are some common problems and solutions:

• Issue: Scooter won't turn on. Check if the battery is fully charged and ensure all connections are secure.
• Issue: Brake not functioning properly. Inspect brake pads for wear and tear; clean or replace them as necessary.
• Warning: Always wear protective gear including a helmet when riding. Avoid riding in heavy rain or extreme weather conditions.

Pros & Cons

Pros:

• Powerful 350W motor for smooth acceleration
• Long-lasting 36V 7.5Ah lithium-ion battery
• Dual brake system for enhanced safety
• Adjustable handlebar height for customized comfort
• Bright LED lights for improved visibility

Cons:

• Slightly heavier than some other models
• Limited off-road capability compared to more robust models
• No water resistance rating; avoid use in wet conditions

Customer Reviews

Customers praise the Anyhill UM-2 for its solid build quality, smooth ride, and user-friendly interface. Many appreciate the three speed modes which allow them to adjust their ride according to their terrain and preference. However, some users have noted that it can be a bit bulky to store and transport.

Common complaints include issues with customer service response times and occasional discrepancies in battery life compared to advertised ranges.
