Ao Smith BTH-300 Gas Water Heater User Manual

Content

ao smith BTH-300 Gas Water Heater Review and Product Manual

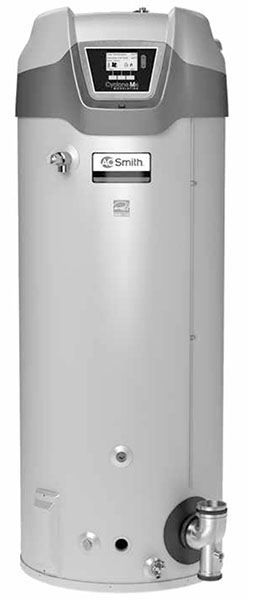

The ao smith BTH-300 Gas Water Heater is a high-capacity commercial unit built for demanding hot water applications in schools, restaurants, gyms, multifamily buildings, and light industrial facilities. Designed as a 119-gallon, 300,000 BTU/h gas water heater, it delivers strong recovery performance and dependable hot water supply for spaces that cannot afford downtime. Its direct spark ignition, power/direct venting, and ultra-low NOx combustion make it a practical choice for modern commercial installations that need efficiency, code compliance, and consistent output.

One of the biggest advantages of the ao smith BTH-300 Gas Water Heater is its balance of large storage volume and fast recovery. With a recovery rate of about 1,164 gallons per hour at a 30°F rise, it is well suited for heavy simultaneous demand, such as multiple showers, washing stations, or continuous kitchen use. The glass-lined steel tank, 160 psi pressure rating, and ASME construction add durability for commercial environments. It also supports natural gas or propane configurations depending on the exact model variant, which gives installers flexibility across different sites.

Typical pricing for the ao smith BTH-300 Gas Water Heater usually falls in the premium commercial range, often around $4,000 to $8,000 or more depending on venting type, gas configuration, supplier, and warranty package. Availability is generally good through commercial plumbing distributors, HVAC suppliers, and online industrial retailers, though lead times can vary based on location and installation options.

Specifications for ao smith BTH-300 Gas Water Heater

  • Tank capacity: 119 gallons, ideal for high-demand commercial hot water systems.
  • Heating input: 300,000 BTU/h for fast heat recovery and strong load handling.
  • Recovery rate: Approximately 1,164 gallons per hour at a 30°F temperature rise.
  • Energy efficiency: Up to 96% thermal efficiency on listed configurations.
  • Vent type: Power/direct vent design with a 4-inch vent size.
  • Gas connection: 1-1/2 in. NPT gas connection.
  • Water connections: 1-1/2 in. NPT inlet and outlet connections.
  • Operating temperature range: Roughly 90°F to 180°F.
  • Pressure rating: 160 psi maximum working pressure.
  • Tank material: Glass-lined steel for corrosion resistance and longer service life.
  • Ignition: Direct spark ignition for reliable startup and safer operation.
  • Dimensions: About 33-1/8 inches in diameter and 75-3/4 inches high.
  • Comparison: Compared with standard commercial water heaters in the 75 to 100-gallon range, the ao smith BTH-300 Gas Water Heater offers larger storage, faster recovery, and better suitability for peak-demand facilities.

Pros and Cons of ao smith BTH-300 Gas Water Heater

Pros

  • High output and fast recovery: The 300,000 BTU input and 1,164 gph recovery rate make it a strong fit for busy commercial sites.
  • Large storage volume: The 119-gallon tank helps reduce temperature drops during repeated use.
  • Commercial-grade construction: ASME design, 160 psi rating, and glass-lined steel tank improve reliability.
  • Efficient operation: High thermal efficiency helps reduce fuel waste compared with older atmospheric models.
  • Flexible installation: Available in gas and venting configurations that support different commercial layouts.

Cons

  • Large footprint: Its tall, heavy design requires ample mechanical room space and proper floor support.
  • Higher upfront cost: The purchase price is significantly above residential and mid-range commercial heaters.
  • Installation complexity: Professional setup is essential for venting, gas sizing, and code compliance.
  • Best for heavier demand: Smaller businesses may find the capacity more than they need, making it less cost-effective than smaller alternatives.

For facilities that need continuous hot water, the ao smith BTH-300 Gas Water Heater offers strong value for money because it combines storage, recovery, and durability in one commercial package. Compared with smaller 100-gallon units, it delivers better peak performance, but it is not the most economical option for low-volume use.

Customer Reviews for ao smith BTH-300 Gas Water Heater

Customer feedback for the ao smith BTH-300 Gas Water Heater is generally positive, especially from commercial users who need consistent hot water throughout the day. Many buyers rate it around 4.5 out of 5 stars for recovery speed, tank capacity, and long-term reliability. A common compliment is that it “keeps up with back-to-back demand without temperature swings.”

Users also praise its sturdy build and efficient operation in high-use environments. Frequent complaints usually focus on installation cost, the unit’s size, and the need for experienced technicians. Some reviewers note that proper venting and gas supply setup are critical, and poor installation can affect performance. Overall, it is recommended for businesses, property managers, and facilities that need a commercial gas water heater with dependable output rather than a low-cost residential-style solution.

PDF

Faqs

How do I set up the ao smith BTH-300 Gas Water Heater for the first time?

Start by confirming the unit is installed on a level, non-combustible surface with proper venting and gas connections. Before first use, make sure the tank is fully filled with water, then purge air from the lines. Check the gas supply, temperature setting, and thermostat control. For best results, have a qualified technician verify combustion, vent draft, and safety valve operation during initial setup.

Why is my ao smith BTH-300 Gas Water Heater producing lukewarm water instead of hot water?

Lukewarm water often points to a thermostat setting that is too low, a partially clogged burner, or sediment buildup inside the tank. First, check that the temperature control is set correctly and that the gas supply is steady. If the heater has not been flushed recently, mineral deposits may be reducing efficiency. Persistent temperature problems usually require inspection of the burner, dip tube, or gas valve.

What should I do if the ao smith BTH-300 Gas Water Heater will not ignite?

If the heater will not ignite, confirm the gas shutoff valve is open and the pilot or ignition system is receiving power or gas as designed. Look for error codes, blocked venting, or dirty burner components. Also verify that the tank is full of water before attempting to start it. If ignition still fails, the thermocouple, igniter, or control valve may need professional diagnosis and replacement.

What installation requirements are important for the ao smith BTH-300 Gas Water Heater?

This gas water heater needs proper clearances, adequate combustion air, and venting that matches the manufacturer’s specifications. It should also be connected to a gas line sized correctly for the load and installed with a suitable pressure relief valve. Because the BTH-300 is a high-capacity unit, checking local plumbing and gas codes is essential. Professional installation helps prevent venting, safety, and performance issues.

How can I optimize performance and recover hot water faster with the ao smith BTH-300 Gas Water Heater?

To improve performance, keep the thermostat at an efficient but practical temperature, typically around a safe household setting. Insulate nearby hot-water pipes to reduce heat loss and flush the tank regularly to limit sediment. Make sure vents are unobstructed and burner components are clean. Heavy-demand households may also benefit from staggering showers or laundry loads so the heater can recover more efficiently.

How often should I flush and maintain the ao smith BTH-300 Gas Water Heater?

A good maintenance schedule is to flush the tank at least once a year, or more often if your water supply is hard or sediment-heavy. Inspect the anode rod, temperature and pressure relief valve, burner area, and vent system during routine care. Regular maintenance helps preserve heating efficiency, reduce noise, and extend the life of the ao smith BTH-300 Gas Water Heater.

Is the ao smith BTH-300 Gas Water Heater compatible with a high-demand household?

Yes, the ao smith BTH-300 Gas Water Heater is designed for larger hot-water needs, making it suitable for homes with multiple bathrooms, frequent laundry use, or simultaneous hot-water demand. To get the best results, the gas line, venting, and water piping must be properly sized for the load. If your household demand is unusually high, consider whether storage capacity and recovery rate meet your peak usage patterns.

What do unusual noises from the ao smith BTH-300 Gas Water Heater usually mean?

Popping, rumbling, or banging noises usually indicate sediment buildup at the bottom of the tank. As water heats, trapped minerals can create noise and reduce heating efficiency. In some cases, loose piping or expansion issues can also cause sound. Flushing the tank often helps, but severe buildup may require a deeper cleaning or professional service to prevent damage and restore quiet operation.
