Introduction

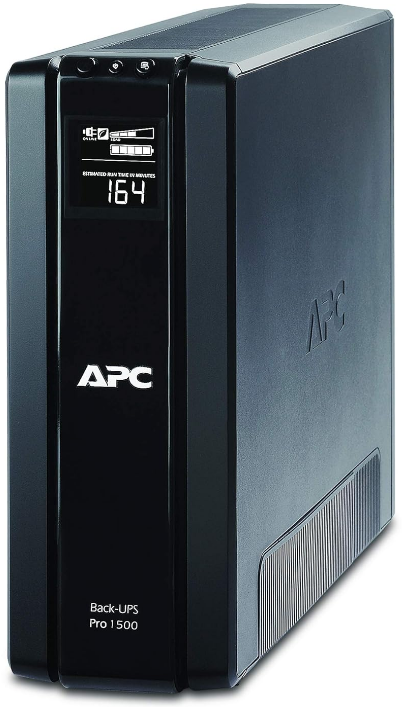

The APC Schneider Electric Back-UPS BR1500G-IN is a powerful uninterruptible power supply designed to protect critical devices from power interruptions and surges. With a capacity of 1500VA and 865W, it features six outlets for battery backup and surge protection, ensuring reliable performance for computers, networking equipment, and home entertainment systems. The unit incorporates Automatic Voltage Regulation (AVR) to maintain stable voltage levels. The exact cost of the BR1500G-IN is $199.00.

Inventory

Safety and General Information

This UPS is intended for indoor use only.

• Do not operate this UPS in direct sunlight, in contact with fluids, or where there is excessive dust or humidity.
• Be sure the air vents on the UPS are not blocked. Allow adequate space for proper ventilation.
• The battery typically lasts for two to three years. Environmental factors impact battery life. Elevated ambient temperatures, poor quality AC power, and frequent short duration discharges will shorten battery life.Connect the Back-UPS power cable directly to a wall outlet. Do not use surge protectors or extension cords.

Electric Back-UPS BR1500G-IN Specifications

A standard serial cable is incompatible with the Back-UPS. Use only an APC serial cable. To order an APC serial cable go to the APC Web site or call customer service. Refer to APC Customer Support for contact information.

Connect the Equipment

Description

The APC Schneider Electric Back-UPS BR1500G-IN is built with durability and performance in mind. Its sleek and compact design makes it easy to place anywhere, whether on a desk or on the floor. The UPS features an intuitive LCD display that provides real-time status updates on power conditions, battery life, and load levels. The audible alarms and visual indicators ensure you are always aware of the UPS's status. Additionally, the BR1500G-IN is energy-efficient and environmentally friendly, making it a responsible choice for your power backup needs.

Operation

Power-Saving function

To conserve electricity, configure the Back-UPS to recognize a Master device, such as a desktop computer or an A/V receiver, and Controlled peripheral devices, such as a printer, speakers, or a scanner. When the Master device goes into Sleep or Standby mode, or is switched OFF, the Controlled device(s) will be switched off as well, saving electricity.
Notes: Devices that provide network services (such as routers, modems, or wireless printers) should not be plugged into the Controlled outlets. The Back-UPS Pro ships with this Power-Saving feature DISABLED. If you wish to use this feature, follow the instructions below:

Enable the power-saving function
Press and hold MUTE and DISPLAY simultaneously for two seconds. The Back-UPS will beep to indicate that the feature is enabled. The leaf icon on the display will illuminate.

Disable the power-saving function
Press and hold MUTE and DISPLAY simultaneously for two seconds. The Back-UPS will beep to indicate that the feature is disabled. The leaf icon on the display will clear out.

Setting the threshold
The amount of power used by a device in Sleep or Standby mode varies between devices. It may be necessary to adjust the threshold at which the Master outlet signals the Controlled outlets to shut down.

1. Ensure a master device is connected to the Master outlet. Put that device into Sleep or Standby mode, or turn it OFF.
2. Press DISPLAY and MUTE simultaneously and hold for six seconds, until the leaf icon flashes three times and the Back-UPS beeps three times.
3. The Back-UPS will now recognize the threshold level of the Master device and save it as the new threshold setting.

Power-Saving display

The display interface can be configured to be continuously illuminated, or to save energy, it can be configured to clear out after a period of inactivity.

1. Full-Time Mode: Press and hold DISPLAY for two seconds. The display will illuminate and the Back-UPS will beep to confirm the Full-Time mode.
2. Power-Saving Mode: Press and hold DISPLAY for two seconds. The display will go dark and the Back-UPS will beep to confirm the Power-Saving mode. While in Power-Saving Mode, the display will illuminate if a button is pressed, it then goes dark after 60 seconds of no activity.

Unit sensitivity

In situations where the Back-UPS or connected equipment appears too sensitive to input voltage, it may be necessary to adjust the transfer voltage. Adjust the sensitivity of the Back-UPS to control when it will switch to battery power; the higher the sensitivity, the more often the Back-UPS will switch to battery power.

1. Ensure that the Back-UPS is Off but connected to utility power.
2. Press and hold the POWER button for six seconds. The LOAD CAPACITY bar will flash on and off, indicating that the Back-UPS is in programming mode.
3. Press POWER again to rotate through the menu options. Stop at selected sensitivity. The Back-UPS will beep to confirm the selection.

Generator Sensitivity	Default	Sensitive Loads
Low sensitivity	Medium sensitivity (Default)	High sensitivity
150-300 Vac	170-294 Vac	170-288 Vac
Input voltage is extremely low or high. Not recommended for computers.	The Back-UPS frequently switches to battery power.	The connected equipment is sensitive to voltage fluctuations.

Front panel buttons

Use the three buttons on the front panel of the Back-UPS and the display interface to configure the Back-UPS.

1. MUTE button
2. POWER ON/OFF button
3. DISPLAY button
4. Display interface

Display interface

	On Line—The Back-UPS is supplying conditioned utility power to connected equipment
	Power-Saving—Master and Controlled outlets are enabled, saving power when the master device goes into sleep or standby mode
	Load Capacity—The load is indicated by the number of sections illuminated, one to five. Each bar represents 20% of the load.
	Battery Charge—The battery charge level is indicated by the number of sections illuminated. When all five blocks are illuminated, the Back-UPS is at full charge. When one block is filled, the Back-UPS is near the end of its battery capacity, the indicator will flash and the Back-UPS will beep continuously.
	Overload—The power demand from the load has exceeded the capacity of the Back-UPS.
	Event—The event counter shows the number of events that occurred that caused the Back-UPS to switch to on-battery operation.

	Automatic Voltage Regulation—The Back-UPS can compensate for high or low input voltage. When illuminated, the Back-UPS is compensating for low input voltage. When illuminated, the Back-UPS is compensating for high input voltage.
	Input voltage. Output voltage.
	System Faults—The system has a fault. The fault number will illuminate on the display interface. See “System faults” on page 8.
	Mute—If the line through the speaker icon is illuminated, the audible alarm has been turned off.
	Replace Battery—The battery is not connected or is nearing the end of its useful life. Replace the battery.
	On Battery—The Back-UPS is supplying battery backup power to the connected equipment, it will beep four times every 30 seconds.

Warnings and System Faults

Audible warnings

Warning icons

If these icons are illuminated...	This may be the problem.
	The Back-UPS is operating on utility power, but is overloaded. Disconnect one of the devices connected to the Back-UPS. If the Overload icon stops flashing, the Back-UPS is no longer overloaded and will continue to operate normally.
	The Back-UPS is operating on battery power, but is overloaded. Disconnect one of the devices connected to the Back-UPS. If the Overload icon stops flashing, the Back-UPS is no longer overloaded and will continue to operate normally.
	The Back-UPS is operating on utility power, but the battery is not functioning properly. Contact APC Customer Support to order a replacement battery.
	The Back-UPS is operating on battery power and the battery power is getting low. Shut down all connected equipment to avoid losing any unsaved data. When possible, connect the Back-UPS to utility power to recharge the battery.

System faults

The Back-UPS will display these fault messages.

	F01	On-Battery Overload	Turn the Back-UPS off. Disconnect non-essential equipment from the Battery Backup outlets and then turn Back-UPS on.
	F02	On-Battery Output Short	Turn the Back-UPS off. Disconnect non-essential equipment from the Battery Backup outlets and then turn Back-UPS on.
	F03	On-Battery Xcap Overload	Faults F03-F09 cannot be corrected by the user, contact APC Customer Support for assistance.
	F04	Clamp Short
	F05	Charge Fault
	F06	Relay Welding
	F07	Temperature
	F08	Fan Fault
	F09	Internal Fault

Function Button Quick-Reference

Function	Button	Timing (seconds)	UPS Status	Description
Power
Power On		0.2	Off	Press POWER to start receiving input utility power. If inpututility power is not available, the Back-UPS will run on battery power.
Power Off		2	On	The Back-UPS is not receiving input utility power, but is providing surge protection.
Display
Status Inquiry		0.2	On	Verify the status or condition of the Back-UPS. The LCD will illuminate for 60 seconds.
Full-Time/ Power- Saving modes		2	On	The LCD will illuminate and the Back-UPS will beep to confirm the Full-Time mode. The LCD will not illuminate and the Back-UPS will beep to confirm the Power-Saving mode. While in Power-Saving Mode, the LCD will illuminate if a button is pressed. It turns off after 60 seconds of inactivity.
Mute
Event Specific		0.2	On	Disable any audible alarms caused by an event.
General Status Enable/ Disable		2	On	Enable or disable the audible alarms. The Mute icon will illuminate and the Back-UPS will beep one time. The Mute function will not activate unless the Back-UPS is operating on battery power.

Sensitivity		6	Off	The Load Capacity icon will blink, indicating that the Back-UPS is in program mode. Use the POWER button to scroll through Low, Medium, and High, stop at selected sensitivity. The Back-UPS will beep to confirm selection. See Configuration for details.
Master/ Controlled outlet Enable/ Disable		2	On	The leaf icon will not illuminate indicating that the Master Outlet feature is disabled, or illuminate to indicate the Master Outlet feature is enabled. The Back-UPS will beep once.
Master/ Enable Threshold Calibration		6	On	While calibrating the threshold setting, the device connected to the Master Outlet should be turned off or placed in Standby or Sleep mode. Upon completion, Power-Saving icon will flash 3 times and beep 3 times.
Self-Test (manual)		6	On	The Back-UPS will perform a test of the internal battery. Note: This will happen automatically when the Back-UPS is turned ON.
Event Reset		0.2	On	When the Event screen is visible, press and hold DISPLAY, then press POWER, to clear the utility failure event counter.
Fault Reset		2	Fault	After a fault has been identified, press POWER to remove the visual indication and return to standby status.

Setup Guide

Setting up the APC Schneider Electric Back-UPS BR1500G-IN is straightforward and easy:

1. Unboxing and Placement: Unbox the UPS and place it on a flat surface, ensuring good ventilation.
2. Connecting Devices: Plug your devices into the provided outlets. Ensure the total load does not exceed the rated capacity.
3. Power On: Turn on the UPS by pressing the power button. The LCD display will show the current status.
4. Configuration (Optional): Use the USB port to connect the UPS to your computer for monitoring and configuration through the provided software.

Troubleshooting

APC Schneider Electric Back-UPS BR1500G-IN Pros & Cons

Pros

• Reliable Backup Power: Provides consistent backup power during outages.
• Automatic Voltage Regulation: Protects devices from voltage fluctuations.
• Multiple Outlets: Supports multiple devices simultaneously.
• User-Friendly Interface: Intuitive LCD display for real-time status updates.
• Energy Efficiency: Environmentally friendly with low energy consumption.

Cons

• Backup Time Limitation: Backup time is limited for larger loads.
• Noisy Alarms: Audible alarms can be disturbing in quiet environments.
• Battery Replacement Cost: Replacement batteries can be expensive.

Customer Reviews

Customers have generally praised the APC Schneider Electric Back-UPS BR1500G-IN for its reliability and ease of use. Many have noted that the UPS has saved their devices from power surges and outages, providing peace of mind. However, some users have mentioned that the backup time could be longer and that the alarms can be quite loud.

Common complaints include

• Short Backup Time for Heavy Loads: Some users find the backup time insufficient for larger devices.
• Loud Alarms: The audible alarms can be very loud and may disturb users in quiet environments.
