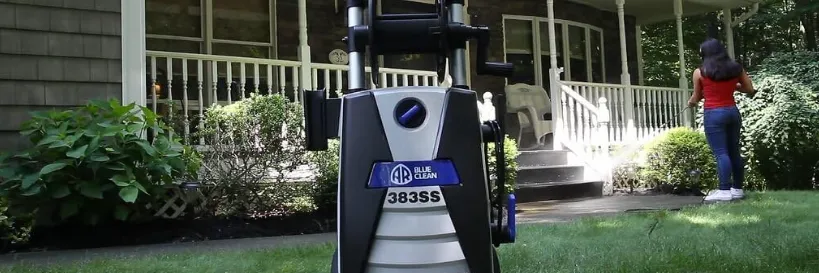

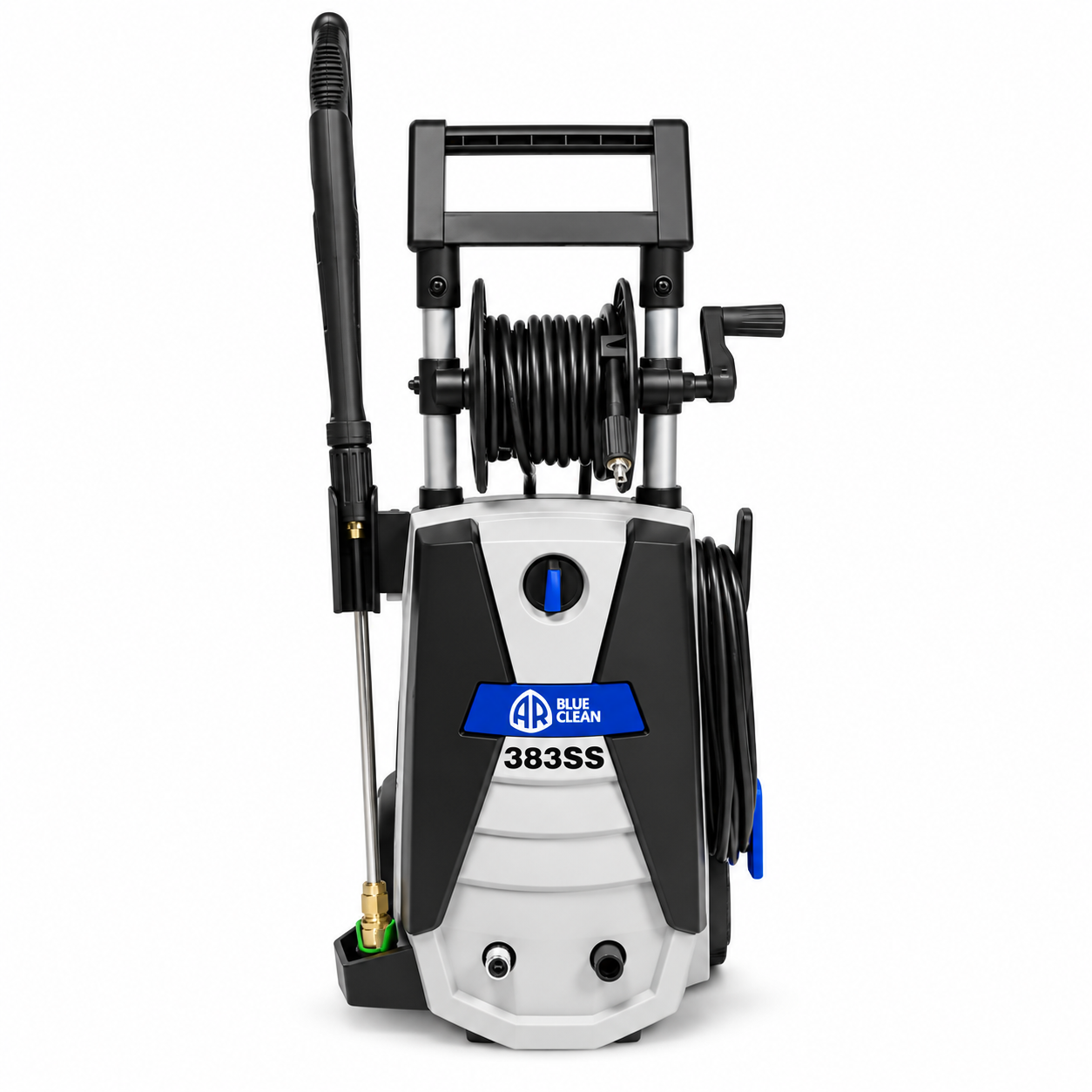

Introducing the AR Blue Clean Pressure Washer AR383

AR Blue is a high-performance cleaning machine designed to make your cleaning tasks easier and more efficient. This pressure washer is perfect for a variety of surfaces, including decks, patios, cars, and outdoor furniture. With an estimated price range of $200 to $250 and a launching date in mid-2021, this product is a great investment for any homeowner or professional cleaner.

AR Blue Package Content

1. Pressure Water Unit

2. Manual

3. Adjustable Spray Nozzle

4. Turbo Nozzle

5. Gun

6. Detergent Tank

7. Nozzle Cleaning Tool

8. High Pressure Hose

9. Garden Hose Fitting

10. Accessories Holder

Gun Safety Button (5A)

Detailed Specifications

The AR383 model boasts several impressive features that set it apart from other pressure washers on the market. These specifications include:

• Model: AR383

• Max pressure: 2,000 PSI

• Max flow rate: 1.5 GPM
• Motor: 13-amp/1800-watt
• Hose length: 25 feet
• Power cord length: 35 feet
• Onboard detergent tank: Yes

• Maximum PSI: 1900

• Maximum GPM: 1.5

• Maximum Temperature: N/A

• Voltage: 120V

• Amps: 15

• Unit Weight: 27 lbs

Safety Guidelines of Clean Pressure Washer AR383

This pressure washer is equipped with a Total Stop System (TSS) which automatically turns off the motor when the trigger is released to protect the pump from overheating. It is important to observe the following symbols:

• Warning: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

• Caution: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

Operation

1. Pull the trigger on a gun.

2. Turn the “ON/OFF” switch to “ON”.

3. Release trigger. The pressure washer motor will stop running.

4. To spray again, pull the trigger and the motor and pump will restart.

Note: Occasionally the motor may run for a short time to bring fresh, cool water into the pump even if the trigger is released. This is part of normal operation and will not damage the unit.

Always turn the “ON/OFF” switch to “OFF” then trigger the gun to release hose pressure before unplugging the power cord.Risk of equipment damage. Always make sure the “ON/OFF” switch on the unit is “OFF” and the unit is unplugged before storage.Risk of Injection. The unit will start spraying when the trigger is squeezed if the “ON/OFF” switch is in the “ON” position. Always point a gun in a safe direction.

1. The lance is affected by pressure during operation; therefore hold it firmly with both hands and point the nozzle toward the ground.

2. Activate by pulling the trigger of the gun/spray handle.

3. Adjust the distance to the cleaning surface, which will also adjust the pressure of the nozzle.

4. The spray pattern shape and intensity can be changed by twisting the spray adjuster at the end of the lance. Keep hands clear of the front of the lance to prevent injury.

END OF OPERATION

1. Press the ON/OFF switch to “OFF” on the pressure washer.

2. Disconnect the plug from the power source.

3. Shut off the water supply.

4. Activate the spray handle to relieve the machine of pressure.

5. Lock the trigger into the “OFF” position.

Pump Spare Part Kits

• Water Seals & Valves AR3081290

• Pre-Assembly TSS AR3082350

IMPORTANT SAFETY INSTRUCTIONS

Save These Instructions
When using this product, basic precautions should always be followed, including the following:

1. Read all instructions before using the product.

2. Always disconnect power before disassembling or repairing the unit.

3. Follow all safety codes as well as the Occupational Safety and Health Act (OSHA).

4. Ensure safety devices are operating properly before each use. DO NOT remove or modify any part of the gun or unit.

5. Know how to stop this product and bleed pressure quickly. Be thoroughly familiar with the controls.

6. Stay alert – watch what you are doing.

7. Do not operate the product when fatigued or under the influence of alcohol or drugs.

8. Keep the operation area clear of all persons.

9. Do not overreach or stand on unstable support. Keep good footing and balance at all times.

10. Follow the maintenance instructions specified in the manual.

11. This product is provided with a ground fault circuit interrupter, GFCI, be sure to inspect cord and GFCI prior to use. Any repair or replacement of the power cord must be performed by a qualified (licensed or certified) electrical technician.

12. Never use an extension cord with this product.

13. The power cord on this product contains chemicals, including lead, known to the State of California to cause [cancer and] birth defects or other reproductive harm. Wash hands after handling.

14. To reduce the risk of injury, close supervision is necessary when a product is used near children.

Risk of Electrocution

• Inspect cord before using Do not use if the cord is damaged.

• Keep all electrical connections dry and off the ground.

• Do not touch the plug with wet hands.

• This product is provided with a ground fault circuit interrupter built into the power cord plug. If replacement of the plug or cord is needed, use only identical replacement parts.

• Do not spray electrical apparatus and wiring.

Risk of Injection or severe injury

• High pressure. Keep clear of the nozzle. Do not discharge streams at persons or animals.

• Never put your hand or fingers over the spray tip while operating the unit.

• Never try to stop or deflect leaks with any body part.

• Always engage the trigger safety latch in the safe position when spraying is stopped even if only for a few moments.

• Point the gun in a safe direction. The unit will start spraying when a trigger is squeezed if the ‘on/off’ switch is in the “ON” position.

• Discharge pressure – When the ‘on/off’ switch is in the “OFF” position, pressure may still exist in the unit. To discharge pressure, point the gun in a safe direction and squeeze the trigger.

Risk of Explosion

• Do not spray flammable liquids.

• Never use in areas containing combustible dust, liquids, or vapors.

CAUTION

• High pressure  Gun kicks back -Hold the gun with both hands.

• Keep the hose away from sharp objects. Bursting hoses may cause injury. Examine the hose regularly and replace if damaged. Do not attempt to mend a damaged hose.

NOTE

• Use only detergents specifically formulated for pressure washers. Always follow the detergent manufacturer’s label recommendations for the proper use of detergents. Always protect eyes, skin, and respiratory system from detergent.

• For either indoor or outdoor use. Store indoors and where the temperature stays above freezing.

• Unplug the unit when not in use.

• The pressure washer is not meant to pump hot water. Do not connect to a hot water supply.

• Never leave the unit unattended while it is plugged in.

• Always turn the water supply “ON” before turning the pressure washer “ON”. Running the pump dry causes damage.

SERVICING OF A DOUBLE-INSULATED APPLIANCE

In a double-insulated product, two systems of insulation are provided instead of grounding. No grounding means are provided for a double-insulated product, nor should grounding means be added to the product. Servicing a double-insulated product requires extreme care and knowledge of the system, and should be done only by qualified service personnel. Replacement parts for a double-insulated product must be identical to the original parts. A double-insulated product is marked with the words “Double Insulation” or Double Insulated”. The product may also be marked with the symbol shown below.

• Do not use pressure that exceeds the operating pressure of any of the parts (hoses, fittings, etc.) in the pressurized system. Ensure all equipment and accessories are rated to withstand the maximum working pressure of the unit.

• Do not spray electrical apparatus and wiring.

• Never disconnect the high-pressure discharge hose from the machine while the system is pressurized. To depressurize the machine, turn the power and water supply off, then press the gun trigger 2 – 3 times.

• Never permanently engage the trigger mechanism on the gun.

• Never operate the machine without all components properly connected to the machine (handle, gun/wand assembly, nozzle, etc.).

Equipment damage

• ALWAYS turn the water supply “ON” before turning the pressure washer “ON”. Running the pump dry causes serious damage.

• Do not operate the pressure washer with the inlet water screen removed. Keep the screen clear of debris and sediment.

• NEVER operate a pressure washer with broken or missing parts. Check equipment regularly and repair or replace worn or damaged parts immediately.

• Use only the nozzle supplied with this machine.

• Never leave the wand unattended while the machine is running.

• Never attempt to alter factory settings. Altering factory settings could damage the unit and will void the warranty.

• Always hold the gun and wand firmly when starting and operating the machine.

• NEVER allow the unit to run with the trigger release (off) for more than one (1) minute. The resulting heat buildup will damage the pump.

• The pressure washer is not meant to pump hot water. NEVER connect it to a hot water supply as it will significantly reduce the life of the pump.

• NEVER store the pressure washer outdoors or where it could freeze. The pump will be seriously damaged.

• Release trigger when changing from high to low-pressure modes. Failure to do so could result in damage.

Keep the hose away from sharp objects. Bursting hoses may cause injury. Examine hoses regularly and replace if damaged. Do not attempt to mend a damaged hose.

GARDEN HOSE CONNECTION INSTRUCTIONS

1. Attach the swivel adapter to the water inlet, if not already attached. Notice the swivel adapter is marked with the words pump and hose. Make sure to connect the pump side of the adapter to the pump water inlet to prevent damage to the threads.

2. Attach a garden hose to swivel adapter side marked hose.



3. The spray gun should be locked into the “OFF” position by locating the safety trigger lock just above the trigger of the gun. Activate the lock by holding the gun and pushing the lock from left to right. Squeeze the trigger to make sure the trigger does not move. The safety trigger lock should be locked at all times when the pressure washer is not in use.

POWER CORD

1. Plug the power cord into a grounded 120V outlet and press the reset button as shown below.

2. THIS MUST BE DONE EACH TIME THE UNIT IS PLUGGED IN AN OUTLET.

SYSTEM CONNECTION

1. Insert the lance adapter into the gun push and turn clockwise to a positive stop as shown below.



2. Press the release button on bottom of the gun toward the back of the gun, then insert a high-pressure hose.



3. Be sure that the power switch is in the “OFF” position.

4. Attach the high-pressure hose onto the pump water outlet by turning clockwise and hand tightening.



5. Connect the garden hose as explained under Garden Hose Connection Instructions.

6. Plug the power cord into a grounded 120V outlet.

7. Turn the water on.

8. Unlock the trigger lock by moving the lock from right to left.

9. Depress and hold the trigger on the gun for one minute to release pressure and remove any air trapped in the system.

10. Turn the “ON/OFF” switch to the “ON” position.

HOW TO AVOID DAMAGING SURFACES

DIRECTIONS FOR USE

Damage to cleaning surfaces occurs because the impact force of the water exceeds the durability of the surface. You can vary the impact force by controlling the nozzle’s fan pattern, the nozzle’s angle to the cleaning surface, and the nozzle’s distance from the cleaning surface. Never use a narrow high-impact stream or a turbo nozzle on a surface that is susceptible to damage. Avoid spraying windows with a narrow high-impact stream or turbo nozzle. Doing so may break the window. The surest way to avoid damaging surfaces is to follow these steps.

NOZZLE CLEANING INSTRUCTIONS

1. Before triggering the gun, adjust the nozzle to a wide fan pattern.

2. Place the nozzle approximately 4 – 5 feet away from the cleaning surface. Then hold the nozzle at a 45° angle to the cleaning surface. Trigger the gun.

3. Vary the fan pattern spray angle and the distance to the cleaning surface until optimum cleaning efficiency is achieved without damaging the surface.

A clogged or partially clogged nozzle can cause a significant reduction of water coming out of the nozzle and cause the unit to pulsate while spraying.

To clean out the nozzle

• Turn off the unit.

• Turn off the water supply. Relieve any pressure trapped in the hose by squeezing the trigger 2 – 3 times.

• Separate lance from a gun.

•  Rotate the nozzle to the narrow stream setting. This opens up the fan blades.

• Using the included tip cleaner, or an un-folded paper clip, insert wire into the nozzle hole and move back and forth until debris is dislodged.

• Remove additional debris by back-flushing water through the nozzle. To do this, remove the lance from the gun, place the end of a garden hose (with water running) to tip of the nozzle pushing water and debris out the back opening of the lance.

DETERGENTS

• The use of detergents can dramatically reduce cleaning time and assist in the removal of difficult stains. Some detergents have been customized for pressure washers use on specific cleaning tasks. These detergents are approximately as thick as water. The use of thicker detergents, such as dish soap, will clog the chemical injection system and prevent the application of the detergent.

• The cleaning power of detergents comes from applying them to a surface and giving the chemicals time to break down the dirt and grime. Detergents work best when applied at low pressure.

• The combination of chemical action and high-pressure rinsing is very effective. On vertical surfaces, apply the detergent starting at the bottom and working your way upward. This will prevent the detergent from sliding down and causing streaks.

• High-pressure rinsing should also progress from the bottom to top. On particularly tough stains, it may be necessary to use a brush in combination with detergents and high-pressure rinsing.

Description

The AR Blue Clean Pressure Washer AR383 is a versatile and powerful cleaning tool that can handle even the toughest grime and stains. Its compact size and lightweight design make it easy to maneuver, while its powerful motor and adjustable pressure settings ensure that you get the perfect clean every time. Whether you're washing your car, cleaning your deck, or blasting away dirt and debris from your outdoor surfaces, this pressure washer delivers professional-grade results.

Pressure Washer Warranty

This product is under warranty to the original retail consumer against defects in material and workmanship for 1 (one) year on the machine, 90 days on gun and hose assembly, from the date of retail purchase, and is not transferable. The warranty covers replacement parts. This limited one-year warranty applies only to products used in consumer applications and does not apply to rental or commercial applications.

Troubleshooting

While the AR383 is generally a reliable and easy-to-use pressure washer, there are a few common issues that you may encounter. Some of the most common problems and solutions include:

• Low pressure: Make sure that the water supply is turned on fully and that the pressure washer is positioned correctly. Check for any blockages in the hose or nozzle and clean or replace as necessary.
• Leaks: Check for loose connections and tighten as necessary. If the leak persists, check for any cracks or damage to the hose or housing and replace if necessary.
• Overheating: Make sure that the pressure washer is positioned in a well-ventilated area and that the water supply is sufficient. If the problem persists, turn off the pressure washer and let it cool down before continuing.

Pros & Cons

Pros

• Powerful motor and adjustable pressure settings
• Compact and lightweight design with onboard detergent tank
• Long hose and power cord for added convenience
• Affordable price point

Cons

• May be too powerful for some delicate surfaces
• Hose and power cord could be longer for larger cleaning projects
• Some users may find the assembly process challenging

Customer Reviews

Customers have praised the AR Blue Clean Pressure Washer AR383 for its power, versatility, and affordability. Many have noted that it is easy to use and maneuver, and that it delivers professional-grade results on a variety of surfaces. The onboard detergent tank and adjustable pressure settings have also been popular features among users. However, some have noted that the hose and power cord could be longer for larger cleaning projects, and that the assembly process can be challenging for some.

The most common complaint among users has been related to the durability of the hose and housing. While the majority of users have reported no issues, a small number have noted that the hose and housing have cracked or split after only a few uses. However, this issue appears to be relatively rare and may be covered under warranty.
