Atwood Hydro Flame Digital Thermostat T1H2C: Complete Product Manual


Introduction

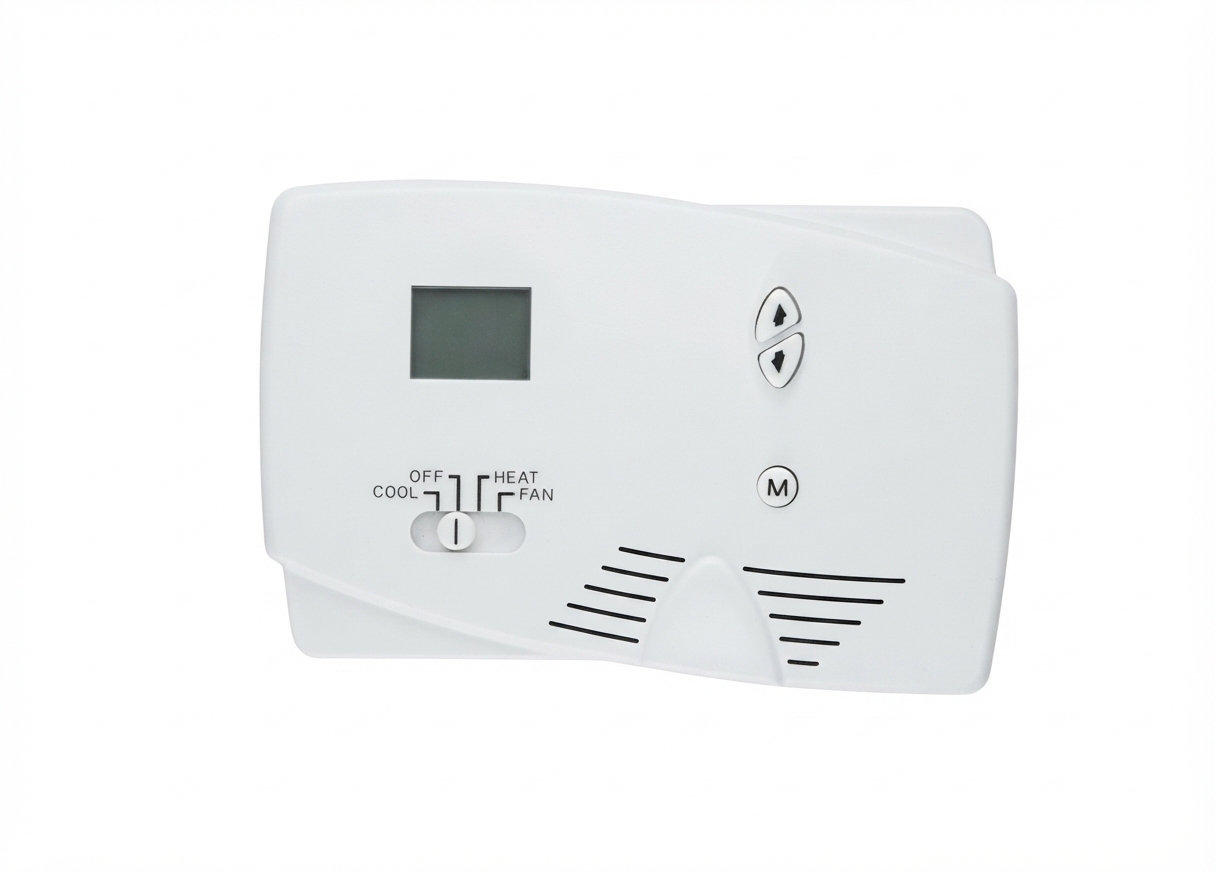

The Atwood Hydro Flame Digital Thermostat T1H2C is a compact RV climate-control thermostat designed to manage standard furnace and air conditioning systems with simple digital precision. Built for reliability in mobile environments, it helps maintain consistent interior comfort by automatically responding to room temperature changes and sending heating or cooling demand signals when needed. For RV owners, mobile home users, and service technicians, this thermostat offers a practical upgrade over older analog controls thanks to its clearer temperature display, tighter accuracy, and easy-to-use interface.

This model is widely used in recreational vehicles that need dependable temperature regulation without complicated programming. Its main strengths are simplicity, broad voltage compatibility, and accurate room sensing. The thermostat is especially useful in travel trailers, fifth wheels, motorhomes, and similar applications where stable operation matters during travel and seasonal temperature swings. The digital layout makes it a strong fit for users who want straightforward operation without smart-home complexity.

Typical pricing for the Atwood Hydro Flame Digital Thermostat T1H2C often falls in the budget-to-midrange category, usually around $30 to $90 depending on seller, condition, and whether the unit is new old stock or part of a replacement kit. Availability can vary because this is a legacy RV component, so it is commonly found through RV parts retailers, service suppliers, and online marketplaces. If you are searching for a dependable replacement thermostat for an Atwood or Hydro Flame system, this model remains a practical and cost-effective option.

Specifications for Atwood Hydro Flame Digital Thermostat T1H2C

Model: Atwood Hydro Flame Digital Thermostat T1H2C
Application: Standard RV furnace and air conditioning systems
Operating voltage: 9 VDC to 18 VDC
Current consumption: Approximately 100 mA at 12 VDC
Operating temperature range: -40°F to 185°F
Room temperature set range: 55°F to 90°F
Displayed temperature range: 35°F to 99°F
Thermostat accuracy: +/- 1°F
Cooling switching capability: Up to 24 VAC, maximum 2 amps
Typical function: Sends heat demand when room temperature drops below the setpoint and cooling demand when temperature rises above the cooling threshold
Installation style: Wall-mounted interior placement recommended

Compared with basic mechanical RV thermostats, this digital model offers improved temperature accuracy and a clearer readout. Compared with modern smart thermostats, it is far simpler, but it is also more suitable for legacy RV HVAC systems that need direct compatibility and low-power operation. The Atwood Hydro Flame Digital Thermostat T1H2C is best viewed as a reliable purpose-built control rather than a connected, programmable device.

Setup Guide for Atwood Hydro Flame Digital Thermostat T1H2C

Before installation, disconnect all electrical power to the furnace, air conditioner, and supply system. This thermostat is sensitive and should be handled carefully during mounting and wiring. For best performance, install it on an interior wall about 48 to 54 inches above the floor in a dry area with normal air circulation. Avoid direct sunlight, nearby lamps, electronics, appliances, or air supply registers that may distort room readings.

To set up the unit, separate the thermostat body from the sub-base, connect the wiring according to the RV system requirements, and secure the sub-base to the wall. After mounting, attach the thermostat body and restore power. Set the desired temperature using the control interface and confirm that heating or cooling responds correctly.

If the unit seems unresponsive, check wiring polarity, power supply voltage, and whether the furnace or A/C system is receiving the correct demand signal. If mounted on an exterior wall, use proper spacing to reduce false readings. Never install the thermostat in a location exposed to moisture, vibration damage, or direct heat sources.

Troubleshooting the Atwood Hydro Flame Digital Thermostat T1H2C

Common issues usually involve wiring, placement, or power supply problems rather than thermostat failure. If the furnace does not start, verify that the thermostat is receiving voltage and that the set temperature is higher than the room temperature for heat mode. If cooling does not activate, check the A/C circuit and confirm that the system supports the thermostat’s switching capability.

Blank display: Check power supply, fuse condition, and wiring connections.
Incorrect temperature reading: Relocate away from heat sources, sunlight, or exterior wall influence.
Furnace short cycling: Confirm proper airflow and ensure the thermostat is not installed near vents.
Cooling will not engage: Confirm A/C compatibility and verify 24 VAC switching limits.
Loose response or delayed control: Inspect terminals and wall mounting stability.

There are no commonly used user-facing error codes for this legacy thermostat, so troubleshooting is mainly physical and electrical. Preventive maintenance includes checking wiring annually, keeping the sensor area clean, and verifying accurate placement after RV renovations or panel changes. For support, contact the RV dealer, thermostat supplier, or the original equipment support channel for the furnace or HVAC system. Warranty coverage depends on seller and condition, especially because this is often sold as a replacement or discontinued part.

Pros and Cons of the Atwood Hydro Flame Digital Thermostat T1H2C

Pros

Simple digital control with easy temperature reading
Compatible with many legacy Atwood and Hydro Flame RV systems
Accurate temperature control within +/- 1°F
Low power consumption for RV electrical systems
Good value for users replacing older thermostat hardware
Works well in standard furnace and A/C applications

Cons

Not a smart thermostat and offers no app control
Limited feature set compared with newer programmable models
Availability can be inconsistent because it is a legacy product
Installation may require careful wiring knowledge
Best suited to compatible RV systems, not universal HVAC use

For buyers who need dependable replacement control at a fair price, the Atwood Hydro Flame Digital Thermostat T1H2C offers strong value. It is less advanced than newer digital RV thermostats, but it is often the better choice when system compatibility matters more than extra features. If you want simplicity, accuracy, and legacy support, it remains a solid option.

Customer Reviews of the Atwood Hydro Flame Digital Thermostat T1H2C

Users often rate this thermostat around 4 out of 5 stars for reliability and ease of use. Many RV owners praise the straightforward display, stable temperature control, and compatibility with older furnace systems. A common testimonial theme is that it restores normal heating and cooling function without requiring a full HVAC upgrade.

Frequent complaints usually involve limited availability, aging components, and the need for careful installation. Some buyers mention that replacement parts can be difficult to source, while others note that accuracy depends heavily on correct placement. Overall, this is a strong purchase recommendation for anyone restoring or maintaining a compatible RV climate system.

Atwood Hydro Flame Digital Thermostat T1H2C Buying Guide

If you need a replacement thermostat for a compatible RV furnace or air conditioning system, this model is worth considering for its balance of cost, simplicity, and dependable performance. The Atwood Hydro Flame Digital Thermostat T1H2C is best for users who want a practical legacy-compatible control rather than a modern connected thermostat.

Before purchasing, confirm voltage compatibility, wiring configuration, and whether your HVAC system requires a two-wire heating-only thermostat or a furnace-plus-A/C setup. Matching the correct thermostat to the system is the key to reliable operation and long-term value.

PDF

Faqs

How do I set up the atwood Hydro Flame Digital Thermostat T1H2C for the first time?

Start by mounting the atwood Hydro Flame Digital Thermostat T1H2C on an interior wall, ideally 48 to 54 inches above the floor where airflow is steady and away from direct heat sources. Connect it to the RV furnace and, if applicable, the air conditioning system using the correct low-voltage wiring. After installation, restore power, set the mode to heat or cool, and test each function. If the room temperature reading seems off, check the wall location and wiring before adjusting settings.

What wiring and power requirements does the atwood Hydro Flame Digital Thermostat T1H2C need?

The atwood Hydro Flame Digital Thermostat T1H2C is designed for low-voltage RV systems and typically operates on 9VDC to 18VDC, with around 12VDC being common. It uses very little current, so a stable 12-volt supply is important for accurate control. Before installation, confirm the furnace and cooling equipment match the thermostat’s voltage and terminal layout. If the system has intermittent power, erratic temperature control or failure to start can occur.

Why is my atwood Hydro Flame Digital Thermostat T1H2C not turning the furnace on?

If the atwood Hydro Flame Digital Thermostat T1H2C does not start the furnace, first check that the thermostat is set to heat mode and the target temperature is above the current room temperature. Then inspect the 12-volt power supply, wiring connections, and fuses. A broken wire, reversed polarity, or loose terminal can stop operation. If the thermostat display works but the furnace stays off, the issue may be in the furnace, control board, or gas supply rather than the thermostat alone.

How do I troubleshoot temperature swings or short cycling with the atwood Hydro Flame Digital Thermostat T1H2C?

Short cycling usually points to thermostat placement, airflow problems, or a control setting issue. Make sure the atwood Hydro Flame Digital Thermostat T1H2C is not installed near a heat duct, window, or exterior wall without proper spacing. Keep vents and returns unobstructed so the thermostat reads room temperature accurately. If the furnace turns on and off too quickly, inspect wiring and confirm the sensor is not exposed to drafts, direct sunlight, or nearby appliances that create false readings.

Is the atwood Hydro Flame Digital Thermostat T1H2C compatible with both furnace and air conditioning systems?

Yes, the atwood Hydro Flame Digital Thermostat T1H2C was designed for use with standard RV furnaces and select air conditioning systems. It is a practical choice when one thermostat needs to manage heating and cooling in a mobile living space. Compatibility depends on the equipment’s voltage and control terminals, so always verify the furnace and A/C wiring before installation. If your coach uses a nonstandard control board, check the system manual before connecting the thermostat.

What features make the atwood Hydro Flame Digital Thermostat T1H2C different from a basic mechanical thermostat?

The atwood Hydro Flame Digital Thermostat T1H2C offers digital temperature control, clearer room temperature display, and more consistent regulation than older mechanical thermostats. It is designed for RV use, so it handles heating and cooling in a compact, low-power format. Users often prefer it because it improves comfort, makes temperature changes easier to monitor, and reduces guesswork. The digital format also helps with more precise adjustments when traveling through changing climates.

How can I improve the performance and accuracy of the atwood Hydro Flame Digital Thermostat T1H2C?

For best performance, install the atwood Hydro Flame Digital Thermostat T1H2C on an interior wall away from direct sunlight, door drafts, and heat-producing appliances. Keep the thermostat clean and make sure the RV’s airflow is balanced by opening registers and return vents. A stable 12-volt supply also helps prevent false readings or weak response. If the temperature seems inaccurate, compare it with a separate room thermometer and confirm the thermostat is mounted at the recommended height.

How do I maintain and care for the atwood Hydro Flame Digital Thermostat T1H2C over time?

Routine care for the atwood Hydro Flame Digital Thermostat T1H2C is simple. Wipe the display and housing with a dry or slightly damp soft cloth, and avoid harsh cleaners that could damage the finish or internal components. Periodically check that mounting screws, terminals, and wires stay tight, especially after travel vibrations. If the thermostat begins to act unpredictably, inspect for corrosion, loose wiring, or low battery or supply voltage before replacing the unit.
