Auto-Homes SR01 Electric Chopper USB Charging Instruction Manual

cover-image

Content

Introduction

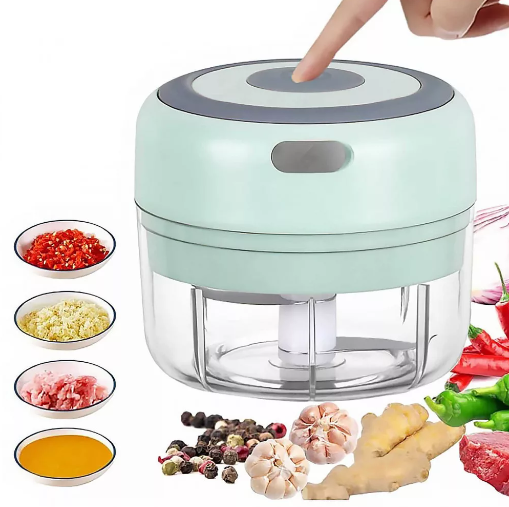

Introducing the Auto-homes SR01 Electric Chopper USB Charging, a revolutionary new product that is perfect for anyone who loves spending time outdoors. This electric chopper is designed to make food preparation quick and easy, no matter where you are. With a powerful motor and sharp blades, the SR01 can handle even the toughest ingredients with ease. And with its built-in USB charging feature, you can take it with you on the go and never have to worry about running out of power.

The estimated price of the auto-homes Electric Chopper USB Charging SR01 is $59.99, and it is set to launch in the summer of 2023. Don't miss out on this incredible new product - order yours today!

Package Contents

NO.NameQuantityUnit
1Main engine1N/A
2Blade1N/A
3Blender jar1N/A
4USB charging cable1N/A
5Instructions1N/A
6Warranty Card1N/A

Product Specifications

Product nameMultifunctional Electric Chopper
Product modelSR01
Rated capacity250ml.
Battery Voltage3.7V
Rated operational current1.2A
Rated power30W
Running time<30S
Rated input voltage5V
Rated input current1A
Executive standard

Auto-homes SR01 Electric Chopper USB Charging Structure

  • Inching switch
  • Non-slip silicone
  • Main machinery
  • USB charging port
  • Blade
  • Food cup
  • Non-slip silicone

Product Features

  1. This product features a unique appearance, all body waterproof, and wireless portable design.
  2. With the double electronic induction safety switch, users can control the grinding degree of food at will by pressing the switch.
  3. With the food grade PC blender jar and food grade SUS304 stainless steel blades, the product is easy to clean and can be sterilized at high temperature, which is healthy and clean.
  4. Detachable parts can be washed by water directly.

Instructions

  1. For the first use, please fully charge the main engine. After the main engine is fully charged, the blue indicator light is always being on. Then clean the main engine, blades, and blender jar.

  2. Insert the blades into the shaft of the blender jar, and then fill the blender jar with washed ingredients (up to the maximum food limit).

  3. After the food is put into the blender jar, install the main engine along the two slots of the jar. When the main engine is installed, the blue indicator light flashes 5 times. Then press the inching switch to process the food. Do not overload the jar, otherwise the blades may not rotate when it is started. Please take out some food properly and continue the processing.

  4. After starting, it will automatically stop working after 30 seconds. If the food is not so delicate as you expected, continue to press the inching switch for processing. After finishing, remove the blender jar attached from the main engine and pour out the food in the jar. Next, rinse it with water.

Indication of Indicator Lights

StatusIndication
ChargingA red light is always being on
Fully chargedA blue light is always being on
The safety switch is closedThe blue light flashes 5 times
A safety switch is offRed and blue lights flash twice respectively
The product is workingA blue light is being on for 30 seconds
Battery is lowA red light is being on for 10 seconds

Description

The Auto-homes SR01 Electric Chopper USB Charging is the perfect tool for anyone who loves spending time outdoors. Whether you're camping, hiking, or just having a picnic in the park, this electric chopper makes it easy to prepare delicious meals and snacks. With its powerful motor and sharp blades, the SR01 can handle even the toughest ingredients, from nuts and vegetables to herbs and cheese. And because it's USB-powered, you can take it with you wherever you go.

The SR01 is also incredibly easy to use. Simply add your ingredients, plug it in, and press the one-touch button to start chopping. The safety lock ensures that it won't start accidentally, and the non-slip base keeps it stable on any surface. When you're done, the chopper bowl and blades are both dishwasher-safe, making cleanup a breeze.


Attentions

  1. This product is a portable food processor. Please charge it before the first use.
  2. Before adding ingredients, make sure the blades are in place and running smoothly.
  3. Do not use sharp objects to scratch the machine.
  4. Do not overload the food processor.
  5. Do not place the blender in the microwave oven or refrigerator for freezing, so as to avoid breaking or damaging the blender. The maximum temperature resistance of the blender jar is 100°C, and therefore the jar can be sterilized with boiling water.
  6. Do not use the product to process very hard ingredients such as coffee beans, soybeans, donkey-hide glue, rice, ice cubes, or other frozen food.
  7. Do not touch any detachable accessories such as the blades or the motor with your fingers while the blender is running, to avoid personal injury or damaging the product.
  8. Never use the blender for more than 30 seconds without interruption at a time. Let the blender rest for 2 minutes between processing cycles. After working for 3 processing cycles, let it cool down before the next use, so as to guarantee longer service life.
  9. Do not touch the blades, for they are very sharp. Hold the cutter bar on the blades while removing or installing.
  10. Never use scouring pads, abrasive cleaning agents, or aggressive liquids such as petrol or acetone to clean the product. The product can be cleaned directly with water.
  11. Never clean any part of the product in the dishwasher.
  12. This product should be stored in a place not easily accessible to children. This product is not intended for use or play by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge.
  13. This product is for household use only, not for commercial use.
  14. Note: Be careful with the blades when removing them and emptying and cleaning the jar.

Note: The above are common fault analysis and troubleshooting methods. For other faults, please contact the dealer, or directly go to the maintenance center designated by the company for maintenance and inspection. Do not disassemble and repair yourself.

Setup Guide

Setting up the Auto-homes SR01 Electric Chopper USB Charging is quick and easy. Here's how to do it:

  1. Remove the chopper bowl and blades from the box.
  2. Plug the USB cable into a power source.
  3. Place the blades in the bottom of the chopper bowl.
  4. Add your ingredients to the chopper bowl.
  5. Place the lid on the chopper bowl and turn it to the lock position.
  6. Press the one-touch button to start chopping.

Cleaning

  1. Please clean the main engine, blades, and blender jar immediately after using the product.
  2. The product can be cleaned directly with water or wiped with a soft wet cloth.
  3. For more effective cleaning, you can apply a proper amount of detergent and clean it with a cleaning pad in warm water.
  4. The blades are very sharp. Do not touch the blades with your fingers to avoid personal injury. Clean the blades with very clean water so that you can see the blades when cleaning.
  5. Never use abrasive cleaning agents or aggressive liquids to clean the product.
  6. Never sterilize any part of the product at high temperature.
  7. Please dry or air dry all parts of the product after cleaning, and then reassemble and store the product.
  8. If the product is not used for a long time, please charge the product within three months.

Food Contact List

Material Information Sheet of "Contact Food List" for Wireless Portable Electric Garlic Masher

This product meets the requirements of the corresponding national food safety standard GB4806.1-2016. The compliance information of the executive standard of "food contact" materials is as follows:

ComponentMaterialExecutive standardTest results
Main engineABS (Acrylonitrile-butadiene-styrene copolymer)GB4806.7-2016Meet the standard requirements
ShaftPOMGB4806.7-2016Meet the standard requirements
Blender jarPCGB4806.7-2016Meet the standard requirements
Blades304 stainless steel (06Cr19Ni10)GB4806.9-2016Meet the standard requirements
Spindle screw304 stainless steel (06Cr19Ni10)GB4806.9-2016Meet the standard requirements
Silica gelSilicone rubber (E-5150A)GB4806.11-2016Meet the standard requirements

Note

  1. Special instructions: please use the product in strict accordance with the instructions and the attached materials.
  2. The parts for food contact of this product are all included in the above table. Some models may not contain certain materials, and the actual product shall prevail.

Environmental Protection List

The product used in this table Wireless Portable Electric Garlic Masher

Statement of Hazardous Substances

According to Marking Requirements for Restricted Use of Hazardous Substances in Electronic and Electrical Products GB/T 26572-2011 (also known as China RoHS 2.0), the names and contents of hazardous substances that may be contained in this product are listed in the following part.

The form is compiled according to SJ/T11364

O: indicating that the content of the hazardous substance in all homogeneous materials of the part is below the limit requirements specified in GB/T26572(IEC62321). X: indicating that the content of the hazardous substance in at least one homogeneous material of the part exceeds the limit requirements specified in GB/T26572. But for the part marked with "X" in the above table, the content of hazardous substance exceeds the limit requirements, for there is no mature alternative technology in the industry.

Environmental Protection Use Period

The mark on the product body indicates that the environmental protection use period is 10 years. The environmental protection use period of electronic and electrical products refers to the period when the toxic and hazardous substances or elements contained in the electronic and electrical products will not leak or mutate, and the users of the electronic and electrical products will not cause serious pollution to the environment or serious damage to human body and property when using the electronic and electrical products.

Please use the product according to these instructions during the environmental protection use period.

Suggestive Notes to Regulations on the Management of Recycling and Treatment of Waste Electrical and Electronic Products

In order to better care for and protect the earth, when users no longer need this product or the product service life has ended, please comply with the national laws and regulations on recycling of waste electrical and electronic products, and hand it over to the local manufacturers with national recognized recycling qualification for recycling.


Auto-homes SR01 Electric Chopper USB Charging Fault Analysis

Fault symptomIndicator lightCause analysisTroubleshooting
After the main engine is installed, the machine does not work after pressing the switchThe red and blue lights flash alternately / A red light is always being onThe main engine and the blender jar are not connected properly / Battery is lowReconnect the main engine and the blender jar / Charge the main engine
The main engine cannot be chargedA blue light is always being onThe motor is damaged or stuckTurn the motor shaft. If it does not work, please send it for maintenance or replacement
The light isn’t workingCheck if the charging cable is looseReplace with a new charging cable
When using the product for the first few times, the motor gives off an unpleasant smellIt is a normal phenomenon, for the new motor is initially usedReplace with a new charging cable
The blades get stuckThe blades are entangled or stuck by ingredientsRemove the main engine, take out the ingredients, and cut the ingredients into small pieces

Pros & Cons

Pros

  • Powerful motor and sharp blades make food preparation quick and easy
  • USB charging feature for use on the go
  • Compact and portable design
  • Easy-to-use one-touch operation
  • Safety lock for added protection

Cons

  • May be too small for larger quantities of food
  • Blades may need to be sharpened periodically

Customer Reviews

"This electric chopper is amazing! It's so easy to use, and it makes food preparation a breeze. I love that I can take it with me on the go and never have to worry about running out of power. Highly recommend!" - Sarah L.

"I was a little skeptical at first, but this chopper has exceeded my expectations. It's well-made, easy to clean, and incredibly convenient. I've used it for everything from chopping nuts and vegetables to making salsa and guacamole. Definitely worth the investment!" - John D.

Most Common Complaints about Auto-homes SR01 Electric Chopper USB Charging

Some customers have reported that the blades can be difficult to clean, and that the chopper may be too small for larger quantities of food.

Faqs

How do I charge the Auto-homes SR01 Electric Chopper USB Charging?

You can charge the Auto-homes SR01 Electric Chopper USB Charging using the included USB charging cable. Simply connect it to a USB power source.

How long does it take to fully charge the Auto-homes SR01 Electric Chopper USB Charging?

Auto-homes SR01 Electric Chopper USB Charging typically takes around 3 hours to fully charge the SR01 Electric Chopper from a completely drained battery.

What is the warranty on the auto-homes Auto-homes SR01 Electric Chopper USB Charging?

Auto-homes SR01 Electric Chopper USB Charging comes with a one-year limited warranty.

How powerful is the motor in the Auto-homes SR01 Electric Chopper USB Charging?

Auto-homes SR01 Electric Chopper USB Charging features a 30W motor, which is powerful enough for efficient chopping of various ingredients.

Is the Auto-homes SR01 Electric Chopper USB Charging waterproof?

Auto-homes SR01 Electric Chopper USB Charging is designed to be waterproof, making it easy to clean under running water. However, do not submerge the main engine in water.

What types of food can the Auto-homes SR01 Electric Chopper USB Charging handle?

Auto-homes SR01 Electric Chopper USB Charging can chop a variety of soft and moderately hard foods, such as vegetables, fruits, nuts, and boneless meats. Avoid using it for very hard ingredients like coffee beans or frozen items.

What safety features does the Auto-homes SR01 Electric Chopper USB Charging have?

Auto-homes SR01 Electric Chopper USB Charging includes a double electronic induction safety switch, ensuring the chopper operates only when the lid is securely in place.

How long can I continuously operate the Auto-homes SR01 Electric Chopper USB Charging?

Auto-homes SR01 Electric Chopper USB Charging is designed to operate for up to 30 seconds continuously. Allow it to rest for a few minutes between uses to prevent overheating.

What should I do if Auto-homes SR01 Electric Chopper USB Charging blades get stuck during operation?

If the blades get stuck, turn off the chopper, remove the lid, and carefully dislodge the food pieces. Avoid overloading the chopper to prevent this issue.

What should I do if the Auto-homes SR01 Electric Chopper USB Charging stops working suddenly?

If the Auto-homes SR01 Electric Chopper USB Charging stops working, check the battery level and charge if necessary. Ensure all parts are correctly assembled and the safety switch is engaged. If the problem persists, contact customer support for assistance.
