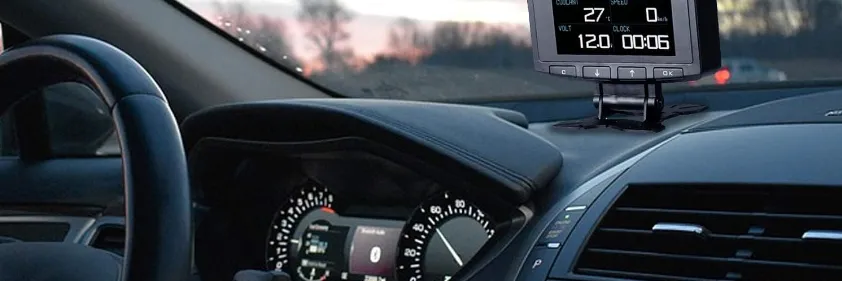

Autoool Car OBD Multi Meter X50 Introduction

The Autoool Car OBD Multi Meter X50 is a state-of-the-art diagnostic tool designed to help car owners and mechanics quickly and accurately identify any issues with their vehicles. This compact and easy-to-use device can read and clear trouble codes, display live data, and perform a variety of other essential diagnostic functions. With an estimated price of $150 and a launch date set for early 2023, the Autoool Car OBD Multi Meter X50 is an essential investment for anyone who wants to keep their car running smoothly.

Detailed Specifications

The Autoool Car OBD Multi Meter X50 boasts a range of impressive features, including:

• Compatibility with all OBD2-compliant vehicles (1996 and newer)
• Easy-to-use color screen with clear and intuitive menus
• Ability to read and clear trouble codes for all major vehicle systems
• Live data streaming and graphing capabilities
• Built-in freeze frame function to help diagnose intermittent issues
• On-board monitoring of vehicle systems and sensors
• Automatic VIN identification for faster and more accurate diagnostics
• USB connectivity for software updates and data logging
• Compact and portable design for use in the garage or on the go

Product Parameters

Product Package Accessories

Main unit, cable, 3M double-sided tape, holder, M3 screws, manual, quality certification.

Production Introduction

Suitable Vehicle Models

The product is suitable for standard OBD-II protocol compliant petrol and diesel vehicles, especially for vehicles without a temperature gauge, tachometer and fuel consumption meter.

Product Installation

This product is a car OBD multi-function instrument with a stylish and compact shape. It is designed for installation through the plug and play OBD port without cutting the wire, easy and simple to install.

Features of Product Hardware

32-bit ARM CORTEX-M3 CPU, with 72MHz maximum operating frequency, in support of multiple high speed automotive communication protocols.

Early Alarm Function

Supports multiple early alarm functions: water temperature early alarm, over-speed early alarm, shifting reminding early alarm and vehicle fault early alarm; bringing car owners great convenience for safe driving.

Clearing Error Codes

Car owners can scan and clear regular vehicle error codes at their discretion and reduce repair costs, without going to the 4S shop.

Product Description

Autool X50 PRO OBD computer is a smart and powerful auto meter. It is especially designed for vehicles without a speedometer, engine temperature gauge, oil thermometer, boost gauge and fuel consumption meter. Autool X50 PRO can also monitor and display battery voltage, engine charging voltages, over-speed alarm, engine temperature warning, and can even read the real-time data stream, scan and clear trouble codes.

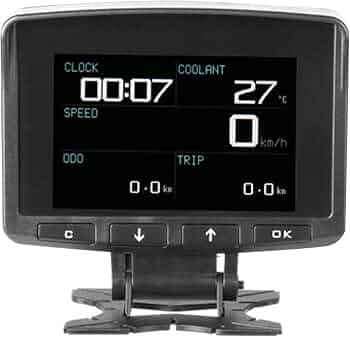

X50 Pro Main Unit Appearance

X50 Pro Function Menu

Product Installation

30 seconds after starting the engine, the vehicle self-test is completed, the product is inserted into the vehicle's OBD computer check port, and the other end is inserted into the host OBD data interface. After plugging in the host, wait for A208 to communicate with the vehicle. After the connection is successful, the host will make a drip, and the display will show the vehicle protocol, and then prompt for the first time for parameter setting.

International Universal OBD Plug Protocol Stipulated by SAE

Tips for Product Installation

The vehicle dashboard should be clean. If there is wax on it, the double adhesive panel may not stick, so please clean it with a hot towel and then start the installation. When you install, heat the instrument panel with hot air to achieve the best effect.

Product Function Settings

• Display Interface Switch
  Press “↑” or “↓” button to switch display working interface.






  Each display interface content can be arbitrarily configured.

• Instrument Content Configuration
  Back to display interface, press “OK” button to enter system menu, choose display setting to enter instrument type setting, then enter the editing state. Press “↓” or “↑” to edit, press “OK” button to confirm.



Description

The Autoool Car OBD Multi Meter X50 is a versatile and powerful diagnostic tool that can help you quickly and easily identify any issues with your vehicle. Its color screen and intuitive menus make it easy to navigate, even for those with little or no experience using diagnostic tools. With the ability to read and clear trouble codes for all major vehicle systems, as well as live data streaming and graphing capabilities, the Autoool Car OBD Multi Meter X50 is an essential investment for any car owner or mechanic.

Explanation of Instrument Name

Sequence Status Indicator

The instrument status light consists of 10 RGB full-color LEDs that can be set to forward·→or →·←to the opposite direction. For speed alarm value or speed shift value, when the corresponding value is reached, the sequence indicator lights up in order until all the flashes prompt.

Status Light Step Setting

The status light illuminates forward display mode = alarm (shift) value - step value × 10 opposite display = alarm (shift) value - step value × 5. The status lights are all light up forward, opposite display mode = alarm (shift) value - step value. All status lights flash (light burst) forward, opposite display mode ≥ alarm (shift) value.

Note: The light intensity of the status light can be set or it can be controlled automatically by the light sensor.

Forward Display

Set to RPM alarm value mode, step value is 200RPM, alarm value is 5000RPM.

Opposite Display

Sound Alert Value Setting

Sound Alert Value Set List

Parameter Calibration

Speed Calibration (50-150%)

Different manufacturers' display speed will be faster than the actual; users can adjust according to the vehicle condition. Speed calibration (50-150%), users can adjust according to their needs.

Fuel Consumption Calibration (20-200%)

The user can adjust the appropriate ratio according to the fuel consumption of the vehicle.

Brightness Control

Brightness control can be switched to self and manual control mode. When the brightness control is selected as the manual mode, the brightness time of the day and the brightness time of the night take effect at the same time, and the brightness value of each time period is controlled. Press “C” button on the meter display interface to adjust the brightness level in the current brightness mode.

Setup Guide

To use the Autoool Car OBD Multi Meter X50, simply follow these steps:

1. Plug the device into the OBD2 port on your vehicle (usually located under the dashboard)
2. Turn on the ignition and wait for the device to power up
3. Use the menus on the device to select the diagnostic function you want to perform
4. Follow the on-screen instructions to complete the function

Other Instructions

Oil Consumption Data

The fuel consumption data is calculated based on the air flow or the turbine/inlet pressure data. If your vehicle does not have one of the above two parameters, it will not be able to display the exact fuel consumption. The fuel consumption calculation formula of the vehicle speed is divided into gasoline and diesel vehicles. Please check the engine type of the vehicle and enter the “System Settings -> Fuel Type” to select the corresponding fuel type. If the fuel consumption display differs from the actual one, please correct it according to the condition of the vehicle.

Sleep Mode Settings

The ECU of some models cannot automatically shut down when there is data communication. In this case, it must rely on the "Speed value I fluctuate sleep" function to force the product to enter the off screen and enter hibernation. If the vehicle with start-stop function wants to make the product work during start-up and shutdown, it must be turned off at the same time, and the “Automatically close the screen when starting and stopping” function (please enter “other settings” menu settings).

PID Read Cycle

According to the different models read a single ECU data information delay is different, the user can set the PDI read time of the product according to the performance of the vehicle, the shorter the reading time, the faster the corresponding data display.

Manual Wake-Up Function

The product is in hibernation. If the user does not want to use the product when starting the vehicle, press any of the 4 function keys to wake up the product. If you do not press the button again after waking up, this product will sleep again after 1 minute. Some vehicles cannot clear the fault codes during engine operation. At this time, this function must be used to wake up the product to clear the fault code (the vehicle key must be turned ON).

HUD Mode

This product has a HUD display function. Due to the limited brightness of the IPS screen, the daytime display effect is not as good as at night. If you want to use it for a long time, it is best to put a reflective film on the windshield (need to buy).

Troubleshooting

If you encounter any issues while using the Autoool Car OBD Multi Meter X50, try the following troubleshooting steps:

1. Make sure the device is properly plugged into the OBD2 port
2. Check the device's battery level and charge it if necessary
3. Try resetting the device by removing and reinserting the battery
4. Make sure your vehicle is compatible with the device (it should be OBD2-compliant and manufactured after 1996)
5. Check for any software updates for the device and install them if necessary

Warranty

There are 3 years' warranty for AUTOOL product main unit and 1 year warranty for the accessories since the day the customers have received the product parcel.

Warranty Access

Repair or replace the equipment will be done according to the specific fault conditions. We guarantee that all replacement parts, accessories or equipment are brand new. When there is a product breakdown that cannot be solved within 90 days, customers should provide video and pictures as proof. We will bear the freight cost and provide the customer with the accessories needed for replacement. After receiving the product for more than 90 days, the customer shall bear the freight cost, and we will provide the accessory for free to replace.

Warranty Not Covered in Conditions Listed Below

• Product is bought through non-official AUTOOL purchase channels.
• Product failure is caused by incorrect use of the product, use for other wrong purposes, or human factors.

Disclaimer

AUTOOL Technology Co, Ltd. reserves the right to change product designs and specifications without prior notice. The physical appearance and color may differ from those shown in the instruction manual. Please refer to the actual product. If you have any questions, please contact the dealer or the Autool service center. The company has the final explanation right of product and shall not bear any consequences due to misunderstanding.

Trademark

AUTOOL Technology Co, Ltd. has registered its trademarks in several countries including China, the trademark is . With regard to the other trademark, service logo, domain name, icon and company name mentioned in this manual, they shall all belong to AUTOOL and its other affiliated company. In other countries without the registration yet of these trademarks, service logos, domain names, icons and company names of AUTOOL, we announce they are owned by AUTOOL. Any company or person shall not use the trademark, service logo, domain name, icon and company name of AUTOOL before getting approved by AUTOOL with written certificates. Please visit our website www.autooltech.com or email to [email protected] to contact us.
