Beaverlab Astronomical Telescope DDL-TW1

Introduction

The beaverlab Astronomical Telescone DDL-TW1 is a cutting-edge astronomical telescope designed for both amateur and professional astronomers. This telescope is engineered to provide clear, high-resolution images of celestial objects, making it an ideal choice for stargazing, planetary observation, and deep-space exploration. The DDL-TW1 boasts a robust design, advanced optics, and user-friendly features that make it accessible to a wide range of users.

The estimated price of the Beavertaill Astronomical Telescope DDL-TW1 is around $2,500, which is competitive given its advanced features and high-quality construction. The telescope is expected to launch in the fall of 2023, with pre-orders available several months before the release date.

This telescope is designed for various purposes, including astronomical research, educational projects, and personal hobbyist use. Its versatility and performance make it a valuable addition to any astronomy setup.

Specifications

Brand Beaverlab

• Brand: Beaverlab
• Product Name: Intelligent Astronomical Telescope TWl
• Product Model: DDL-TWl
• Version: TWl/TWl Pro/TWl Max
• Product Color: Black, Blue
• Aperture: F/6.1
• Focal Length: 500mm
• Type: Retractor

Image acquisition unit

• Battery Capacity 1700mAh
• Input Voltage DCSV::: lA
• Charging Port Type-C

Product Overview

Thank you for purchasing the Intelligent Astronomical Telescope.
Please read this manual carefully before use and keep it properly. Do not use the telescope without knowing how to use it,, to avoid unnecessary loss caused by wrong use.

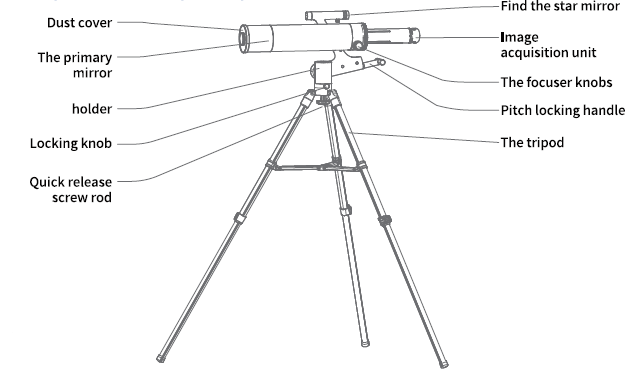

Description of telescope composition

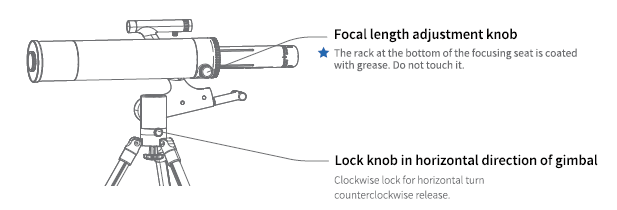

Description of telescope knobs

Usage Instructions

• Protect the lens of the objective lens and close the dust cover after use to avoid dust or foreign objects.
• Pay attention to protect the image collector. Please put the protective cover on after use to avoid dust or foreign matter.
• The telescope is suspended from the side, without a heavy weight.
• When you do not use this product, please lock the various institutions of the gimbal to avoid the rotation of the astronomical telescope under the action of gravity.
• Please use in the environment of -l0°C-45°C.
• This product is not waterproof; please avoid getting it wet with any liquid.
• Keep away from fire and heat sources.
• Please keep dust out of the lens.
• This product is a precision instrument; please avoid collision and violent vibration.
• In the case of low temperature, the available capacity of the battery will have different degrees of decay; this is a characteristic of lithium batteries, which is a normal phenomenon.
• In case of any abnormal phenomenon, please refer to the troubleshooting manual in time. In case of any unsolvable fault, please refer to the after-sales instructions.
• Disassembling telescopes without permission is not covered by the warranty policy and may result in irreparable damage.

Special Warning

• Do not directly observe the sun without properly installed Bader film sunglasses. This will cause the image collector chip to burn.
• Minors should be accompanied by an adult.
• Private modification of the telescope is prohibited.
• When the telescope is not in use, please cover the dustproof cover to keep the machine clean.

Installation Instructions

After receiving the product, users are required to complete the overall assembly of the product by themselves.

Install the tripod

1. Take out the tripod, loosen the fastening knob of the tripod, and pull out each leg to a uniform length.
2. Flatten the folded structure in the middle of the tripod.

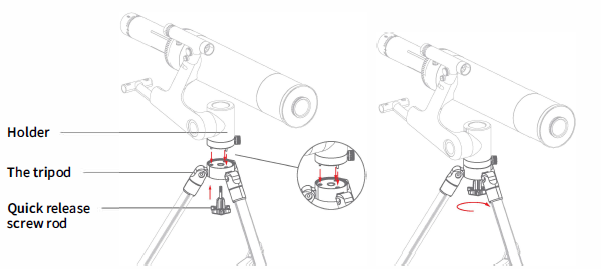

Install the primary mirror barrel with the tripod.

1. Prepare the main mirror, the whole head, the tripod, and the quick detachable rod, as shown below.
2. Take out the main mirror and the cradle head, and align the three positioning pins of the cradle head base with the corresponding three holes on the tripod.
3. Insert the qquick-disconnectingrod rod into the hole at the bottom of the tripod and tighten it clockwise.

During the removal, it is necessary to hold the head of the gimbal and the mirror barrel by hand while loosening the quick-detachable rod to prevent falling.

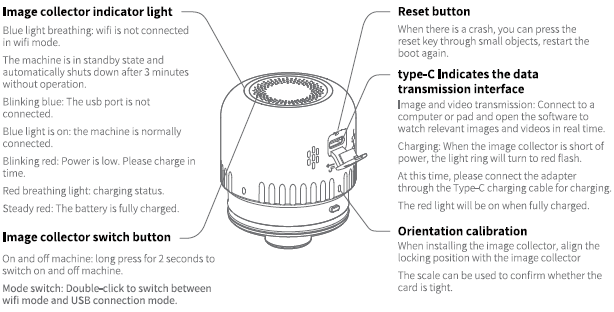

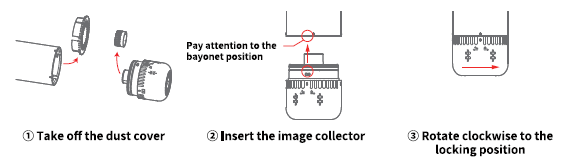

Installation of the image collector

1. Get the image collector ready.
2. Align the locking clip on the side of the image collector with the notch of the telescopic cylinder and insert it, and then rotate the image collector to align the mark point to fix and jam.

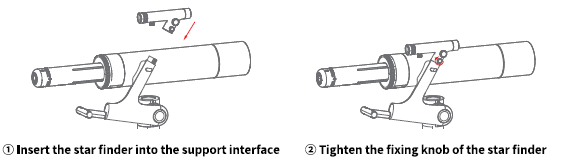

Install the star finder..

1. Get the image collector ready.
2. Align the locking clip on the side of the image collector with the notch of the telescopic cylinder and insert it, and then rotate the image collector to align the mark point to fix and jam.

Tip: Pay attention to the installation direction of the star finder.

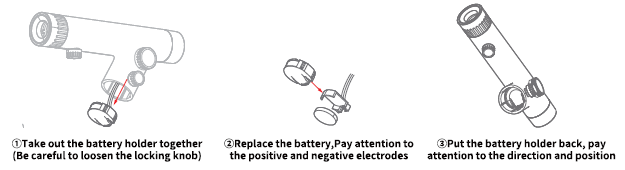

Replace the battery

1. Take out the star finder, place the battery in the interface where the star finder is inserted into the support, and remove the battery holder with your fingers or tweezers.
2. The star finder uses a CR-2032 battery. When replacing the button battery, pay attention to the positive and negative terminals of the battery.

Calibrate the red dot star finder.

1. Find a target more than 100 meters away with your naked eye.
2. Adjust the primary mirror of the telescope to find the target as a whole and move to the center of the field of view.
3. Turn on the star finder red dot switch and turn on the light.
4. Find the red dot inside the circular observation mouth at the back of the star finder.
5. Adjust the position of the red dot through the knob next to the star finder mirror. The whole assembly is not finished until the red dot coincides with the target and the calibration is completed.

Tip: After the observation, please turn off the red dot of the finderscope.

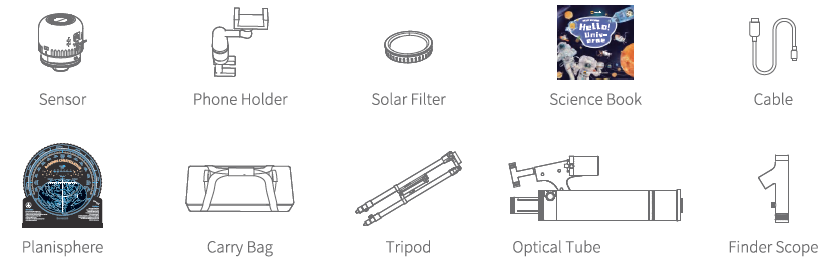

Accessories And Tools

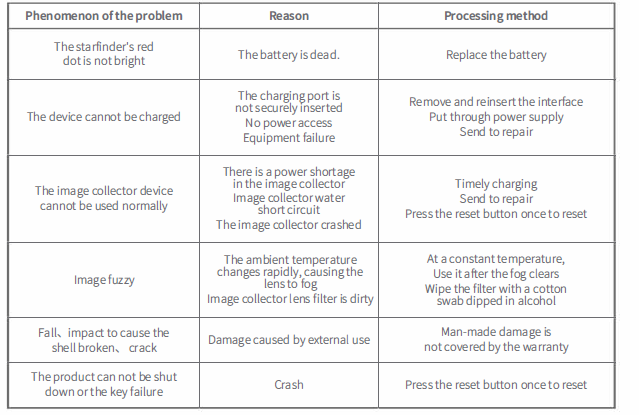

Telescope Faults And Troubleshooting Methods

• Dangdang Cat Intelligent astronomical telescope is a precision optical equipment with a high professional degree. If there is a fault other than the above phenomenon, it needs to be sent back to the factory for repair.
• It is recommended to do the following in daily use to keep your telescope in the best condition:
• When you do not use this product, please put the dust cover on the objective lens to protect the lens and prevent dust at the same time. If there is dust on the image collector, it is recommended to use a camel hair brush or air to blow it off.
• Do not clean the optical lens as much as possible. A little dust on the lens will have little effect on the overall image.
• Keep the telescope in a cool and ventilated place.

Warning: Do not use chemical lens cleaning solutions, which may damage optical parts.

Trademark And Legal Statement

"Beaverlab" is Beaver Technology (Shenzhen) Co., Ltd. A trademark applied for or registered in mainland China and used on the goods. Without the permission of the trademark owner, no person or organization may use the above-mentioned trademark marks on the commodities that have not been approved.
This manual is from Beaver Technology (Shenzhen) Co., Ltd. This manual is made and copyrighted. No institution or individual may reproduce or distribute all or any part of this manual without permission.
Due to the continuous improvement of product functions, design changes,, and other reasons, this manual may be inconsistent with the product you purchased. Please refer to the actual product.

Troubleshooting

If the telescope is not tracking celestial objects correctly, check the alignment of the equatorial mount and ensure that it is properly calibrated. If images appear blurry, adjust the focus knob or check that the eyepiece is securely attached.

For issues with the motor drive, ensure that it is properly powered and that all connections are secure. Refer to the user manual for detailed troubleshooting guides and safety precautions.

Pros & Cons

Pros:

• High-Quality Optics: Provides clear and sharp images of celestial objects.
• User-Friendly Interface: Easy to operate for both beginners and experienced astronomers.
• Durable and lightweight, making it easy to transport.
• Equatorial mount with motor drive and digital interface for enhanced functionality.
• Comes with essential accessories such as eyepieces, a star diagonal, and a moon filter.

Cons:

• The estimated price of $2,500 may be out of budget for some hobbyists.
• Requires some time and effort to assemble and calibrate the telescope properly.
• Motor drive and digital interface may require periodic software updates and maintenance.

Customer Reviews

Customers have praised the beaverlab Astronomical Telescone DDL-TW1 for its exceptional optical quality and ease of use. Many have noted that the telescope's motor drive and digital interface make it highly convenient for long-term observations. However, some users have mentioned that the initial setup can be somewhat complex and time-consuming.

A common complaint is the cost, with some users feeling that the price is too high for a hobbyist telescope. Despite this, overall satisfaction with the product's performance and features has been positive.
