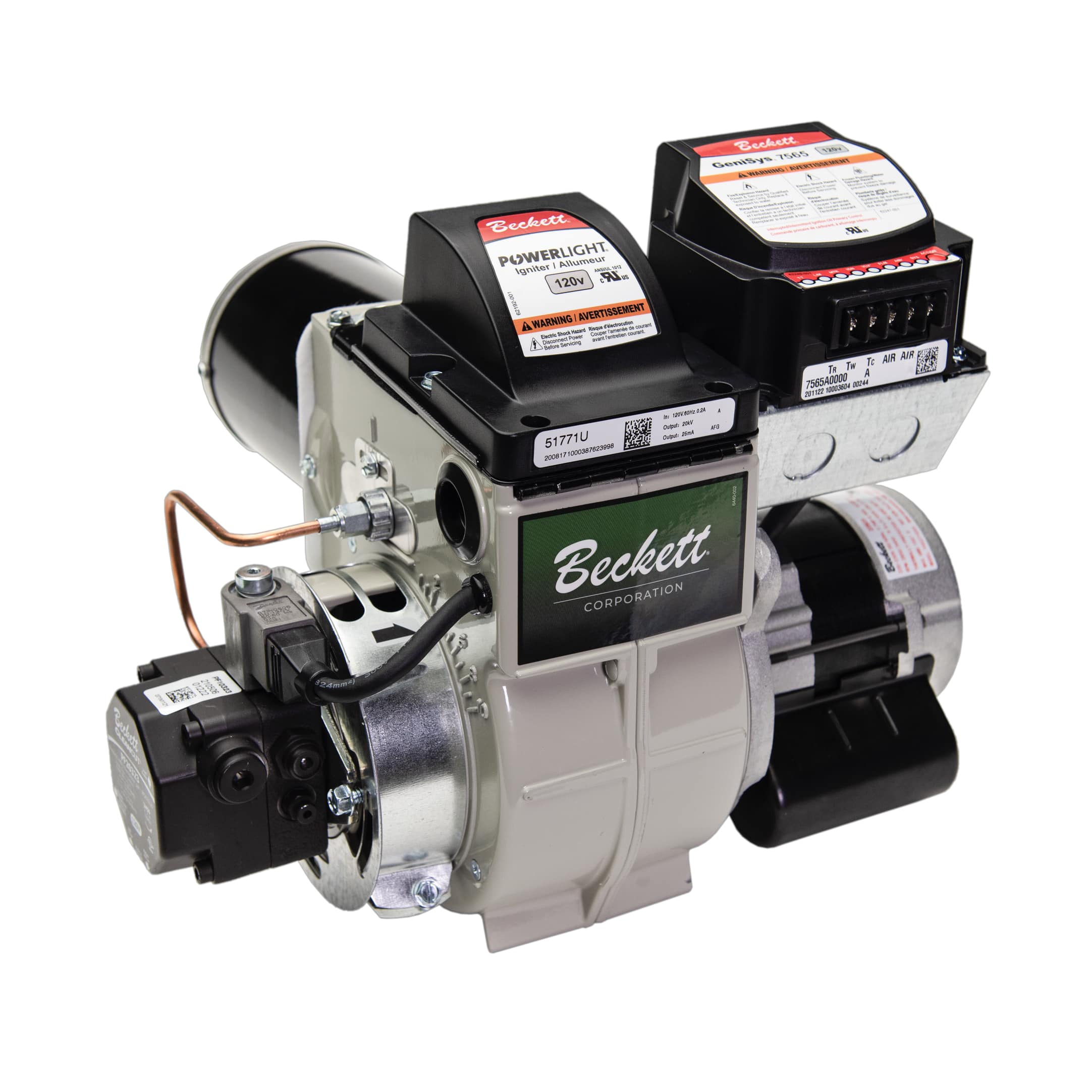

Beckett AF & AFG Series Oil & Fuels Burner Manual

The Beckett AF & AFG Series Oil & Fuels Burner is a high-performance residential and light-commercial oil burner designed for dependable heat, efficient combustion, and broad fuel compatibility. Built for heating oil systems, the burner supports a wide firing range and is commonly used in boilers, furnaces, and hydronic heating equipment. The Beckett AF & AFG Series Oil & Fuels Burner is especially valued for its solid-state ignition, clean-burning operation, and straightforward serviceability, making it a practical choice for contractors, technicians, and homeowners who want reliable heating with minimal downtime.

One of the main advantages of the Beckett AF & AFG Series Oil & Fuels Burner is its flexibility. It supports a wide range of fuels, including #1 and #2 heating oil, diesel fuel, renewable diesel, and approved biodiesel blends. The AFG version is especially known for its higher-capacity design and broader application range, while both models are built for efficient, consistent performance. This makes the burner suitable for replacement jobs, boiler upgrades, and oil-to-biodiesel conversion projects where compatibility matters. Typical price ranges vary by model, configuration, and retailer, but most units and replacement assemblies fall roughly between $250 and $700, with complete installations costing more depending on labor, controls, and accessories. Availability is generally strong through HVAC supply houses, plumbing and heating distributors, online retailers, and authorized Beckett dealers.

For users searching for a dependable oil burner manual, the Beckett AF & AFG Series Oil & Fuels Burner offers a strong balance of performance, durability, and service support. It is a frequent choice for technicians who need a burner that is easy to install, adjust, and maintain while still delivering consistent combustion quality.

Specifications for Beckett AF & AFG Series Oil & Fuels Burner

Fuel range: 0.40 to 3.00 GPH for broad heating applications.
Heat input: approximately 56,000 to 420,000 BTU/hr, depending on setup.
Fuel compatibility: ASTM D396 #1 and #2 heating oil, biodiesel blends, renewable diesel, and diesel fuel where approved.
Power supply: 120 VAC, 60 Hz, single phase; some configurations may support 240 VAC factory options.
Motor: 1/7 HP, 3450 RPM PSC motor for steady burner operation.
Ignition: continuous-duty solid-state ignition for dependable startup and flame stability.
Fuel unit: Beckett CleanCut single or two-stage options, depending on configuration.
Operating load: up to about 5.8 amps at 120 V.
AFG advantage: higher-capacity design with stronger output potential than the standard AF burner.
Best fit: oil-fired boilers, furnaces, and retrofit heating systems requiring reliable oil burner performance.

Compared with smaller residential burners, the Beckett AF & AFG Series Oil & Fuels Burner offers a wider firing range and better adaptability for mixed installation needs. Compared with many basic replacement burners, the AFG model provides stronger capacity and more fuel flexibility, making it a better choice for larger heating loads or advanced retrofit work.

Setup Guide for Beckett AF & AFG Series Oil & Fuels Burner

Before installation, verify that the appliance, fuel unit, nozzle, and air settings match the required firing rate and fuel type. Shut off electrical power and oil supply before beginning any work. Mount the burner securely to the appliance using the correct flange kit and gasket, then confirm the air tube depth and burner head settings match the boiler or furnace specification.

Step 1: Inspect the burner, nozzle, electrodes, and fuel line for shipping damage or contamination.
Step 2: Install the burner flange, align the air tube, and tighten mounting hardware.
Step 3: Connect the oil supply line and verify the fuel unit is compatible with the system.
Step 4: Wire the control, motor, and ignition components according to the appliance diagram.
Step 5: Set air shutter, pump pressure, and nozzle size to the required firing rate.
Step 6: Prime the fuel unit, bleed air from the system, and test ignition.
Step 7: Perform combustion testing and fine-tune for clean flame, stable draft, and safe operation.

Safety is critical during setup. Turn off power before opening the burner cabinet, avoid fuel leaks, and never fire the burner without correct combustion settings. If the burner fails to light, check air in the fuel line, nozzle condition, electrode spacing, and control lockout status. The Beckett AF & AFG Series Oil & Fuels Burner should always be installed and adjusted by qualified personnel when possible.

Troubleshooting Beckett AF & AFG Series Oil & Fuels Burner Problems

Common problems usually involve fuel delivery, ignition, flame detection, or air adjustment. If the burner locks out, check the cad cell, nozzle, fuel supply, and primary control. If the burner starts but shuts off quickly, suspect weak flame signal, improper electrode setting, or dirty components. If there is delayed ignition, inspect the air-to-fuel ratio, pump pressure, and burner head alignment.

Problem: Burner will not start. Solution: Check power, safety control, thermostat call, and lockout reset.
Problem: Burner runs but no flame. Solution: Bleed air from the oil line, inspect nozzle, and verify fuel pressure.
Problem: Smoke or sooting. Solution: Clean the burner, adjust air settings, and confirm proper draft.
Problem: Hard starting or delayed ignition. Solution: Check electrodes, nozzle size, and combustion air settings.
Problem: Repeated lockouts. Solution: Test cad cell performance and replace worn ignition components if needed.

There are no universal error codes across every installation, but primary control lockout indicators, flame failures, and reset alarms are the most common fault signals. Preventive care includes annual service, nozzle replacement, filter changes, air setting verification, and combustion testing. Warranty terms vary by model and distributor, so keep the installation records and serial number available. For support, contact the selling dealer, Beckett technical support through authorized channels, or a licensed HVAC service provider.

Pros and Cons of the Beckett AF & AFG Series Oil & Fuels Burner

Pros

Wide firing range makes it suitable for many boiler and furnace applications.
Supports multiple approved fuels, including heating oil, diesel, and biodiesel blends.
Solid-state ignition improves startup reliability and long-term consistency.
Strong reputation for serviceability and replacement-part availability.
AFG model delivers higher capacity for more demanding heating loads.
Good value for money in retrofit and replacement projects.

Cons

Requires proper setup and combustion tuning for best results.
Performance depends heavily on installation quality and fuel system condition.
Not as simple as low-maintenance electric heating solutions.
Some configurations may require a technician for safe and accurate adjustment.

Compared with budget oil burners, the Beckett AF & AFG Series Oil & Fuels Burner offers better support, stronger parts availability, and more adaptable performance. For buyers who value long-term serviceability and dependable heating output, it is a strong choice.

Customer Reviews of Beckett AF & AFG Series Oil & Fuels Burner

Customer feedback is generally positive, with many users giving the burner 4 to 5 stars for reliable ignition, consistent heat output, and easy servicing. Homeowners often praise its dependable winter performance, while technicians appreciate the familiar design and readily available replacement parts.

“Runs smoothly and starts reliably after proper setup.”
“A solid replacement burner with good parts support.”
“Works well, but combustion tuning must be done correctly.”
“Great value for older boiler replacements.”

Common complaints usually involve poor installation, air in the fuel line, or delayed maintenance rather than the burner design itself. Buyers who want a proven oil burner with broad compatibility and dependable service support will usually be satisfied with the Beckett AF & AFG Series Oil & Fuels Burner.

PDF

Faqs

How do I set up the Beckett AF and AFG Series Oil & Fuels Burner for the first time?

Start by verifying that the burner fuel unit matches your oil supply system and that the appliance model is compatible with the Beckett AF and AFG Series Oil & Fuels Burner. Mount the burner securely, connect the air tube, and open the oil shutoff valves before bleeding the fuel line. Set the thermostat above room temperature, begin with a partially open air shutter, and then fine-tune the air settings with proper combustion instruments after startup.

What fuel types are compatible with the Beckett AF and AFG Series Oil & Fuels Burner?

The Beckett AF and AFG Series Oil & Fuels Burner is designed for traditional heating oil and renewable fuels, including biodiesel blends and renewable diesel. It is commonly rated for No. 1 and No. 2 heating oil, with support for biodiesel blends up to B20 on many applications and higher renewable-fuel compatibility depending on the system. Always confirm the exact fuel rating for your model, appliance, and local installation code before operation.

Why is my Beckett AF and AFG Series Oil & Fuels Burner not starting after installation?

If the Beckett AF and AFG Series Oil & Fuels Burner does not start, check the power supply, thermostat call for heat, and primary control reset status first. Make sure the oil valves are open, the tank has fuel, and the fuel line has been properly bled of air. Also inspect the nozzle, electrodes, and wiring connections. A blocked fuel supply or incorrect initial air setting can prevent a normal startup cycle.

How do I bleed air from the Beckett AF and AFG Series Oil & Fuels Burner fuel line?

To bleed the Beckett AF and AFG Series Oil & Fuels Burner, open the shutoff valves, start the burner, and use the pump vent or bleed port with a clear hose routed into a container. Keep the initial air shutter setting only as long as needed for bleeding, then tighten the vent when a steady stream of oil appears. If the burner continues to lock out, check for air leaks, restricted filters, or a weak fuel supply.

What should I check if the Beckett AF and AFG Series Oil & Fuels Burner keeps locking out?

Frequent lockouts on the Beckett AF and AFG Series Oil & Fuels Burner usually point to ignition, fuel delivery, or combustion issues. Check the nozzle size, electrode condition, burner alignment, and oil pressure. Confirm the fuel filter is clean, the tank has adequate fuel, and there is no air in the line. Poor draft, blocked flue passages, or incorrect air settings can also trigger safety shutdowns and should be inspected carefully.

How often should I maintain the Beckett AF and AFG Series Oil & Fuels Burner?

Routine maintenance for the Beckett AF and AFG Series Oil & Fuels Burner should be performed at least once a heating season, and more often if the burner runs heavily. Typical service includes replacing the nozzle, cleaning or replacing the oil filter, checking electrodes, inspecting the cad cell, cleaning the combustion head, and verifying air settings. Regular maintenance improves ignition reliability, reduces soot buildup, and helps keep fuel use efficient.

What makes the Beckett AF and AFG Series Oil & Fuels Burner different from other oil burners?

The Beckett AF and AFG Series Oil & Fuels Burner is known for broad fuel compatibility, flexible firing ranges, and components designed for modern heating systems. It supports a wide capacity range and is commonly used on boilers, furnaces, and water heaters. The series is also valued for dependable ignition, service-friendly construction, and the ability to work with renewable fuels, making it a practical choice for efficiency and long-term reliability.

How can I improve performance and reduce soot with the Beckett AF and AFG Series Oil & Fuels Burner?

To improve performance of the Beckett AF and AFG Series Oil & Fuels Burner, make sure the nozzle, air band, and air shutter are set to match the appliance and firing rate. Confirm proper draft, clean heat exchanger passages, and verify the fuel pressure is correct. A dirty filter, worn electrodes, or poor combustion chamber conditions can increase soot. A professional combustion analysis is the best way to optimize efficiency and clean operation.
