Beverage-Air BF051AF Blast Chiller User Manual

Content

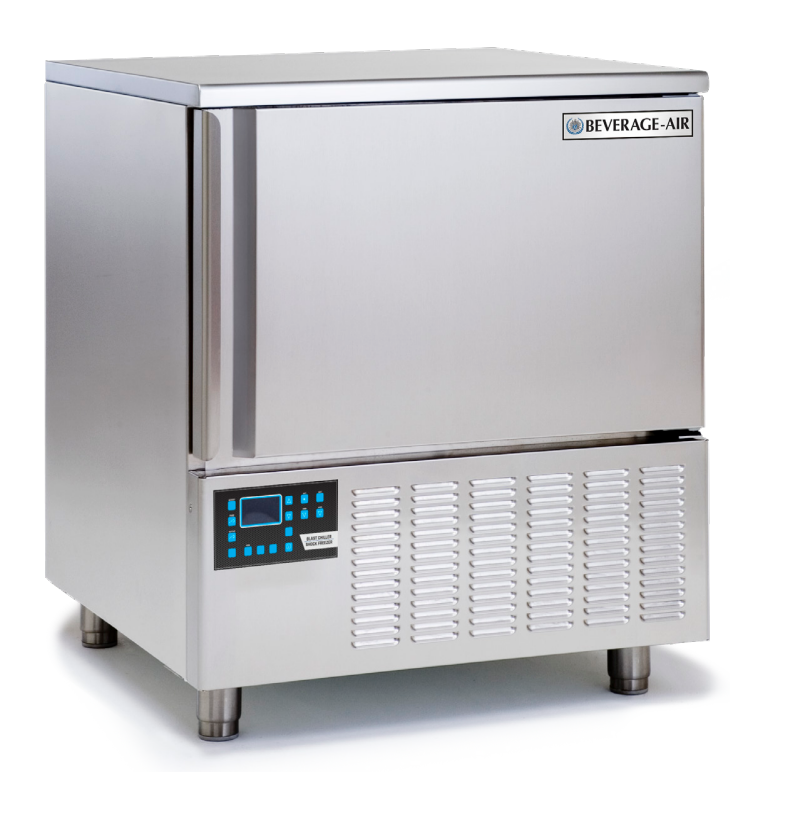

Beverage-Air BF051AF Blast Chiller Manual

The Beverage-Air BF051AF blast chiller is a compact, professional-grade chiller/freezer designed for fast food safety, quality preservation, and high-volume kitchen workflows. It is built for restaurants, hotels, catering operations, bakeries, and institutional foodservice teams that need to quickly cool or freeze prepared foods without sacrificing texture, flavor, or presentation. With the ability to chill from 194°F to 37°F in 90 minutes and freeze from 194°F to 0°F in 240 minutes, this unit helps reduce bacterial risk while improving prep efficiency and batch management.

The beverage-air BF051AF Blast Chiller offers stainless steel construction, programmable control, and capacity for 5 pans, making it a strong fit for kitchens that need reliable performance in a relatively small footprint. Its monobody cabinet design, food-safe interior materials, and adjustable tray spacing support everyday commercial use. Typical applications include cooling soups, sauces, proteins, pastries, and plated meals before storage or service. The unit also supports multi-step production in bakeries and commissaries where timing and consistency matter.

Estimated pricing for the beverage-air BF051AF Blast Chiller has historically been in the premium commercial equipment range, with list pricing around $24,213 in available price references. Availability may vary by distributor, region, and supply chain conditions, so buyers should check with authorized dealers or Beverage-Air sales channels for current stock and lead times.

Detailed Specifications for Beverage-Air BF051AF Blast Chiller

Model: BF051AF blast chiller/freezer
Overall dimensions: 31.10 in W x 27.56 in D x 33.46 in H
Capacity: 5 pans, pans not included
Pan size: 13 in x 21 in x 2 in
Chilling performance: 194°F to 37°F in 90 minutes
Freezing performance: 194°F to 0°F in 240 minutes
Chilling capacity: 40 lb
Freezing capacity: 26 lb
Electrical: 208-240V, 1 phase, 60 Hz
Input power: 1167 W
Maximum current: 6.1 A
Construction: stainless steel interior and exterior with high-density foamed polyurethane insulation
Refrigerant: R404A in available specification references
Program memory: up to 100 settings

Compared with similar countertop blast chiller units, the BF051AF stands out for its larger pan capacity and more robust chilling and freezing output. It is better suited to kitchens that need dependable batch processing rather than ultra-small prep environments.

How to Set Up the Beverage-Air BF051AF Blast Chiller

Start by placing the unit on a level, stable surface with enough clearance for ventilation and service access. Keep the unit away from heat sources and allow room around the rear and sides to support proper airflow. Before connecting power, verify that the electrical supply matches the required 208-240V, single-phase, 60 Hz specification. This model is designed for field wiring, so installation should be handled by a qualified technician.

After power is connected, program the control settings based on your workflow. The unit supports multiple stored programs, which makes it easier to standardize chilling cycles for soups, meats, desserts, and prepared entrees. Insert pans carefully and avoid overloading, because airflow must move freely around the product for even chilling. If temperature recovery seems slow, check whether the door seal is clean, the load is too dense, or the product was placed in too tightly.

Safety warning: never place hot containers directly against the probe area or block the evaporator airflow. Always wear proper hand protection when loading or unloading cold pans, and do not attempt electrical setup without proper commercial refrigeration experience.

Troubleshooting the BF051AF Blast Chiller

If the unit is not cooling properly, first confirm that power is present and the supply voltage is correct. A common cause of poor performance is overloaded pans or poor spacing between trays. If the food is not reaching target temperature in time, reduce batch size, verify door closure, and check whether the product is too warm or too dense for the selected cycle.

If the display does not respond, inspect the main power connection and look for a tripped breaker. While specific error codes may vary by control version, typical control-related faults usually involve probe issues, sensor errors, or airflow interruptions. In those cases, inspect the food probe, clean the condenser area, and reset the unit after power is restored. Persistent faults should be handled by a certified refrigeration technician.

Preventive maintenance includes regular cleaning, checking door gaskets, keeping the condenser clear of dust, and verifying that the drain remains unobstructed. Warranty coverage and support should be confirmed through the dealer or Beverage-Air technical support. Common contact options listed by the manufacturer include technical support at 800-684-1199 and email support at ts@alirefna.com.

Pros and Cons of the Beverage-Air BF051AF Blast Chiller

Pros

Fast chilling and freezing performance for commercial kitchens
Compact footprint with 5-pan capacity
Stainless steel construction for durability and sanitation
Programmable memory for repeatable production cycles
Strong value for kitchens that need batch consistency

Cons

Premium price compared with entry-level food chillers
Requires proper electrical installation and professional setup
Limited capacity for very large commissary operations
May be more than needed for small cafés or light-duty use

Overall, the beverage-air BF051AF Blast Chiller delivers strong value for money when speed, food safety, and repeatable results matter more than low purchase cost. It competes well against smaller cabinet-style blast chillers, but operations needing higher throughput may prefer a larger floor model.

Customer Reviews and Real-World Feedback

Typical user feedback for the beverage-air BF051AF Blast Chiller is positive, with many operators giving it a 4.5 out of 5 star rating for cooling speed, build quality, and easy-to-use controls. Users often praise its ability to handle prepared batches without compromising texture, especially for sauces, proteins, and desserts.

Common complaints usually focus on the high upfront cost and the need for professional installation. Some buyers also note that the compact size is ideal for smaller commercial kitchens, but not enough for very large production runs. A frequent testimonial theme is that the unit pays for itself through improved workflow and reduced food waste. This model is best recommended for restaurants, bakeries, catering businesses, and institutional kitchens that need a reliable blast chiller freezer with consistent results.

PDF

Faqs

How do I set up the Beverage-Air BF051AF Blast Chiller for the first time?

Start by placing the Beverage-Air BF051AF Blast Chiller on a level surface with enough clearance for airflow and service access. Verify the power supply matches the unit’s required electrical specification before connecting it, and make sure the drain, door seals, and probe are clean and properly installed. After power-up, run an empty cycle to confirm cooling performance, check the control display, and review the user manual for any initial configuration settings, such as cycle selection and probe placement.

What should I do if the Beverage-Air BF051AF Blast Chiller is not cooling fast enough?

If the Beverage-Air BF051AF Blast Chiller seems slow, first confirm the door closes fully and the gasket is sealing properly. Overloading the cabinet, using warm pans that are too dense, or blocking airflow around the food can reduce performance. Check that the core probe is inserted correctly and that the unit is not set to the wrong cycle. Also inspect the condenser area for dust buildup, because restricted airflow can cause weak chilling results.

How many pans can the Beverage-Air BF051AF Blast Chiller hold, and what pan size works best?

The Beverage-Air BF051AF Blast Chiller is designed to accommodate 5 pans, typically sized for 13 x 21 inch pans. For best results, avoid crowding the cabinet and keep products spaced so cold air can circulate evenly around each pan. Using the correct pan size helps the unit chill more efficiently and keeps cycle times consistent. If you use deeper or tightly packed containers, cooling performance may drop and the blast cycle may take longer.

What does the core temperature probe do on the Beverage-Air BF051AF Blast Chiller?

The core temperature probe measures the internal temperature of the food rather than just the air inside the cabinet. On the Beverage-Air BF051AF Blast Chiller, this helps the control system determine when a chilling or freezing cycle is complete. For accurate results, insert the probe into the thickest part of the product and avoid touching the pan. Correct probe placement improves food safety, prevents under-chilling, and reduces the risk of running unnecessarily long cycles.

Why is the Beverage-Air BF051AF Blast Chiller showing poor airflow or uneven chilling?

Uneven chilling usually means airflow is being restricted. On the Beverage-Air BF051AF Blast Chiller, this can happen when pans are overloaded, items are stacked too closely, or the interior rails and vents are obstructed. Make sure the fan area is clean and that food is arranged to allow air to move around each tray. If one side of the cabinet chills better than the other, check for door seal issues or blocked internal circulation paths.

How often should I clean and maintain the Beverage-Air BF051AF Blast Chiller?

Regular cleaning is essential for the Beverage-Air BF051AF Blast Chiller because grease, dust, and food residue can affect cooling and hygiene. Wipe the interior after use, clean the door gasket, and keep the drain area clear. Inspect condenser surfaces on a routine schedule and remove dust buildup with a soft brush or vacuum. You should also check the probe, shelves, and seals for wear. Consistent maintenance helps the unit run efficiently and extends service life.

Can the Beverage-Air BF051AF Blast Chiller be used for both chilling and freezing foods?

Yes, the Beverage-Air BF051AF Blast Chiller is designed for both blast chilling and shock freezing. That makes it useful for kitchens that need to cool cooked foods quickly before storage or freeze prepared items for later service. Use the proper cycle for the food type and portion size, and always monitor core temperature with the probe. For best results, avoid loading foods that are too thick or tightly packed, since that can slow the process.

What power and installation requirements should I check before buying the Beverage-Air BF051AF Blast Chiller?

Before installation, confirm that your electrical supply matches the Beverage-Air BF051AF Blast Chiller requirements and that the circuit can handle the load safely. The unit should be installed on a stable, level surface with enough room for ventilation, door movement, and routine cleaning. Because blast chillers are commercial appliances, it is also smart to verify clearances, drainage, and local code requirements. Having a qualified technician handle setup can prevent wiring or startup problems.
