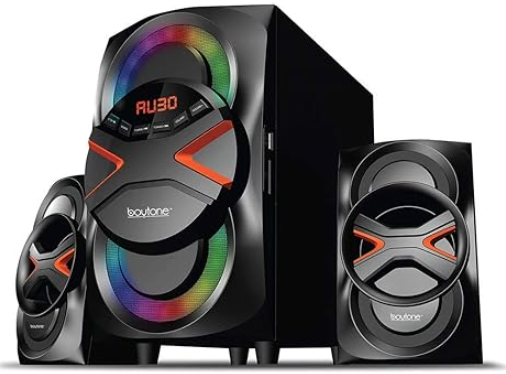

Introduction of Boytone BT-326F 2.1ch Multimedia Speaker System

Boytone BT-326F 2.1ch Multimedia Speaker System is a high-quality and powerful audio solution designed for music lovers and multimedia enthusiasts. This speaker system features a 2.1 channel configuration, delivering clear and immersive sound with deep bass. The estimated price of the Boytone BT-326F is around $70 to $80, making it an affordable choice for those who want to upgrade their audio experience.

Package contents

1. Subwoofer cabinet: 1 pc
2. Satellite speakers: 2 pcs
3. Remote control: 1 pc
4. User manual: 1 pc
5. Audio input cord: 1 pc
6. FM ANT: 1 pc

Boytone Specifications

• Output Power: 20W+10Wx2(RMS)|
• Drive Units: 3" x2 full range magnetically shielded + 5" subwoofer
• Frequency Response: Satellites: 120Hz-20KHz
• Subwoofer:20Hz-170Hz
• Separation: ≥40 dB
• S/N: ≥60dB
• Distortion: ≤0.5% 1K, 1W)
• Power Supply: ~ 120V 60Hz
• Dimensions: Subwoofer: W160xH277xD302(mm)
• Satellite: W105xH170x92(mm)|

Features of Boytone BT-326F

• Quality 2.1 speaker system with built-in amplifier
• Full audio spectrum performances, ideal for your favourite entertainment from Mp3, Mp4, CD/DVD movies and digital playbacks
• Specially designed woofer cabinet for bass and resolution
• Comes with remote control and 3.5mm stereo connection

Front panel

1. ST-BY
2. SOURCE
3. VOLUME+
4. VOLUME-
5. TUNING-
6. TUNING+

• ST-BY/PLAY/PAUSE
  Press to turn on speaker, long press into stand-by. PLAY/PAUSE in USB/SD/BT mode. SOURCE-----Change the input mode.
• VOLUME-/+
  Volume down/up.
• TUNING+/NEXT
  Press to increase  FM frequency 0.1Mhz,Blong press to start seek mode for radio. In USB/SD/BT mode, press “ NEXT ” for next song.
• TUNING-/PREVIOUS
  Press to decrease  FM frequency 0.1Mhz, long press to start search mode for FM Radio. In USB/SD/BT mode, press “ PREVIOUS ” for previous  song.

Using the Remote Control

1. STAND-BY
2. MUTE
3. SOURCE
4. TONE
5. MEMORY
6. 0~9
7. VOL+/-
8. TUNE+/-
9. LED EFFECT
10. PREV/|<<
11. NEXT/>>|
12. PLAY/PAUSE

1. “ST-BY” - standby mode
2. “MUTE” - activates or deactivates mute.
3. “SOURCE”  select the AUX , DVD ,USB/SD,FM,BL input modes and the LED display will show “Au18” for  AUX mode,  “Du18” for DVD mode,  “87.5” for FM mode and “BL” for Bluetooth mode.
4. “TONE” to adjust “TREBLE” and “BASS” Use “VOL+/-” to increase or decrease “TREBLE” or  “BASS” levels.
5. When in FM Radio mode, press“ MEMORY” and the station displayed will flash/blink. The machine is in station memorization mode. You can change the station by pressing “NEXT ”or “PREV” and pressing “PLAY/PAUSE” will save that station for that station number. Automatic seek and save can be done by pressing “MEMORY” for 3-5 seconds
   (Note: Previous saved channels will be deleted when you press “MEMORY” for 3-5 seconds.
6. When in USB/SD mode. “NEXT/>>” for next song; “PREV/<<” for previous song; “PLAY/>/PAUSE/||” for play/pause; pressing “0-9” on the remote will play the corresponding song.
7. VOL+/- to increase or decrease volume.
8. “TUNING-/TUNING+ to adjust FM Radio frequency. Long press to fast scroll through frequencies without pause.
9. “LED” effect - press to change effect. Long press to deactivate.
10. “PREV” for  previous song in USB/SD mode.
11. .“NEXT” for next song in USB/SD mode.
12. "Play/Pause" to play and pause...but you definitely knew that

CONNECTING YOUR BLUETOOTH DEVICE

1. Press "SOURCE" until you are in "bL" mode. You will hear beeping.
2. Activate Bluetooth the and search for "BT Speaker" on your transmitting device (phone, tablet, pc, etc.)

Boytone BT-326F Rear panel

1. ANTENNA
2. AUX/DVD INPUT: Connect to sound sources such as computer, CD Player,MP3,etc.
3. Output: Connect the satellite speakers.
4. AC IN: AC Power cord

System connection diagram

SPEAKER TERMINALS
Connect the left & right channel satellite to 2.1 speaker output  terminals. Do not leave objects generating magnetism near the speakers.

Please pay attention to the following items

if the remote control doesn't function, it is probably the battery of remote control being dead. Change . Thank you.

Description

The Boytone BT-326F 2.1ch Multimedia Speaker System includes two satellite speakers and one subwoofer, providing a total power output of 40W. The satellite speakers are equipped with 3-inch drivers, while the subwoofer features a 5.25-inch driver, delivering rich and deep bass. The speaker system also has a built-in amplifier and a frequency response of 50Hz-20kHz, ensuring clear and accurate sound reproduction.

The Boytone BT-326F has a sleek and modern design, with a glossy black finish and compact size. It can be placed on a desk, shelf, or table, making it a versatile audio solution for any room. The speaker system also has multiple input options, including AUX, USB, and SD card, allowing you to connect various devices and enjoy your favorite music.

Setup Guide of Boytone BT-326F Multimedia Speaker System

Setting up the Boytone BT-326F 2.1ch Multimedia Speaker System is easy and straightforward. Follow these steps to operate, assemble, and configure the speaker system:

1. Unbox the speaker system and connect the satellite speakers to the subwoofer using the RCA cables provided.
2. Plug in the power adapter and turn on the speaker system using the power button on the subwoofer.
3. Connect your device to the speaker system using one of the input options (AUX, USB, or SD card).
4. Adjust the volume and other settings using the control panel on the subwoofer or the remote control.

Speaker System Troubleshooting

Here are some common problems and solutions for the Boytone BT-326F 2.1ch Multimedia Speaker System:

• No sound: Check the connections and make sure the speaker system is turned on. Adjust the volume and input settings.
• Distorted sound: Lower the volume or move the speaker system away from walls or other objects that may cause interference.
• Connectivity issues: Make sure the device is connected to the correct input option and the cable is securely plugged in.
• Power issues: Check the power adapter and outlet, and make sure the speaker system is properly plugged in.

Boytone Pros & Cons

Pros

• Affordable price
• Clear and immersive sound with deep bass
• Multiple input options
• Sleek and modern design

Cons

• No Bluetooth connectivity
• Remote control range may be limited
• May produce interference in some environments

Customer Reviews about Boytone BT-326F

The Boytone BT-326F 2.1ch Multimedia Speaker System has received positive reviews from customers, praising its clear and powerful sound, affordable price, and sleek design. However, some customers have noted issues with the remote control range and interference in some environments.
