Introduction

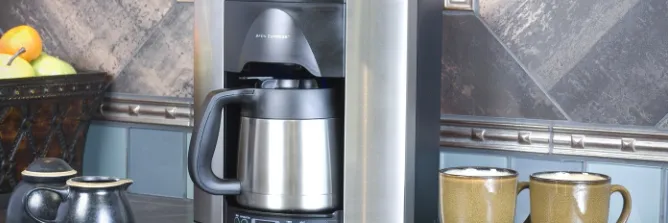

The Brew Express Filling Coffee Machine BE-110 is a high-quality, automatic coffee maker designed for personal or office use. With a sleek, modern design, this coffee machine offers a range of features to make brewing coffee easier and more convenient than ever before. The estimated price of the BE-110 is around $150, and it was launched in early 2021.

Hardware/Tools

Hardware

BREW EXPRESS comes supplied with the following items to ensure a successful installation. Check to be certain all items have been included with your brewer.

• (1) Brewer (with short water line attached to connect with incoming water line)
• (1) Rough-in-Box
• (1) Carafe and lid
• (2) Brew Baskets (1 basket style, 1 cone style)
• (1) Installation Guide
• (1) Operation Guide
• (1) Template (for cutting a hole for Rough-in-Box)
• (1) Hardware Kit: (located in the brew basket)
  • (6) Sheet rock screws for mounting the rough-in-box
  • (3) Wire nuts
  • (1) Male Quick Connector (for connection between Coffee System Unit and Rough-in-Box)

Brew Express Filling Coffee Machine BE-110 Tools Required

The following tools are required for installation:

• Tape Measure
• Utility Knife
• Phillips Screw Driver
• Pencil
• Wire Stripper
• Stud Finder
• Pliers
• Level
• Caulking Gun
• Silicone Caulk
• Safety Glasses
• AC Power Sensor
• Crescent Wrench
• Reciprocating Saw (optional)
• Tile Cutting Bit (optional)
• Electric drill and drill bits

Parts Required (Not Supplied)

• Strain relief (Romex wire clamp)
• 12 - 2 wire (per local code)
• 1/4” Poly or copper line (refrigerator ice maker kit) continuous length recommended
• Water filter
• Wire Nuts
• Valve Connection (optional)

Specifications and Requirements

BE-104 SPECIFICATIONS

Read and follow instructions carefully before installing your BREW EXPRESS in-the-wall COFFEE SYSTEM. For best results, it is advised that you hire a qualified professional.

1. Overall Dimensions (Finished Unit with Rough-in-Box) approximately 9.9” x 11.8” (see below).
2. Dimensions for Rough-in-Box (Mounting Structure) approximately 8.5” x 10.1” x 4”.
3. Electrical Requirements: 120VAC, 60HZ. (1400 watts).
4. Water Requirements: 1/4” OD water supply line (copper or poly) minimum 30 psi to a maximum of 90 psi. Potable COLD water is required.

NOTE: If water is not available, an alternate water dispenser jug (5 gallons) can be used with the optional pump accessory (not supplied). Contact Lance Larkin for more information.

Please Note: A filter and shut-off valve at the water source are recommended. The filter, such as an ice maker type filter, can easily be installed at the source. If water lines are not purged or clear of debris or a filter is NOT installed, foreign particles (debris) in water may clog the brewer system causing failure, and will void all warranties.

BE-110 SPECIFICATIONS

Read and follow instructions carefully before installing your BREW EXPRESS in-the-wall COFFEE SYSTEM. For best results, it is advised that you hire a qualified professional.

1. Overall Dimensions (Finished Unit with Rough-in-Box) approximately 12 1/4” X 13 3/8” (see below).
2. Dimensions for Rough-in-Box (Mounting Structure) approximately 11.5” X 11.5”.
3. Electrical Requirements: 120VAC, 60HZ. (1400 watts).
4. Water Requirements: 1/4” OD water supply line (copper or poly) minimum 30 psi to a maximum of 90 psi. Potable COLD water is required.

NOTE: If water is not available, an alternate water dispenser jug (5 gallons) can be used with the optional pump accessory (not supplied). Contact Lance Larkin for more information.

Please Note: A filter and shut-off valve at the water source are recommended. The filter, such as an ice maker type filter, can easily be installed at the source. If water lines are not purged or clear of debris or a filter is NOT installed, foreign particles (debris) in water may clog the brewer system causing failure, and will void all warranties.

Getting Started

IMPORTANT: Read and follow instructions carefully before installing your BREW EXPRESS in-the-wall COFFEE SYSTEM. For best results, it is advised that you hire a qualified professional.

1. Carefully unpack BREW EXPRESS from the gift box.
2. Remove the carafe and brew basket from the brewing unit. If the brewer includes a carafe lock, press on the lever to remove the carafe.
3. Remove the hardware kit from inside the brew basket.
4. Remove mounting screws from behind the carafe and brew basket. The top mounting screw holds the carafe lock bracket.

5. Separate the brewer from the Rough-In-Box by holding the Rough-In-Box with one hand, and pulling the brewer with the other hand (see figure below).





Location

(Area of Installation)

The BREW EXPRESS can be installed in most places where power and water are supplied. If only power is available, you may consider using a water bottle and pump. The most common locations are the kitchen, master bathroom, or office. Installation inside an exterior wall is not recommended due to the risk of water freezing. See the warranty section for additional information.

NOTE: It is important to check stud width and location for proper fit. Please use the template provided for proper fit for your location.

IDEAL LOCATION AREAS

Description

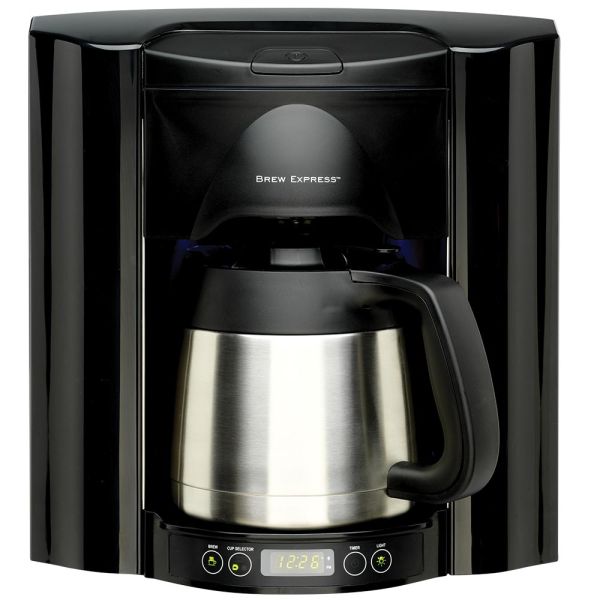

The Brew Express Filling Coffee Machine BE-110 is a versatile and easy-to-use coffee maker that offers a range of features to make brewing coffee a breeze. With its built-in burr grinder, users can enjoy the freshest possible coffee by grinding their own beans right before brewing. The programmable digital display makes it easy to set up the machine for automatic brewing, while the thermal carafe keeps coffee hot for hours without the need for a warming plate. The permanent filter basket is also a convenient feature, reducing waste and saving users money on disposable filters.

Water Installation

Always turn off the water supply at the source. It is strongly advised to consult a qualified professional plumber when attempting to install the BREW EXPRESS in-the-wall COFFEE SYSTEM.

It is important to make sure there are no conflicts or obstructions in the wall cavity such as plumbing or electrical wires. If in doubt, contact a qualified professional. DO NOT ATTEMPT INSTALLATION.

IMPORTANT: It is recommended that a water filter and shut-off valve be installed at the source under the sink or refrigerator area.

A. EXISTING HOME

• Determine the desired location of the BREW EXPRESS. Avoid outside walls in colder climates to prevent freezing of the water line.
• Location should have access to a cold water supply (sink, refrigerator ice maker). Alternately, water can be supplied using a pump and water bottle (not supplied).
• Drill a hole (7/16” dia.) at the lowest point in the cabinets and route the water line through the hole behind the cabinets and up the wall cavity to the cut opening in the wall. Leave approximately 18” of excess water line at the wall opening for rough-in-box installation.

• Continue the water line to the source. Splicing/coupling is not recommended. A continuous line will be best to ensure no leaks.



B. NEW HOME CONSTRUCTION

• Determine the desired location of the BREW EXPRESS. Avoid outside walls in colder climates to prevent freezing of the water line.
• Location should have access to a cold water supply (sink, refrigerator ice maker).
• Route the water line through studs and up the wall cavity to the area where the wall opening will be cut prior to sheet rock installation.

• Allow an additional length of 18” at the area where the wall opening will be cut. Using the template provided, mark the area to be cut AFTER sheet rock is installed.



IMPORTANT: If installing the unit PRIOR to cabinets, it is strongly advised to consult with the cabinet maker and building contractor for the exact height of the countertop due to the various thicknesses of countertops (tile, laminate, granite, etc). For best results, cut the hole and install the unit AFTER the cabinets are installed.

Power Installation

Always turn off the power supply at the main electrical panel before attempting any electrical installation. Local electrical codes vary. All electrical installation must be done in accordance with local codes. Installation must be performed by a qualified electrician, or equivalent.

IMPORTANT: Installation must be performed by a qualified electrician, or equivalent. The BREW EXPRESS can be installed in most places where power and water are supplied. See diagrams below for the application best suited for your needs.

OPTION A. (New Construction)

• Power can be brought to the rough-in-box by adding a new line from the main breaker panel. Contact a qualified electrician for this application.

NOTE: When routing electrical power to the desired location it is recommended that you allow an additional 18” length of wire at the rough-in-box location.

OPTION B. (New or Existing Construction)

• Power to the rough-in-box can be tapped from an existing adjacent electrical outlet. NOTE: When routing electrical power to the desired location it is recommended that you allow an additional 18” length of wire at the rough-in-box location.

OPTION C. (Existing Construction)

• The electrical outlet can be removed and replaced with the rough-in-box. NOTE: When routing electrical power to the desired location it is recommended that you allow an additional 18” length of wire at the rough-in-box location.

Brewer Installation of Brew Express Filling Coffee Machine BE-110

IMPORTANT: If installing the unit PRIOR to cabinets, it is strongly advised to consult with the cabinet maker and building contractor for the exact height of the countertop due to the various thicknesses of countertops (tile, laminate, granite, etc). For best results, cut the hole and install the unit AFTER the cabinets are installed.

A. Installing BREW EXPRESS on Counter

• It is best to install the unit so the bottom edge is just above the countertop. In an existing home, this may require part of the backsplash to be removed. Use the template provided to determine the location to be cut out for the rough-in-box.

B. Installing BREW EXPRESS with Full Back Splash

• Use the template provided to determine the location to be cut out for the rough-in-box. Ensure fit is correct by first placing the rough-in-box in the cut-out hole. Remove the rough-in-box. Finish the installation of the full height backsplash to cut the opening. If the full height backsplash is granite or tile, it is recommended to cut the opening and install the rough-in-box after the surface is complete.

IMPORTANT: DO NOT COMPLETE INSTALLATION OF THE ROUGH-IN-BOX BEFORE BACKSPLASH.

C. Installing BREW EXPRESS above Back Splash

• If you prefer a continuous backsplash, the unit can be installed above the backsplash. Use the template provided to find the best fit.

IMPORTANT: WHEN INSTALLING THE UNIT ABOVE BACKSPLASH, BE CERTAIN THERE IS SUFFICIENT ROOM BELOW THE CABINETS.

Installation of Rough-In-Box

1. Locate wall studs adjacent to the desired location. Place the template on the wall as shown. The outside edge of the slots in the template should be even with the left or right side of the stud edge. The slots in the template designate the area to be cut. The outside edge of the template is equivalent to the brewer size. See figure 1.



2. Use a utility knife to carefully cut inside the penciled outline area. Start with the stud side and work outward. DO NOT USE A SAW. Remove the sheet rock section to expose the wall cavity. Bring water and power supply lines from the source to this location. Allow 18” of slack. See Figure 2.



3. IMPORTANT: Completely seal all gaps between the counter and wall with silicone caulk. This prevents water from going behind the cabinet if there is a water leak.



4. Place the rough-in-box on a towel or cardboard to protect the counter surface. Bring the power supply wire from the source to the cut opening as shown in Figure 4. A minimum of 12-2 wire is required. Be sure to have an additional length of approximately 18” at the rough-in-box opening for the installation of the box. Remove the power panel cover. Install a strain relief (not supplied) in the hole. Run the power supply wire through the strain relief and secure the power supply wire (See Supply Detail, page 11). Connect the power supply wires to the power panel supply wires and secure with wire nuts (See Wiring Detail, page 11). Connect the green wire to the green wire, black to black, and white to white.





5. Bring the 1/4” water supply line to the cut opening. Bring the water line through the grommet in the rough-in-box (See Supply Detail). Slide the rough-in-box into the opening while pulling about 18” of the water line through the grommet hole. Secure the rough-in-box to the wall stud with sheet rock screws. PURGE WATER LINE by running water to clean any possible debris. Cut the water line to length (approx. 3”) inside the rough-in-box and attach the male quick connector. Use a wrench to tighten and secure. See Male Connector Detail and figures 5 and 7.





   • IMPORTANT: Water line to the brewer must be flushed and a filter installed. Should debris clog the brewer system, ALL WARRANTIES WILL BE VOID. Check for leaks.

6. After the sheet rock screws are in place, bend tabs to finish securing the rough-in box to the wall. See figures 6 and 7. Use pliers (if needed) to bend/crimp tabs firmly to the wall. Gently slide the excess water line back through the grommet into the wall cavity leaving the top of the connector a maximum of 3” above the bottom of the rough-in box.



   • WARNING: Carefully install the power panel cover. All electrical wires and connections MUST be tucked completely inside the POWER PANEL COVER, without exposing bare wiring inside the rough-in box. It is advised to contact a qualified electrician. Be certain not to damage wires or insulation. See Figure 7.

7. Important: For the BE-104C model (single button), set the 2/4 cup volume selection switch on the back of the brewer prior to the installation of the brewer.



8. The male quick connector has a built-in valve so water can be turned on prior to connection to the coffee maker. Place the unit on a towel or cardboard to protect the counter surface. Place the BREW EXPRESS directly in front of the rough-in-box. Connect the brewer to the water supply using quick connectors. (See Quick Connect Detail). Snap connectors together firmly. Turn on the water, and check for leaks prior to the final installation of the BREW EXPRESS. If leaking, turn off the water, tighten connections or reinstall the quick connector. Turn the water on and check again. See Figure 8.





9. Gently slide the BREW EXPRESS into the rough-in-box. Be careful not to damage the water supply lines. A firm push will connect power from the rough-in-box to the BREW EXPRESS. Use two mounting screws to secure the BREW EXPRESS to the rough-in-box. Note, the lock bracket and longer screw go in the upper position (on some models the two screws will be the same length).



WARNING: Do not caulk or grout to the brewer.

Brewer Testing

Once BREW EXPRESS has been installed into the rough-in-box it must be tested to ensure proper operation.

1. Turn on the electrical power and power switch (located on top of the brewer). The brew button icon should be illuminated. If the button icon is not illuminated, refer to the troubleshooting section of this manual.
2. Turn on the water supply to BREW EXPRESS. There should be no leaks in the water connections. If water is leaking, pull the brewer from the wall, check connections and refer to the troubleshooting section of this manual to make appropriate corrections. If water is leaking from inside the brewer, disconnect from the rough-in-box and contact customer service.

Test the Brewer

1. Place an empty brew basket in the unit.
2. Place the empty carafe under the brew basket.
3. Press the “Brew” button.
4. After a moment water will begin flowing and remain on for 140 to 180 seconds (depending upon model).
5. A beeper will sound 40 seconds after water stops flowing.

See the Operation Guide for more detailed information on operating the Brew Express. Also, this guide contains a troubleshooting section if needed.

Setup Guide

Setting up the Brew Express Filling Coffee Machine BE-110 is simple and straightforward. First, make sure to read through the user anual carefully before beginning the setup process. Next, rinse out the water reservoir and carafe with warm water and mild dish soap, then dry thoroughly. Fill the water reservoir to the desired level and add your preferred coffee grounds or pods to the filter basket. Finally, select your desired brewing options on the digital display, such as the strength of the coffee or the time you want the machine to start brewing. Once the machine is set up, simply press the start button to begin brewing.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. The voltage and frequency of the supply connections should conform to those of the rating label.
4. Close supervision is necessary when any appliance is used by or near children.
5. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance after the appliance malfunctions or has been damaged in any manner. Call Lance Larkin and discuss the problem with customer service.
7. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
8. Do not use outdoors.
9. Check specifications on page 5 for proper water pressure requirements of this product.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. The appliance should be installed in a place not easily reached by children.
12. Do not use the appliance for other than intended use.
13. To reduce the risk of shock, discontinue use of the appliance if water leakage occurs.
14. To reduce the risk of electric shock, do not mount over a sink.
15. To reduce the risk of fire, do not place any heating or cooking appliance beneath the appliance.
16. To reduce the risk of fire, do not mount the unit over or near any portion of a heating or cooking appliance.
17. To reduce the risk of fire, do not store anything directly on top of the appliance surface when the appliance is in operation.

SAVE THESE INSTRUCTIONS

IMPORTANT: Read and follow instructions carefully before installing your BREW EXPRESS in-the-wall COFFEE SYSTEM. For best results, it is advised that you hire a qualified professional.

1. Always turn off all power at the main electrical panel before attempting to install BREW EXPRESS. Improper electrical wiring could cause a fire hazard. All wiring MUST be performed in accordance with local electrical codes. Installation must be performed by a qualified electrician, or equivalent.
2. Always turn off the water supply at the source when installing BREW EXPRESS. Improper installation of the water supply could cause poor performance or leaks which may lead to dry rot and cause structural damage to the building. Be certain the water supply is leak-free. Hire a qualified plumber if necessary.
3. The BREW EXPRESS dispenses extremely hot water. Hot liquids may cause severe burns if they contact the skin. Use extreme caution when handling hot liquids dispensed by the BREW EXPRESS. KEEP HANDS AWAY FROM SPRAY HEAD, BREW BASKET, CARAFE, OR MUG DURING THE BREW CYCLE. This product is intended for brewing hot water for beverages only and may not be used in any other way.
4. Check the distance between wall cavity studs and check for obstacles inside the wall to ensure BREW EXPRESS will fit in the desired location. The normal cavity is 14.5” wide and 4” deep. Hire a qualified professional if necessary.

Troubleshooting

If you encounter any issues with your Brew Express Filling Coffee Machine BE-110, there are several troubleshooting steps you can take. If the machine is not brewing properly, make sure that the water reservoir is filled to the appropriate level and that there are no blockages in the filter basket or water line. If the machine is leaking, check to make sure that the carafe is properly seated on the base and that there are no cracks or damage to the carafe or water reservoir. If the machine is not turning on, make sure that it is plugged in and that the power cord is not damaged. If the machine is still not working properly, contact Brew Express customer support for further assistance.
