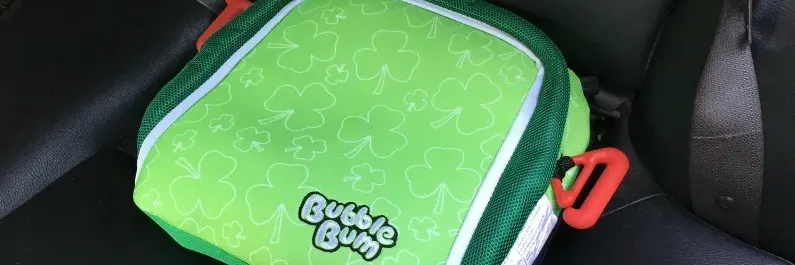

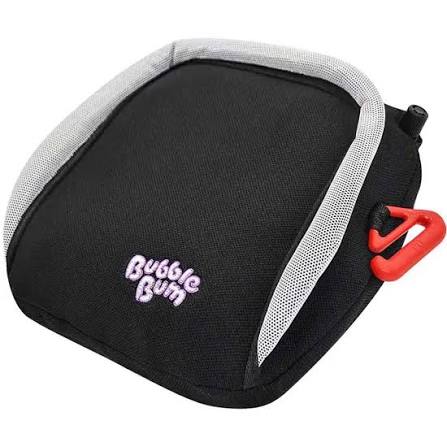

BubbleBum Booster Seats Inflatable Car

The unique BubbleBum Booster Seat BB0004US Inflatable Car is an inflated automobile booster seat that is intended for children between the ages of 4 and 11 who weigh between 40 and 100 pounds. With its lightweight design and portability, this seat is perfect for daily use, carpooling, and travel, guaranteeing your child's comfort and safety. It has memory foam for extra cushioning and complies with all Federal Motor Vehicle Safety Standards in the United States. The BubbleBum comes with a handy carrying bag and folds into a small, portable, and easily storeable form when deflated. The BubbleBum, which comes in a variety of colors, offers families on the go a combination of safety, convenience, and flair.

Parts

1. Draw String Bag
2. Instruction Manual
3. Air Valve
4. Seat Belt Positioning Clips
5. Illustration of Seat Belt Positioning Clip
6. View of Seat
7. Shoulder Belt Positioning Clip

Detailed Specifications

The BubbleBum Booster Seat BB0004US Inflatable Car several key features that make it stand out from the crowd, including:

• Compact and lightweight design (1.1 lbs) that inflates in just 20 seconds
• Integrated belt positioning clip and shoulder belt guide for proper seat belt fit
• Durable and washable cover for easy cleaning
• Built-in carrying handle for convenience
• Comfortable and supportive design that meets all federal safety standards

Description

For youngsters weighing 40–100 lbs and between the ages of 4 and 11, BubbleBum offers the BB0004US Inflatable Car Seat. You can put it in any car because of how little it is and how light it is (1.1 lbs). All federal safety regulations are met by the pleasant and supportive design, which includes an integrated belt positioning clip and a shoulder belt guide to ensure a correct fit of the seat belt. A convenient and sanitary option for families on the move, the cover is long-lasting and machine washable. Inflating the BubbleBum Booster Seat Inflatable Car takes only 20 seconds, so it's always ready for use.

Assembling the Booster Seat

1. Remove BubbleBum from Bag.
2. Remove the purple snap straps and discard.
3. Locate air valve at rear of seat (See Page 4 Diagram 3).
4. Twist air valve to open.
5. Blow into air valve until seat reaches full capacity or until it is not possible to inflate further by mouth. Do not use any other mechanism to inflate.

6. Twist air valve to close tightly.



7. Position BubbleBum on seat.
8. Position Child on BubbleBum seat.
9. Pass the lap section of the seat belt through BOTH red clips located on either side of the BubbleBum.
10. Seat belt should sit firmly against the child and the lap straps worn low down across the child's lap. Ensure straps are not twisted. For correct positioning of seat belt.
11. Buckle Seat Belt.
12. To store, remove from car, open air valve and roll the BubbleBum to expel air. Close the air valve when deflated to prevent the seat from further inflating. Store in bag provided in a cool place and out of the reach of children under the age of 3.

• BubbleBum should only be used when inflated and should be replaced if damaged or involved in an accident.
• Do not make any alterations or attachments to your BubbleBum and follow instructions carefully.
• Never leave your child unattended in any child restraint.
• Stow luggage appropriately in order to avoid injury.
• The cover on the BubbleBum constitutes an integral part of the restraint performance; therefore, the seat must not be used without the cover.
• Surface washable with mild detergent. Do not machine wash.
• Do not expose BubbleBum to extreme temperatures for prolonged periods of time. These instructions sit snugly between the cover and the inflatable section for you to retain, or log onto http://www.myboosterseat.com  to download instruction PDF online.

Weight & Height Limits

WARNING

FAILURE TO USE BOOSTER SEAT IN A MANNER APPROPRIATE FOR YOUR CHILD'S SIZE MAY INCREASE THE RISK OF SERIOUS INJURY OR DEATH.

To use this BubbleBum Booster Seat your child MUST meet ALL of the following requirements (approximately 4 to 10 years old):

• Weigh between 40 and 100 lbs (mass between 18 and 45 kg), and
• Are between 40 and 52 inches (101 and 145 cm) in height, and
• The shoulder belt MUST lay across the child's shoulder in the red zone as shown in Diagram 2, and the lap portion is positioned low on the child's lap through BOTH red positioning clips, and

• When seated on the BubbleBum booster seat, your child's ears are below the top of the vehicle seat/headrest when seated in the BubbleBum Booster.



Vehicle Seat Location Requirements

WARNING

IMPROPER PLACEMENT OF THE BOOSTER SEAT INCREASES THE RISK OF SERIOUS INJURY OR DEATH. Some seating positions in your vehicle may NOT be safe for this booster seat. Some vehicles do not have any seating positions that can be used safely with the booster seat. If you are not sure where to place the booster seat in your vehicle, consult your vehicle's manual.

Children are safer when properly restrained in rear vehicle seating positions. Never use the booster seat with only a vehicle lap belt.

The vehicle seat MUST face forward.

Vehicle Seat Belt Requirements

WARNING

MANY SEAT BELT SYSTEMS ARE NOT SAFE TO USE WITH THE BOOSTER SEAT. Pay careful attention to these systems: some of the seat belts that are NOT safe to use look very much like seat belts that are safe to use.

SAFE Vehicle Seat Belt System

ONLY A LAP/SHOULDER BELT SYSTEM CAN BE USED WITH THIS BOOSTER SEAT, IF the seat location meets all other requirements of these instructions and those in your vehicle owner's manual.

UNSAFE Vehicle Seat Belt System

DO NOT USE ANY OF THE FOLLOWING VEHICLE BELT SYSTEMS:

• NEVER use a lap-only belt.
• NEVER use a Passive Restraint - Lap or Shoulder Belt Mounted on Door.
• NEVER use a Passive Restraint - Lap Belt with Motorized Shoulder Belt.

• NEVER use vehicle belts that are attached to the door in any way or that move along a track to automatically surround the passenger when the door is closed.



Using Your BubbleBum Booster Seat

WARNING

FAILURE TO PROPERLY SECURE YOUR CHILD AND THE BOOSTER SEAT IN YOUR VEHICLE INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN THE EVENT OF A SHARP TURN, SUDDEN STOP OR CRASH.

• WARNING: Use only the vehicle's lap and shoulder belt system when restraining the child in this booster seat. SEE PICTURE 1.

• NEVER use a vehicle lap-only belt across front of child. SEE PICTURE 2.



• Vehicle belts MUST lay flat against the child and MUST not be twisted. DO NOT use the shoulder belt loose or positioned under the child's arm. See Picture 3.
• DO NOT position the vehicle belt over the top of the red seat belt positioning clips 4. It MUST pass through BOTH red positioning clips.
• Make sure the vehicle belt is NOT twisted. The lap portion of the lap/shoulder belt MUST be low and snug on the hips, just touching the thighs. DO NOT allow the child to slide down in the booster seat. See Picture 5.

• If the child will not keep the vehicle restraint properly positioned, DO NOT use this booster seat. Use a different child restraint system.



Additional Information

Airplane Use

The restraint is not certified for aircraft use because there are no shoulder belts available in an aircraft. This product is not FAA approved.

Instruction Sheet Storage

Your instruction sheet can be stored on the bottom of the seat as shown.

Setup Guide

Setting up the BubbleBum Booster Seat BB0004US Inflatable Car is easy and straightforward. Simply follow these steps:

1. Unfold the seat and remove the cover
2. Inflate the seat using the mouthpiece or an electric pump if available
3. Replace the cover and secure it with the velcro straps
4. Position the booster seat on the vehicle seat
5. Place the shoulder belt over the child's shoulder and secure the lap belt across their hips
6. Adjust the belt positioning clip and shoulder belt guide for a proper seat belt fit

BubbleBum Booster Seat Care and Maintenance

CONTINUOUS USE OF BOOSTER SEAT MAY CAUSE DAMAGE TO VEHICLE SEAT. A booster seat mat, towel, or thin blanket may be used to protect upholstery.

METAL AND PLASTIC PARTS: This restraint is designed with metal and plastic parts that may be damaged if machine washed. Surface clean only with mild soap and cool water. No bleach or detergents.

Seat Cover

• DO NOT REMOVE. Do not use the booster seat without the seat cover in place.
• Do not machine wash. Surface clean only.

Securing Child in Vehicle with Shoulder Belt Positioning Clip

The shoulder belt MUST lay across the child's shoulder in the red zone as shown. If the shoulder belt lays outside this zone, the shoulder belt positioning clip MUST be used.

• To Attach Clip to Booster Seat

  • Insert the loop end of the strap around the middle of the strap on the underside of the BubbleBum as shown in Diagram 1.



  • Pass the clip and strap through the loop end as shown in Diagram 2 and pull the strap as shown in Diagram 3.



• Rear View of Child Sitting in Seat

  • Slide the vehicle shoulder belt onto the clip as shown in Diagram 4 and pull down to tighten the clip against the child's shoulder. The lap belt portion MUST pass through both red side clips and be positioned low on the hips. The belt MUST NOT be twisted.



  • For warnings on vehicle belt positions, see page 12-13, "Using your BubbleBum Booster Seat."



Warnings to Parents and Other Users

WARNING

• NO BOOSTER SEAT CAN GUARANTEE PROTECTION FROM INJURY. HOWEVER, PROPER USE OF THIS BOOSTER SEAT REDUCES THE RISK OF SERIOUS INJURY OR DEATH TO YOUR CHILD.
• DO NOT INSTALL OR USE THIS BOOSTER SEAT UNTIL YOU READ AND UNDERSTAND THE INSTRUCTIONS IN THIS MANUAL AND IN YOUR VEHICLE OWNER'S MANUAL. DO NOT LET others Install or use the booster seat unless they understand how to use it.
• FAILURE TO PROPERLY USE THIS BOOSTER SEAT INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN A SHARP TURN, SUDDEN STOP OR CRASH. Your child can be injured in a vehicle even if you are not in a crash. Sudden braking and sharp turns can injure your child if the booster seat is not properly installed or if your child is not properly secured in the booster seat.

• NEVER PLACE THIS BOOSTER SEAT IN A VEHICLE SEATING LOCATION THAT HAS AN AIR BAG. If an air bag inflates, it can hit the child and booster seat with great force and cause serious injury or death to your child. Refer to your vehicle owner's manual for information about air bags and booster seat installation.



• According to accident statistics, CHILDREN ARE SAFER WHEN PROPERLY RESTRAINED IN REAR VEHICLE SEATING POSITIONS, RATHER THAN FRONT SEATING POSITIONS. For a vehicle with a front passenger air bag, refer to your vehicle owner's manual as well as these instructions for booster seat installation.
• NEVER LEAVE YOUR CHILD UNATTENDED.
• NEVER LEAVE A BOOSTER SEAT UNSECURED IN YOUR VEHICLE. An unsecured booster seat can be thrown around and may injure occupants in a sharp turn, sudden stop or crash. Remove it or make sure that it is securely belted in the vehicle.
• REPLACE THE BOOSTER SEAT AFTER AN ACCIDENT OF ANY KIND. An accident can cause damage to the booster seat that you cannot see.
• DO NOT MODIFY YOUR BOOSTER SEAT or use any accessories or parts supplied by other manufacturers.
• NEVER USE BOOSTER SEAT IF IT HAS DAMAGED OR MISSING PARTS. DO NOT use a cut, frayed or damaged vehicle seat belt.
• THE BOOSTER SEAT CAN BECOME VERY HOT IF LEFT IN THE SUN. Contact with these parts can burn your child's skin. Always touch the surface of any metal or plastic parts before putting your child in the booster seat.
• THIS CHILD RESTRAINT CONFORMS to all applicable Federal Motor Vehicle Safety Standards and is certified for use in motor vehicles. This restraint is NOT certified for use in aircraft because there is no shoulder belt available.
• NEVER GIVE THIS BOOSTER SEAT to someone else without also giving them this manual.
• NEVER USE A SECOND-HAND BOOSTER SEAT or a booster seat whose history you do not know.
• NEVER USE THIS BOOSTER SEAT without the lap belt positioned through BOTH red seat belt positioning clips.

Troubleshooting

Here are some common problems and solutions for the BubbleBum Booster Seat BB0004US Inflatable Car:

• Problem: The booster seat is not inflating properly. Solution: Check for any leaks or punctures and ensure that the seat is fully inflated. If the problem persists, contact the manufacturer for assistance.
• Problem: The seat belt does not fit properly. Solution: Adjust the belt positioning clip and shoulder belt guide to ensure a proper fit. If the problem persists, consult the user manual or contact the manufacturer for assistance.
• Problem: The cover is difficult to remove or replace. Solution: Ensure that the velcro straps are properly aligned and that the cover is not twisted or inside out. If the problem persists, consult the user manual or contact the manufacturer for assistance.

Pros & Cons

Pros

• Compact and lightweight design
• Easy to inflate and deflate
• Meets all federal safety standards
• Comfortable and supportive design
• Affordable price range

Cons

• Not suitable for children under 4 years old or over 100 lbs
• Inflation can be difficult without a pump
• May not fit all vehicle seat designs

Customer Reviews

Customers generally have positive reviews for the BubbleBum Booster Seat BB0004US Inflatable Car, praising its compact and lightweight design, ease of use, and safety features. Some common complaints include difficulty inflating the seat without a pump and the potential for the cover to come loose during use. However, these issues are generally minor and do not detract from the overall quality and value of the product.
