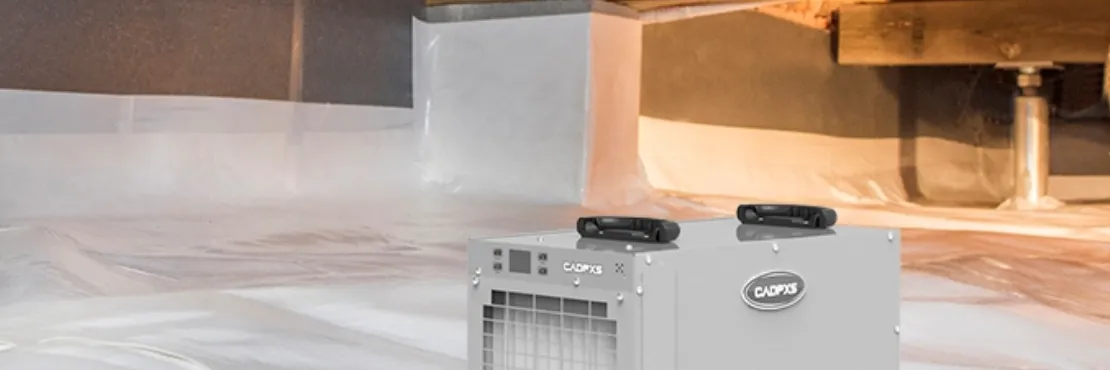

Cadpxs AppleAiro Heating Pump Dehumidifier Introduction

Claiming to be the World's Most Powerful Dehumidifier for its Size, the AppleAiro sure promises to deliver a lot in its small size. This machine can eliminate any kind of musty odors or dampness in your crawl space by drying and filtering the air. It is highly efficient, it can provide an extraordinary performance of around 85 pints per day capacity and can over 2,300 sq,ft of dry air per minute in the room where it is kept. Priced at $199.99, the AppleAiro is an essential tool for enhancing indoor air quality and comfort year-round.

CAUTION ARY WARNING

• The appliance is not being used above the elevation level of over 2000 m (6562 ft.)
• The appliance is only designed to be USED INDOORS.
• If being used in a wet area, plug it into a GROUND FAULT INTERRUPTER.
• DO NOT use the appliance as a bench or table.
• The appliance must always be used in a horizontal position.

WARNING
Read the operation and maintenance instructions carefully before using this unit. Proper adherence to these instructions is essential to obtain maximum benefit from your AppleAiro dehumidifier.

• It is designed to be used INDOORS ONLY.
• If used in a wet area, plug it into a GROUND FAULT INTERRUPTER.
• DO NOT use the AppleAiro as a bench or table.
• It must always be used in the upright position.

ELECTRICAL SUPPLY

• Power Supply: 110-120 VAC, Grounded
• Outlet Requirement: 3-Prong
• Circuit protector: 15 Amp

SPECIFICATIONS

• Power: 5.6 amps
• Water Removal: 85 pints/day@AHAM (80°F, 60%)
• Water Removal 13.385 gal/day maximum @AHAM
• Blower: 210 CFM
• Functioning Humidity Range: 25-80%
• Operating Range: 33.8°F to 104 °F
• Filter: 12x10x0.75 in Pleated Media MERV-10
• Size: 21.6x12x12 in
• Weight: 66 lbs

Description

The Cadpxs AppleAiro Heating Pump Dehumidifier is engineered with cutting-edge technology to ensure optimal performance. Its compact design makes it suitable for various room sizes, from small bedrooms to larger living areas. The device features a sleek and modern design that blends seamlessly into any home decor. The integrated air purification system ensures clean air by capturing dust, pollen, and other airborne particles, making it an excellent choice for households with allergy sufferers.

The smart control feature allows users to adjust settings, monitor humidity levels, and schedule operations remotely through the mobile app. This flexibility and convenience make the Cadpxs AppleAiro an invaluable addition to any home.

INSTALLATION AND OPERATION GUIDE

Selecting the Location

• Place the Unit in an Upright Position.
• The location of the operation should be an enclosed area.
• The location should allow constant air circulation.
• The location should have power outlet at about 6 meters of the device as that is the length of the cord.
• Keep the Dehumidifier away from any moisture-laden air in the working area.

Power cord Installation
Connect the plug of the connector of the power to the power outlet of the appliance.

Drain Hose Installation

1. Attach the hose inlet to the drain outlet located on the graph appliance.

2. Allow the hose to be set off to a drain or a sink or even to a container that can collect the discharged water.



OPERATION

Plugged in - Shutdown Mode

When plugged in, the display will communicate to the user thatthe machine is in Shutdown mode and ready to be powered on.

Dashboard

Dashboard while in Humidistat Mode
When the machine is dehumidifying the unit will display:

• Temperature and RH/GPP
• Set humidity value (Optionally set GPP)
• Display: Dehumidifying
• GPP = Grains per pound (gr/lb)

Standby Mode

In Standby Mode, the display will also show Temperature/RH/GPP/Set humidity value.

Navigation

• Press the [] key to advance to the next screen .
• Press the [] key to scroll through available values .

Purging

• Press the [] button to purge the machine.
• The display will communicate to the user that the machine is purging.
• The last line of the control panel display "DRAINING". This will momentarily replace float switch until the machine has finished purging. Work cycle lasting 14 seconds. While in Humidistat Mode, When the water level reaches, the unit will drain automatically.
• The last line of the control panel display "DRAINING".

Defrosting

The display will communicate to the user that the machine is defrosting on the last line of the dashboard. This will momentarily replace grain depression until the machine has finished defrosting.

Compressor protection state

The display will communicate to the user that the machine is Waiting for compressor to run on the last line of the dashboard.

Coil temp of Cadpxs AppleAiro Heating Pump Dehumidifier

The screen displays the Coil temp.

Continuous dehumidifying Mode

• The default mode is continuous dehumidifying Mode "On".
• Press the Set button to toggle the continuous dehumidifying Mode On/Off.
• If the continuous mode "off", the humidistat mode is automatically turned on, and then the humidistat set point is entered for operation.
• The display will communicate to the user that the machine is continuously dehumidifying on the last line of the dashboard.
• The set value shows "CO".

Humidity control mode
Users can choose between two modes for controlling humidity.

• Relative humidity=%RH.
• GPP = Grains per pound (gr/lb).

Humidistat Set Point

1. Press the Set button to adjust the set point RH% in 5% increments ranging from 25% RH to 80% RH and then loop back to 25% RH. Press the Next button to confirm selection and advance to the next screen.
2. Press the Set button to adjust the set point (gr/lb) in 2(gr/lb) increments ranging from 20(gr/lb) to 200(gr/lb) and then loop back to 20(gr/lb) . Please select a humidity setting point for adjustment.

Diagnostic Codes

If the machine has an error and needs service, the on board control system will display a diagnostic code.
If E1, E4, HI or LO is displayed on the vehicle control screen, please refer to the following:

• E1: Humidity Sensor or Communication Error Solution: Check to ensure that the sensor wire is connected at both ends, if no issues are visible, the sensor may be faulty.
• E4: Problem with Pump
  Solution: Verify that the pump is properly installed and functioning. If so, unplug the unit for two minutes, then restart.
• LO: Room Temperature is below 33.8℉
  Solution: Increase the room temperature so it is within operation range (above 33.8℉). If error is still displayed, check the sensor.
• HI: Room Temperature is above 104℉
  Solution: Decrease the room temperature so it is within operating range (below 104℉). If error is still displayed, check the sensor.
• E5: Refrigerant Leak
  Solution: Contact us for Assistance.

Status icon

• To automatically activate or deactivate the dehumidifier when the air conditioner runs.
  Air conditioning to control dehumidifier, dehumidifier locked.
• Pipe mode requires connection to the controller.

Setup Guide

Setting up the Cadpxs AppleAiro Heating Pump Dehumidifier is straightforward:

1. Place the device on a level surface, ensuring good airflow around it.
2. Connect the power cord to a nearby outlet.
3. Download and install the mobile app on your smartphone or tablet.
4. Follow in-app instructions to connect the device to your Wi-Fi network.
5. Configure your desired settings such as temperature, humidity levels, and air purification mode.

MAINTENANCE

Unit Maintenance

• Always clean the surface of the housing with a damp cloth.
  • Do not clean with water directly.
• Always store the machine in a day and cool indoor place, away from sunlight as well as chemicals and out of children’s reach.

Filter Maintenance

1. Unplug the unit.
2. Slide-out the filter from the side.
3. Check the filter for dirt and buildup.
4. Clean the filter mesh by vacuuming it or washing with warm water (no soap or cleaners). Gently shake the filter dry then reinsert it. There is dirt or buildup, replace the filter.

WIRING DIAGRAM

Troubleshooting

If you encounter any issues with your Cadpxs AppleAiro Heating Pump Dehumidifier, here are some common problems and solutions:

• No Power: Check if the power cord is properly plugged in. Ensure that the outlet is functioning correctly.
• Not Heating/Dehumidifying: Verify that the device is set to the correct mode. Check if the filters need cleaning or replacement.
• Wi-Fi Connection Issues: Restart your router and try reconnecting the device to your Wi-Fi network.

Warranty

CADPXS warrants CADPXS dehumidifiers to be free from defects in materials and workmanship for a period of two years.

A CADPXS bumper-to-bumper warranty covers the entire product and accessories, electrical parts and components, safety equipment and instruments.

WARRANTY REGISTRATION

CADPXS believes in the quality of its products. This is why it stands behind its products and gives a more extended warranty than what you can get elsewhere. To CADPXS, a longer warranty is an important aspect of our service. This is the reason why the company fully supports its bumper to bumper warranty https://www.cadpxs.com/warranty

Cadpxs AppleAiro Pros & Cons

Pros:

• Multifunctional: Combines heating, dehumidification, and air purification in one unit.
• Energy Efficient: High SEER rating and Energy Star certified for reduced energy consumption.
• Smart Control: Wi-Fi enabled with mobile app control for remote operation.
• Quiet Operation: Whisper quiet at 35 dB, suitable for bedrooms and living rooms.
• Compact Design: Suitable for various room sizes without taking up too much space.

Cons:

• Cost: Priced higher than some single-function units.
• Filter Maintenance: Requires regular cleaning and replacement of filters.
• Wi-Fi Dependence: Requires a stable Wi-Fi connection for full functionality.

Customer Reviews

Customers have praised the Cadpxs AppleAiro for its efficiency and convenience. Here are some common compliments and complaints:

• "The Cadpxs AppleAiro has transformed my basement from a damp, cold space into a cozy retreat. The smart control feature is incredibly useful!" - John D.
• "I was skeptical about the price, but this device has saved me money in the long run by reducing my energy bills and eliminating the need for separate heating and dehumidification units." - Sarah K.
