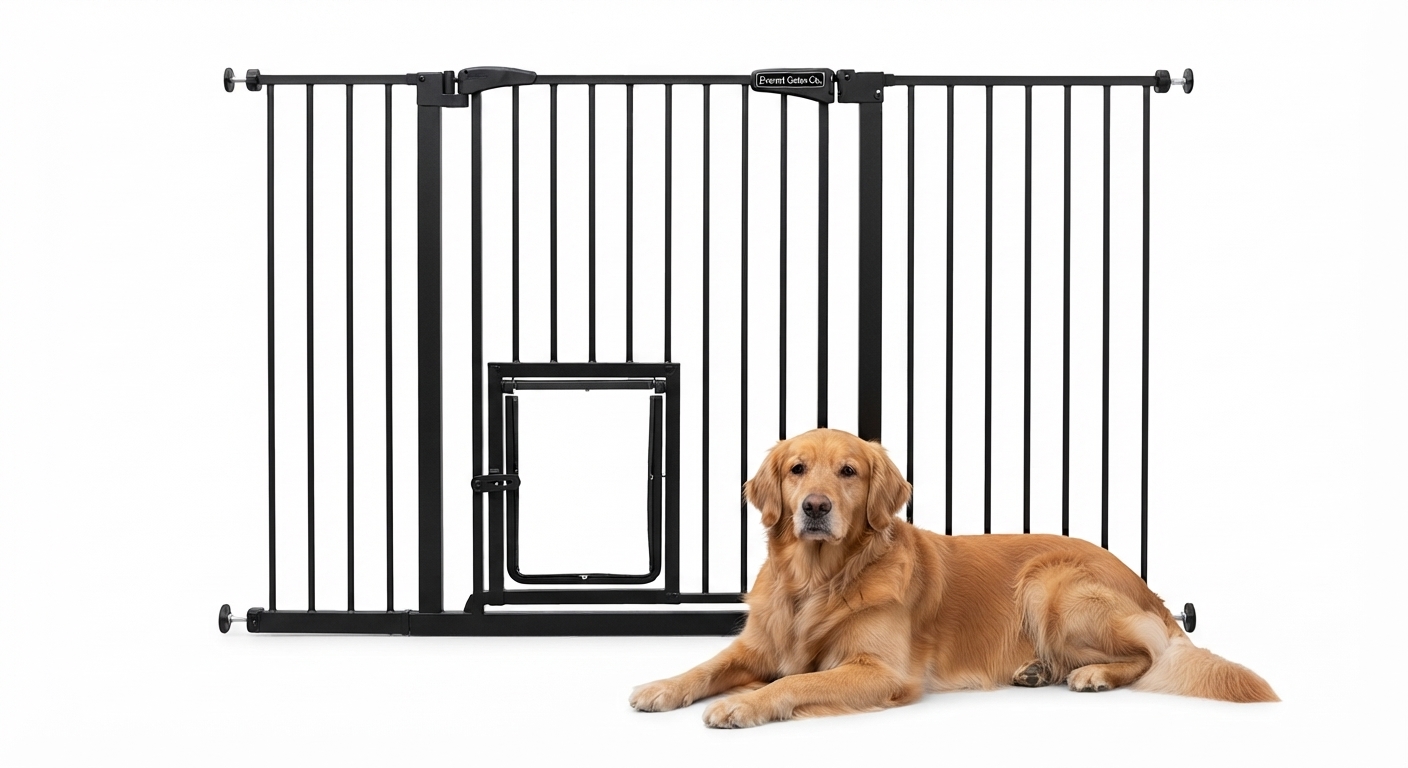

Carlson Extra Tall Walk-Through Gate 0942 Introduction

The Carlson Extra Tall Walk-Through Gate 0942 is a premium pet gate designed to provide maximum safety and convenience for pet owners. Launched in 2020, this gate is part of Carlson's extensive range of pet gates, known for their durability and ease of use. The estimated price of the gate is around $50-$60, making it a cost-effective solution for securing large openings in homes. This gate is particularly useful for families with pets that need to be contained in specific areas without restricting human movement.

The Carlson Extra Tall Walk-Through Gate 0942 is ideal for doorways, hallways, and wide openings up to 38 inches. Its extra-tall design ensures that even the most adventurous pets cannot jump over it, providing peace of mind for pet owners. The gate is versatile and can be used in various settings, from apartments to large homes, making it a popular choice among pet enthusiasts.

Warning

• READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE OF GATE. !
• KEEP INSTRUCTIONS FOR FUTURE USE.

Replacement Parts

1. Easy Open Latch
   Black = #11037
   Gray = #14037
   White = #13037
2. Top Plug Insert
   Black = #11020
   Gray = #14020
3. Threaded Spindle Rods w/Adjustment Wheel
   Black = #11016
   Gray = #14016
4. 1" Wall Mount Screws
   #10001
5. Wall Cups
   Black = #11015
   Gray = #14015
6. Pet Door Pull Lock
   White = #13038
   Black = #11038
   Platinum = #14038
7. Bottom Plug Insert
   Black = #11019
   Gray = #14019

Detailed Specifications

The Carlson Extra Tall Walk-Through Gate 0942 comes with several key features that enhance its functionality and ease of use:

• Extra tall design: 41 inches high to prevent pets from jumping over.
• Wide coverage: Fits openings up to 38 inches wide.
• Easy installation: No tools required for setup.
• Walk-through design: Convenient one-touch release for easy passage.
• Durable construction: Made from high-quality steel for long-lasting performance.
• Adjustable width: Easily adjusts to fit various openings.

Before Using Product

Read and follow all instructions carefully to ensure that your gate and extensions are properly installed. Improper installation could result in the gate becoming unstable or dislodged from the doorway. Please keep these instructions for your reference.

WARNING

• To prevent serious injury or death, securely install gate or enclosure and use according to manufacturer’s instructions.
• Check the gate regularly to see if all the hardware and mountings are tightened.
• This is a Pet Gate. NOT intended for use with children.
• This is a Pet Gate, but when used with children the small pet door must remain closed and securely latched.
• Strangulation hazard: pets can force themselves into very small openings; use this gate with pets whose heads will not fit into openings in the gate, between the gate and floor, or between the gate and wall.
• Never use with pet able to climb over or dislodge/open the gate or enclosure.
• Never leave pet unattended.
• Use only with the locking/latching mechanism securely engaged.
• If using this gate at the top of stairs, the four Wall Cups MUST be used. If not used, the gate may be dislodged from the opening.
  • MODEL 0941: This gate is designed to fit openings 29 to 39 inches.
  • MODEL 0942: This gate is designed to fit openings 29 to 51 inches.

Description

The Carlson Extra Tall Walk-Through Gate 0942 is constructed from sturdy steel, ensuring it can withstand the wear and tear of daily use. The gate features a sleek and modern design that blends seamlessly into most home decors. The one-touch release mechanism allows adults to pass through easily while keeping pets securely contained. The gate's adjustable width makes it versatile enough to fit various openings, and its tool-free setup ensures quick and hassle-free installation.

This gate is particularly beneficial for families with multiple pets or for those who need to restrict access to certain areas of the home. Its extra-tall height provides added security, making it an excellent choice for owners of larger or more energetic pets.

Carlson Extra Tall Walk-Through Gate 0942 Before Assembly

PLEASE CHECK TO MAKE SURE YOU HAVE THE FOLLOWING PARTS:

1. Gate Frame (1)
2. Wall Cups (4)
3. Screws (4) (requires a Phillips/cross-head screwdriver)
4. Threaded Spindle Rods (4)

Extensions List

NOTE: When installing any gate at its maximum width, use wall cups to ensure stability and safety.

Assembling and Installing Your Gate

NOTE: You will notice a slight gap between the gate door latch and the frame. This is not a defect. Your gate is a pressure mounted gate and this gap will disappear once you tighten your gate in its opening.

• STEP 1
  Locate the (4) threaded spindle rods. Rotate the adjustment wheels  along the threading, eliminating  the gap between the adjustment wheel and the rubber foot.



• STEP 2
  Insert the (4) threaded spindle rods into the holes at each of the four corners of the gate.
  NOTE: The ends of the gate frame are not threaded. The threaded spindle rods should slide into the end of the frame tubes without any resistance.



• STEP 3
  Position the gate so that it is level and centered within your doorway or opening. Rotate the adjustment wheels on the threaded spindle rods in the opposite direction as in STEP 1, expanding the gap between the rubber foot and the adjustment wheel. Expand each of the (4) threaded spindle rods until they make contact with the doorway or opening. Do not fully tighten the threaded spindle rods yet.
  NOTE: It may be necessary to hold the threaded spindle rods or rubber feet while rotating the adjustment wheels to ensure the entire unit does not rotate.



• STEP 4
  When you are satisfied with the general placement of your gate, fully tighten the threaded spindle rods attached to the lower corners of the gate by further rotating the adjustment wheels. Continue by tightening the upper threaded spindle rods. As you tighten the upper threaded spindle rods, you will notice the gap between the door frame and the easy open latch begin to narrow.
  In order for the gate to function properly, stop tightening the upper threaded spindle rods just before the inner wall of the locking latch and the gate frame touch.



  NOTE: There should be equal spacing among each of the (4) threaded spindle rods. Make the appropriate adjustment to ensure you have installed your gate safely.

Positioning and Attaching the Wall Cups

Your gate is a pressure mounted gate. Therefore, it is not necessary to use the screw attached wall cups in your door opening if you choose not to. However, if you are using the gate at the top of the stairs you must use the wall cups. Using the wall cups will affix your gate more firmly in the doorway or opening.

1. STEP 1
   After you have mounted your gate, and you are satisfied with its positioning, draw a circle on the surface of your doorway or opening around the perimeter of the (4) rubber feet.



2. STEP 2
   Next, completely remove the gate from the opening by loosening each of the (4) threaded spindle rods to depressurize the gate.

3. STEP 3
   With the gate fully removed, you can now use the circles you marked during STEP 1 as guides for screwing in your (4) wall cups. Center each of the wall cups within the guide circles and use the provided self-tapping screws to fasten them in place via the hole through the center of each wall cup.



4. STEP 4
   Reinstall your gate in the doorway or opening according to the instructions, using the newly installed wall cups as anchoring points for the (4) threaded spindle rods.



Operating the Door Latch

• STEP 1
  Pull the spring lock away from the easy open latch while simultaneously lifting the lock lever upwards. This will release the locking latch from the gate frame and allow the door to push or pull open.



• STEP 2
  To lock the door shut, close the door completely, then push down on the lock lever to re-engage the spring lock.
  NOTE: If your easy open latch is not properly engaging with the receiving component, ensure that your gate is leve

Adding a Gate Extension

• STEP 1
  Choose the side of the gate to be extended and remove the top and bottom threaded spindle rods.
• STEP 2
  Assemble the gate and extension as illustrated. Reposition the gate and fit in accordance withthe gate fitting instruc tions.

REMOVING YOUR GATE FROM THE WALL

To remove your gate from the wall, rotate the adjustment wheels on each of the (4) threaded spindle rods to depressurize the gate from its doorway or opening. Then, gently pull or push the gate free from its doorway or opening.

Setup Guide

Setting up the Carlson Extra Tall Walk-Through Gate 0942 is straightforward and requires no tools:

1. Unpack the gate and all included components.
2. Position the gate in the desired opening, ensuring it is centered.
3. Adjust the width of the gate to fit the opening securely.
4. Pull the gate tight and lock it into place using the tension adjustment mechanism.
5. Test the gate to ensure it is securely in place and functioning correctly.

CARE AND MAINTENANCE

1. Periodically check the gate for signs of damage, wear, or missing components.
2. Do not usen if any part is missing, worn or damaged. Check the gate regularly to ensure all the hardware and mountings are tightened.
3. Do not use abrasive cleaners or bleach. Clean by sponging with warm water and a mild detergent.

Troubleshooting

Common issues and their solutions:

• Gate not fitting securely: Check that the gate is properly adjusted to fit the opening. Ensure the tension adjustment mechanism is tightened sufficiently.
• Gate not locking properly: Inspect the locking mechanism for any blockages or misalignment. Clean the area around the lock if necessary.
• Pets escaping: Ensure the gate is at an appropriate height and width for your pets. Consider reinforcing the gate with additional support if necessary.

Warnings: Always supervise pets when introducing a new gate. Ensure the gate is installed correctly to avoid any safety hazards https://www.carlsonpetproducts.com

90 DAYS LIMITED WARRANTY

If, during the first 90 days after consumer purchase of the item, under reasonable and non-commercial use and conditions of maintenance, it fails while owned by the original purchaser because of the quality of materials or workmanship of finish and assembly, Carlson Pet Products, Inc. will replace or repair it at Carlson’s option. PROOF OF PURCHASE REQUIRED.

Pros & Cons

Pros

• Easy to install without tools.
• Extra-tall design provides added security for larger pets.
• Adjustable width fits various openings.
• Convenient one-touch release for easy passage.
• Durable and long-lasting construction.

Cons

• May not be suitable for very narrow openings.
• Some users find the tension adjustment mechanism tricky to use.
• Not ideal for very wide openings beyond 38 inches.

Customer Reviews

Customers have generally praised the Carlson Extra Tall Walk-Through Gate 0942 for its ease of installation, durability, and effectiveness in containing pets. However, some users have noted minor issues with the tension adjustment mechanism and the gate's suitability for very narrow or very wide openings.

Common Complaints: A few users have reported difficulty in adjusting the width of the gate to fit their specific openings. Others have noted that while the gate is effective for most pets, very determined pets may still find ways to escape.
