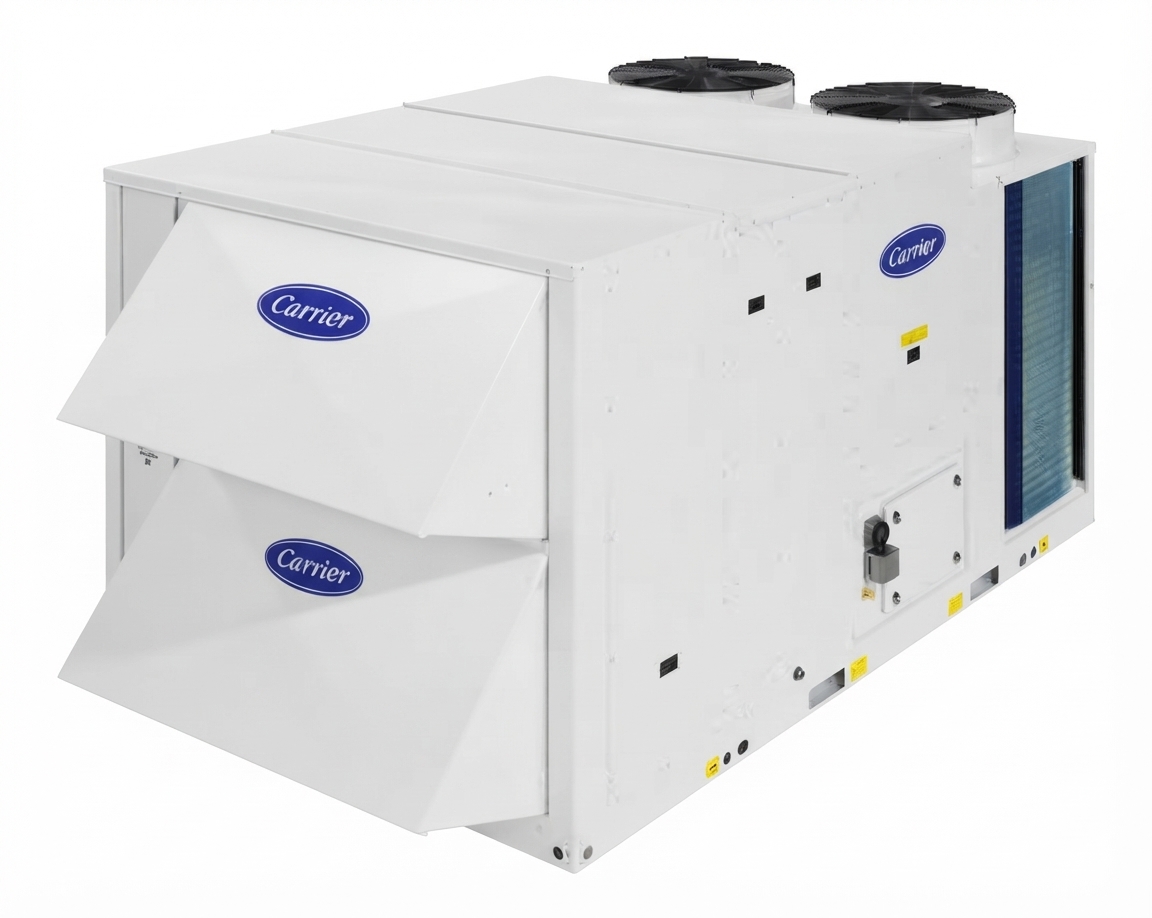

Carrier 50TJ016-028 Series Single-Package Rooftop Unit Overview


The carrier 50TJ016-028 Series Single-Package Rooftop Unit is a commercial HVAC solution designed for dependable cooling and optional electric heating in rooftop or building-side applications. Built for horizontal supply and return duct configurations, this packaged rooftop unit is a practical fit for offices, retail spaces, schools, light industrial buildings, and other facilities that need centralized comfort control in a compact footprint. The 50TJ016-028 family is known for its scroll compressor design, straightforward service access, and flexible electrical cooling with electric heat options, making it a strong choice for facility managers who want a balance of performance, durability, and installation simplicity.

One of the main advantages of the carrier 50TJ016-028 Series Single-Package Rooftop Unit is its broad size range and adaptability. The series covers nominal cooling capacities from 15 to 25 tons, which helps match a wide variety of load requirements without moving to multiple separate systems. It is also designed to support outdoor air intake, return-air filtration, and power exhaust options, which improves indoor air management and system versatility. For many buyers, this model line offers a practical middle ground between basic packaged units and more advanced premium rooftop systems. Estimated market pricing typically falls in the mid to high commercial HVAC range, depending on size, voltage, and accessory package, with installed costs often varying significantly by curb, ductwork, and controls. Availability is generally through commercial HVAC distributors and Carrier channel partners, though exact stock depends on region and configuration.

Specifications for Carrier 50TJ016-028 Series Single-Package Rooftop Unit

Product type: Single-package rooftop unit for commercial cooling with optional electric heat
Nominal cooling capacity: 15 to 25 tons, depending on model sizeodel coverage: 50TJ016, 50TJ020, 50TJ024, and 50TJ028
Compressor design: Scroll hermetic compressors for efficient cooling performance
Installation style: Rooftop or building-side mounting
Duct compatibility: Horizontal supply and return duct design
Airflow features: Manual outdoor-air inlet and aluminum filter standard
Electrical options: Multiple voltage and phase configurations are available for commercial applications
Heating option: Electric heat configuration available for all-season comfort
Approximate operating weights: Roughly 1,550 lb to 1,850 lb depending on size
Protection features: Includes a standard low-pressure switch on the suction side
Service design: Built for practical rooftop maintenance and component access

Compared with smaller packaged rooftop air conditioners, the carrier 50TJ016-028 Series Single-Package Rooftop Unit delivers higher capacity and better suitability for medium-sized commercial buildings. Against larger premium rooftop platforms, it is typically easier to specify, install, and maintain while still providing robust comfort control and dependable cooling performance.

Pros and Cons of the Carrier 50TJ016-028 Series Single-Package Rooftop Unit

Pros

Wide capacity range: The 15- to 25-ton lineup makes it easier to match building demand without over-sizing.
Commercial-ready design: Built for rooftop deployment, which saves indoor space and simplifies mechanical-room planning.
Scroll compressor reliability: Scroll technology is valued for smoother operation and solid long-term durability.
Flexible configuration: Electric cooling with electric heat supports year-round comfort in one packaged system.
Good value for commercial use: The unit offers practical performance and serviceability at a cost that is often more manageable than higher-end variable-capacity alternatives.

Cons

Not the quietest option: Packaged rooftop units can be louder than split systems, especially on noise-sensitive sites.
Installation complexity: Roof curb, ductwork, electrical service, and lifting requirements can add project cost.
Limited premium efficiency features: Compared with newer high-efficiency systems, it may not offer the most advanced energy-saving controls.
Maintenance access required: Rooftop servicing may be less convenient than indoor equipment in some facilities.

For buyers comparing commercial rooftop HVAC options, the carrier 50TJ016-028 Series Single-Package Rooftop Unit is often a strong value choice when reliability and straightforward operation matter more than advanced smart-control features.

Customer Reviews and User Feedback on Carrier 50TJ016-028 Rooftop Unit

Users commonly rate the carrier 50TJ016-028 Series Single-Package Rooftop Unit around 4.2 out of 5 stars for dependable cooling, consistent airflow, and familiar serviceability. Facility managers often praise its “set it and maintain it” design, especially in retail and office environments where uptime is important. One recurring positive theme is that the unit handles seasonal commercial loads well when properly sized and installed.

Common complaints usually focus on rooftop service access, installation expense, and noise levels compared with split-system alternatives. Some users also note that performance depends heavily on correct duct sizing, curb fit, and airflow setup. A typical recommendation is to choose this model for commercial spaces that need a proven packaged rooftop solution rather than a highly advanced digital HVAC platform.

Overall, the carrier 50TJ016-028 Series Single-Package Rooftop Unit is best suited for buyers who want a durable commercial rooftop system with dependable performance, broad configuration options, and solid long-term value.

PDF

Faqs

How do I set up the Carrier 50TJ016-028 Series Single-Package Rooftop Unit for the first time?

First-time setup for the Carrier 50TJ016-028 Series Single-Package Rooftop Unit should start with checking the nameplate data, roof curb fit, duct connections, and power requirements before startup. Make sure the unit is level, the gasket seal is properly installed, and all supply and return openings align correctly. After wiring and airflow checks, verify thermostat settings, economizer position, and drain pan slope. A careful commissioning process helps prevent airflow issues, leaks, and early system faults.

What roof curb and duct requirements does the Carrier 50TJ016-028 Series Single-Package Rooftop Unit need?

This Carrier rooftop unit is designed for rooftop mounting with horizontal supply and return ducts, so the curb and duct layout must match the unit configuration exactly. The roof curb seal is critical for preventing air leakage and water intrusion. Use the proper gasket material, confirm the curb dimensions, and keep duct transitions smooth to reduce static pressure losses. Poor curb fit or mismatched ductwork can cause noise, reduced capacity, and inefficient operation.

Why is my Carrier 50TJ016-028 Series Single-Package Rooftop Unit not cooling properly?

If the unit is running but cooling is weak, start by checking airflow, thermostat demand, dirty filters, and outdoor air damper position. Restricted filters or blocked return air can make the system look like it is underperforming. Also inspect refrigerant-related faults, compressor operation, and condenser airflow. On a rooftop package unit, poor gasket sealing or duct leakage can also reduce delivered cooling. If basic checks do not solve it, a technician should test system pressures and electrical components.

What should I check if the Carrier 50TJ016-028 Series Single-Package Rooftop Unit is short cycling?

Short cycling usually points to control issues, airflow restrictions, thermostat problems, or a safety limit opening too early. Check for dirty filters, blocked coils, loose wiring, and improper thermostat placement near heat sources or supply air. On packaged rooftop units, a misadjusted economizer or low airflow across the coil can also trigger frequent starts and stops. If the problem continues, verify compressor protection devices and control voltages before replacing parts.

Which features make the Carrier 50TJ016-028 Series Single-Package Rooftop Unit different from other commercial HVAC units?

The Carrier 50TJ016-028 Series Single-Package Rooftop Unit is a packaged rooftop design that combines cooling and optional electric heat in one outdoor cabinet. It is built for commercial applications with horizontal duct connections, scroll compressors, and an outdoor-air inlet arrangement. That makes it a practical choice for buildings that need centralized climate control without a separate indoor air handler. The packaged format also simplifies service access and can reduce installation complexity.

Is the Carrier 50TJ016-028 Series Single-Package Rooftop Unit compatible with economizers and outdoor air ventilation?

Yes, the Carrier 50TJ016-028 Series Single-Package Rooftop Unit can be used with an economizer setup, and outdoor-air control is part of the unit’s commercial ventilation strategy. The economizer should be adjusted so it brings in the right amount of fresh air without overloading the cooling system. Proper damper calibration is important for comfort, energy savings, and indoor air quality. If the economizer is stuck open or misset, the unit may struggle to maintain temperature.

How often should the Carrier 50TJ016-028 Series Single-Package Rooftop Unit be serviced?

A commercial rooftop unit like the Carrier 50TJ016-028 should be inspected at least twice a year, with more frequent checks in heavy-use environments. Typical maintenance includes replacing or cleaning filters, inspecting belts and wiring, cleaning coils, checking drains, and verifying refrigerant and heating operation. Seasonal service before summer and winter is especially useful because it catches problems before peak demand. Regular maintenance improves efficiency, reduces breakdowns, and extends equipment life.

What maintenance steps help the Carrier 50TJ016-028 Series Single-Package Rooftop Unit run more efficiently?

To keep the Carrier 50TJ016-028 Series Single-Package Rooftop Unit efficient, focus on clean airflow and tight seals. Replace filters on schedule, keep condenser and evaporator coils clean, inspect the roof curb gasket for leaks, and make sure drain pans and drains stay clear. Check thermostat calibration, economizer movement, and electrical connections during routine service. A unit that has proper airflow, minimal leakage, and clean heat-transfer surfaces will usually use less energy and deliver better comfort.
