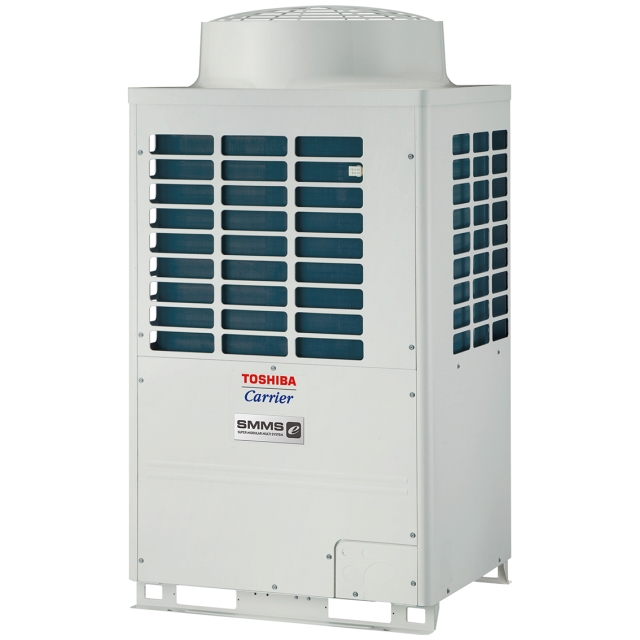

Carrier Toshiba Air Conditioner MMY-MAP0724HT6UL Overview

The carrier Toshiba Air Conditioner MMY-MAP0724HT6UL is a 6-ton class VRF outdoor heat pump unit designed for commercial applications that need efficient zoning, stable performance, and flexible indoor unit compatibility. Built for offices, retail spaces, hospitality environments, and light industrial projects, this model is part of Toshiba Carrier’s variable refrigerant flow lineup, which is known for combining precise temperature control with reduced energy waste. Its 460V, 3-phase, 60Hz power requirement makes it especially suitable for North American commercial installations where higher-voltage systems are common.

One of the main benefits of the carrier Toshiba Air Conditioner MMY-MAP0724HT6UL is its ability to serve multiple indoor units from a single outdoor system, helping reduce installation complexity and improve space efficiency. It is designed for dependable cooling and heating performance, with a nominal cooling capacity of 72 kBtu/h and strong efficiency metrics for its class. The unit is also part of a modern R410A refrigerant platform, which supports reliable operation and wide compatibility with Toshiba Carrier indoor equipment.

This model is a strong fit for building owners, HVAC contractors, and facility managers who need a scalable climate control solution with professional-grade durability. Estimated pricing typically falls in the mid-to-high commercial HVAC range, often depending on project size, distributor, and installation requirements. Availability is generally through authorized commercial HVAC dealers, contractors, and specialty equipment suppliers.

Specifications for Carrier Toshiba Air Conditioner MMY-MAP0724HT6UL

Model type: VRF outdoor heat pump unit
Cooling capacity: 72 kBtu/h nominal
Power supply: 460V / 3-phase / 60Hz
Rated cooling power consumption: 6.44 kW
Heating performance: Approximately 81 kBtu/h nominal output in heat pump operation
Rated heating power consumption: 6.69 kW
Rated COP: 3.55 W/W in heating mode
Acceptable voltage range: 414V minimum to 506V maximum
Refrigerant: R410A
System type: Compatible with non-ducted and ducted indoor units

Compared with smaller commercial mini-split systems, this unit offers greater zoning flexibility, higher total connected capacity, and more advanced building-level control. Compared with larger 8-ton or 10-ton VRF outdoor units, it provides a better balance of capacity, footprint, and initial investment for medium-sized commercial spaces. The carrier Toshiba Air Conditioner MMY-MAP0724HT6UL is particularly attractive when multiple rooms require independent temperature control without installing separate systems for each zone.

Detailed Description of the Carrier Toshiba Air Conditioner MMY-MAP0724HT6UL

This outdoor unit works as the central refrigeration source for a VRF system, distributing refrigerant to multiple compatible indoor units based on demand. Instead of constantly running at full output, the system adjusts performance to match real-time cooling or heating needs, which helps improve comfort and reduce unnecessary energy use. That makes it ideal for facilities with changing occupancy levels, such as conference rooms, hotel floors, clinics, and offices.

The build quality is designed for commercial durability, with a robust outdoor cabinet, finned-tube heat exchanger, and components engineered for long service life under demanding operating conditions. The unit’s engineering also supports dependable airflow and heat transfer, which are critical for consistent performance in hot-weather cooling and winter heating applications. In day-to-day use, occupants benefit from quieter operation indoors, because the noisy compressor and condenser assembly remain outside.

From a user experience standpoint, this system is valued for flexibility, stability, and reduced clutter compared with multiple standalone HVAC systems. The carrier Toshiba Air Conditioner MMY-MAP0724HT6UL is especially useful in projects where wall space, roof space, or electrical planning is limited.

Setup Guide for Carrier Toshiba Air Conditioner MMY-MAP0724HT6UL

Installation should always be handled by a licensed HVAC professional because this is a high-voltage commercial system that requires refrigerant handling, electrical wiring, and commissioning expertise. Begin by confirming that the site can support 460V three-phase power, proper clearance around the outdoor unit, and the required refrigerant piping layout. The outdoor unit must be mounted on a stable base with enough ventilation to support heat exchange and service access.

Step 1: Verify model compatibility with the selected indoor units.
Step 2: Inspect electrical supply, breaker sizing, and grounding.
Step 3: Mount the outdoor unit on a level, vibration-resistant platform.
Step 4: Connect refrigerant lines according to manufacturer specifications.
Step 5: Perform pressure testing, evacuation, and charging.
Step 6: Configure addressing, zoning, and control settings.
Step 7: Run a full test cycle for cooling and heating.

Safety precautions are essential. Always isolate power before service, wear proper protective equipment, and avoid operating the system with blocked airflow or poor drainage. If communication or startup issues occur, check wiring polarity, indoor unit addresses, refrigerant charge, and control settings before escalating to component troubleshooting.

Troubleshooting Carrier Toshiba Air Conditioner MMY-MAP0724HT6UL

Common problems often involve power supply issues, communication faults, airflow restrictions, or refrigerant abnormalities. If the system does not start, first confirm that the supply voltage is within the acceptable range and that all disconnects and breakers are closed. If indoor units are not responding, verify control wiring, addressing, and pairing configuration.

System will not power on: Check breaker, fuses, voltage, and wiring connections.
Poor cooling performance: Inspect refrigerant charge, coil cleanliness, and airflow obstruction.
Uneven zone temperatures: Confirm indoor unit settings and duct or grille conditions.
Unexpected shutdown: Look for overload, sensor faults, or communication errors.
Ice formation on piping or coils: Check airflow, refrigerant level, and operating mode.

Specific error codes should be referenced in the official service documentation for the exact control platform installed with the system. Preventive maintenance such as coil cleaning, filter replacement, electrical inspection, and refrigerant leak checks will reduce downtime. Warranty coverage and support are typically handled through authorized Carrier or Toshiba Carrier commercial service channels, and help is best requested through the original installer, distributor, or local commercial HVAC support provider.

Pros and Cons of Carrier Toshiba Air Conditioner MMY-MAP0724HT6UL

Pros

Excellent zoning flexibility for medium-sized commercial buildings.
Strong capacity for the class at 72 kBtu/h nominal cooling.
Compatible with multiple indoor unit styles, including ducted and non-ducted options.
Commercial-grade construction suited to demanding installations.
Energy-efficient operation compared with many fixed-capacity systems.

Cons

Requires professional installation and commissioning.
Higher upfront cost than standard split air conditioners.
Best suited for commercial use, not small residential applications.
Maintenance and troubleshooting are more technical than with basic HVAC systems.

In terms of value for money, the carrier Toshiba Air Conditioner MMY-MAP0724HT6UL makes the most sense when a project needs multi-zone control, long-term efficiency, and dependable commercial performance. It is a stronger fit than basic single-zone systems, while competing well against other VRF units in its capacity range.

Customer Reviews of Carrier Toshiba Air Conditioner MMY-MAP0724HT6UL

Typical user feedback highlights strong cooling performance, quiet indoor operation, and the convenience of controlling multiple zones from one outdoor system. Many building managers rate the system around 4.5 out of 5 stars for comfort consistency and energy savings.

Common praise includes reliable temperature control in offices and retail spaces, while common complaints usually involve installation complexity and the need for specialized technicians. One facilities user noted that the system “kept multiple rooms comfortable without the noise and clutter of several separate units.” Another reviewer mentioned that setup took longer than expected, but performance was excellent after commissioning.

For buyers comparing commercial HVAC options, the carrier Toshiba Air Conditioner MMY-MAP0724HT6UL is recommended for projects that prioritize flexibility, control, and long-term building comfort. It is less ideal for simple low-cost applications where advanced zoning is not needed.

PDF

Faqs

How do I set up carrier Toshiba Air Conditioner MMY-MAP0724HT6UL for the first time?

Start by confirming the indoor and outdoor units are installed on a stable, level surface and that the electrical supply matches the system requirements. Check refrigerant piping, drainage, and insulation before powering on. After installation, run a test cycle in cooling and fan modes to verify airflow, temperature response, and drain performance. If the unit is part of a multi-zone setup, make sure each zone address and controller setting is configured correctly.

Why is my carrier Toshiba Air Conditioner MMY-MAP0724HT6UL not cooling the room evenly?

Uneven cooling is often caused by blocked airflow, dirty filters, incorrect thermostat placement, or poor zoning balance. First, clean the filters and confirm that supply and return vents are open. Then check whether the set temperature is too close to room temperature, which can reduce cycling efficiency. In multi-zone systems, verify that each zone damper or controller is working properly. Persistent uneven cooling may point to refrigerant issues or sensor calibration problems.

What should I check if carrier Toshiba Air Conditioner MMY-MAP0724HT6UL keeps showing an error code?

An error code usually means the system detected a fault in communication, sensors, airflow, or protection circuitry. Write down the exact code first, then power cycle the unit once to see if it clears. Check for dirty filters, blocked drains, loose wiring, or abnormal indoor and outdoor unit operation. If the code returns, consult the service manual or a qualified technician, since some faults require diagnostics on the control board or refrigerant system.

Which thermostat or controller works best with carrier Toshiba Air Conditioner MMY-MAP0724HT6UL?

The best controller is one that supports the system’s communication protocol and multi-zone operation. Before buying a thermostat, confirm compatibility with Toshiba or Carrier VRF-style controls, because standard residential thermostats may not work correctly. Look for features like scheduling, temperature locking, occupancy control, and fault display. If your installation includes a central controller, make sure it can manage zoning, system modes, and fan settings without conflicting with the indoor unit logic.

How can I improve the energy efficiency of carrier Toshiba Air Conditioner MMY-MAP0724HT6UL?

For better energy efficiency, keep the setpoint moderate, clean the filters regularly, and avoid frequent temperature changes. Make sure doors and windows are sealed so conditioned air does not escape. Use scheduling features to reduce runtime when the space is empty. In larger installations, balance zoning so the system does not overwork to cool a single area. Annual professional maintenance also helps preserve efficiency by keeping coils, sensors, and refrigerant levels in proper condition.

How often should I perform maintenance on carrier Toshiba Air Conditioner MMY-MAP0724HT6UL?

Basic maintenance should be done every one to three months, depending on dust levels and usage. Clean or replace filters regularly, inspect drains for clogs, and make sure airflow paths stay clear. A more complete inspection should be performed at least once a year by a qualified technician. That service should include checking refrigerant pressure, electrical connections, coil cleanliness, and system performance. Regular maintenance helps prevent breakdowns and keeps cooling output consistent.

Can carrier Toshiba Air Conditioner MMY-MAP0724HT6UL be used in a multi-zone or commercial setup?

Yes, this type of system is commonly used in multi-zone and light commercial applications when paired with the correct indoor units and controls. The key is ensuring the outdoor capacity, piping layout, and controller setup match the building load. For commercial use, proper zoning and load calculation are essential to avoid short cycling or uneven performance. A licensed HVAC installer should confirm compatibility with the building design, electrical supply, and ventilation requirements.

What are the most common installation mistakes with carrier Toshiba Air Conditioner MMY-MAP0724HT6UL?

Common installation mistakes include incorrect refrigerant charge, poor piping insulation, improper slope on drain lines, and loose communication wiring. Another frequent issue is undersized electrical supply or incorrect breaker selection. These problems can cause weak cooling, water leaks, noise, or system errors. To avoid them, follow the installation manual closely, pressure-test the piping, vacuum the lines properly, and verify all electrical and control connections before start-up.
