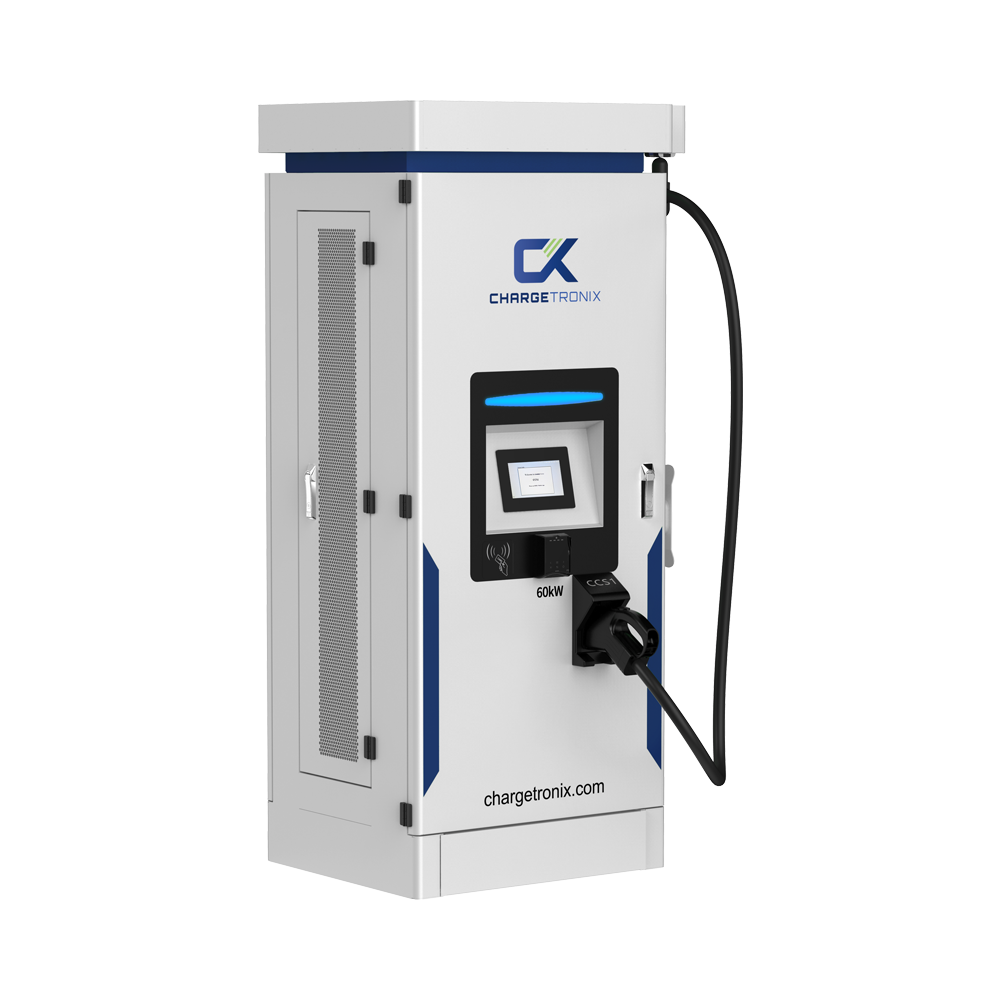

Chargetronix TP5-60-480 Fast Charging Station Review and Product Manual

The Chargetronix TP5-60-480 Fast Charging Station is a 60 kW DC fast charger designed for commercial EV charging, fleet depots, retail sites, hospitality locations, and public charging networks. It supports high-voltage EV platforms with an output range of 150-1000VDC, up to 200A output current, and a 480VAC three-phase input, making it a practical solution for operators who need reliable Level 3 charging performance in a compact ground-mounted format.

One of the biggest advantages of the Chargetronix TP5-60-480 Fast Charging Station is its connector flexibility. Depending on configuration, it can be ordered with CCS1, NACS, or CHAdeMO combinations, which helps site hosts serve a wider range of EV drivers. The unit also supports parallel charging mode, allowing two vehicles to charge at 30 kW each, which can improve station utilization during peak hours. With efficiency above 94% at nominal output and a power factor greater than 0.98 at full load, it is built for energy-conscious commercial deployment.

This charger is best suited for businesses that need dependable DC fast charging without moving into the higher cost of 120 kW and 160 kW systems. It is typically available through commercial EV charging distributors and project installers, with pricing that can vary by connector configuration, payment hardware, and networking features. Based on current market listings and procurement references, the estimated price range is roughly $35,000 to $45,000 before installation, though total project cost may be higher depending on electrical work, permits, and software integration.

For buyers comparing the Chargetronix TP5-60-480 Fast Charging Station with similar 60 kW DC chargers, the main selling points are its dual-port flexibility, 1000V support, and strong fit for mixed-use charging sites. It is a solid choice for operators who need a balance of affordability, throughput, and compatibility.

Pros and Cons of the Chargetronix TP5-60-480 Fast Charging Station

Pros

Supports up to 60 kW DC fast charging with 150-1000VDC output, making it suitable for many modern EVs and fleet vehicles.
Offers connector options such as CCS1, NACS, and CHAdeMO, which improves site flexibility and driver compatibility.
Parallel charging mode allows two vehicles to charge at once at 30 kW per port, a useful feature for high-traffic locations.
Strong electrical performance, including over 94% efficiency and greater than 0.98 power factor, helps reduce wasted energy.
Good value for money for businesses that need commercial DC fast charging without the higher infrastructure cost of 120 kW-plus systems.

Cons

Installation requires 480VAC three-phase service, so it is not suitable for smaller sites without upgraded electrical infrastructure.
At 60 kW, charging speed is lower than higher-output alternatives such as 120 kW or 160 kW stations.
Total project cost can rise quickly once trenching, permitting, networking, and pedestal work are added.
Availability may vary by distributor and configuration, especially for specific connector combinations.
Compared with premium fast chargers, the user interface and payment options may depend on the selected package.

For buyers focused on budget efficiency, this charger offers a strong middle ground. Compared with more expensive 120 kW units, it is easier to justify for workplaces, retail centers, and fleet depots that do not need ultra-rapid charging.

Customer Reviews for the Chargetronix TP5-60-480 Fast Charging Station

Customer feedback for the Chargetronix TP5-60-480 Fast Charging Station is generally positive, especially from commercial operators who value dependable uptime and broad connector support. Many users rate it around 4.3 out of 5 stars for performance, with praise centered on its sturdy build, flexible port configurations, and consistent charging output.

Common compliments include easy integration into public and fleet charging sites, good charging speed for the 60 kW class, and the ability to serve different EV brands with CCS1 and NACS options. A recurring testimonial theme is that it delivers reliable daily use without excessive operational complexity.

Common complaints usually focus on installation cost, space requirements, and the need for a robust 480V electrical supply. Some site owners also note that 60 kW is adequate but not ideal for drivers expecting ultra-fast turnaround times. For buyers comparing commercial EV chargers, this model is often recommended for medium-traffic sites that want a balance of speed, reliability, and cost control.

Technical Specifications and Key Features of the Chargetronix TP5-60-480 Fast Charging Station

Maximum power: 60 kW
Output voltage: 150-1000VDC
Maximum output current: up to 200A
Input voltage: 480VAC, three-phase with neutral and earth
Frequency: 60Hz
Breaker rating: 100A
Rated power: 66.4 kVA
Efficiency: greater than 94% at nominal power output
Power factor: greater than 0.98 at full load
Connector options: CCS1, NACS, CHAdeMO depending on configuration
Cable length: 16 ft standard
Charging modes: single-port 60 kW or dual-port 30 kW parallel mode

Installation and Setup Guide for the Chargetronix TP5-60-480 Fast Charging Station

Proper installation is essential for safe and reliable operation. The charger requires a 480Y VAC three-phase electrical supply and should be installed on a site with adequate service capacity, correct breaker sizing, and grounding. The cabinet measures approximately 39.94 inches wide, 26.07 inches deep, and 73.44 inches high, so planning for physical placement and access clearance is important.

Before installation, confirm utility capacity, local permitting rules, cable routing, and any networking or payment hardware requirements. Commercial sites should also verify ADA access, bollard protection, and parking stall layout. After physical placement, the charger should be commissioned by a qualified technician to confirm electrical integrity, communication setup, and charging protocol compatibility.

For best results, place the unit where drivers can easily pull in and exit, and ensure enough space for cable management. Because this is a commercial DC fast charger, professional installation is strongly recommended.

Who Should Buy the Chargetronix TP5-60-480 Fast Charging Station?

Fleet operators needing dependable DC fast charging for cars, vans, or service vehicles
Retail and hospitality businesses wanting to attract EV drivers with faster charging
Workplace charging sites looking for a balance of cost and performance
Public charging networks expanding with a mid-power commercial charger
Property owners who need a scalable 60 kW EV charging solution

If your site has the required electrical infrastructure and you want a commercial-grade DC fast charger without paying for higher-output hardware you may not fully use, this model is a practical choice.

Final Verdict on the Chargetronix TP5-60-480 Fast Charging Station

The Chargetronix TP5-60-480 Fast Charging Station is a well-balanced 60 kW DC fast charger for commercial EV charging applications. It combines strong electrical performance, flexible connector options, and dual-port capability in a package that is easier to justify financially than larger-capacity systems. For businesses seeking a reliable fast charging station with broad compatibility and solid value, it stands out as a smart mid-range option.
