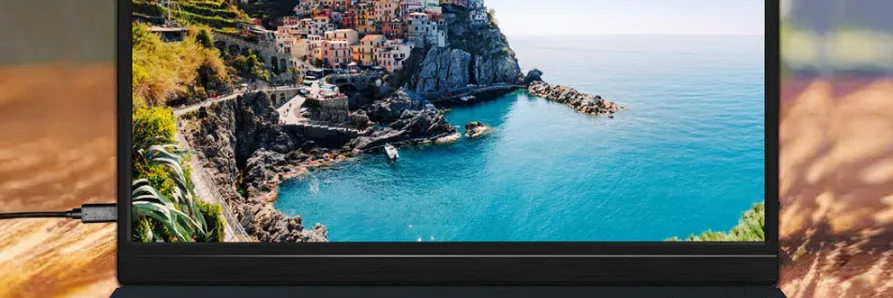

Introduction of Cocopar Portable Monitor J173FH10F

Introducing the Cocopar Portable Monitor , a versatile and compact solution for all your on-the-go display needs. This 17.3-inch monitor features full HD 1080p resolution, IPS technology, and a wide viewing angle. With a sleek and lightweight design, it's perfect for business travel, outdoor activities, or as a secondary display for your laptop or desktop. The Portable Monitor J173FH10F is priced at around $200, making it an affordable option for those in need of a portable monitor. The launching date of this product is yet to be announced, so stay tuned for updates.

Monitor Specifications

Package Contents

• Cocopar Portable Monitor
• Smart Cover
• Screen Protector x 2
• 20W Quick Charger
• HDMI to Mini HDMI Cable
• USB Type-C to Type-C Cable
• USB Type-A to Type-C Cable

Portable Monitor J173FH10F Features

• 43.9 cm (17.3-inch) diagonal viewable image size, 1920 x 1080 FULL HD resolution; includes custom scaling for maximum image size while preserving original aspect ratio
• Optimize eye comfort with a flicker-free wide viewing angle IPS screen
• Foldable stand for flexible viewing angles and portability
• H DM I video input ( cable provided)
• USB Type-C video input (cable provided)
• Plug-and-Play capability if supported by your operating system
• Portrait Mode support
• On-screen display (OSD) adjustments in several languages for easy setup and screen optimization
• HOR feature for more details of vivid bright areas and clear dark regions
• Freesync Technology eliminates image tears and choppiness for effortlessly smooth gameplay
• Low Blue Light Mode settings to create a more relaxing and less stimulating image
• 75mm VESA mounting bracket for attaching the monitor to a wall-mount device or swing arm
• Built-in dual speakers

Identifying Parts and Controls

• Speaker: For movies, games, etc. Type-C Power: Power supply, support reverse charging.
• Type-C Power & Display:
  Power supply,
  • Audio and video signal transmission Mini HDMI:
  • Audio and video signal transmission 3.5mm Audio Jack:
  • Connect speakers, headphones, etc.
• Power:
  Long Press 3~5s to Turn ON/ OFF -/+: Press to open the volume menu Long Press to open the brightness menu. Turn down and turn up the volume and brightness
• Menu:
  • Press to enter the OSD menu
  • Press to confirm the settings
  • Long Press to Factory Reset
• Exit
  Press to open the source input menu Press to return to the previous menu without saving settings
• Micro USB:
  Connect the mouse, keyboard, etc.

Setup of Cocopar Portable Monitor

Setting up the Portable Monitor J173FH10F is a breeze. Simply connect the monitor to your device using the included HDMI or USB cable. Once connected, the monitor will automatically power on and display the image from your device. You can then adjust the monitor's settings, such as brightness and contrast, to suit your preferences. To fold the monitor, simply press the button on the back and fold it in half. To use the monitor again, just unfold it and connect it to your device.

Supported Devices & Models

Phone

Laptop

Plug and Play Capability
You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer with its Extended Display Identification Data (EDID) using Display Data Channel (DOC) protocols so that the system can configure itself and optimize the monitor settings. Most monitor installations are automatic. You can select different settings if required.
LCD Quality & Pixel Policy
During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state. The visible result is a fixed pixel that appears as an extremely tiny dark or bright discolored spot. When the pixel remains permanently lit, it is known as a "bright dot." When the pixel remains black, it is known as a "dark dot." In almost every case, these fixed pixels are hard to see and do not detract from display quality or usability. A display with 1 to 5 fixed pixels is considered normal and within competitive standards.

Description

The Cocopar Portable Monitor boasts a full HD 1080p resolution, providing sharp and clear images for all your viewing needs. Its IPS technology offers wide viewing angles, so you can share your screen with others without sacrificing picture quality. The monitor is also equipped with dual speakers for an immersive audio experience. Measuring just 17.3 inches, the Portable Monitor J173FH10F is easy to carry around, and its lightweight design makes it perfect for use in a variety of settings. The monitor also features a number of connectivity options, including HDMI and USB, making it compatible with a wide range of devices.

Using the Monitor

Connecting your Monitor

Laptops/PC

1. Laptop/PC with Type-C



   Note

   • There are 2 type-C ports on the portable monitor. "Power" port is for Power. "Type-C" port is for Power&Display.
   • Not all computers with Type-C port can work with cocopar portable monitor. Please check the Type-C port of your computer if it supports audio and video signal transmission.
2. Laptop/PC with HDMI

PS4/Xbox

Note: Please connect the power supply cable first, then connect the HDMI cable for a smooth transmission of signals.
Switch

Note: Switch cannot provide enough power supply for monitor, an external power supply is required.
Phone

The cell phone powers the monitor when there is no external power supply. when the brightness and volume are adjusted to above 8, energy-saving mode is activated and brightness is automatically adjusted to 1.
Users can adjust the brightness and volume according to the power output of the connected phone.
Note: A Lighting to HDMI Adapter is required for Apple iPhone .


When the external power supply is connected, the adapter powers the monitor and the monitor charges the mobile phone.  If you connect the monitor with a fast charging adapter, then the monitor can provide fast charging for the mobile phone.

Using the On-Screen Display(OSD) Menu

Main Menu

• Press the Menu button to open and display the OSD menu
• Press the"+" and"-" to toggle between options in the Menu. As you move from one icon to another, the option name is highlighted
• Press the Menu button to select the highlighted item
• Press the"+" and"-" to select the desired parameter
• Press the Menu button to enter the slide bar and then use the "+" and "-" to make your changes
• Press the Exit button to return to previous menu without accepting current settings or
• Press Menu button to accept and return to previous menu.


• Brightness: Allows you to adjust the brightness or luminance of the backlight (Range: O~ 10).
• Contrast: Adjust the contrast between the objects and background.(Range: 0~10).
• ECO: 6 image modes (Standard/Game/Movie/PhotoNivid/User)
• OCR: Select ON or OFF to enable or disable dynamic contast ratio
• Sharpness: Make the outline of objects more clear(Range: O~ 10).

Note: When monitor connected to phones, if there is no external power supply and the brightness is adjusted to above 8, energy-saving mode is activited and brightness is automatically adjusted to 1 .
Color

• Color Temp: Adjust the tint of the screen. You can choose 9300k, 6500k, sRGB, User
• HUE: Adjust the hue of the image (Range: 0~10)
• Saturation: Adjust the saturation of the image (Range: 0~10)
• Low Blue Light: Decreasing the blue light emitted from the display reduces the blue light exposure to your eyes and creates a more relaxing and less stimulating image while reading on the screen. (Range: 0~10)
• FreeSync: FreeSync technology is a solution that eliminates screen tearing without all the usual lag and latency and improves . your gaming experience.
• PCM: You can choose sRGB, Adobe, User, Native color gum at

Audio

• Volume: Allows you to adjust the volume. (Range: O~ 10).
• Mute: Mute the volume (ON / OFF)

Other

• Language: Set the menu language. It will not be applied to other functions on your PC. English, Simplified Chinese, Traditional Chinese, German, French, Italian, Spanish, Japanese, Korean, and Russian are supported.
• Display rotate: Rotate the display by 0° or 180°
• HOR : Set the HOR Mode to AUTO/OFF/2084. HOR displays are capable of brighter whites and deeper blacks.
• Reset: Return all the settings to the default factory settings.

Input

• Auto Select: Type-C, HDMI
• Type-C: Display the signal from the Type-C port.
• HDMI: Display the signal from the HDMI port.

Using the Duplicate/Extend/Second Screen

• Connect cocopar monitor to your computer.
• Right click on the desktop and select “Display settings”
• Scroll down to the "Multiple Displays" option.
• Selecting "Duplicate these displays" or "Extend these displays" or "Show only on 2" for Different Modes

Using the Portrait/Landscape Mode

• Connect cocopar monitor to your computer.
• Right click on the desktop and select Display settings
• Scroll down to the "Display orientation" option. Selecting "Landscape" or "Portrait''

Maintenance Guidelines

For best practices, follow the instructions in the list below while unpacking, cleaning, or handling your monitor

• Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.
• To clean your screen, slightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the antistatic coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.
• To help maintain the best image quality on your monitor, use a dynamically changing screen saver and power off your monitor when not in use.

Troubleshooting

• Turn up the brightness to 8~10, but the screen becomes dimmer
  This is because the connected device cannot provide enough power supply for monitor, please plug in power adapter.
• Monitor keeps flashing on and off
  • Please plug in the power adapter provided. Because some devices cannot provide enough power supply for monitor.
  • Check if the power cable is properly connected to "Power'' Port instead of "Type-C" Port. Please refter to Page 6 for instruction
• No screen image or No signal
  • Make sure the cable is properly connected between the monitor and your device. Please refer to Page 9~ 11 for right connection.
  • Please unplug all the cables and reconnect again
  • If you are using the Type-C cable for display, make sure the Type-C of your device is a full-featured Type-C port and supports data transmission, DP display output and PD power. Only
    full-featured Type-C port is compatiable with cocopar monitor. And make sure your device is connected to the "Type-C" port for display not the "Power" port.
  • Connect the monitor to other devices to check if the monitor can work well with other devices.
• How to save the settings of brightness, volume, etc.
  • When the HDMI port is used for display, all the settings will be saved automatically.
  • But when the Type-C port is used for display without external power supply, brightness and volume will not be saved after the monitor is powered off, this design is to avoid that the monitor is unable to work when connected to phones which could not provide enough power for monitor with high brightness setting. So to avoid reset the brightness everyday, please give the monitor an external power supply with a "Power" port and do not cut off the power.
• Can the monitor work with Apple iPhone?
  Yes. But you need to buy a Lighting to HDMI Adapter for Apple iPhone. Please use a branded adapter.
• Can the monitor work with Nintendo Switch without Dock?
  Yes. Connect the monitor with Switch using Type-C to Type-C cable. And plug in the power adapter to monitor, because Switch cannot provide enough power supply for the monitor. Please refer to Page 1 O for detailed instructions.
• My Android Phone has a Type-C port. It cannot work.
  • Not all mobile phones with Type-C port can work with cocopar monitor. Please check Page 7 Supported Devices for reference.
  • Note: If monitor is powered by the mobile and the brigheness and volume are adjusted to above 8, the energy-saving mode is activited and brightness is automatically adjusted to 1 .

Warranty

• 30 Day 100% Money-Back Guarantee.
• 3 Year Warranty and Tech Support.

Pros & Cons

Pros

• Compact and lightweight design
• Full HD 1080p resolution
• Wide viewing angles with IPS technology
• Dual speakers for an immersive audio experience
• Multiple connectivity options

Cons

• The stand is not adjustable
• No VESA mount option
• Built-in speakers may not be suitable for all users

Customer Reviews of Portable Monitor J173FH10F

The Portable Monitor J173FH10F has received positive reviews from customers. They praise its compact and lightweight design, as well as its sharp and clear image quality. Some customers have noted that the stand is not adjustable, but overall, they are satisfied with the monitor's performance. The most common complaint is that the built-in speakers may not be suitable for all users. However, customers appreciate the monitor's multiple connectivity options and wide viewing angles.
