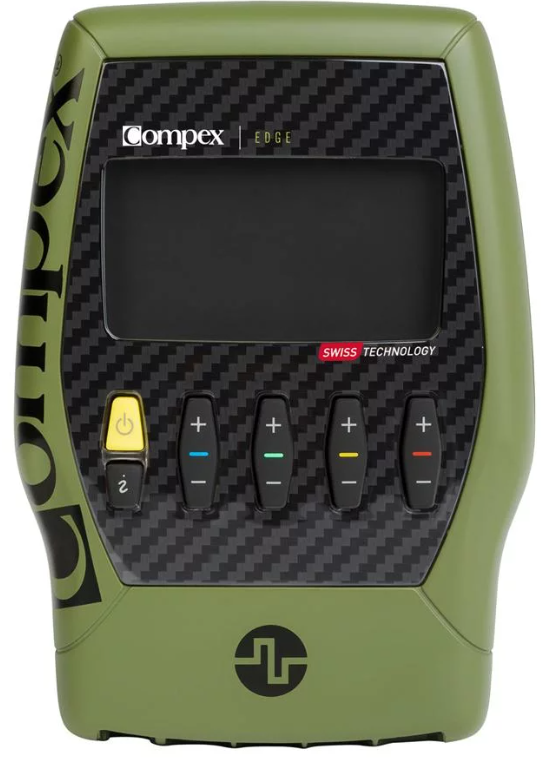

Compex EDGE 2.0 Muscle Stim + TENS

Introduction

The Compex EDGE 2.0 Muscle Stim + TENS is a portable, easy-to-use neuromuscular electrical stimulation (NMES) device designed for athletes, fitness enthusiasts, and active adults seeking to enhance performance, accelerate recovery, and manage pain. Backed by over 20 years of Compex’s electrotherapy innovation, this muscle stimulator helps users maximize workout results and minimize downtime by targeting both fast- and slow-twitch muscle fibers—mimicking the effects of resistance training and endurance exercise without joint stress or cardiovascular fatigue

This device is especially valuable for those looking to build strength, improve endurance, reduce muscle soreness, and speed up recovery after intense activity. The Compex EDGE 2.0 Muscle Stim + TENS comes equipped with multiple pre-set programs, including two for strength, one for active recovery, and a TENS (Transcutaneous Electrical Nerve Stimulation) mode for pain relief  With color-coded lead cables, snap-on electrodes, and a compact design, setup is straightforward, making it accessible for beginners and convenient for travel.

Target users include competitive athletes, weekend warriors, fitness buffs, and anyone rehabbing from minor muscle strains. Typical use cases range from pre-workout activation and post-exercise recovery to everyday pain management for sore or achy muscles The Compex EDGE 2.0 Muscle Stim + TENS is available for purchase online and through select retailers, with an estimated price range of $150–$200, offering a competitive option in the personal EMS and TENS market

Key benefits include customizable intensity, user-friendly interface, and the ability to target specific muscle groups. Its unique selling points are the combination of muscle stimulation and pain relief in one device, portability, and the backing of a trusted brand in sports performance technology.

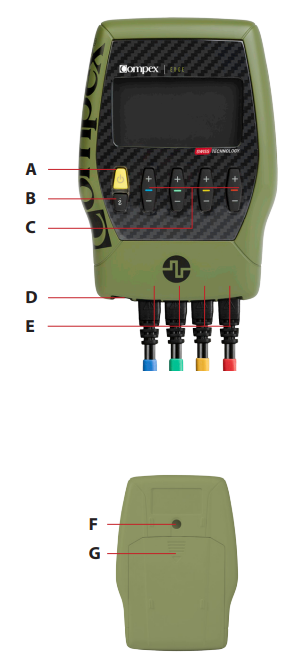

Device Description

1. On/Off button
2. i” button used to: increase stimulation energies in several channels simultaneously
3. (1, 2, 3, 4) +/- buttons for each of the 4 stimulation channels
4. Socket for the battery charger (Disconnect all stimulation cables before inserting the charger pin)
5. Sockets for the 4 stimulation cables
   Channel 1 = blue
   Channel 2 = green
   Channel 3 = yellow
   Channel 4 = red
6. Belt clip socket
7. echargeable battery compartment

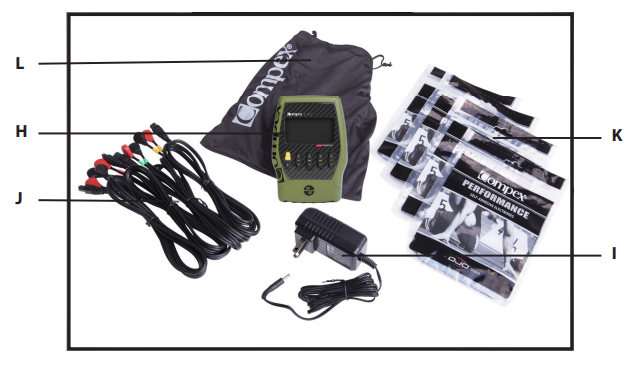

8. Compex Edge stimulator
   Battery charger
   Set of electrode cables (blue/ green/ yellow/ red)
   Electrodes- 4 - 2x4" Dual Snap and 8 - 2x2" Single Snap
   Travel pouch

 DEVICE SET UP

USAGE GUIDELINES
The usage guidelines presented in this section should be considered as general rules. For all programs, it is recommended that you read carefully the usage information and advice presented in the Operation section. You should use the  compexusa web site to establish an appropriate training plan.

CHOOSING THE APPROPRIATE MUSCLE WORK PROGRAM
The choice of a program determines the kind of work that is imposed on the stimulated muscles. Based on your knowledge about sport training, you can choose the program that is appropriate to your needs. Please go on the  compexusa web site as it offers an advanced interactive way to establish an appropriate work program. With just a few answers to basic questions, the “Training Planner” will determine which is the most appropriate program for you.

PLANNING STIMULATION SESSIONS
The Training Planner will determine the number of training sessions per week you should do and the number of weeks you should use a muscle training program.

ADJUSTING STIMULATION ENERGIES

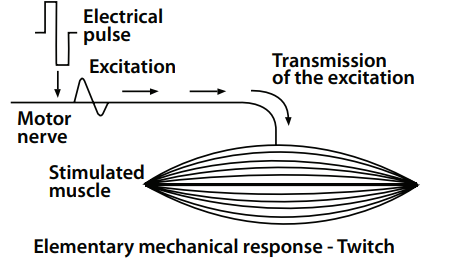

In a stimulated muscle, the number of recruited fibers depends on the stimulation energy. With a lower current intensity, there are fewer working fibers. With a higher current intensity the number of working fibers is increased.
For programs involving powerful muscular contractions, you must therefore use maximum stimulation energies (up to 999), always at the limit that you can endure, in order to recruit the maximum number of fibers.

PROGRESSION IN THE LEVELS
In general, it is not advisable to go through the different levels quickly with the intention of reaching level 5 as fast as possible. In fact, the different levels correspond to progress with electrostimulation.

The goal is to progress through the electrical intensities and then through the levels. The more numerous the muscle fibers you stimulate, the more numerous will be the fibers that are going to progress. But the speed of progress of these fibers and their aptitude for operating at a higher rating depend on the program and level used, the number of sessions per week, the length of these sessions and on intrinsic factors specific to each individual.

The simplest and most usual procedure is to start with level 1 and raise the level when changing to a new stimulation cycle.
At the end of a cycle, you may either start a new cycle at the next level up or do some maintenance at the rate of 1 session.

ELECTRODE POSITIONS AND TIPS

• For optimal results, use the electrode positions recommended by DJO, LLC. To do this, refer to the pictures and pictograms shown  on your quick start guide, as well as a full list of electrode placements
• Each stimulation cable has two poles:
• A positive pole (+) = red connection
• A negative pole (-) = black connection
• A different electrode must be connected to each pole.
• NOTE: It is possible and normal to have an electrode arrangement that leaves one electrode connection free from a cable.
• Depending on the characteristics of the current, efficacy can be optimized in certain programs by placing the electrode connected to the positive pole (red connection) "strategically". When working with a muscle stimulation program (program involving muscle contractions), it is important to place the positive electrode on the motor point of the muscle.
  It is crucial to choose the right size electrodes (large or small) and correctly position these on the muscle group you want to stimulate to ensure the efficacy of the program. Therefore, always use the size of electrodes shown in the pictures. Unless you have other specific medical instructions, always follow the placement directions in the pictures.
  Where necessary, look for the best possible position by slowly moving the positive electrode over the muscle until you find the point that will produce the best contraction or the most comfort for you.
  DJO, LLC disclaims all responsibility for consequences arising from electrodes placed in other positions. See the Safety Guide section of this manual to more information on where not to apply electrodes.
• Clean and degrease the skin with an alcohol swab or cotton ball with alcohol and then dry it before applying the pads. For hygiene purposes, do not share your pads with others.
• When removing your pads from your skin, peel from the side of the pad. Do not pull the pad off by the wire. When you store your electrode pads after your session, make sure to stick them on the transparent plastic film provided. Always adhere the pad to the "on" side of the film. Place the film with the pads back inside the plastic bag, squeeze the excess air out of the bag, and then completely seal it for storage.

CONNECTING THE CABLES TO THE STIMULATOR

• The stimulator cables plug into the 4 sockets on the front of the device.
• Four cables can be connected simultaneously to the 4 channels of the device. Both the sockets and the cables are color-coded to simplify use and facilitate identification of the different channels.

CLEANING THE UNIT
Do not sterilize the stimulator. To clean your unit, use a soft cloth and an alcohol-based cleaning product, which does not contain solvents. Solvents could damage the plastic parts, especially the panel covering the screen of your Compex Edge. Use only a minimum amount of liquid when cleaning the unit.

MAINTENANCE

Do not attempt to repair the stimulator or any of its accessories. Never dismantle the Compex Edge or the charger containing high-voltage parts because of risk of electric shock. DJO, LLC declines all responsibilities for any damages or consequences resulting from unauthorized attempts to open, modify, or repair the stimulator. This may only be done by persons or repair services authorized by DJO, LLC.
Your stimulator does not require calibration. Each Compex Edge stimulator is always tested and validated prior to distribution. Its characteristics do not vary under normal conditions. Nonetheless, as the Compex Edge is a high quality electrical instrument, its lifespan depends on the use that is made of it and the care and maintenance
it receives during its lifetime. If your stimulator contains parts that seem worn or defective, please contact DJO, LLC regarding an upgrade.

STORAGE AND TRANSPORTATION CONDITIONS
The Compex Edge contains rechargeable batteries and so the storage conditions must not exceed the following figures:

• Storage temperature: from -20°C to 45°C, -4°F to 113°F
• Max. relative humidity: 75%
• Atmospheric pressure: from 700 hPa to 1060 hPa

SPECIFICATIONS

OUTPUT WAVEFORM

• Biphasic rectangular impulse with electrical mean equal zero (net zero DC).
• All electrical specifications are given for an impedance of 500-1000 ohms per channel. Channels: Four independent and individually adjustable channels that are electrically isolated from each other and earthed.

UNIT CHARACTERISTICS

• Body:  plastic
• Weight:  350 g, 12.25 ounces
• Length:  142 mm, 5.6 inches
• Width:  99 mm, 3.9 inches
• Height:  36 mm, 1.4 inches

POWER SUPPLY

• NIMH rechargeable battery (4.8 V ³ 1’500 mAh)- P/N 941210

OUTPUT SPECIFICATIONS

• Pulse shape: Constant rectangular current with pulse compensation to eliminate any direct current component to prevent residual polarization at skin level.
• Maximum pulse intensity: 120 mA
• Pulse intensity increments: manual adjustment of stimulation intensity from
• 0 to 999 (energy) in minimum increments of 0.5 mA.
• Pulse width: 200 to 400 μs
• Maximum electrical charge per pulse: 96 microcoulombs (2x48 μC, compensated). Standard pulse ramp-up time: 3 μs (20%-80% of maximum current).
• Pulse frequency: 1 to 120 Hz
• Protection Rating: IPX0

DESCRIPTION OF ACCESSORIES

• Battery charger for recharging the battery (P/N 683026):
• Type TR503-02-A-133A03; Input 100-240 VAC/ 50 to 60Hz/0.2A max.; Output 9V/400~ 750mA
• Four black snap-connection stimulation cables (P/N 601131):
• Device connector: 6-pin; Electrode connector: female snap; Length: 1500 mm

Self-adhesive electrodes:

• 4 small electrodes (P/N 11-9119) (5 x 5 cm, 2 x 2 inch)
• 4 large electrodes (P/N 11-9120) (5 x 10 cm, 2 x 4 inch)
• Electrodes are Latex Free

TROUBLESHOOTING

ELECTRODE FAULT

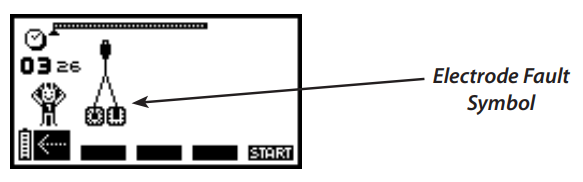

The Compex Edge "bleeps" and alternatively displays the symbol of a pair of electrodes and an arrow pointing to the channel where a problem has been detected. In the example above, the stimulator has detected an error in channel 1.

• Check that electrodes are connected to this channel.
• Check whether the electrodes are old, worn, and/or the contact is poor: try using new electrodes.
• Try using the stimulation cable on a different channel. If the cable is still showing a fault, replace it.

STIMULATION NOT PRODUCING USUAL SENSATION
Check that all the settings are correct and ensure the electrodes are positioned properly.

• Change the positioning of the electrodes slightly.

STIMULATION EFFECT CAUSES DISCOMFORT
The electrodes are beginning to lose adhesion and no longer provide good contact on the skin.

• The electrodes are worn and need to be replaced.
• Change the positioning of the electrodes slightly.

STIMULATOR IS NOT WORKING

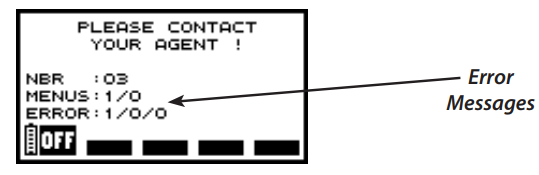

If an error screen appears while you are using the device, note the menus and error number (in the example above, menus 1/0 and error 1/0/0) and contact the nearest authorized customer support service.

NEED FOR RECHARGING

If the             symbol normally displayed above the channel 4 +/- button is not visible and if the battery icon is flashing, this means that the battery is completely discharged. It is no longer possible to use the device. Recharge it immediately.

WARRANTY

• DJO, LLC ("Company"), warrants that the Compex Edge ("Product") is free of defects in material and workmanship. This warranty shall remain in effect for two years (24 months) from the date of original consumer purchase. If this Product fails to function during the two year warranty period due to a defect in material or workmanship, at the Company's option, the Company or the selling dealer will repair or replace this Product without charge within a period of thirty days from the date on which the Product is returned to the Company or the dealer.
• All repairs to the Product must be performed by a service center certified by the Company. Any modifications or repairs performed by unauthorized centers or groups will void this warranty.
• The warranty period for accessories is 90 days. Accessories include Lead Wires and Electrodes.

This Warranty Does Not Cover:

• Replacement parts or labor furnished by anyone other than the Company, the selling dealer, or a service technician certified by the Company.
• Defects or damage caused by labor furnished by someone other than Company, the selling dealer, or a certified Company service technician.
• Any malfunction or failure in the Product caused by product misuse, including, but not limited to, the failure to provide reasonable and required maintenance or any use that is inconsistent with the Product User Manual.
• COMPANY SHALL NOT BE LIABLE IN ANY EVENT FOR INCIDENTAL  OR CONSEQUENTIAL DAMAGES.
• Some locations do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
• To obtain service from Company or the selling dealer under this warranty:
