Setup: Craftmade Brilliante BRC52 - 4 Light Flush Mount Ceiling Fan User Guide

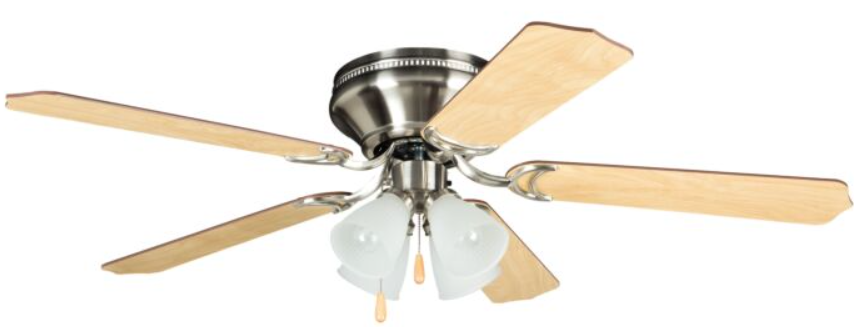

craftmade Brilliante BRC52 - 4 Light Flush Mount Ceiling Fan

Introduction

The craftmade Brilliante BRC52 - 4 Light Flush Mount Ceiling Fan presents a sophisticated blend of style, functionality, and efficiency for indoor spaces. Designed with a sleek flush mount configuration, this ceiling fan is ideal for rooms with low to standard ceiling heights, providing an elegant airflow solution without compromising on aesthetics. It features a 52-inch blade span and a 4-light kit with frosted ribbed glass shades, making it a versatile lighting and ventilation fixture suitable for living rooms, bedrooms, and dining areas.

Key benefits include its reversible blades that allow seasonal airflow optimization, a standard 3-speed motor for customizable comfort, and an integrated light kit with included dimmable candelabra bulbs. The fan’s quiet operation and high-quality finishes, including oil-rubbed bronze and white options, add to its appeal. The target audience includes homeowners and interior designers seeking a reliable, stylish ceiling fan with multi-function lighting for medium-sized indoor rooms.

Available through major lighting retailers, its price range typically falls between $250 and $350, reflecting a competitive offering in the mid-range ceiling fan market. The craftmade Brilliante BRC52 is known for easy installation and durable performance, making it a popular choice for updating home interiors with both fan and lighting needs met in one fixture.

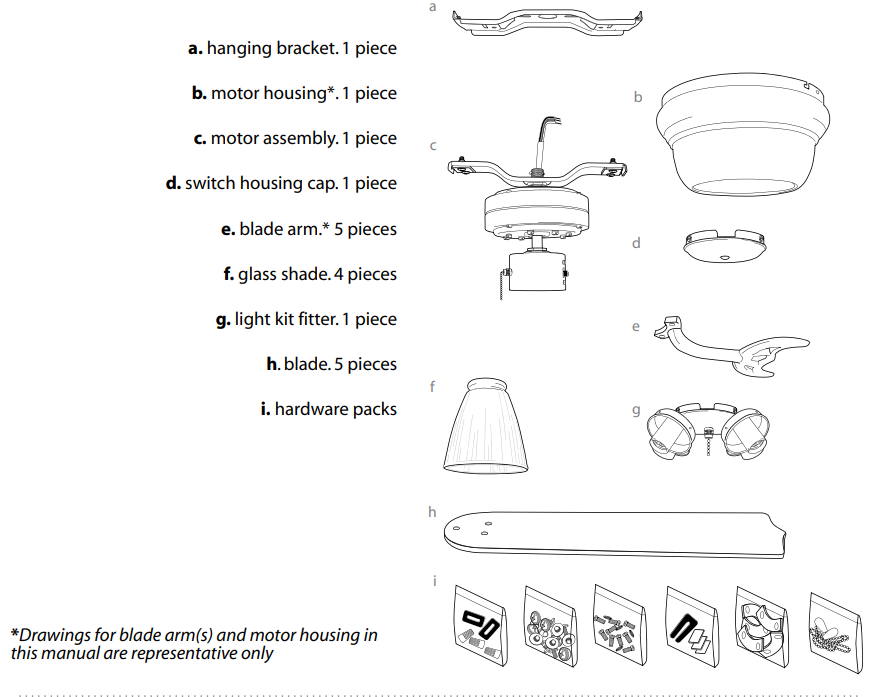

 Parts Inventory

Installation Preparation.

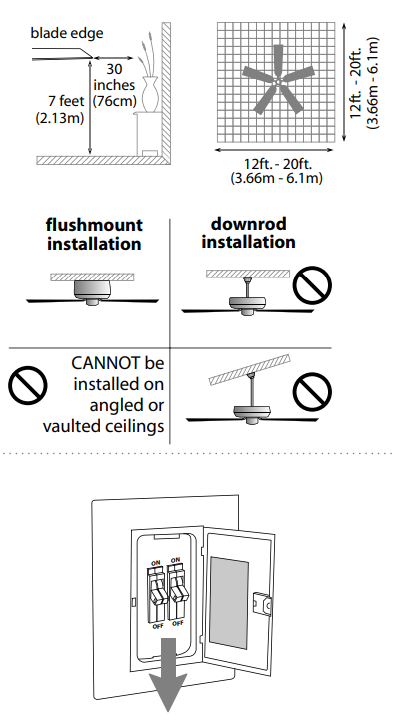

• To prevent personal injury and damage, ensure that the hanging location allows the blades a clearance of 7ft. (2.13m) from the floor and 30in. (76cm) from any wall or obstruction.
• This fan is suitable for room sizes up to 400  square feet (37.2 square meters).
• This fan can be mounted as a flushmount
  on a regular (no-slope) ceiling only. Downrod installations are not available for this fan.

Installation requires these tools:

• Phillips screwdriver, flat-head screwdriver, adjustable pliers or wrench, stepladder, wire cutters, and rated electrical tape.

Hanging Bracket Installation.

• Turn off circuit breakers to current fixture from breaker panel and be sure operating light switch is turned to the OFF position.
• WARNING: Failure to disconnect power supply  prior to installation may result in serious injury.

Remove existing fixture.

• WARNING: When using an existing outlet box, be sure the outlet box is securely attached to the building structure and can support the full weight of the fan. Ensure outlet box is clearly marked
• "Suitable for Fan Support." If not, it must be replaced with an approved outlet box. Failure to do so can result in serious injury.
• CAUTION: Be sure outlet box is grounded properly and that a ground wire (green or bare) is present.

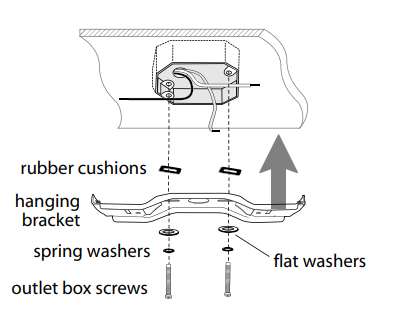

• Install hanging bracket to outlet box using original screws, spring washers and flat washers provided with new or original outlet box.
• Install rubber cushions between outlet box and hanging bracket to reduce vibration of metal to metal surfaces. Pull electrical wiring from outlet box through center hole in the hanging bracket.
• Note: It is very important that you use the proper hardware when installing the hanging bracket as this will support the fan.

Troubleshooting.

• WARNING: Failure to disconnect power supply prior to troubleshooting any wiring issues may result in serious injury.
• Problem: Fan fails to operate.
• Solutions:
  1. Check wall switch to fan.
  2. Verify that reverse switch is set completely in either direction.
  3. Check to be sure fan is wired properly.
• Problem: Light kit (optional) not lighting.
• Solutions:
  1.  Check wall switch to fan.
  2. Check that bulbs are installed correctly.
  3. Check to be sure wires in outlet box are wired properly.
  4. Verify that molex connections in switch  housing are connected properly.
• Problem: Fan operates but lights fail (if applicable).
• Solutions:
  1.  Check that bulbs are installed correctly.
  2. Check to be sure wires in outlet box are wired properly.
  3. Verify that molex connections in switch housing are connected properly.
  4. Replace defective bulbs with same type of     bulb.
• Problem: Lighting source (up-light, down-light or both) not functioning.
• Solution:
• Wattage Limiting Device has interrupted the flow of electricity to the light source. Ensure bulbs total no more than 190W in the light   source.
• Problem: Fan wobbles.
• Solutions:
  1. Use the balancing kit in one of the hardware packs. If no blade balancing kit is provided, please call Customer Support, 1-800-486-4892, to request one.
  2. Carefully loosen motor housing and verify that mounting bracket is secure.
  3. Check to be sure motor housing is turned completely and that motor housing screws are secure.

Warranty.

CRAFTMADE™ LIFETIME LIMITED WARRANTY: CRAFTMADE warrants this fan to the original household purchaser for indoor use under the following provisions: 1-YEAR WARRANTY: CRAFTMADE will replace or repair any fan which has faulty performance due to a defect in material or workmanship. Contact Craftmade Customer Service at 1-800-486-4892 to arrange for return of fan. Return fan, shipping prepaid, to Craftmade.  We will repair or ship you a replacement fan, and we will pay the return shipping cost.

• 5-    YEAR WARRANTY: CRAFTMADE will repair or replace, at no charge to the original purchaser, any fan motor that fails to operate satisfactorily when failure results from normal use.
  RETURN FAN MOTOR ONLY, shipping prepaid, to Craftmade Industries. We will repair or ship purchaser a replacement motor and Craftmade will pay the return shipping cost.
• 6-    YEAR to LIFETIME LIMITED WARRANTY: CRAFTMADE will repair the fan, at no charge for labor only to the original purchaser, if the fan motor fails to operate satisfactorily when failure results from normal use. Parts used in the repair will be billed to the purchaser at prevailing prices at time of repair.
•  The purchaser shall be responsible for all costs incurred in the removal, reinstallation and shipping of the product for repairs.
• This warranty does not apply when damage from mechanical, physical, electrical or water abuse results in causing the malfunction. Deterioration of finishes or other parts due to time or exposure to salt air is specifically exempted under this warranty.
•  Neither Craftmade nor the manufacturer will assume any liability resulting from improper installation or use of this product. In no case shall the company be liable for any consequential damages for breach of this, or any other warranty expressed or implied whatsoever. This limitation as to consequential damages shall not apply in states where prohibited.

Specifications of craftmade Brilliante BRC52 - 4 Light Flush Mount Ceiling Fan

• Blade Span: 52 inches, suitable for medium to large rooms
• Blade Count: 5 reversible blades, with cherry/mahogany or white/washed oak finishes
• Mount Type: Flush mount only, ideal for low ceilings
• Motor: Standard 3-speed reversible motor for efficient airflow control
• Lighting: Integrated 4-light candelabra base kit, 40-watt max bulbs included, dimmable with compatible switches
• Dimensions: Height approximately 12.99" to 13.75", Width/Diameter 52"
• Weight: Around 16.5 lbs, manageable for most ceiling installations
• Finish Options: Oil-rubbed bronze, white, and other decor-friendly finishes
• Installation: Includes all hardware; wiring and mounting instructions provided for safe, secure setup
• Performance: Quiet operation with reliable airflow, meets industry standards for residential ceiling fans

Compared to similar ceiling fans in its class, the Brilliante BRC52 stands out with its flush mount design and integrated multi-light kit, which many competitors lack. Its reversible blades and dimmable lighting add versatility not always found in comparable models.

Pros & Cons of craftmade Brilliante BRC52 - 4 Light Flush Mount Ceiling Fan

Pros

• Space-saving flush mount design: Perfect for rooms with lower ceilings without sacrificing airflow.
• Integrated 4-light kit: Provides ample, ambient illumination with included dimmable bulbs.
• Reversible blades: Enhance comfort year-round by adjusting airflow direction seasonally.
• Quiet and efficient motor: Smooth operation suitable for bedrooms and living areas.
• Multiple finish options: Allows matching with diverse interior décors.

Cons

• Flush mount only: Not suitable for vaulted or very high ceilings.
• Light bulbs limited to 40 watts max: May require LED alternatives for brighter lighting needs.
• Installation can be moderately complex: Recommended for users comfortable with electrical work or professional installation.
• Price point: Slightly higher than basic models, though justified by features and build quality.

Overall, the craftmade Brilliante BRC52 offers excellent value for money, especially for those needing a combination light and fan fixture optimized for lower ceilings. When compared to alternative models that lack integrated lighting or reversible blades, this model delivers comprehensive features for a reasonable investment.

Customer Reviews of craftmade Brilliante BRC52 - 4 Light Flush Mount Ceiling Fan

Users consistently praise the craftmade Brilliante BRC52 - 4 Light Flush Mount Ceiling Fan for its quiet operation and elegant design, with many highlighting the ease of use of the 3-speed reversible motor. The integrated lighting receives positive feedback for providing bright, adjustable illumination that complements the fan’s aesthetics. Star ratings commonly range between 4 and 4.5 out of 5, reflecting high overall satisfaction.

Some common complaints include the complexity of installation for novice DIYers and the limitation of 40-watt bulbs, which some users found insufficient for very large rooms. However, many recommend this fan for bedrooms and medium-sized living spaces due to its blend of efficient airflow and warm lighting. Overall, customers recommend the craftmade Brilliante BRC52 for those seeking a stylish, functional ceiling fan-light combo with modern features.
