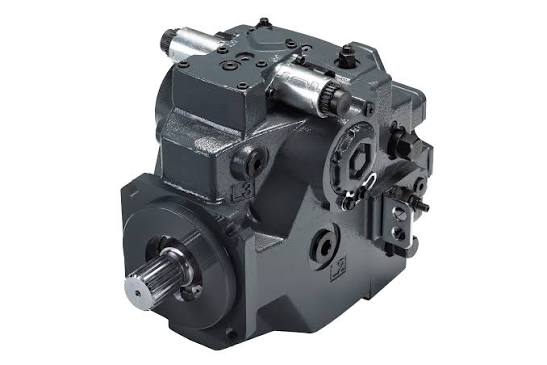

danfoss H1-045 Closed Circuit Axial Piston Pump Overview

The danfoss H1-045 Closed Circuit Axial Piston Pump is a compact, high-performance hydrostatic pump designed for mobile machinery that demands precise control, strong efficiency, and dependable closed-circuit operation. Built around a variable-displacement axial piston design, it is widely used in applications such as skid steers, agricultural equipment, forestry machines, construction vehicles, and other hydrostatic drive systems that need smooth forward and reverse power delivery. The H1-045 is known for its robust pressure capability, flexible control options, and compatibility with a broad range of auxiliary components, making it a strong choice for OEMs and maintenance teams alike.

One of the biggest advantages of the danfoss H1-045 Closed Circuit Axial Piston Pump is its versatility. It supports multiple control configurations, including electrical displacement control and forward-neutral-reverse operation, which helps improve operator responsiveness and system integration. Its 45 cc/rev frame size offers a strong balance of flow capacity and compact packaging, while the closed-circuit architecture helps improve efficiency in mobile hydraulic systems. The pump is also designed with high-pressure protection, charge pump support, and filtration options that help extend service life in demanding environments.

This model is ideal for equipment manufacturers, hydraulic repair shops, fleet operators, and industrial buyers who need a reliable replacement or upgrade for closed-circuit hydrostatic applications. Estimated pricing typically ranges from about $4,500 to $6,500 depending on configuration, distributor, and region, with availability commonly through Danfoss PowerSource channels and hydraulic parts suppliers. If you are searching for a durable closed circuit piston pump with strong pressure performance, the danfoss H1-045 Closed Circuit Axial Piston Pump remains a popular and practical option.

Detailed Specifications for the danfoss H1-045 Closed Circuit Axial Piston Pump

  • Type: Variable-displacement closed circuit axial piston pump
  • Frame size: 045, delivering 45 cc/rev maximum displacement
  • Rotation: Right-hand clockwise configuration
  • Mounting: SAE B 2-bolt flange
  • Input shaft options: Commonly 13-tooth or 15-tooth spline variants depending on build
  • Charge pump: 12 cc/rev for supporting loop charge flow
  • Charge relief pressure: Typically 24 bar, with some configurations using 30 bar or higher
  • High-pressure protection: Integrated pressure limiter or relief valve options
  • Maximum working pressure: Commonly up to 420 bar in related H1P 045 configurations
  • Maximum pressure: Up to 450 bar in selected data sets and configurations
  • Rated speed: Approximately 3,400 rpm, with maximum speed around 3,500 rpm
  • Weight: About 41 kg in comparable H1P 045 single-pump setups

The pump’s performance makes it a strong competitor against other compact closed-circuit hydrostatic pumps in the same displacement class. Compared with similar 45 cc/rev piston pumps, the H1-045 stands out for its broad control choices, modular endcap configurations, and high-pressure durability. For buyers comparing closed circuit axial piston pumps, the main decision points are control type, porting, relief settings, and filtration layout rather than displacement alone.

Troubleshooting the danfoss H1-045 Closed Circuit Axial Piston Pump

Common issues with the danfoss H1-045 Closed Circuit Axial Piston Pump usually relate to charge pressure, contamination, incorrect installation, or control signal problems. If the pump is slow to respond, verify electrical connections, neutral calibration, and the control valve status. If there is noisy operation or cavitation, inspect suction lines, inlet restrictions, oil level, and charge pressure. Low loop pressure often points to filtration blockage, a worn charge pump, or internal leakage.

  • Symptom: Loss of drive power. Fix: Check charge pressure, relief settings, and pump displacement control signals.
  • Symptom: Excessive noise. Fix: Inspect suction filtration, oil aeration, and reservoir level.
  • Symptom: Overheating. Fix: Confirm loop flushing, cooling capacity, and pressure limiter settings.
  • Symptom: Weak forward or reverse response. Fix: Test electrical control input, manual override function, and proportional valve operation.
  • Symptom: Oil leakage. Fix: Examine shaft seal, port fittings, and mounting torque.

Error codes vary by machine controller and are not native to the pump itself, so consult the vehicle ECU or hydraulic controller for fault-specific diagnostics. Preventive maintenance should include clean oil practices, regular filter replacement, torque checks, and periodic pressure testing. Warranty terms depend on the seller and application, but support is typically available through authorized Danfoss distributors and hydraulic service centers. For help, contact your local Danfoss PowerSource distributor, the equipment OEM, or a certified hydraulic repair specialist.

Pros and Cons of the danfoss H1-045 Closed Circuit Axial Piston Pump

Pros

  • Strong pressure capability for demanding mobile hydraulic systems
  • Variable displacement improves efficiency and responsiveness
  • Flexible control options support OEM integration
  • Compact 45 cc/rev design fits many machine layouts
  • Well-suited for hydrostatic drive applications in construction and agriculture
  • Good value for buyers needing a premium closed-circuit pump with long service life

Cons

  • Higher upfront cost than simpler gear pumps or fixed-displacement solutions
  • Requires careful setup and calibration for best performance
  • Contamination sensitivity means filtration must be maintained properly
  • Replacement parts and exact configurations can vary by order code
  • May be over-specified for light-duty applications where a lower-cost alternative is sufficient

For buyers comparing alternatives, the H1-045 is often more capable than basic hydraulic pumps, but it also demands better system design and maintenance discipline. It offers strong value for money in machines where precise hydrostatic control and durability matter most.

Customer Reviews of the danfoss H1-045 Closed Circuit Axial Piston Pump

Customer feedback for the danfoss H1-045 Closed Circuit Axial Piston Pump is generally positive, especially among operators who value smooth control and reliable pressure performance. Typical ratings fall in the 4.5-star range for industrial buyers who need a durable replacement pump. Users often praise the pump’s compact footprint, stable operation, and ability to handle demanding mobile equipment cycles.

  • “Excellent response and smooth hydrostatic control in our loader application.”
  • “Built solidly and performs well under high load, but installation must be precise.”
  • “Price is high, yet the reliability makes it worth it for heavy-duty machines.”

Common complaints usually involve cost, lead times, and the need to match the correct order code exactly. Buyers recommend confirming displacement, shaft type, port configuration, and control method before purchase. For the best experience, this pump is recommended for users who need dependable closed-circuit performance rather than the lowest initial price.

PDF

Faqs

How do I set up the danfoss H1-045 Closed Circuit Axial Piston Pump for first-time installation?

Start by confirming the pump model, mounting orientation, shaft type, and port configuration match the hydraulic system design. Before startup, flush the circuit, fill the pump case with clean hydraulic oil, and verify the oil meets the required viscosity and cleanliness level. Check suction line sizing, tighten all fittings to spec, and bleed trapped air from the system. A slow initial startup helps prevent cavitation, overheating, and premature wear.

What hydraulic oil and fluid cleanliness level does the danfoss H1-045 Closed Circuit Axial Piston Pump need?

The danfoss H1-045 Closed Circuit Axial Piston Pump performs best with high-quality hydraulic fluid that matches the recommended viscosity range for your operating temperature. Fluid cleanliness is critical because axial piston pumps are sensitive to contamination, which can damage rotating groups and control components. Use filtration suited to the system’s pressure and duty cycle, and keep water, air, and varnish under control. Always follow the machine builder’s fluid specification.

Why is my danfoss H1-045 Closed Circuit Axial Piston Pump noisy, and how can I reduce pump noise?

Excess noise usually points to cavitation, air ingress, low inlet pressure, or incorrect fluid viscosity. Inspect the suction line for leaks, restrictions, loose clamps, or undersized piping. Check the oil level and make sure the case is properly filled. If the noise appears under load, review pressure settings and speed to confirm they stay within the pump’s operating range. Cleaner oil and proper filtration also help reduce noise over time.

What are the most common troubleshooting steps if the danfoss H1-045 Closed Circuit Axial Piston Pump loses pressure or flow?

Begin with the basics: verify oil level, filter condition, suction restrictions, and the pump’s drive speed. Low pressure can also come from internal leakage, worn components, incorrect control settings, or a fault in the closed circuit loop. Check for overheating, contaminated fluid, and blocked case drain paths. If performance drops gradually, inspect wear patterns and system calibration. Sudden loss of output usually indicates air, cavitation, or a mechanical issue.

How do I match the danfoss H1-045 Closed Circuit Axial Piston Pump with the right motor, controls, and transmission system?

Compatibility depends on the application’s flow, pressure, shaft input, and control requirements. Confirm that the prime mover can supply enough torque at the planned operating speed, and make sure the control scheme matches the pump’s displacement and feedback options. The transmission, hoses, valves, and cooling capacity must also support the pump’s duty cycle. For best results, compare the machine’s load profile with the pump’s rated operating envelope before installation.

How can I improve efficiency and extend the service life of the danfoss H1-045 Closed Circuit Axial Piston Pump?

Keep the pump within its recommended speed, pressure, and temperature limits, since running near the edge of the operating envelope increases wear. Use proper filtration, maintain oil cleanliness, and avoid overheating by checking cooler performance and fluid level. Regularly inspect seals, fittings, and case drain lines for leaks. Smooth startup and shutdown procedures also reduce stress on the axial piston assembly and help the pump maintain stable performance for longer periods.

What maintenance schedule should I follow for the danfoss H1-045 Closed Circuit Axial Piston Pump?

A practical maintenance plan includes daily checks for leaks, abnormal noise, vibration, and oil level. Inspect filters and fluid condition at regular service intervals, and replace them before contamination becomes a problem. Periodically check case drain flow, mounting bolts, shaft alignment, and hose wear. If the machine works in harsh conditions, shorten inspection intervals. Keeping a written maintenance log makes it easier to spot early signs of wear and avoid unexpected downtime.

What signs show that the danfoss H1-045 Closed Circuit Axial Piston Pump needs repair or replacement?

Warning signs include persistent loss of pressure, rising operating temperature, unusual whining or knocking, excessive case drain flow, fluid contamination, and reduced responsiveness under load. Frequent seal failures or repeated overheating can also signal internal wear. If troubleshooting does not restore normal performance, the pump may have worn pistons, a damaged swashplate, or control issues. Acting early can prevent secondary damage to the hydraulic motor, valves, and fluid circuit.
