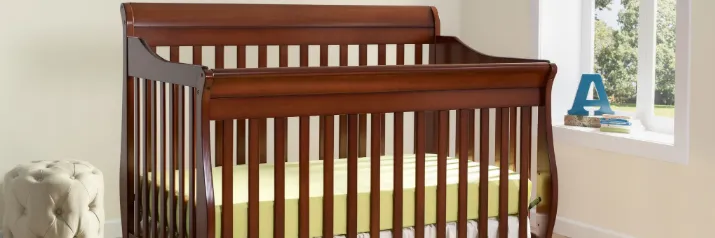

Introduction of Delta Children Convertible Crib Canton 4-in-1

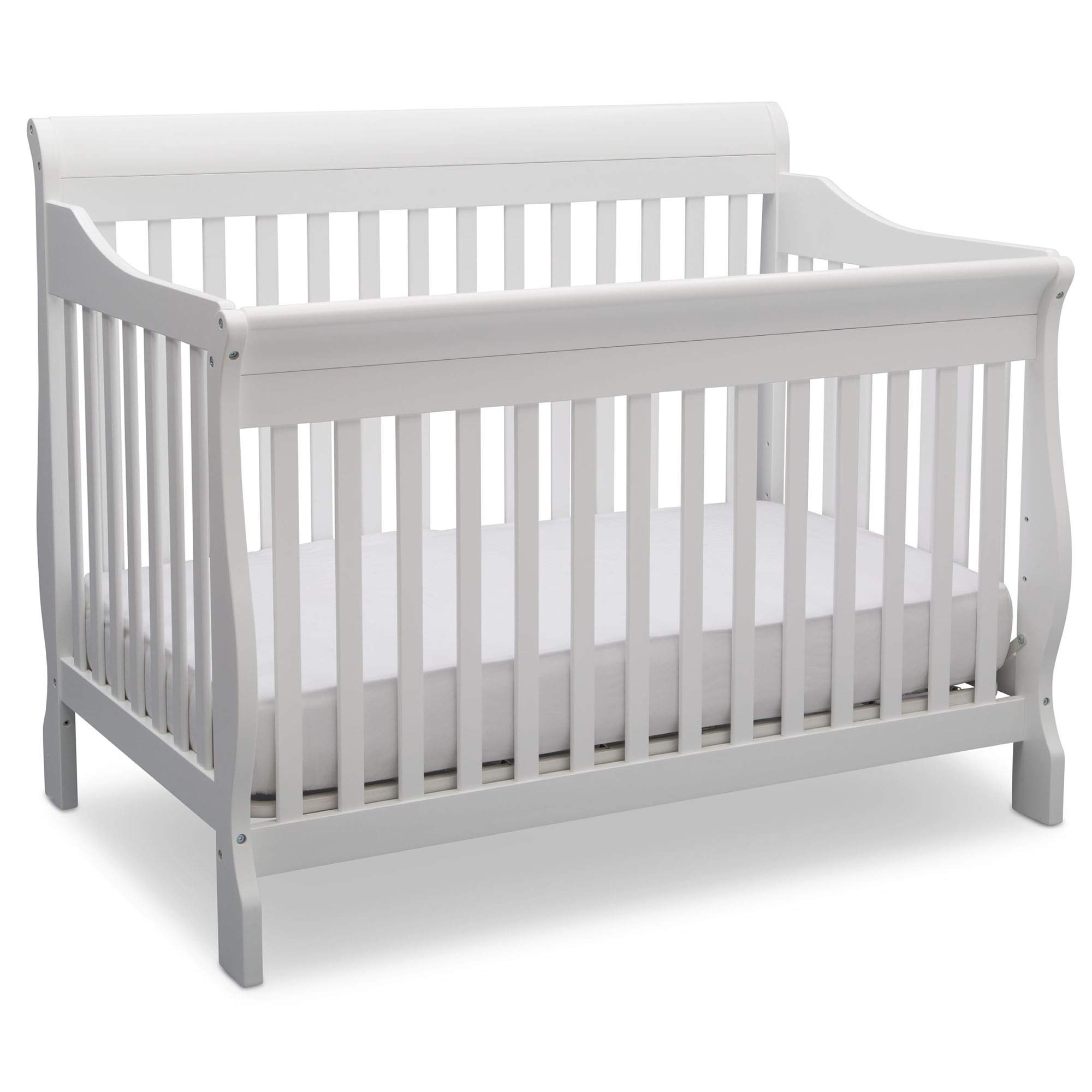

The Delta Children Convertible Crib Canton 4-in-1 is a stylish and functional crib that can be used for many years as your child grows. This crib can be converted into a toddler bed, daybed, and full-size bed, making it a great investment for any parent. The crib is made with high-quality materials and has a beautiful espresso finish that will complement any nursery decor. The estimated price of the crib is around $250, and it was launched in 2020.

HARDWARE SYSTEM REVIEW BEFORE ASSEMBLY

1. Insert the Dowels in the Rail into the holes in the Post.



2. Insert the Bolt into the slot. Turn clockwise with your fingers or the Allen wrench provided.  DO NOT fully tighten, leave ½” (12mm) exposed.



3. Slide the Plastic Clamp over the exposed bolt, behind the head of the bolt.  Tighten the bolt with the Allen wrench provided.



4. Install (1) bolt and (1) Plastic Clamp at a time.  Tighten until it looks like the picture.



Parts

MAKE SURE THAT ALL PRE-ASSEMBLED PARTS ARE TIGHT. HARDWARE KIT PART #24683.

Detailed Specifications

The Delta Children Convertible Crib Canton 4-in-1 has the following specifications:

• Converts into a toddler bed, daybed, and full-size bed
• Made with high-quality wood and particle board
• Has a beautiful espresso finish
• JPMA certified to meet or exceed all safety standards
• Meets ASTM and CPSC safety standards
• Includes a mattress support system that can be adjusted to three different positions
• Weighs 71.5 pounds
• Has a dimension of 54.25 x 30 x 7 inches

Crib Assembly

1. Attach (1) Left  Post (Part D) and (1) Right  Post (Part E) to the (1) Left Crib End (Part B) using (4) Φ3 X 32mm Metal Pins(Part EE) and (6) M6x45mm Bolts (Part BB). Tighten with the M4 Allen Wrench. Make sure Product label Faces inside.  Repeat with the Right Crib End (Part C).





2. Attach (1) Crib Side (Part A)  to the assemblies from Step 1 using (6)M6x45 Bolts (Part BB) and (4) Metal Pins (Part EE).  Tighten bolts with the M4 Allen Wrench.





3. Attach the Mattress Support (Part L) in all corners using (1) M6X18 mm Bolt (Part DD) in each corner. Tighten with the M4 Allen Wrench.





   Warnings printed on the pouch attached to the mattress support must face up, the springs must face up. This crib has (3) adjustment positions, use the highest only for new borns, move the mattress down as the child grows.

4. Attach Crib side (Part A) to the assembly from Step 3 using(4) Φ3 x 32mm Metal Pins(Part EE)  and (6) M6x45mm Bolts (Part BB). Tighten with the M4 Allen Wrench.





5. Lay Crib on it’s side and attach (1) Right Base Rail (Part G) and (1) Left Base Rail (Part F) using (2) Metal Pins (Part EE), (2) Cam Bolts (Part FF), and (2) Cam Locks (Part GG). Tighten the Cam Bolts (Part FF) with a Phillips Screwdriver, tighten the Cam Locks (Part GG) with the M4 Allen Wrench. Repeat for Other Side.





   Attach Center Base Rail (Part H) Using (4) M6 x 30mm Bolt (Part CC). Tighten with M4 Hex Wrench.





6. Store the assembly instruction booklet in the pouch attached to the matress support. Store all parts and tools separately, in a safe place.





Toddler Bed Conversion

1. Remove the Base installed in Step 5 of Section 1. Remove the Side installed in Step 6 of Section 1.





   • Gently pull ends to remove pins

2. Install Conversion Rail to the Crib Front Using (2) Metal Pins (Part EE), (2) M6 x 50mm Bolts (Part AA) and (2) Plastic Clamps (Part HH). See page 4 for Hardware Instructions.





   WARNING: SEE PAGE 3 FOR TODDLER BED WARNINGS





3. The mattress support must be in the lowest position. Store all hardware safely. Read all warnings on page 3. As shown, use as a day bed or love seat sofa. Do Not use without stabilizer bar installed.

4. Stabilizer bar must be used when converted to a toddler bed.



5. A toddler bed guardrail is available for this crib.



Please see your crib retailer, visit https://www.deltachildren.com/ or contact Delta Consumer Care for more information. This crib uses Delta Style # 0080 Guardrail.

Delta Children Convertible Crib Canton 4-in-1 Full Size Bed Conversion

1. You have the option to convert the crib to a full size bed. Simply follow steps in reverse order to disassemble the crib. Store any unused parts and hardware safely out of the reach of small children. See page 3.





2. To create the HeadBoard assemble (1) Left  Post (Part D) and (1) Right Post (Part E) to the (1) Side Rail (Part A)  using (4) Φ3 x 32mm Metal Pins (Part EE) and (6) M6x45mm Bolts (Part BB).  Repeat to create the Footboard.





3. Attach Bed Frame to the Headboard (and Footboard) (From Section 3 Step 1) using M6 x 18mm Bolts (Part N). Follow all instructions supplied with the Bed Rails or Bed Frame. Note: Bed system is not included, see your furniture or mattress retailer. Contact Delta Chidren’s Products for information or with questions.





Description

The Delta Children Convertible Crib Canton 4-in-1 is a stylish and functional crib that can grow with your child. The crib is made with high-quality wood and particle board, and it has a beautiful espresso finish that will complement any nursery decor. The crib can be converted into a toddler bed, daybed, and full-size bed, making it a great investment for any parent. The crib also includes a mattress support system that can be adjusted to three different positions. The Delta Children Convertible Crib Canton 4-in-1 meets all safety standards and is JPMA certified. The crib weighs 71.5 pounds and has a dimension of 54.25 x 30 x 7 inches.

Delta Children Convertible Crib Canton 4-in-1 Setup Guide

To set up the Delta Children Convertible Crib Canton 4-in-1, follow these steps:

1. Unpack the crib and check for any damages during shipping
2. Assemble the crib base and attach the side rails using the provided screws and brackets
3. Insert the mattress support system into the crib
4. Place the mattress on the mattress support system
5. Attach the guardrails for the toddler bed conversion
6. Attach the full-size bed rails for the full-size bed conversion (sold separately)

ANY MATTRESS USED IN THIS CRIB SHALL BE AT LEAST 27 1/4 BY 51 5/8 IN. WITH A THICKNESS NOT EXCEEDING 6 IN.

• Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding under an infant.

• Failure to follow these warnings and the assembly instructions could result in serious injury or death. DO NOT use this crib if you cannot exactly follow the accompanying instructions.

• To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless otherwise advised by your physician.

• Strangulation Hazard: STRINGS CAN CAUSE STRANGULATION! Do not place items with a string around a child’s neck, such as hood strings or pacifier cords. Do not suspend strings over a crib or attach strings to toys.

• Strangulation Hazard: To help prevent strangulation tighten all fasteners. A child can trap parts of the body or clothing on loose fasteners.

• Strangulation Hazard: Do not place crib near window or patio door where cords from blinds or drapes may strangle a child.

• Fall Hazard: When child is able to pull to a standing position, set mattress to lowest position and remove bumper pads, large toys and other objects that could serve as steps for climbing out. This crib has an adjustable mattress support. For the convenience of the parent when the baby is very small, the mattress support may be used in the highest position. Important: with the mattress support and mattress in the highest position, be absolutely sure that the top of the front crib side is at least 3 inches higher than the top surface of the mattress. If it is not, lower the mattress support and the mattress to the next highest position.

• Fall Hazard: Stop using crib when child begins to climb out or reaches a height of 35in. (89cm), whichever occurs first. The child should be placed in a youth or regular bed.

• Check this product for damaged hardware, loose joints, loose bolts or other fasteners, missing parts, or sharp edges before and after assembly and frequently during use. Securely tighten loose bolts and other fasteners. Do not use crib if any parts are missing, damaged or broken. Contact Delta Children’s Products for replacement parts and instructional literature if needed. Do not substitute parts.

• Follow warnings on all products in a crib.

• If refinishing, use a non-toxic finish specified for children’s products.

• Never use plastic shipping bags or other plastic film as mattress covers because they can cause suffocation.

• Infants can suffocate in gaps between crib sides and a mattress that is too small.

• Ensure a safe environment for the child by checking regularly, before placing the child in the crib, that every component is properly and securely in place.

• To avoid head injury, do not allow any child to play underneath the crib.

• Never add an accessory such as a bassinet or changing table that extends over the sleeping area.

In Canada Only
Use a crib mattress that is no thicker than 15 cm and is of such a size that, when it is pushed firmly against any side of the crib, it does not leave a gap of more than 3 cm between the mattress and any part of the sides of the crib. Do not use this crib for a child who can climb out of it or who is taller than 90 cm.

Delta Children Convertible Crib Canton 4-in-1 Toddler Bed

WARNING: INFANTS HAVE DIED IN TODDLER BEDS FROM ENTRAPMENT.

1. Openings in and between toddler bed parts can entrap head and neck of a small child.

2. NEVER use toddler bed with children younger than 15 months.

3. ALWAYS follow assembly instructions.

4. The maximum user weight is 50lbs (22.7kg)

WARNING: STRANGULATION HAZARD

1. NEVER place bed near windows where cords from blinds or drapes may strangle a child.

2. NEVER suspend strings over a bed.

3. NEVER place items with a string, cord, or ribbon, such as hood strings or pacifier cords, around a child’s neck. These items may catch on bed parts.

CAUTION: ENTRAPMENT HAZARD

To avoid dangerous gaps, any mattress used in this bed shall be a full-size crib mattress at least 51 5/8 in (1310mm) in length, 27 1/4 in (690mm) in width and a max thickness of 6 in (150 mm).

NOTES ON ASSEMBLY

• During the assembly process whenever using screws or bolts, check each by placing the screw/bolt on the diagram of the item which is drawn actual size and design. Be sure to use the proper size and shape specified in the instructions.

• To assemble this unit you may be required to place the unit on it’s side and face. It is strongly recommended that assembly is done on a soft, non-abrasive surface to avoid damaging the finish.

NOTES ON USE
Keep children and others safe by following these simple rules:

• Do not allow any child to play on furniture

• Do not allow climbing on any piece of furniture.

• Do not allow hanging from any piece of furniture.

• Always monitor your child’s activity when in the nursery.

NOTES ON CARE AND MAINTENANCE

• Do not scratch or chip the finish.

• Inspect the product periodically, contact Delta Children’s Products for replacement parts or questions.

• Do not store the product or any parts in extreme temperatures and conditions such as a hot attic or a damp, cold basement. These extremes can cause a loss of structural integrity.

• To preserve the luster of the high quality finish on your product, it is recommended to place a doily or felt pad under any items you place on the finish.

• Clean with a damp cloth, then a dry cloth to preserve the original luster and beauty of this fine finish.

• Do not use abrasive chemicals.

• Do not spray cleaners directly onto furniture.

• Lift slightly when moving on carpeting to prevent leg breakage.

• Use of a vaporizer near furniture will cause wood to swell and finish to peel.

Troubleshooting

Here are some common issues that you might encounter when setting up the Delta Children Convertible Crib Canton 4-in-1 and how to address them:

• If the screws don't seem to fit, make sure that you're using the correct screws and brackets for each step of the assembly process.
• If the crib is wobbly, double-check that all screws and brackets are tightened correctly.
• If the mattress support system is not sturdy, make sure that it is inserted correctly into the crib.
• If you're having trouble converting the crib into a toddler bed or full-size bed, consult the instruction manual for detailed instructions and diagrams.

Delta Children Convertible Crib Canton 4-in-1 Warranty

This Delta Crib is warranted to be free from defects for a period of 1 year from the date of purchase under normal use.  This warranty extends only to the original retail purchaser and is valid only when supplied with proof of purchase, or if received as a gift, when the registration is on file with Delta.

Pros & Cons

Pros

• Can be converted into a toddler bed, daybed, and full-size bed
• Made with high-quality materials
• Beautiful espresso finish
• Meets all safety standards
• Adjustable mattress support system

Cons

• Full-size bed rails are sold separately
• Assembly can be time-consuming and challenging for some people

Customer Reviews about Delta Children Convertible Crib Canton 4-in-1

Customers have given the Delta Children Convertible Crib Canton 4-in-1 high praises for its quality, functionality, and style. Many reviewers have mentioned that the crib is easy to assemble and converts easily into a toddler bed and daybed. However, some reviewers have mentioned that the full-size bed rails are expensive and difficult to find. The crib has an average rating of 4.6 out of 5 stars on Amazon, with over 1,300 customer reviews.
