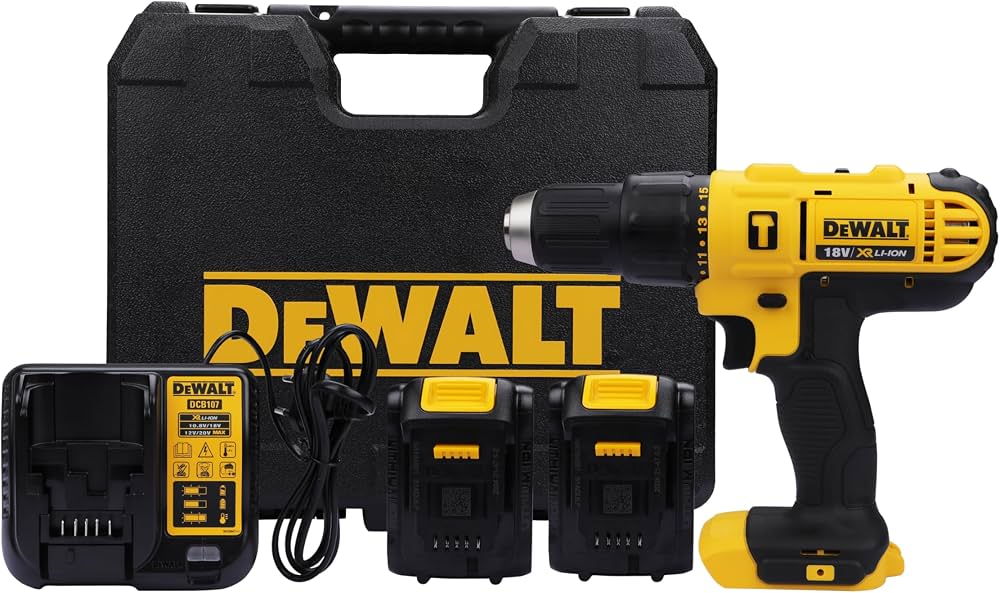

Introduction of Dewalt Hammer drill DCD776

The DEWALT Hammer drill DCD776 is a powerful and versatile tool, designed for heavy-duty drilling and hammering applications. With a compact and lightweight design, this hammer drill is perfect for both professional contractors and DIY enthusiasts. The estimated price of the DCD776 is around $199, and it was launched in 2016. This hammer drill is part of DEWALT's 20V MAX* system, which includes over 200 products, providing a wide range of options for any job.

Package Contents

• 1 Drill/driver or 1 drill/driver/hammerdrill

• 1 Charger

• 1 Li-Ion battery pack (C1 model)

• 2 Li-Ion battery packs (C2 model)

• 3 Li-Ion battery packs (C3 model)

• 1 Kitbox

• 1 Instruction manual

NOTE: Battery packs, chargers, and kitboxes are not included with N-models.

• Check for damage to the tool, parts, or accessories which may have occurred during transport.

• Take the time to thoroughly read and understand this manual prior to operation.

Dewalt Detailed Specifications

The DEWALT Hammer drill DCD776 features a high-performance motor that delivers 340 unit watts out (UWO) of power, providing efficient drilling and hammering in a variety of materials. The hammer drill also has a 1/2-inch single-sleeve ratcheting chuck for increased bit retention, and a variable speed trigger with 0-450/0-1500 RPM, allowing for precise control in a variety of applications. The DCD776 also features a built-in LED light, providing increased visibility in dark workspaces. The hammer drill has a compact and lightweight design, weighing only 4.2 lbs, making it easy to use for extended periods of time. The DCD776 is also compatible with all DEWALT 20V MAX* batteries, providing increased versatility.

Technical Data

• The declared vibration emission level represents the main applications of the tool. However, if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

• An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

• Identify additional safety measures to protect the operator from the effects of vibration such as: maintaining the tool and the accessories, keeping the hands warm, and organization of work patterns.

Battery Packs

Chargers

Fuses

General Power Tool Safety Warnings

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

WORK AREA SAFETY

• Keep the work area clean and well-lit. Cluttered or dark areas invite accidents.

• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks that may ignite the dust or fumes.

• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce the risk of electric shock.

• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges, or moving parts. Damaged or entangled cords increase the risk of electric shock.

• When operating a power tool outdoors, use an extension cord suitable for outdoor use. The use of a cord suitable for outdoor use reduces the risk of electric shock.

• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. The use of an RCD reduces the risk of electric shock.

PERSONAL SAFETY

• Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust masks, non-skid safety shoes, hard hats, or hearing protection used for appropriate conditions will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in the off position before connecting to a power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.

• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. The use of dust collection can reduce dust-related hazards.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

• Use the power tool, accessories tool bits, etc., in accordance with these instructions taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

BATTERY TOOL USE AND CARE

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

• When the battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

• Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts the eyes, seek medical help. Liquid ejected from the battery may cause irritation or burns.

SERVICE

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional Specific Safety Rules for Drill/Driver/Hammerdrill

• Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.

• Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.

• Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

• Use clamps or other practical ways to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.

• Wear safety goggles or other eye protection. Hammering and drilling operations cause chips to fly. Flying particles can cause permanent eye damage.

• Accessories and tools may get hot during operation. Wear gloves when handling them if performing heat-producing applications such as hammer drilling and drilling metals.

• Do not operate this tool for long periods of time. Vibration caused by hammer action may be harmful to your hands and arms. Use gloves to provide extra cushion and limit exposure by taking frequent rest periods.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.

Residual Risks Hammer drill DCD776
The following risks are inherent to the use of drills: Injuries are caused by touching the rotating parts or shot parts of the tool. In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are:

1. Impairment of hearing.

2. Risk of squeezing fingers when changing accessories.

3. Health hazards caused by breathing dust developed when working in wood.

4. Risk of personal injury due to flying particles.

5. Risk of personal injury due to prolonged use.

Markings on Tool

The following pictograms are shown on the tool: Read the instruction manual before use.

DATE CODE POSITION

The Date Code (j), which also includes the year of manufacture, is printed into the housing surface that forms the mounting joint between the tool and battery.
Example

• 2014 XX XX

• Year of Manufacture

Important Safety Instructions for All Battery Chargers

SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions for the DCB106 and DCB107 battery chargers.

• Before using the charger, read all instructions and cautionary markings on the charger, battery pack, and product using the battery pack.

  • WARNING: Shock hazard. Do not allow any liquid to get inside the charger. Electric shock may result.

  • CAUTION: Burn hazard. To reduce the risk of injury, charge only DeWALT rechargeable battery packs. Other types of batteries may overheat and burst resulting in personal injury and property damage.

  • CAUTION: Children should be supervised to ensure that they do not play with the appliance.

  • NOTICE: Under certain conditions, with the charger plugged into the power supply, the exposed charging contacts inside the charger can be shorted by foreign material. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting to clean it.

• DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to work together.

• These chargers are not intended for any use other than charging DEWALT rechargeable batteries. Any other uses may result in a risk of fire, electric shock, or electrocution.

• Do not expose the charger to rain or snow.

• Pull by plug rather than cord when disconnecting the charger. This will reduce the risk of damage to the electric plug and cord.

• Make sure that cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cords could result in risk of fire, electric shock or electrocution.

• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. The use of a cord suitable for outdoor use reduces the risk of electric shock.

• Do not block the ventilation slots on the charger. The ventilation slots are located on the top and sides of the charger. Place the charger in a position away from any heat source.

• Do not operate chargers with damaged cords or plugs — have them replaced immediately.

• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized service center.

• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.

• In case of a damaged power supply cord, the supply cord must be replaced immediately by the manufacturer, its service agent or a similar qualified person to prevent any hazard.

• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk.

• NEVER attempt to connect 2 chargers together.

• The charger is designed to operate on standard 230 V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicular charger.

Chargers of Dewalt Hammer drill DCD776

• The DCB106 charger accepts 18 V Li-Ion (DCB180, DCB181, DCB182, DCB183, DCB184 and DCB185) battery packs.

• The DCB107 charger accepts 10.8 V, 14.4 V and 18 V Li-Ion (DCB121, DCB123, DCB125, DCB127, DCB140, DCB141, DCB142, DCB144, DCB145, DCB180, DCB181, DCB182, DCB183, DCB184 and DCB185) battery packs.

• This charger requires no adjustment and is designed to be as easy as possible to operate.

Charging Procedure

1. Plug the charger into an appropriate 230 V outlet before inserting the battery pack.

2. Insert the battery pack (g) into the charger, making sure the pack is fully seated in the charger. The red (charging) light will blink continuously indicating that the charging process has started.

3. The completion of charge will be indicated by the red light remaining ON continuously. The pack is fully charged and may be used at this time or left in the charger.

NOTE: To ensure maximum performance and life of Li-Ion batteries, charge the battery pack fully before first use.

Refer to the table below for the state of charge of the battery pack.

HOT/COLD PACK DELAY (DCB107)

• The DCB107 charger has a hot/cold delay feature. When the charger detects a battery that is hot, it automatically delays charging until the battery has cooled.

• When the charger detects a battery that is cold, it automatically delays charging until the battery has warmed.

• The red light will continue to blink, but a yellow indicator light will be illuminated during this operation. Once the battery has cooled, the yellow light will turn off and the charger will resume the charging procedure.

• XR Li-Ion tools are designed with an Electronic Protection System that will protect the battery against overloading, overheating or deep discharge.

• The tool will automatically turn off if the Electronic Protection System engages. If this occurs, place the Li-Ion battery on the charger until it is fully charged.

Important Safety Instructions for All  Battery Packs

• When ordering replacement battery packs, be sure to include the catalog number and voltage.

• The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow the charging procedures outlined.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust or fumes.

• Never force the battery pack into the charger. Do not modify the battery pack in any way to fit into a non-compatible charger as the battery pack may rupture causing serious personal injury.

• Charge the battery packs only in designated DEWALT chargers.

• DO NOT splash or immerse in water or other liquids.

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 40 ˚C (105 ˚F) (such as outside sheds or metal buildings in summer).

• For best results, make sure the battery pack is fully charged before use.

WARNING: Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert it into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Electric shock or electrocution may result. Damaged battery packs should be returned to the service center for recycling.
CAUTION: When not in use, place the tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knocked over.

SPECIFIC SAFETY INSTRUCTIONS FOR LITHIUM ION (Li-Ion)

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium-ion battery packs are burned.

• If battery contents come into contact with the skin, immediately wash the area with mild soap and water. If the battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte
  is composed of a mixture of liquid organic carbonates and lithium salts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.
  WARNING: Burn hazard. Battery liquid may be flammable if exposed to a spark or flame.

Battery Pack

BATTERY TYPE

• The DCD734 operates on 14.4-volt battery packs.

• The DCD771 and DCD776 operate on 18-volt battery packs

• The DCB140, DCB142, DCB143, DCB144, DCB145, DCB180, DCB181, DCB182, DCB183, DCB184 or DCB185 battery packs may be used.
  Refer to Technical Data for more information.

Storage Recommendations

1. The best storage place is one that is cool and dry away from direct sunlight and excess heat or cold. For optimum battery performance and life, store battery packs at room temperature when not in use.

2. For long storage, it is recommended to store a fully charged battery pack in a cool, dry place out of the charger for optimal results.

NOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use.

Labels on Charger and Battery Pack

In addition to the pictographs used in this manual, the labels on the charger and the battery pack may show the following pictographs:

• Read the instruction manual before use.

• See Technical Data for charging time.

• Battery charging.

• Battery charged.

• Battery defective.

• Hot/cold pack delay.

• Do not probe with conductive objects.

• Do not charge damaged battery packs.

• Do not be exposed to water.

• Have defective cords replaced immediately?

• Charge only between 4 ˚C and 40 ˚C.

• Only for indoor use.

• Discard the battery pack with due care for the environment.

• Charge DEWALT battery packs only with designated DEWALT chargers. Charging battery packs other than the designated DEWALT batteries with a DEWALT charger may make them burst or lead to other dangerous situations.

• Do not incinerate the battery pack.

Dewalt Hammer drill DCD776 Description

WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.

• a. Trigger switch

• b. Forward/reverse control button

• c. Torque adjustment collar

• d. Gear shifter

• e. Work light

• f. Keyless chuck

• g. Battery pack

• h. Battery release button

• i. Main handle

INTENDED USE
These drills/drivers/hammer drills are designed for professional drilling, percussion drilling, and screw-driving applications.

• DO NOT use under wet conditions or in the presence of flammable liquids or gases.
  These drills/drivers/hammer drills are professional power tools.

• DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.
  This product is not intended for use by persons (including children) suffering from diminished physical, sensory or mental abilities; or lack of experience, knowledge or skills unless they are supervised by a person responsible for their safety. Children should never be left alone with this product.

Dewalt Hammer drill DCD776 Electrical Safety

The electric motor has been designed for one voltage only. Always check that the battery pack voltage corresponds to the voltage on the rating plate. Also, make sure that the voltage of your charger corresponds to that of your mains. Your DEWALT charger is double insulated in accordance with EN 60335; therefore no earth wire is required. If the supply cord is damaged, it must be replaced by a specially prepared cord available through the DEWALT service organization.

Mains Plug Replacement (U.K. & Ireland Only)
If a new mains plug needs to be fitted

• Safely dispose of the old plug.

• Connect the brown lead to the live terminal in the plug.

• Connect the blue lead to the neutral terminal.

WARNING: No connection is to be made to the earth terminal. Follow the fitting instructions supplied with good-quality plugs. Recommended fuse: 3 A.

Using an Extension Cable

An extension cord should not be used unless absolutely necessary. Use an approved extension cable suitable for the power input of your charger (see Technical Data). The minimum conductor size is 1 mm2; the maximum length is 30 m.
When using a cable reel, always unwind the cable completely.

ASSEMBLY AND ADJUSTMENTS

• WARNING: To reduce the risk of serious personal injury, turn the tool off and disconnect the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

• WARNING: Use only DEWALT battery packs and chargers.

Inserting and Removing the Battery Pack from the Tool

WARNING: Prior to assembly and adjustment, always remove the battery pack. Always switch off the tool before inserting or removing the battery pack.
NOTE: For best results, make sure your battery pack is fully charged.

TO INSTALL THE BATTERY PACK INTO THE TOOL HANDLE

1. Align the battery pack (g) with the rails inside the tool’s handle (fig. 2).

2. Slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does not disengage.

TO REMOVE THE BATTERY PACK FROM THE TOOL

1. Press the battery release button (h) and firmly pull the battery pack out of the tool handle.

2. Insert the battery pack into the charger as described in the charger section of this manual.

FUEL GAUGE BATTERY PACKS
Some DEWALT battery packs include a fuel gauge which consists of three green LED lights that indicate the level of charge remaining in the battery pack. To actuate the fuel gauge, press and hold the fuel gauge button (k). A combination of the three green LED lights will illuminate designating the level of charge left. When the level of charge in the battery is below the usable limit, the fuel gauge will not illuminate and the battery will need to be recharged.
NOTE: The fuel gauge is only an indication of the charge left on the battery pack. It does not indicate tool functionality and is subject to variation based on product components, temperature, and end-user application.

Variable Speed Trigger Switch
To turn the tool on, squeeze the trigger switch (a). To turn the tool off, release the trigger switch. Your tool is equipped with a brake. The chuck will stop as soon as the trigger switch is fully released.
NOTE: Continuous use in variable speed range is not recommended. It may damage the switch and should be avoided.

Forward/Reverse Control Button

• A forward/reverse control button (b) determines the direction of the tool and also serves as a lock-off button.

• To select forward rotation, release the trigger switch and depress the forward/reverse control button on the right side of the tool.

• To select reverse, depress the forward/reverse control button on the left side of the tool.

• The center position of the control button locks the tool in the off position. When changing the position of the control button, be sure the trigger is released.
  NOTE: The first time the tool is run after changing the direction of rotation, you may hear a click on start up. This is normal and does not indicate a problem.

Torque Adjustment Collar
Your tool has an adjustable torque screwdriver mechanism for driving and removing a wide array of fastener shapes and sizes and in some models, a hammer mechanism for drilling into masonry. Circling the collar (c) are numbers, a drill bit symbol, and on some models, a hammer symbol. These numbers are used to set the clutch to deliver a torque range. The higher the number on the collar, the higher the torque and the larger the fastener which can be driven. To select any of the numbers, rotate until the desired number aligns with the arrow.

Dual Range Gearing
The dual range feature of your drill/driver/hammer drill allows you to shift gears for greater versatility.

1. To select speed 1 (high torque setting), turn the tool off and permit it to stop. Slide the gear shifter (d) forward (towards the chuck).

2. To select speed 2 (low torque setting), turn the tool off and permit it to stop. Slide the gear shifter back (away from the chuck).

NOTE: Do not change gears when the tool is running. Always allow the drill to come to a complete stop before changing gears. If you are having trouble changing gears, make sure that the dual-range gear shifter is either completely pushed forward or completely pushed back.

Work light
There is a work light (e) located just above the trigger switch (a). The work light is activated when the trigger switch is depressed. When the trigger is released, the worklight will stay illuminated for up to 20 seconds.
NOTE: The work light is for lighting the immediate work surface and is not intended to be used as a flashlight.

Keyless Single Sleeve Chuck

WARNING: Do not attempt to tighten drill bits (or any other accessory) by gripping the front part of the chuck and turning the tool on. Damage to the chuck and personal injury may result. Always lock off the trigger switch and disconnect the tool from the power source when changing accessories.
WARNING: Always ensure the bit is secure before starting the tool. A loose bit may eject from the tool causing possible personal injury.

Your tool features a keyless chuck (f) with one rotating sleeve for one-handed operation of the chuck. To insert a drill bit or other accessory, follow these steps.

1. Turn the tool off and disconnect the tool from the power source.

2. Grasp the black sleeve of the chuck with one hand and use the other hand to secure the tool. Rotate the sleeve counterclockwise far enough to accept the desired accessory.

3. Insert the accessory about 19 mm (3/4″) into the chuck and tighten securely by rotating the chuck sleeve clockwise with one hand while holding the tool with the other. Your tool is equipped with an automatic spindle lock mechanism. This allows you to open and close the chuck with one hand.

Be sure to tighten the chuck with one hand on the chuck sleeve and one hand holding the tool for maximum tightness. To release the accessory, repeat steps 1 and 2 above.

Description

The DEWALT Hammer drill DCD776 is a heavy-duty tool designed for drilling and hammering applications in a variety of materials, including wood, metal, and concrete. The hammer drill features a high-performance motor that delivers 340 UWO of power, providing efficient drilling and hammering. The variable speed trigger with 0-450/0-1500 RPM allows for precise control in a variety of applications, and the built-in LED light provides increased visibility in dark workspaces. The hammer drill also features a 1/2-inch single-sleeve ratcheting chuck for increased bit retention, providing a secure and stable connection. The compact and lightweight design of the DCD776 makes it easy to use for extended periods of time, and the hammer drill is compatible with all DEWALT 20V MAX* batteries, providing increased versatility.

Operation of Dewalt Hammer drill DCD776

Instructions for Use

• WARNING: Always observe the safety instructions and applicable regulations.

• WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Proper Hand Position

• WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.

• WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires one hand on the top of the drill as shown, with the other hand on the main handle (i).

Screwdriver Operation

1.  Select the desired speed/torque range using the dual range gear selector to match the speed and torque of the planned operation.

2. Turn the torque adjustment collar (c) to the desired position. Lower numbers indicate lower torque settings; higher numbers indicate higher torque settings.

3. Insert the desired fastener accessory into the chuck as you would any drill bit.

4. Make some practice runs in scrap or on unseen areas to determine the proper position of the clutch collar.

5. Always start with lower torque settings, then advance to higher torque settings to avoid damage to the workpiece or fastener.

Drill Operation

• WARNING: To reduce the risk of serious personal injury, turn the tool off and disconnect the tool from the power source before making any adjustments or removing/installing attachments or accessories.

• WARNING: To reduce the risk of personal injury, ALWAYS ensure the workpiece is anchored or clamped firmly. If drilling thin material, use a wood “backup” block to prevent damage to the material.

1. Turn the collar (c) to the drill symbol.

2. Select the desired speed/torque range using the gear shifter to match the speed and torque to the planned operation.

3. For WOOD, use twist bits, spade bits, power auger bits or hole saws. For METAL, use high-speed steel twist drill bits or hole saws. Use a cutting lubricant when drilling metals. The exceptions are cast iron and brass which should be drilled dry.

4. Always apply pressure in a straight line with the bit. Use enough pressure to keep the drill biting, but do not push hard enough to stall the motor or deflect the bit.

5. Hold the tool firmly with both hands to control the twisting action of the drill. If the model is not equipped with a side handle, grip drill with one hand on the handle and one hand on the battery pack.
   CAUTION: Drill may stall if overloaded causing a sudden twist. Always expect the stall. Grip the drill firmly to control the twisting action and avoid injury.

6. IF DRILL STALLS, it is usually because
   it is being overloaded or improperly used. RELEASE the TRIGGER IMMEDIATELY, remove the drill bit from work, and determine the cause of the stalling. DO NOT CLICK TRIGGER ON AND OFF IN AN ATTEMPT TO START A STALLED DRILL — THIS CAN DAMAGE THE DRILL.

7. To minimize stalling or breaking through the material, reduce pressure on the drill and ease the bit through the last fractional part of the hole.

8. Keep the motor running when pulling the bit back out of a drilled hole. This will help prevent jamming.

9. With variable speed drills, there is no need to center punch the point to be drilled. Use a slow speed to start the hole and accelerate by squeezing the trigger harder when the hole is deep enough to drill without the bit skipping out.

Hammer drill Operation

1. Turn the collar (c) to the hammerdrill symbol.

2. Select the high-speed setting by sliding the selector back (away from the chuck).
   IMPORTANT: Use carbide-tipped or masonry bits only.

3. Drill with just enough force on the hammer to keep it from bouncing excessively or “rising” off the bit. Too much force will cause slower drilling speeds, overheating and lower drilling rates.

4. Drill straight, keeping the bit at a right angle to the work. Do not exert side pressure on the bit when drilling as this will cause clogging of the bit flutes and a slower drilling speed.

5. When drilling deep holes, if the hammer speed starts to drop off, pull the bit partially out of the hole with the tool still running to help clear debris from the hole.

NOTE: A smooth, even flow of dust from the hole indicates proper drilling rate.

Setup Guide of Dewalt Hammer drill DCD776

To set up the DEWALT Hammer drill DCD776, first ensure that the battery is fully charged. Next, insert the battery into the hammer drill by sliding it into the battery slot until it clicks into place. To turn on the hammer drill, press the power button located on the top of the handle. To adjust the speed, use the variable speed trigger located on the handle. To change the bit, loosen the chuck by turning it counterclockwise, insert the bit, and then tighten the chuck by turning it clockwise. To use the hammer function, press the hammer button located on the top of the handle.

Safety Guidelines

Definitions
The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

• DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury.

• WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

• CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

• NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

WARNING: To reduce the risk of injury, read the instruction manual.

Maintenance

Your DEWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.
WARNING: To reduce the risk of serious personal injury, turn the tool off and disconnect the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

The charger and battery pack are not serviceable. There are no serviceable parts inside.

Lubrication
Your power tool requires no additional lubrication.

Cleaning

• WARNING: Blow dirt and dust out of the main housing with dry air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and an approved dust mask when performing this procedure.

• WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Troubleshooting about Dewalt Hammer drill DCD776

If the hammer drill is not turning on, ensure that the battery is fully charged. If the battery is charged and the hammer drill is still not turning on, the problem may be with the power button. In this case, contact DEWALT for further assistance. If the hammer drill is not drilling or hammering properly, ensure that the bit is properly secured in the chuck. If the bit is loose, tighten the chuck. If the problem persists, the problem may be with the motor or the hammer mechanism. In this case, contact DEWALT for further assistance.

Dewalt Pros & Cons

• Pros
  • High-performance motor
  • Variable speed trigger
  • Built-in LED light
  • Compact and lightweight design
  • Compatible with all DEWALT 20V MAX* batteries
• Cons
  • May be too powerful for some DIY applications
  • May be expensive for some users
