Setup: Dir Bellucci Electrical Facial Bed 8194 User Manual

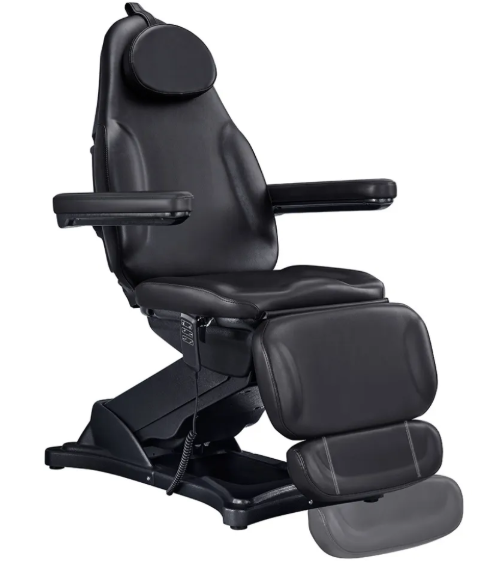

dir Bellucci Electrical Facial Bed 8194

Introduction

The dir Bellucci Electrical Facial Bed 8194 is a cutting-edge piece of equipment designed for professional spas, salons, and aesthetic clinics. This facial bed is engineered to provide maximum comfort and flexibility, enhancing the overall client experience. Launched in 2023, this product has quickly gained popularity for its innovative features and durability. The estimated price for the Dir Bellucci Electrical Facial Bed 8194 is around $2,500, making it a significant investment for any beauty or wellness establishment.

The primary purpose of this facial bed is to support a variety of treatments, including facials, massages, and other aesthetic procedures. It features adjustable positions and ergonomic design to ensure both the practitioner and the client are comfortable throughout the treatment. With its sleek and modern design, it complements any professional setting while providing top-notch functionality.

Specifications

• Adjustable height and tilt mechanisms for customizable positioning
• Ergonomic design with contoured headrest and adjustable armrests
• Electric lift system for easy adjustment of the bed's height and angle
• Durable stainless steel frame with high-quality leather upholstery
• Built-in storage compartments for supplies and accessories
• Weight capacity of up to 300 lbs (136 kg)

Operation of the beauty bed

• Insert the pin-shaped power cord; 110V ~ 240V is available.
• Handrail installation method: The handrail is perpendicular to the ground (regardless of the angle of the bed surface)
• Shake the armrest left or right to push the armrest into the slot.

The armrest can be rotated 0-180 °

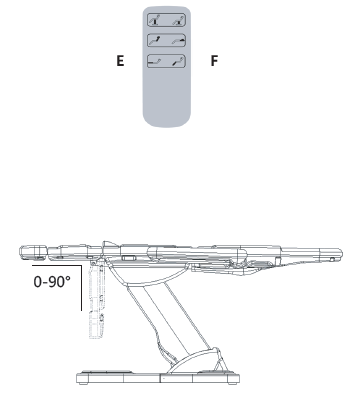

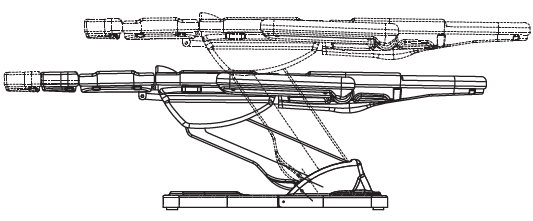

Hand control function

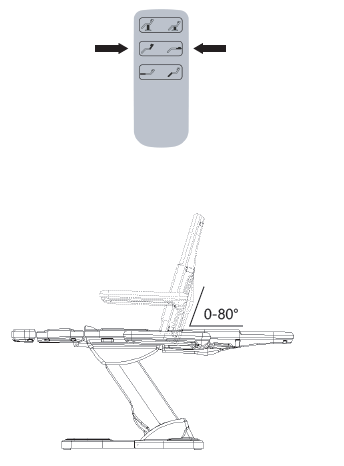

 Hand control function (Backrest adjustable 0-80°)

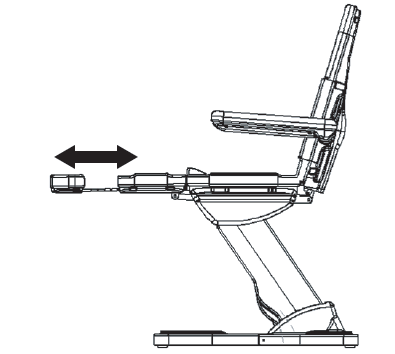

Adjustment of leg extension

Precautions for Cleaning and Disinfection

Please unplug the power cord before cleaning

• In order to keep the surface of the beauty bed in good condition, please clean it regularly. Keep in mind that the bed needs to be cleaned and disinfected before being used by different users. A thorough disinfection per month is recommended.

Metal and plastic surface
Clean metal and plastic surfaces and hand controls with a wet cloth or a weak alkaline cleaning solution. And use small brushes in corners and other difficult-to-reach places. When cleaning, rinse with clean water and dry carefully. Do not use too much liquid or disinfectant (alcohol or chlorine) and follow the instructions of the disinfectant manufacturer; then, evaporate and dry the bed at room temperature.

Stainless steel surface

• The surface is highly chemically resistant, which needs to be cleaned with a mild detergent solution. Ammonia and most solvents can be used to remove stains that are difficult to dye. Avoid using chlorinated solutions or chrome plating on metal surfaces.
• Make sure that all surfaces are dry before connecting to the main power supply and using equipment.
• Do not use water spray (shower, high-pressure water gun) for cleaning;
• Do not clean under high temperatures and high air humidity. Do not expose the equipment to the environment that may lead to liquid pollution.
• Do not use a solvent for cleaning; do not use an acid for cleaning.
• Sterilization wears away the surface. After disinfection, please clean the surface with a clean wet towel.

Bed surface
Please use a lean soft towel to wipe the bed surface, with special leather detergent to wipe evenly. And then use a clean soft towel to wipe it clean again. Do not touch the bed surface with a wet cloth, hard, or acid or alkaline chemicals, so as to avoid affecting the surface quality and service life.

Maintenance

Before maintenance, make sure to unplug the power cord and confirm that the function is off.

1. Read the instructions carefully.
2. Experienced and manufacturer-authorized personnel are required for maintenance. Maintenance by unauthorized personnel may cause injury or damage to equipment that the manufacturer is not responsible for.
3. Only original fittings provided by the manufacturer are allowed.
4. Do not use the beauty bed or its fittings. If it does not function properly, please unplug the power cord first and use the safety switch, and then contact the after-sales department.
5. All maintenance and repair operations must be recorded.

Maintenance measures
Check the control, its wiring , the status, and functions once a week. The following fittings need to be checked at least every six months:

1. Power cord and its fixing
2. Motor wiring
3. Control box and its wiring
4. fittings are attached and fixed
5. Normal operation of the locking system
6. Complete all adjustments and ensure that the beauty bed works properly

If you find any defects, please stop using the equipment. Please contact the after-sales department if you find it making noise or having malfunctions. Only experienced or authorized personnel can open or replace the actuator/control unit.
If some fittings of the equipment are damaged, please remove the power cord and stop using the equipment. Inform the after-sales department to ensure that all parts are properly placed after any maintenance measures.

Common Troubleshooting

To replace the controller and order other spare fittings, please contact the service department and describe the following information:

1. Model
2. Date of purchase

Warnings

1. The headrest cannot support the full weight of an adult.
2. Do not jump directly onto the beauty bed.
3. Do not sit directly on the head and legs.
4. Do not operate the beauty bed near flammable gas.
5. Before raising or lowering the bed, please check whether there are obstacles above and under the bed.
6. Do not overload.
7. Make sure the socket can be reached in 2 meters.

Attention

1. For security, please do connect the power to the socket.
2. To avoid pulling the power cord while lifting, do not tie the power cord to the equipment. Meanwhile, please make sure that the power cord can be easily disassembled in case of an emergency.
3. Before moving the beauty bed, be sure to remove the power cord to avoid getting stuck among the spare parts of the bed.
4. If the power cord is damaged, unplug the power cord immediately and stop using the bed. Please contact the after-sales service in time for the manufacturer’s power cord.
5. Make sure that non-operators cannot move or touch any control button by accident.
6. There should be enough space around the beauty bed.
7. Avoid any sharp objects or other harmful objects around the bed.
8. Do not modify the structure of the beauty bed or install privately other fittings onto it privately. If the beauty bed does not work properly, please stop using it and contact the after-sales department.
9. Do not place the beauty bed near the threshold. The bed should be unpacked according to the instructions in this manual.

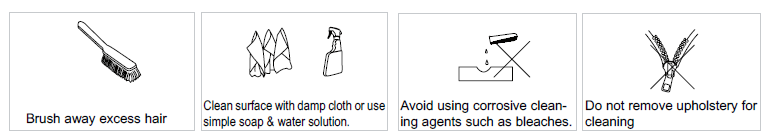

Product care

Warranty

The warranty period is one year. DIR warrants to you, the original buyer, that goods shall be free of defects in material and/or workmanship attributable to manufacture for one year from the date of s receipt of the product. Damage resulting from improper handling after merchandise is received, or from exposure to weather or extreme atmospheric conditions, is not covered by the warranty. For any other information,n please contact our support team:

Setup Guide

To set up the dir Bellucci Electrical Facial Bed 8194, follow these steps:

1. Unpack the bed and all included components carefully.
2. Assemble the frame according to the provided instructions, ensuring all parts are securely attached.
3. Connect the electrical components, including the control panel and motorized lift system.
4. Test the bed's adjustments to ensure smooth operation.
5. Place the bed on a level surface and adjust it to the desired height and angle.
6. Finally, inspect the bed for any damage or defects before use.

Always refer to the user manual for detailed troubleshooting guides and safety instructions.

Pros & Cons

Pros:

• Durable Construction: Built with high-quality materials, ensuring longevity.
• Adjustable Comfort: Multiple adjustment options for optimal client comfort.
• Ergonomic Design: Contoured headrest and adjustable armrests for enhanced comfort.
• Efficient Storage: Built-in storage compartments for easy access to supplies.

Cons:

• High Cost: The bed is an investment, with a price tag of around $2,500.
• Complex Assembly: Requires careful assembly and setup.
• Maintenance Required: Regular maintenance is necessary to keep the bed in good condition.

Customer Reviews

Customers have praised the dir Bellucci Electrical Facial Bed 8194 for its comfort, durability, and ease of use. Here are some common feedback points:

• "This facial bed has been a game-changer for my spa. Clients love how comfortable it is, and the adjustable features make it perfect for various treatments." - Sarah, SpaOwner.r.
• "The setup was a bit challenging, but once assembled, this bed has been a joy to use. The quality is top-notch." - Mark, Aesthetici. an

Some common complaints include the high price and the need for regular maintenance to keep the bed in optimal condition.
