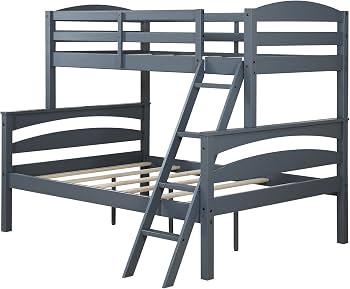

Introduction of Dorel Industries Twin Bunk Bed DA6940W

The Dorel Industries Twin Bunk Bed DA6940W is a stylish and functional space-saving solution for any child's bedroom. This bunk bed is designed with two twin-sized beds stacked on top of each other, providing a comfortable sleeping arrangement for two children. The estimated price of this product is around $300 to $400, making it an affordable option for many parents. The bed was launched in 2021 and has since become a popular choice for families with two children sharing a room.

Hardware List

Parts List

Detailed Specifications

The Dorel Industries Twin Bunk Bed DA6940W is made of high-quality materials, including solid wood and metal components. The bed has the following dimensions: 78 x 42 x 62 inches (L x W x H). It can support a weight capacity of up to 175 pounds per bunk. The bed features a sturdy ladder for easy access to the top bunk, and it comes with a guardrail for added safety. The bed also has a slat kit, which eliminates the need for a box spring.

Description

The Dorel Industries Twin Bunk Bed DA6940W is a stylish and practical solution for any child's bedroom. The bed is designed with a modern and minimalist aesthetic, making it a great fit for any decor. The solid wood and metal construction ensures durability and stability, while the slat kit provides excellent support for the mattress. The ladder is sturdy and easy to climb, and the guardrail ensures that your child stays safe while sleeping on the top bunk. The bed is easy to assemble and comes with detailed instructions.

Assembly Instructions

1. One of the headboard top crosses (F) has a label on it, do not use it in this step.
   Insert wood dowels (9) into the ends of headboard top cross (F), headboard bottom cross (G) and  headboard center cross (R).
   Attach top posts (A) & (B) using wood joint connectors (3).
   Use Allen key (12) to tighten joint connectors as shown



2. Repeat the previous step to assemble the remaining three sets of headboards.
   Be sure to pair the bottom posts (D) and (E) for one pair;  (E) and (D) for another; and the top posts (C) and (A) for the last pair.



   NOTE:  Use headboard top cross (F) with the label attached to it between top posts (A) and (C). See illustration for label orientation.

3. Insert barrel nuts (10 ) into bottom side rais (J) as shown.
   Attach the two headboards with bottom posts (D and E) to bottom side rails (J) using joint connectors (1) and Allen key (12).



   Note: This is the lower bunk.

4. Attach the support posts (W) to bottom slats (Y) of the bottom bunk with hex socket head bolts (8) as shown.
   Attach a bottom slat (X) to bottom side rails (J)  with flat head wood screws (4).
   Make sure the slat touches the corner posts (as close to the headboard as possible).
   Attach the other slats (X & Y) to the bottom side rails (J) with flat head wood screws (4) using a  Phillips head screw driver (not included).
   Use space block (A1) to space them out evenly as



   NOTE: If you notice that any of the slats (X & Y) are not perfectly flat, be sure to assemble them  so that the slats (X & Y) curves up in the middle and down on the ends.

5. Insert wood dowels (9) into each end of the long guardrails (L).
   Insert barrel nuts (10) into top side rails (H & I). Attach two long guardrails (L) and two top side rails (H and I) to top posts (A and B) & (A and C) as shown using joint connectors (1) & (3).
   Use Allen key (12) to tighten all joint connectors. This is the upper bunk.



6. Insert the dowels (9) into each end of short guardrails (M).
   Attach the short guardrail post (S) and one guardrail leg (Q) to short guardrails (M) with wood joint connectors (3) and flat head wood screws (6).



7. Attach the assembled short guardrail to top post (A) with wood joint connectors (3), and to top side rail (H) using hex socket head bolts (8) and hex caps (7) as shown.
   And use Allen key (12) to tighten the hex cap (7). Attach a top slat (K) onto top side rails (H & I) of the top bunk with flat head wood screws (4).  Make sure the slat touches the corner posts (as close to the headboard as possible). Attach the other slats (K) onto the top side rails (H & I) with flat head wood screws (4) and place the slats (Z) onto the top side rails (H & I) as shown.



   NOTE: Slats (K & Z) must be atatched so that they curve up in the middle and down on the ends.

8. Attach the other guardrail leg (Q) to long guardrails (L) and top side rail (I) with flat head wood screws (6).
   Secure the guardrail leg (Q) (done in step 6) to top side rail (H) with flat head wood screw (6) as shown.
   Place four wood dowels (5) into the holes in the bottom headboard top crosses (T).  With the help of another person, stack the top bunk onto the bottom bunk.



9. Insert wood dowels (9) into the ends of the ladder steps (P).
   Attach left ladder end (N) and right ladder end (O) to ladder steps (P) with wood joint connectors (2).
   Use Allen key (12) to tighten the joint connectors as shown.



10. Attach the ladder to the top side rail (H) with flat head screw (11) as shown.



Instructions for converting the bunk bed into two beds

CONVERTING THE BUNK BED INTO A FULL BED AND A TWIN BED

1. Remove the ladder and all the guardrails
2. With the help of another person, detach the top bunk from the lower bunk and remove the wood dowels from the posts.

CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.

USE ONLY MATTRESSES WHICH ARE 74"-75" LONG AND 37 1/2" -38 1/2" WIDE ON UPPER BED AND AT LEAST 74"-75" LONG AND 53"-54" WIDE ON LOWER BED. ENSURE THICKNESS OF MATTRESS DOES NOT EXCEED 6".

Dorel Industries Twin Bunk Bed DA6940W Setup Guide

To set up the Dorel Industries Twin Bunk follow these steps:

1. Unpack the bed components and lay them out in a clear area.
2. Assemble the bed frames by attaching the slats to the frame using the included screws and bolts.
3. Attach the ladder to the bed frame using the included brackets and screws.
4. Place the top bunk on top of the bottom bunk and secure it using the included bolts and brackets.
5. Attach the guardrail to the top bunk using the included screws and brackets.
6. Place the mattresses on the bed frames and enjoy your new bunk bed!

CARE AND CLEANING

• Dust regularly with a soft, dry cloth. We do not recommend the use of chemical cleaners or wax on our lacquered furniture as it may damage the finish.
• Keep solvents, alcohol, nail polish and polish removers away from your hardwood furniture surfaces.

MAINTENANCE

Check bolts/screws periodically and tighten them if necessary.

WARNING

• STRANGULATION HAZARD - NEVER ATTACH OR HANG ITEMS TO ANY PART OF THE BUNK BED THAT ARE NOT DESIGNED FOR USE WITH THE BED; FOR EXAMPLE, BUT NOT LIMITED TO, HOOKS, BELTS AND JUMP ROPES.
• FOLLOW THE INFORMATION ON THE WARNINGS APPEARING ON THE UPPER BUNK END STRUCTURE AND ON THE CARTON. DO NOT REMOVE WARNING LABEL FROM BED.
• THE MATTRESS PLATFORM IS DESIGNED TO SUPPORT A MATTRESS WITHOUT THE NEED FOR A POSTURE BOARD OR BOX SPRING.
• ALWAYS USE THE RECOMMENDED SIZE MATTRESS OR MATTRESS SUPPORT, OR BOTH, TO HELP PREVENT THE LIKELIHOOD OF ENTRAPMENT OR FALLS.
• USE ONLY COIL SPRING MATTRESSES ON BOTH THE UPPER AND LOWER BUNKS. FAILURE TO DO SO CAN RESULT IN INJURY.
• USE ONLY MATTRESSES WHICH ARE 74"-75" LONG AND 37 1/2" - 38 1/2" WIDE ON UPPER BED AND 74"-75" LONG AND 53"-54" WIDE ON LOWER BED. ENSURE THICKNESS OF MATTRESS DOES NOT EXCEED 6". SURFACE OF MATTRESS MUST BE AT LEAST 5" (127MM) BELOW THE UPPER EDGE OF GUARDRAILS.
• DO NOT ALLOW CHILDREN UNDER 6 YEARS OF AGE TO USE THE UPPER BUNK.
• ALWAYS USE GUARDRAILS ON BOTH LONG SIDES OF THE UPPER BUNK. IF THE BUNK BED WILL BE PLACED NEXT TO THE WALL, THE GUARDRAIL THAT RUNS THE FULL LENGTH OF THE BED SHOULD BE PLACED AGAINST THE WALL TO PREVENT ENTRAPMENT BETWEEN THE BED AND WALL (APPLICABLE FOR BUNK BEDS WITH FULL LENGTH GUARDRAILS ON ONE SIDE).
• PERIODICALLY CHECK AND ENSURE THAT THE GUARDRAIL, LADDER AND OTHER COMPONENTS ARE IN THEIR PROPER POSITION, FREE FROM DAMAGE, AND THAT ALL CONNECTORS ARE TIGHT.
• DO NOT ALLOW HORSEPLAY ON OR UNDER THE BED AND PROHIBIT JUMPING ON THE BED.
• DO NOT USE SUBSTITUTE PARTS. CONTACT CUSTOMER SERVICE FOR REPLACEMENT PARTS.
• USE OF A NIGHT LIGHT MAY PROVIDE ADDED SAFETY PRECAUTION FOR A CHILD USING THE UPPER BUNK.
• THE USE OF WATER OR SLEEP FLOTATION MATTRESSES IS PROHIBITED.
• ALWAYS USE THE LADDER FOR ENTERING AND LEAVING THE UPPER BUNK.
• PROHIBIT MORE THAN ONE PERSON ON UPPER BUNK.
• KEEP THESE INSTRUCTIONS FOR FUTURE USE.

NOTES

• READ EACH STEP CAREFULLY BEFORE STARTING. IT IS VERY IMPORTANT THAT EACH STEP OF INSTRUCTION IS PERFORMED IN THE CORRECT ORDER. IF THESE STEPS ARE NOT FOLLOWED IN SEQUENCE, ASSEMBLY DIFFICULTIES WILL OCCUR AND CAN RESULT IN INJURY.
• CAUTION: ADULT ASSEMBLY REQUIRED.
• MAKE SURE ALL PARTS ARE INCLUDED. WORK IN SPACIOUS AREA, PREFERABLY ON A SMOOTH SOFT SURFACE.
• ASSEMBLY WILL REQUIRE TWO PEOPLE.
• MOST BOARD PARTS ARE LABELED OR STAMPED ON THE RAW EDGE.
• PHILLIPS SCREWDRIVER (NOT INCLUDED) IS REQUIRED.
• A RUBBER MALLET (NOT INCLUDED) IS RECOMMENDED TO FACILITATE ASSEMBLY.
• BED IS DESIGNED FOR CHILDREN RANGING FROM 6 YEARS OF AGE TO YOUNG TEENAGERS.

Troubleshooting

If you encounter any problems with the Dorel Industries Twin Bunk Bed DA6940W, here are some troubleshooting tips:

• If the bed is wobbly or unstable, check to make sure that all bolts and screws are tightened securely.
• If the ladder is difficult to climb, make sure that it is securely attached to the bed frame and that the rungs are not loose or wobbly.
• If the guardrail is not secure, check to make sure that it is attached properly and that the screws are tightened securely.
• If the bed is difficult to assemble, refer to the included instructions and make sure that you are following them correctly.

LIMITED WARRANTY

• DOREL ASIA warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase.
• This is solely limited to the repair or replacement of defective furniture components and no assembly labor is included.
• This warranty does not apply to any product which has been improperly assembled, subjected to misuse or abuse or which has been altered or repaired in any way.
• This warranty gives you specific legal rights and you may also have other rights which vary from State to State.
• WARNING: Should this product become damaged, and/or components are broken or missing, DO NOT USE.

Pros & Cons

Pros

• Stylish and modern design
• Solid wood and metal construction
• Slat kit eliminates the need for a box spring
• Sturdy ladder and guardrail
• Easy to assemble

Cons

• Weight capacity may be limiting for some users
• Assembly may require two people

Customer Reviews about Dorel Industries Twin Bunk Bed DA6940W

Customers rave about the Dorel Industries Twin Bunk Bed DA6940W, praising its sturdy construction, easy assembly, and stylish design. Many customers also appreciate the slat kit, which eliminates the need for a box spring. However, some customers note that the weight capacity may be limiting for larger children, and that assembly may require two people.
