Mesh Nebulizer IGH00132

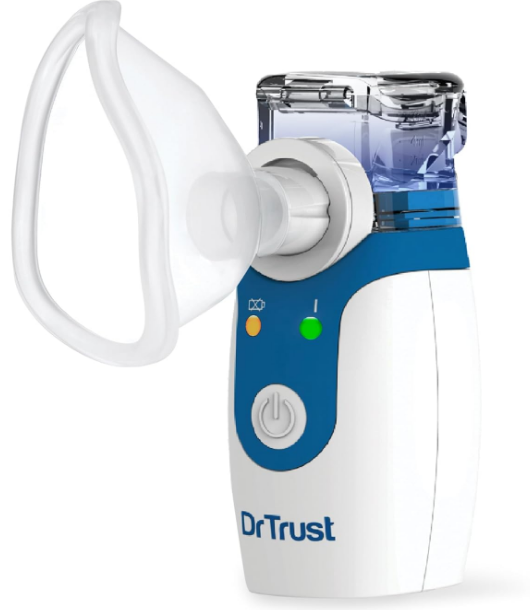

Introducing the Dr. Trust Portable Mesh Nebulizer IGH00132 is a compact and lightweight device designed for effective inhalation therapy, suitable for both children and adults. Featuring a low noise operation of under 30 dB, it ensures a peaceful experience during use. The single-button operation and dual power options (batteries or USB) enhance its portability, making it ideal for travel. This nebulizer is priced at approximately $33, offering a convenient solution for respiratory care.

Specifications

Technical data

Note: Test result of cascade impact measurements for particle size.

• Performance may vary with different drugs such as suspensions or high viscosity. See the drug supplier’s data sheet for further details.
• MMAD = Mass Median Aerodynamic Diameter.

Particle size distribution compliant with EN 13544-1

Accessories / Optional parts

Accessories / Optional parts are shown below. If you wish to purchase any of them, please contact the supplier.

Note:

Product Features

1. Pocket-sized and easy to carry.
2. Low power consumption and low residual medication volume.
3. Mesh nebulizer can function properly for a short time after being rotated to any angle. When the nebulizer is rotated such that the medication does not contact the mesh, it can nebulize properly for about 15 seconds. (Time varies depending on specific medication types.)

Components

The package contains the following components.

Components Names and Functions

How to assemble Mesh nebulizer

1. Attach the medication chamber to the main unit:
   Attach the medication chamber while it gives off the sound “Click”.



2. Attach the mouthpiece:
   Please securely attach the Mouthpiece to the main unit.
   Please ensure that the medication chamber is attached correctly; otherwise, it may result in a bad connection and the nebulizer may not function properly.
   Please keep the electrodes of the main unit and medication chamber clean; otherwise, the nebulizer may not function properly.

3. Attach the inhalation mask:
   The inhalation mask for children is S size.
   The inhalation mask for adults is L size.



How to connect to the Power Supply

This product can use either batteries or an AC adapter (optional) as its power supply.

How to install batteries

Please open the battery cover and insert 2 “AA” alkaline batteries.

1. Open the battery cover.
2. Insert the batteries so that the polarities are oriented correctly, as indicated.
3. Close the battery cover.

Battery life and replacement

• Up to 3.0 hours if used continuously. (Use 2 “AA” (LR6) alkaline batteries) 6 days if used 3 times daily, 10 minutes per time
• If the low-power indicator with orange color is lit to flash 2Hz, it means the battery is low. But Nebulizer still can be used for around 30 minutes continuously.
• If the low-power indicator with orange color is lit constantly (orange color), it means that extremely low power caused the nebulizer not to work. Please immediately replace it with new alkaline batteries.

Attention

• Do not mix different types of batteries.
• Battery life may be different depending on type of the batteries used.

How to use the AC adapter (with USB connector)

1. Plug the USB connector into the main unit’s power supply inlet.
2. Plug the AC adapter into an electric outlet.

Description

The Dr. Trust Portable Mesh Nebulizer IGH00132 features advanced mesh technology that converts liquid medication into a fine mist, ensuring effective delivery to the lungs. It is powered by a rechargeable battery that provides up to 30 minutes of continuous use. The device is designed with a silent operation mechanism, reducing noise levels to less than 25 dB, making it suitable for use in any environment.

The nebulizer comes with interchangeable masks and mouthpieces, catering to both children and adults. It also includes a carrying case for easy transportation and storage. The device is BPA-free and easy to clean, ensuring hygiene and safety.

General Recommendations

Please unplug the AC adapter after use. Do not leave it connected to the power supply for a long time.

How to fill the medication

1. Please remove the main unit cover, mask adapter, and mouthpiece, and inhalation mask first.
   Remove the medication chamber from the main unit:
   Press the PUSH button on the rear side of the main unit and push the medication chamber towards the front side of the main unit.
   Attention
   • To avoid any damage please ensure the PUSH button is pressed down before pushing the medication chamber forward.

   • To avoid rupturing the mesh, please do not poke it with your finger or other objects.



2. Fill the medication:

   • Fill the medication as shown in the figure. (Recommended fill volume: Approx. 8 ml maximum / 0.5 ml minimum)

   • Please close the cover of the medication chamber.



   Attention

   • To prevent the medication from leaking from the chamber, ensure the cover is closed securely.
   • The filling process should be done while the chamber is detached from the main unit.

3. Re-attach the medication chamber to the main unit:
   Attach the medication chamber while it gives off the sound “Click”.



   Attention

   • Make sure the medication chamber is attached correctly or the bad connection may result in malfunction.
   • To ensure the correct functioning of the Nebulizer , keep the electrodes of the main unit and the medication chamber clean.
4. Attach the mouthpiece:
   Please securely attach the Mouthpiece to the main unit.
5. Attach the inhalation mask:
   • The inhalation mask for children is S size.

   • The inhalation mask for adults is L size.



How to operate the nebulizer

You can also fill a 0.9 % Sodium Chloride (Table salt) solution in the medication chamber and then press the “START/STOP” button for a function test after reassembly and before use. If the nebulizer cannot spay out, please go to page 18 for troubleshooting.

1. Turn on the power
   Press the “START/STOP” button, and the power indicator  (green) will light constantly. And medication chamber will be lit with a blue color constantly.



   Attention

   • If there is no medication inside the medication chamber , and the power is turned on,
   • The nebulizer’s power indicator (green) will be turned on for around 0.5 seconds, then the power indicator will be changed to orange color immediately. After 8 seconds, the medication chamber lights and shuts off power automatically.
   • In the operation, while medication was depleted : the power indicator will be changed to orange color immediately and the medication chamber light , then shut off automatically at the longest nebulization time : 30 minutes .
   • Pure water is not applicable for use. If you fill pure water in the medication chamber, the nebulizer can not function well.

2. Inhalation
   Hold the nebulizer in your hand stably and start inhalation.



   Attention

   • If the device detects no medication in the medication chamber, it will shut off automatically.
   • If the device does not shut off automatically when medication is depleted , press the “START/STOP” button to turn the power off immediately to avoid the mesh breaking. Please go to page 18 for troubleshooting.
   • During the treatment, you may adjust the nebulizer to any angle. However, make sure the medication stays in contact with the mesh; otherwise, the nebulizer will shut off automatically after approximately 15 seconds.
   • When the medication is about to be depleted, it is recommended that you tilt the nebulizer (the side of the button) slightly toward you. This allows the remaining medication to contact the mesh for nebulization.
   • Do not shake the nebulizer strongly in the usage. Otherwise, the nebulizer may shut off automatically.
   • Provide close supervision when the nebulizer is used by children.

3. Turn off the power：



   Attention

   • The nebulizer shuts off automatically after the medication is depleted.
   • If you wish to halt the treatment, press the “START/STOP” button to turn the power off. The power indicator light will go out.
   • If the AC adapter is being used, please unplug it from the wall outlet after turning off the power.

How to clean after using

After each use, make sure to clean the nebulizer instantly with the mineral water before storing or carrying it it.

1. Clean the remaining medication：
   • Open the cover of the medication chamber and discard the remaining medication.
   • Pour a small amount of mineral water into the medication chamber and close the cover.
   • Press and hold for 3 seconds “START/STOP” button ,  and the power indicator LED ( orange ) will be flashed and the medication chamber will be lit on a blue color , then go to “cleaning process” to nebulize the water for 2 minutes to remove the residual medication in the medication chamber until the mineral water depleted.
     Attention
     • If the device gives off a high-frequency sound and the mineral water is depleted, please release the “START/STOP” button to turn the power off. Otherwise, the mesh of the medication chamber may be broken.
     • Please clean the remaining medication after each use. Otherwise, the mesh of the medication chamber may become blocked.

2. Dismantle the nebulizer:
   Remove the medication chamber, and inhalation mask or mouthpiece from the nebulizer.
   Attention
   The inhalation mask in first use must be cleaned with distilled water and dried. These parts can be reused after disinfecting treatment ( please refer to how to D i infect on page 16)



3. Clean the parts with sufficient amounts of distilled water:
   Clean the medication chamber, mouthpiece, and inhalation mask with distilled water.



4. Dry the cleaned parts thoroughly:
   After the parts are cleaned, dry with new gauze and air dry thoroughly.



   Attention

   • Please do not dry with cotton or cloths of other materials; otherwise, dust or cloth fiber may be left on the mesh, causing the nebulizer to malfunction.
   • Please do not allow Q-tips or foreign objects in contact with the mesh of the medication chamber.
5. Wipe off the main unit with new gauze:
   Dab a piece of gauze with water and lightly wipe off the stains from the main unit. Then, use new gauze to dry.
   Please clean the electrodes on the main unit and medication chamber. This ensures a normal electrical conduction and hence a normal nebulization.
   Attention
   Please clean the electrodes on the main unit and medication chamber. This ensures a normal electrical conduction and hence a normal nebulization.

6. Attach the medication chamber and put it on the main unit cover. Store all parts in a clean place.



7. Disinfecting
   Attention
   • In the case of infectious illnesses, the device must be disinfected every day or all attachments must be sterilized. You can also use alcohol or other common alcohol-based disinfectant sprays. Make sure that no disinfectant residues are left behind on the attachments to ensure safe inhalation when next used.
   • Disinfect the mouthpiece, and mask by boiling at 100°C for 3 minutes

   • Please be careful , Don’t boil the medication chamber , or damage may occur.  Dry completely.



How to replace the medication chamber

The medication chamber is a maintenance part and does not carry any warranty. Under normal conditions, the lifetime of the medication chamber is approximately 6 months (three times usage per day or 45 minutes per day). However, the nebulization performance may start deteriorating in less than 6 months depending on the way you use it or the use of certain types of medication. If the nebulizer can not nebulize or the nebulization rate decreases significantly after cleaning, you must replace the medication chamber with a new one. (If you want to purchase a medication chamber, please contact suppliers.

1. Remove the medication chamber from the nebulizer:
   Press the PUSH button on the rear side of the main unit, and push the medication chamber toward the front side of the main unit.



   Attention

   • To avoid damaging the nebulizer, please ensure the PUSH button is pressed down before pushing the medication chamber forward.
   • To avoid rupturing the mesh, please do not poke it with your finger or other foreign object.

2. Re-attach the medication chamber to the nebulizer
   Attach the medication chamber correctly as shown in the figure.



   Attention

   • Please ensure that the medication chamber is attached correctly; otherwise, it may result in a bad connection and cause the nebulizer to not function properly.
   • Please keep the electrodes of the main unit and medication chamber clean; otherwise, the nebulizer may not function properly.
   • Please clean the medication chamber before using it it.

How to carry the nebulizer

Please follow the steps below to dismantle the components first. Then, store them in the carrying pouch for carrying.

1. Dismantle the nebulizer:
   Please remove the mouthpiece and inhalation mask as shown in the figure.
2. Put on the main unit cover:
   Please put on the main unit cover as shown in the figure. This will protect the nebulizer from possible damage during carrying.

3. USB cable: optional
   For easy carrying, please bind the USB cable and its electric wire together with a ribbon band as shown in the figure.



4. Place the main unit and associated parts into the carrying pouch for carrying.



   Attention

   • Please do not carry a nebulizer that still contains medication or water. The medication may leak out and damage or stain the nebulizer.
   • Do not store the nebulizer in an area with high temperature or humidity, or in direct sunlight.

Setup Guide

To operate the Dr. Trust Portable Mesh Nebulizer IGH00132, follow these steps:

1. Unpack the device and all accessories from the carrying case.
2. Wash your hands before handling the nebulizer and accessories.
3. Fill the medication chamber with the prescribed amount of medication.
4. Attach the mouthpiece or mask securely to the nebulizer.
5. Insert the battery into the nebulizer if it's not already in place.
6. Turn on the device by pressing the power button.
7. Hold the mouthpiece or mask as directed by your healthcare provider and breathe normally until the medication is completely nebulized.

Intended Use
Legally certified medical experts, such as doctors, nurses,, and therapists, or healthcare personnel or patients under the guidance of qualified medical experts . The user should also be capable of understanding the general operation of Mesh Nebulizer and the content of the instruction manual.
Intended User
Adult and pediatric patients suffer from asthma, Chronic Obstructive Pulmonary Disease (COPD) such as emphysema and chronic bronchitis, or other respiratory diseases that are characterized by obstruction to airflow.
Environment
This product is intended for use in a medical facility, such as a Hospital, clinic,, and doctor’s office, in a room of a general household, and in an open-air environment with a roof.
Durable period
Durable periods are as follows, provided the product is used to nebulize saline 3 times a day for 10 minutes each time at room temperature (23°C). The durable period may vary depending on the usage environment.

CAUTION: Federal law restricts this device to sale by or on the order of a physician.

IMPORTANT CAUTION: As with any mechanical device, this product may become unusable due to an electrical outage, battery depletion, or mechanical failure. We recommend that you have spare batteries and a backup device available to you.

Safety Precautions

To ensure the safe and correct use of this product, please read the instruction manual carefully before use.
Warning!

• Please follow a doctor’s instructions on choosing the correct type, dose, and regimen of medicine.
• Do not place any liquid in the medication chamber that is not prescribed by a physician.
• This is a single-patient device. Do not allow multiple patients to use the same device.
• If you are using the nebulizer for the first time after purchasing it or you have not used it for a long time, please clean the nebulizer parts. (Please see page 13 14)
• After each use, please clean the medication chamber, and mouthpiece with distilled water. Dry the cleaned parts immediately and store them in a clean place. (Please see page 13 14)
• The inhalation mask must be cleaned with distilled water and dried before first use.
• These parts of the mouthpiece and masks can be reused after disinfecting treatment ( please refer to how to d disinfect tion page 16)
• Do not plug or unplug the AC adapter with wet hands.
  Caution
• If the device does not shut off automatically when medication is depleted and gives off a high-frequency sound, press the “START/STOP” button to turn the power off immediately to avoid the mesh breaking.
• Please go to page 18 for troubleshooting.
• Please clean the nebulizer parts carefully after each use. Otherwise,, it may not function.
• If you fill water in the medication chamber, the nebulizer cannot be turned on. The distilled water can be used for cleaning the medication chamber under the “clean process ”.
• Please do not allow Q tips or any foreign objects to come in contact with the mesh of the medication chamber. Otherwise,, the unit may not function.
• Do not drop the nebulizer. Avoid severely impacting the nebulizer. Otherwise, it may not function.
• Do not use an AC adapter other than the one specifically designed for this product.
• Do not mix different types of batteries.
• Do not store or carry a nebulizer with liquid medication or water remaining in it.
• Do not immerse the nebulizer main unit and AC adapter in water.
• Keep the device out of reach of infants and children. Children should use it only under adult supervision.

Troubleshooting

Please refer to the table below to troubleshoot any problems you may encounter when using the nebulizer.

If your nebulizer still does not function properly after taking the solution mentioned above, please contact the supplier from which you purchased the product.

Pros & Cons

Pros

• Portability: The lightweight and compact design makes it easy to carry.
• Efficiency: Advanced mesh technology for quick and effective medication delivery.
• Quiet Operation: Silent operation with noise levels below 25 dB.
• Long Battery Life: Up to 30 minutes of continuous use on a single charge.
• Easy to Clean: BPA-free and easy-to-clean components ensure hygiene.

Cons

• Battery Life Limitations: This may require frequent recharging for extended use.
• Maintenance Requirements: Regular cleaning is necessary to maintain performance and hygiene.
• Cost of Replacement Parts: Replacement masks and mouthpieces may incur additional costs over time.

Customer Reviews

Users have generally praised the Dr. Trust Portable Mesh Nebulizer IGH00132 for its ease of use, portability, and effectiveness. Many have noted that it significantly reduces treatment time compared to traditional nebulizers. However, some users have reported occasional issues with battery life and the need for frequent cleaning to maintain optimal performance.

Common complaints include

• Some users find the device slightly more expensive than other portable nebulizers on the market.
• A few users have experienced minor difficulties in assembling and disassembling the device for cleaning.
