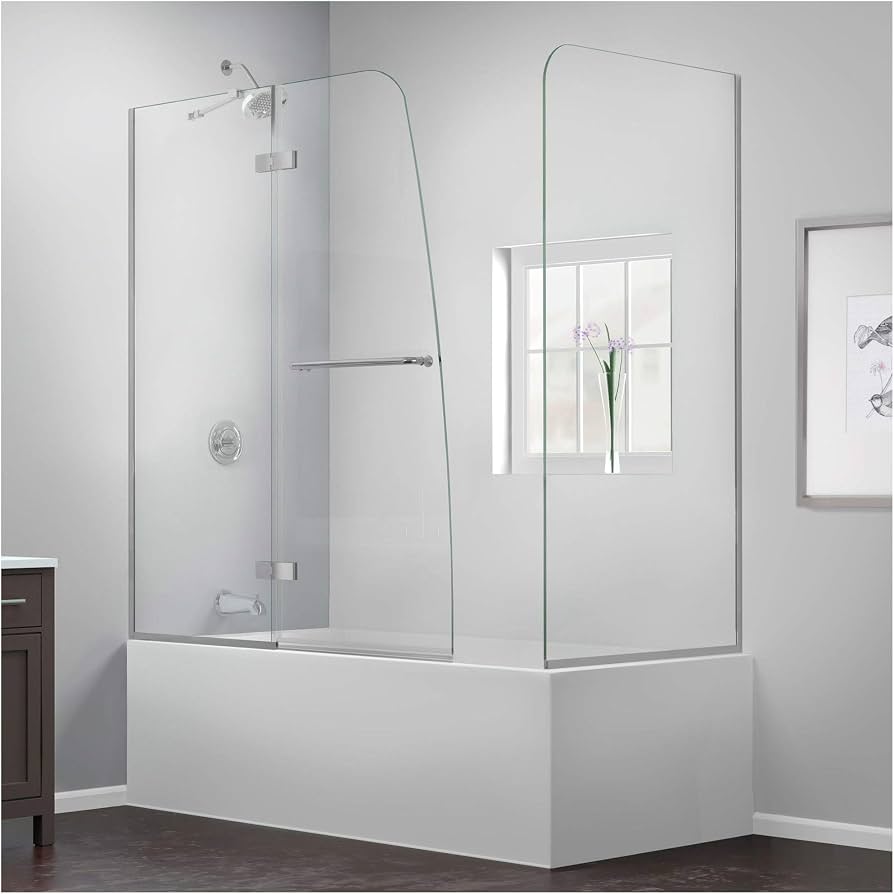

Dreamline SHDR-3448580-04 Aqua Hinged Shower Door

Introducing the Dreamline SHDR-3448580-04 Aqua Hinged Shower Door is the epitome of contemporary European style and practicality; its sleek, curved profile will be the focal point of any bathroom. It is sturdy and secure since it is constructed with transparent tempered glass that is 5/16" thick. The door can be adjusted to fit walls that aren't perfectly plumb, installed either way around, and comes with a handy towel bar handle. Plus, it has ClearMax glass protection, which keeps water stains at bay. With a range of sizes and finishes to choose from, the Aqua Hinged Shower Door is a stylish and functional option for bathrooms of any size.

Model Specific Preparation

REQUIRED

Tools

TIP: Measure the finished opening before proceeding with the installation to be sure that the correct model size has been ordered.

• Prior to installation, cover the shower/tub drain with tape to prevent losing screws or small parts.
• To prevent stripping the screw heads, set screw gun clutch to a low setting when installing screws and bolts.

NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the Detailed Diagram on page 5 and parts list in this manual as a reference. Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine for replacement. The shipping boxes may contain extra parts not used in your model configuration.

Detailed Diagram of Shower Door Components

Parts List

Detailed Specifications

Specifically, the SHDR-3448580-04 Dreamline Tempered glass measuring a quarter of an inch in thickness is featured on the Aqua Hinged Shower Door, which is offered in a variety of finishes including chrome, brushed nickel, and oil-rubbed gold. As a result of the choice of long-lasting materials, the hinges and hardware are designed to survive for a very long time. The door is designed to accommodate the majority of regular shower rooms and measures 24 inches by 60 inches. Aluminum that has been anodized is used to construct the frame, which is resistant to tarnish and corrosion. In addition, the door has a magnetic door stop that ensures the door remains in its proper position while it is being used.

Detailed Description

The Dreamline SHDR-3448580-04 Aqua Hinged Shower Door is a product. The Aqua Hinged Shower Door is an elegant and practical enhancement for any bathroom. The door showcases a contemporary and streamlined style that enhances the shower area with a hint of sophistication. The door is user-friendly and incorporates a pivot hinge mechanism that enables seamless and noiseless operation. The tempered glass is highly durable, impervious to both scratches and cracks, guaranteeing a long-lasting pristine appearance of the door. The anodized aluminum frame is both sturdy and corrosion-resistant, making it an ideal option for bathrooms with high humidity levels.

Installation Steps

Roller Assembly Adjustment Procedure

Factory Parts Information

BOLD digit indicates finish color

• 1 = Polished SS
• 4 = Brushed SS
• 6 = Oil Rubbed Bronze
• 9 = Satin Black

BOLD digit indicates finish color

• 1 = Polished SS
• 4 = Brushed SS
• 6 = Oil Rubbed Bronze
• 9 = Satin Black

BOLD digit indicates finish color

• 1 = Polished SS
• 4 = Brushed SS
• 6 = Oil Rubbed Bronze
• 9 = Satin Black

BOLD digit indicates finish color

• 1 = Polished SS
• 4 = Brushed SS
• 6 = Oil Rubbed Bronze
• 9 = Satin Black

Setup Guide

Installing the Dreamline ‎SHDR-3448580-04 Aqua Hinged Shower Door is easy and straightforward. Start by measuring the shower space to ensure that the door will fit properly. Next, install the track and brackets on the wall using the included screws and anchors. Make sure that the track is level and secure. Then, attach the hinges to the door and wall using the screws provided. Finally, install the magnetic door stop to ensure that the door stays in place while in use. It is essential to follow the installation instructions carefully, and a professional installation may be necessary for some users.

Product Maintenance

• BASES and BACKWALLS: To ensure long lasting life for your acrylic back walls: wipe them off after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream-based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal brushes or scrapers that could permanently scratch or dull the surface.
• GLASS: To ensure long lasting life for your glass shower products: wipe them off after each use with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent soap buildup and water spots (Hard water can etch the surface of the glass over time if left to dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the surface of the glass.
• HARDWARE: To ensure a long-lasting finish: wipe off all metal parts after each use with a soft cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with a soft clean cloth. Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish to stainless steel hardware, work with the grain (not across the grain). Never use an abrasive sponge or cloth, steel wool or wire brush as these may permanently scratch the surfaces.

NOTE: To maximize the life of your door, it is important to regularly inspect the glass and other hardware for misalignment, proper attachment, and/or damage. Contact DreamLine® with any questions or concerns.

ENCORE Maintenance Checklist

• Top Guide Rail level and tight
• Wall Profiles and Guide Rail Brackets tight to the walls
• All screws are tight
• Both lites of Door Glass are secure and level
• Guide Block square to the threshold and glass
• Bottom Guide Rail secured to the threshold
• Bottom Guide Rail screws are tight
• Proper clearance beneath the door glass between the bottom rail and within the guide block
• Door Glass adjusted so that the SafeClose™ Bumpers smoothly catch and release the glass during operation
• Roller Assemblies tight
• Roller Assembly cover plates secure
• Roller Assembly adjustment bolts tight
• Towel Bar screws are tight and secured to each door and gaskets are in place to prevent glass-to-metal contact
• Both doors operate smoothly through the guide block and do not make contact with one another
• Inspect and replace silicone as necessary to prevent water leakage

WARNING

DreamLine reserves the right to alter, modify or redesign products any time without prior notice for product improvement and customer experience. Please refer to the model’s web page on DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional product details.

• This product should be installed by someone familiar with the construction requirements for this type of project and the care necessary for the safe installation and operation of the product.
• The safety of any installation is the responsibility of the installer.
• Professional installation recommended. (All Models)
• Professional installation required. (Enigma Series)
• To prevent damage or serious injury, Do Not lean against the installed panel/door/glass.
• To prevent damage or serious injury: Do Not attempt to lift or move a heavy lite of glass alone. Use an assistant and/or a professional grade glass suction cup.
• The installation of some models may require drilling down into the threshold. Contact the manufacturer of the base, tub, or threshold material with any questions regarding the drilling of holes into their product.
• All drawings in this installation manual are for illustrative purposes only and are not drawn to scale.

TEMPERED GLASS WARNING

Your Shower Door Glass Could Shatter Without Warning if Improperly Installed or Mishandled

• Do Not install or operate a shower door if the glass has chipped corners, slivered edges or is otherwise damaged and/or has been dropped or banged into a hard surface such as tile, marble or glass.
• The main causes of tempered glass breakage are:
  • Improper handling, storage or installation
  • Misuse/abuse
  • Lack of maintenance
  • Failure to replace damaged glass
  • Improper handling during storage, unpacking and installation:
    • Corners and edges are the most susceptible area to damage on a lite of tempered glass and should be protected and handled with care during storage, unpacking, installation and operation. A concentrated point of pressure or impact with a surface harder than itself may cause the tempered glass to shatter. The tempered glass may release immediately, within several hours or even days later.
  • Incorrect installation of door hardware, rollers, hinges, channels, stopper or glass:
    • Improper installation may include: loose hardware and/or lack of proper gaskets between the hardware and glass. Additionally, improper alignment of guide rails, wall profiles or other hardware during installation or operation may place stress on the glass edges and cause it to break.
  • This product must be installed by a professional and experienced installer familiar with the safe handling of tempered glass.
  • Improper use of this product:
    • Aggressively opening or closing the door may cause trauma to the glass, which can lead to breakage. This may occur immediately or hours or even days later.
  • The shower door hardware and glass should be inspected periodically:
    • Instruct the homeowner how to perform a periodic inspection of the shower hardware and glass - some minor adjustments may be necessary based upon the use (or misuse) of the shower door. Ensure that the hardware remains tight and that the door alignment and operation are correct. Any adjustments should be made upon discovery to prevent damage to the product.
    • Additional considerations should be given to the installation of frameless tempered glass products in households with young children or an elderly person due to an increased chance of improper handling. In such cases, alternatives such as shower curtains or grab bars should be considered.

GENERAL PREPARATION

• After opening all boxes and packages, read this introduction carefully. Check that all the items are included in the package by marking off the components on the “Detailed Diagram of Product Components” page. Examine all boxes and packages for shipping damage. If the unit has been damaged, has a finishing defect, or is missing parts; please contact our Customer Support department within 3 business days of the delivery date. Please note that DreamLine® will not replace any damaged products or missing parts free of charge after 3 business days or if the product has been installed. Please contact DreamLine® if you have any questions.
• Please note that you should refer to your local building codes with questions on installation compliance standards. Building and plumbing codes may vary by location, and DreamLine® is not responsible for code compliance standards for your project and will not accept any returns.
• If this unit is going to be installed in a new construction, install all the required plumbing and drainage before installing the shower. Use a competent and licensed (if required by local code) plumber for all plumbing installation.
• Make sure that prior to beginning the installation, the surfaces are leveled and solid and will be able to support the total weight of the unit. Also make sure the walls are at right angles. Irregular installation surface level, radius corners or improper angle of side walls will result in serious problems for your installation. Please note that some adjustments and drilling will be necessary during the installation process.
• Protect all primary surfaces of the product during installation. Never set your glass down directly onto a tile floor. Leave corner protectors in place until it is necessary to remove them. Always use a piece of wood or cardboard to protect the bottom edge and corners of the glass prior to and during installation.
• This unit must be installed upon a finished threshold and against finished walls.
• DreamLine shower doors are not designed to be installed into a fiberglass surround due to the radius corners and lack of a solid surface to mount the hardware.

WARNING: TO AVOID THE RISK OF DAMAGE OR INJURY

• Follow all recommendations and requirements as shown in the installation instructions.
• Perform a thorough inspection of the glass and all parts for any damage prior to installation. Any damage to tempered glass can cause breakage. Do Not install damaged glass!
• Do Not install or operate a shower or tub door if the glass has chipped corners, slivered edges or is otherwise damaged. Do Not install or operate a shower or tub door that has been dropped or banged into a hard surface such as tile, marble or glass.
• CAUTION: Contact with any hard surface can damage tempered glass and cause it to shatter.
• This product uses tempered glass. Glass cannot be cut after it has been tempered. Do Not attempt to cut tempered glass.
• DreamLine® Glass Shower doors, Tub doors, Inline panels, and Return panels can shatter due to improper handling or lack of maintenance. Conduct periodic inspections of glass and all parts for possible damage, missing or loose parts.
• Always wear proper safety equipment such as: safety goggles, work gloves and appropriate footwear during the installation process.
• WARNING: Risk of leakage and/or damage. Follow all instructions regarding the application of silicone sealant or caulk. Allow 24 hours for the sealant to cure before the initial use of the shower or tub product. Follow the silicone manufacturer’s recommendations regarding the use of their product.
• Thoroughly read these instructions before installing or using this product.
• Leave this manual for the end-user of the product. This product should be installed by someone familiar with the construction requirements for this type of product and the care necessary for the safe installation and operation of the product.

Troubleshooting

Pros & Cons

Pros

• Sleek and modern design
• Durable materials and reliable performance
• Easy to install and operate
• Available in various finishes

Cons

• May be expensive for some users
• Professional installation may be necessary for some users

Customer Reviews

Customers love the Dreamline SHDR-3448580-04 Aqua Hinged Shower Door for its modern design and reliable performance. They appreciate the durable materials and easy installation process. However, some customers note that the door may be heavy and difficult to move for some users. The most common complaint is the price, which some users find too expensive. Overall, the Dreamline Aqua Hinged Shower Door is an excellent choice for anyone looking for a stylish and functional shower door.
