Ellie Baby Monitor

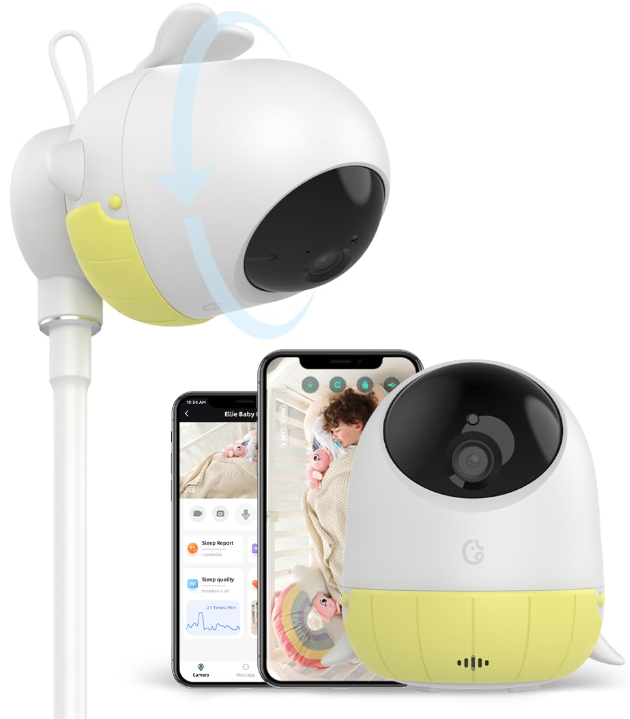

Ellie Baby Monitor-product

Introduction

The Ellie Baby Monitor is a state-of-the-art smart baby monitoring system designed to provide parents with peace of mind through advanced technology and user-friendly features. Targeted at modern parents seeking a reliable, non-WiFi-dependent device, this monitor combines ultra-high-definition video quality with sophisticated AI safety functions, making it ideal for newborns, toddlers, and growing children.

This innovative baby monitor boasts a 2.5K HD ultra-definition camera, delivering crystal-clear video both day and night with its 5MP infrared night vision. Its 360° PTZ (pan-tilt-zoom) functionality and 5-inch LCD screen offer comprehensive and detailed views of your baby’s environment. Parents can zoom up to 5x digitally to capture finer details, ensuring nothing is missed.

What sets the Ellie Baby Monitor apart is its advanced AI technology, including covered face detection, breathing monitoring, rollover alerts, and a virtual safety fence that notifies you immediately if your baby approaches a defined boundary. Additionally, it offers 24-hour video playback, sleep quality analytics, and two-way audio communication, allowing you to soothe your baby remotely.

Available for approximately $79 to $134, depending on the model and retailer, the Ellie Baby Monitor provides excellent value with a comprehensive accessory package, including mounting options, charging cables, and SD cards for local video storage. It is widely available online and through specialty baby product retailers, making it accessible for parents worldwide.

Perfect for first-time parents, caregivers, and families wanting a secure, smart monitoring solution without cloud dependency or WiFi, the Ellie Baby Monitor brings safety, sleep monitoring, and cherished memory capture into one elegant device.

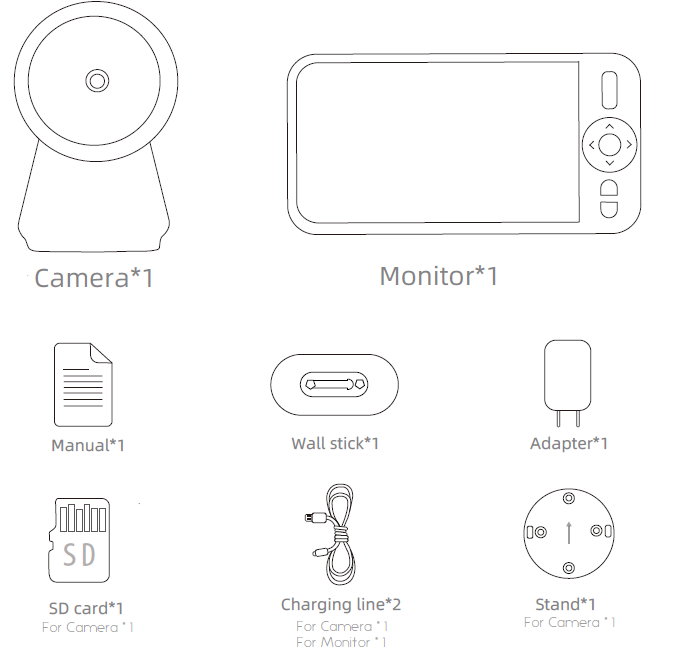

What’s in the box?

Ellie Baby Monitor-What’s in the box

Specification

Monitor

  • Size: 5’ LPS(69.9120.73.83mm)
  • Resolution: 1280720
  • Viewer Zoom: 5
  • Brightness: 300 cd/m2
  • Battery: 6000mAh
  • Power Supply: DC 5V/1A
  • Lullabies: 5
  • Audio In/Output: Built-in Microphone / Speaker
  • Transmission Range: Up to 1000ft

Camera

  • Aperture: F2.2
  • Focal Length: 3.3mm
  • Maximum Resolution: 2MP
  • Transmission Range Up to: 1000ft
  • Resolution: 2560 1440
  • Power Supply: DC 5V/2A
  • IR Wavelength: 940nm
  • Wireless: P2P
  • Remote Pan-Tilt: 3600 Pan and 70o Tilt
  • Storage: 32G SD Card (Max 128 GB not included)
  • Audio In/Output: Built-in Microphone / Speaker

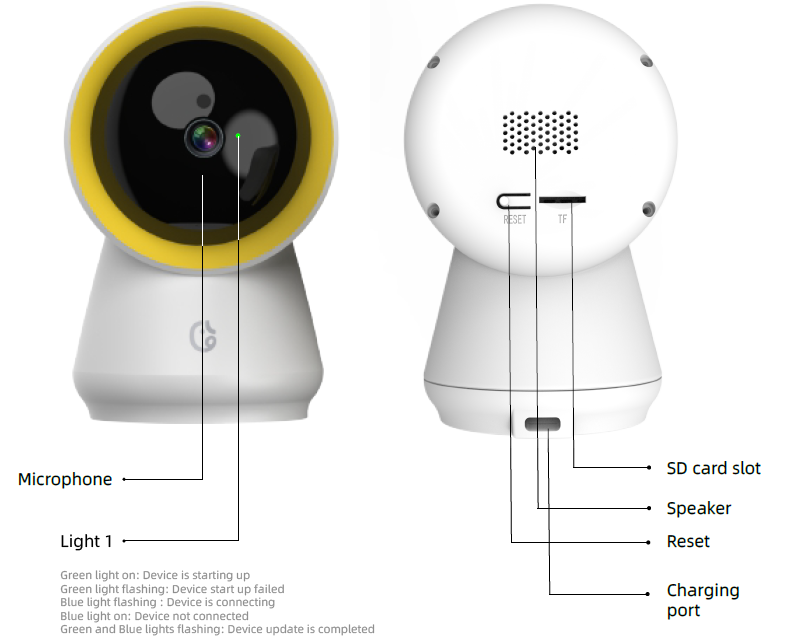

Camera

Ellie Baby Monitor-Camera

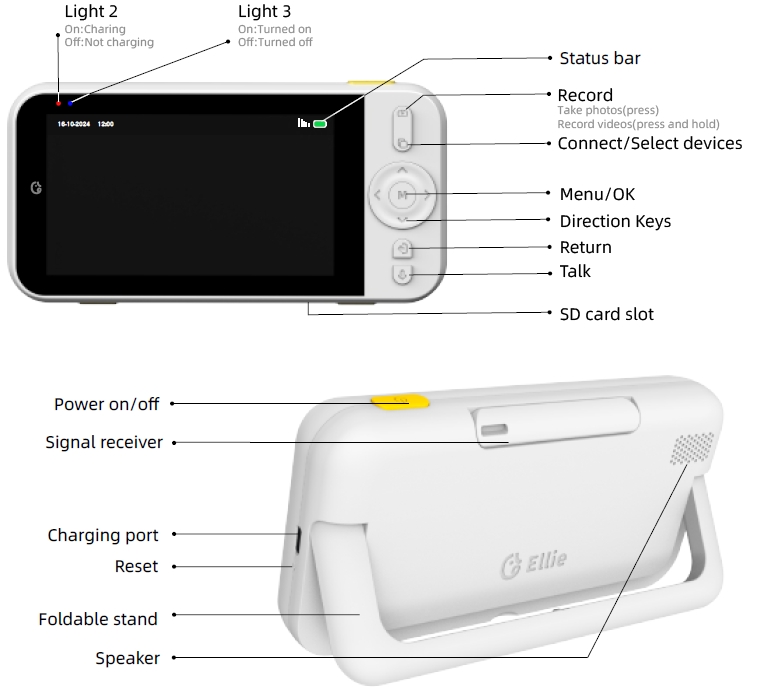

Monitor

Ellie Baby Monitor-Monitor

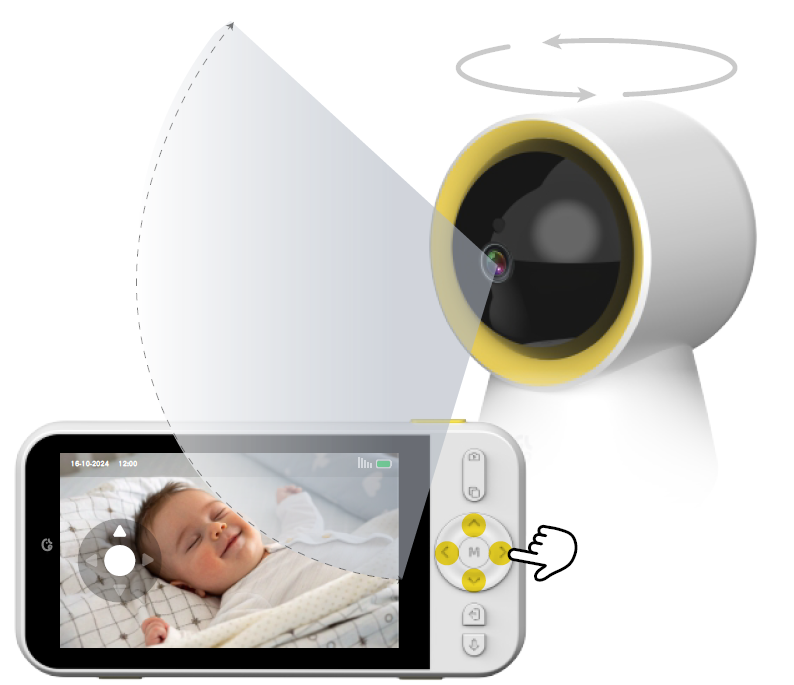

Rotate camera

Ellie Baby Monitor-Rotate camera

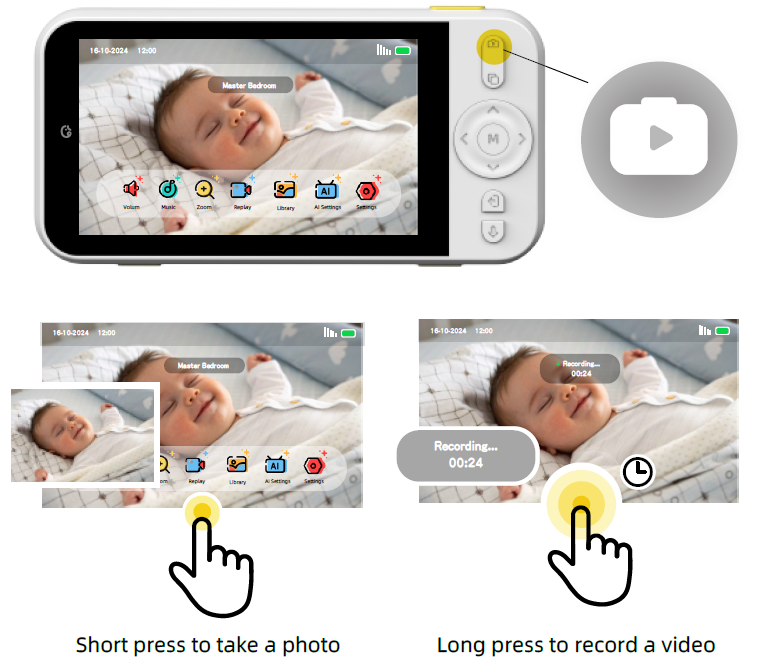

Photo/Video

Ellie Baby Monitor-Photo,Video

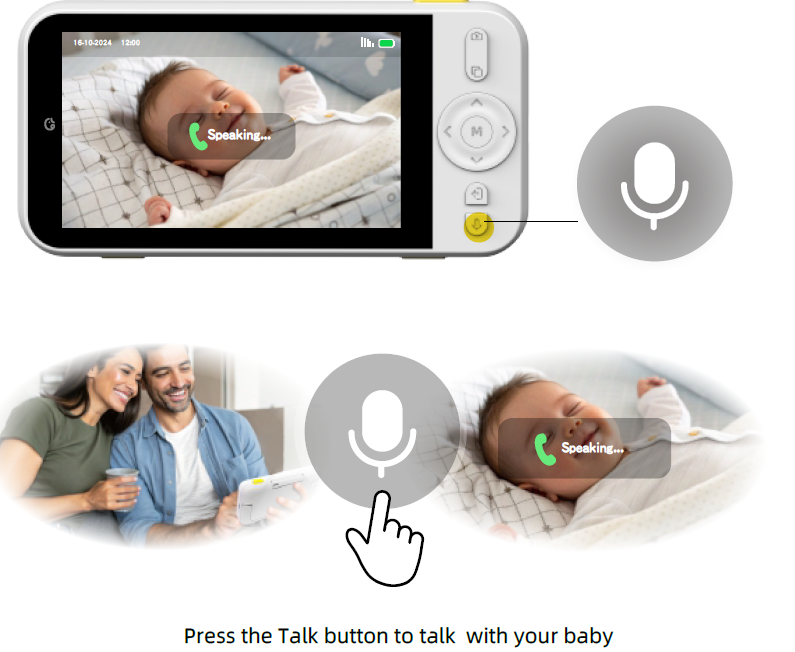

Two-way Talk

Ellie Baby Monitor-Two-way Talk

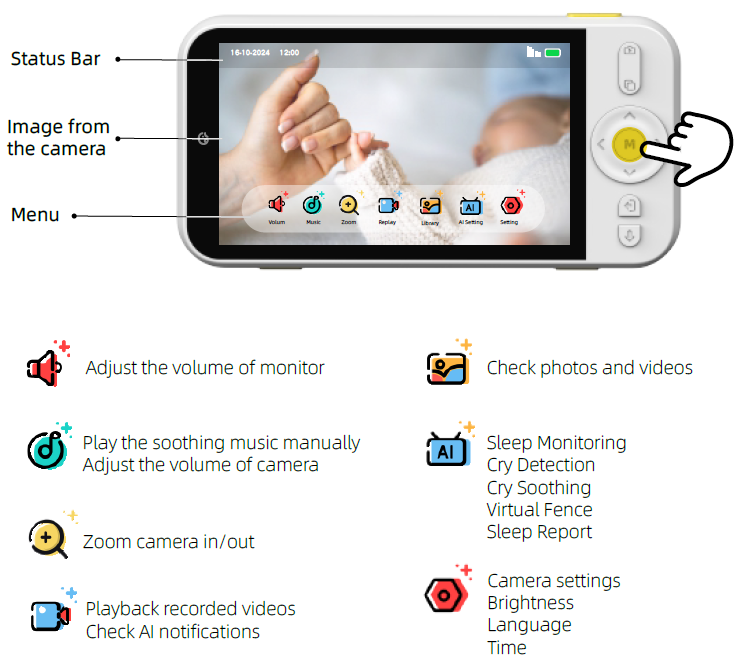

Menu

Ellie Baby Monitor-Menu

Installation

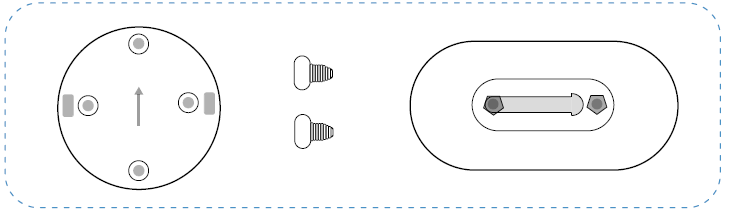

Accessories

Ellie Baby Monitor-Accessories

Procedure

Ellie Baby Monitor-Procedure

Warranty &  Return Policy

Ellie provides a 12-month warranty from the delivery date against defects in material or workmanship under normal use. Defective products will be repaired/replaced free of charge if the issue arises from manufacturing flaws.

Exclusions

  • Damage from misuse, improper installation, unauthorized repairs/modifications, third-party components, or force majeure events.
  • Consumables (e.g., batteries) unless defective.
  • Products without valid proof of purchase, serial numbers, or purchased from unauthorized sellers.
  • No Non-Ellie-branded a accessories, samples, or "AS IS" items.
  • Consequential damages (e.g., data loss).
  • Transferred ownership.

Claim Process

  • Contact Ellie Support (support@elliehello.com) or authorized centers for troubleshooting.
  • If unresolved, return the product to the provided address.
  • Ellie inspects the product; non-covered issues require paid repair.

Returns & Refunds

  • Eligible returns within 45 days of receipt.
  • Product must be unused, in original packaging with all accessories, and include proof of purchase/serial number.
  • Customer covers return shipping; no restocking fees.
  • Refunds processed to the original payment method after inspection (shipping fees non-refundable).

Pros & Cons of the Ellie Baby Monitor

Pros

  • Exceptional Video Quality: Offers 2.5K Ultra HD resolution with 5MP night vision for clear, detailed images even in low light.
  • Advanced AI Safety Features: Includes covered face detection, breathing and rollover monitoring, and virtual fence alerts to enhance baby safety.
  • Non-WiFi Operation: Functions fully without internet, reducing security risks and ensuring reliable monitoring in all environments.
  • Comprehensive Playback & Analytics: 24-hour video playback and sleep tracking help parents understand baby patterns and milestones.
  • Two-Way Audio Communication: Enables comforting your baby remotely through the monitor or app.
  • Multiple User Access: Up to 5 users can share access, ideal for families and caregivers.
  • Local Video Storage: Comes with SD cards to store footage securely without cloud upload, enhancing privacy.

Cons

  • Price Point: Slightly higher than some basic baby monitors, but justified by advanced AI and video features.
  • No Touchscreen on Parent Unit: Physical button navigation may be less intuitive compared to touchscreen competitors.
  • Limited Availability for Some Regions: Shipping delays or restrictions may apply outside Europe, North America, and Asia.
  • Battery Life Constraints: Up to 24 hours in power-saving mode, which may require frequent charging with intensive use.
  • App Dependent for Full Features: Some AI settings and analytics require use of the companion app, although core monitor functions work standalone.

Compared with alternatives like the Eufy Spaceview ($130) or Nanit monitors, Ellie stands out for its AI-driven safety alerts and non-WiFi design, offering a unique balance of privacy and smart monitoring.

Customer Reviews and Feedback on the Ellie Baby Monitor

Users consistently praise the Ellie Baby Monitor for its superior video clarity and robust AI safety features. Many parents describe the crisp 2.5K HD video and infrared night vision as "exceptional," allowing them to monitor their baby clearly even in complete darkness. The virtual fence and rollover notifications are frequently highlighted as "life-saving" features that provide extra reassurance.

Typical star ratings average around 4.5 out of 5, with testimonials noting, "The sleep analytics gave us real insight into our baby's habits," and "The two-way talk feature helped soothe our baby from another room."

Common complaints include the absence of a touchscreen on the parent unit and occasional battery drain with heavy use. Some users also mention that the app interface could be more intuitive, though the core monitor is praised for ease of use without WiFi.

Overall, buyers recommend the Ellie Baby Monitor for its balance of advanced technology, privacy, and ease of use, especially for those looking for a secure, non-cloud-based baby monitoring solution.

PDF

Faqs

How do I set up the ellie Baby Monitor for the first time without WiFi?

To set up the ellie Baby Monitor without WiFi, first unbox the monitor, camera, and accessories. Attach the camera to the crib using the included adjustable holder. Power both the camera and monitor using the supplied charging cables and wall adapter. The monitor has a 5-inch LCD screen that pairs directly with the camera using a secure, non-WiFi connection, eliminating the need for internet. Follow on-screen prompts to adjust settings like volume, brightness, and AI features such as sleep and cry detection.

What should I do if the ellie Baby Monitor camera feed is blurry or pixelated?

If the ellie Baby Monitor camera feed appears blurry or pixelated, first clean the camera lens gently to remove any smudges. Use the monitor’s zoom function to adjust the image clarity by pressing the UP and DOWN buttons. Ensure the camera angle is properly adjusted for optimal focus. Check that the SD card is correctly inserted for local storage and that the camera firmware is updated via the app if applicable. Poor image quality may also occur in low light, but the 2.5K HD night vision should provide clear viewing.

Can the ellie Baby Monitor be used with multiple mobile devices or shared with family members?

Yes, the ellie Baby Monitor supports app-based streaming that allows connection with multiple mobile devices. You can share access with up to 5 accounts, enabling family members like grandparents to monitor the baby remotely. The app is free and supports viewing live video, receiving alerts such as cry detection, and reviewing sleep analytics. This multi-user capability makes it easy to keep loved ones connected and informed.

How does the ellie Baby Monitor’s danger zone detection work and how do I configure it?

The ellie Baby Monitor features a virtual fence or danger zone detection that alerts you if your baby moves beyond a preset safe boundary. To configure it, access the AI settings on the monitor or app, enable the virtual fence feature, and set the sensitivity level and notification preferences. This is especially useful during crawling stages to ensure your baby stays within safe areas. The monitor will send real-time alerts to the parent unit or connected devices when the boundary is crossed.

What are the battery life and charging recommendations for the ellie Baby Monitor?

The ellie Baby Monitor’s parent unit is equipped with a 6000mAh battery that can last up to 24 hours on a single charge using power-saving mode. It is recommended to fully charge both the monitor and camera before first use and recharge them regularly to maintain optimal performance. Use only the provided charging cables and wall adapters to avoid compatibility issues. Avoid letting the battery completely drain to prolong its lifespan.

How do I perform maintenance and clean the ellie Baby Monitor to ensure longevity?

To maintain the ellie Baby Monitor, regularly clean the camera lens and monitor screen with a soft microfiber cloth to remove dust and fingerprints. Avoid using harsh chemicals or abrasive materials. Check that mounting accessories remain securely fastened to prevent falls. Inspect charging cables for damage and replace if necessary. Store the monitor and camera in a dry place when not in use. Performing these steps will help keep your baby monitor functioning smoothly.

What should I do if the ellie Baby Monitor’s cry detection or sleep tracking features are not working correctly?

If cry detection or sleep tracking on the ellie Baby Monitor is malfunctioning, first verify that these AI features are enabled in the monitor’s settings or app. Adjust sensitivity levels as needed to reduce false alerts. Restart the monitor and camera to refresh the connection. Ensure the monitor firmware and app are updated to the latest version for best performance. If problems persist, consult the user manual or contact ellie customer support for troubleshooting assistance.

Is the ellie Baby Monitor compatible with home WiFi networks and does it require an app subscription?

The ellie Baby Monitor offers versions both with and without WiFi compatibility. The non-WiFi model operates independently via a dedicated 5" LCD screen without internet, ensuring privacy. The WiFi-enabled model supports 2.5K HD streaming through the free ellie app, which does not require any subscription fees for full access to all features. This allows flexible use depending on your preference for cloud connectivity or local-only monitoring.
