Introduction

Evenflo Secure Step Gate is a pressure-mounted gate that provides a safe and secure solution for keeping your child within a specific area of your home. The gate is designed to be easy to install, use, and remove, making it a convenient option for parents and caregivers. The estimated price of the Evenflo Secure Step Gate is around $30 to $40, and it is currently available for purchase.

Detailed Specifications

The Evenflo Secure Step Gate has several key features that make it an excellent choice for parents and caregivers. These features include:

• One-hand opening system for ease of use
• Durable and sturdy construction for long-lasting use
• Pressure-mounted design for easy installation

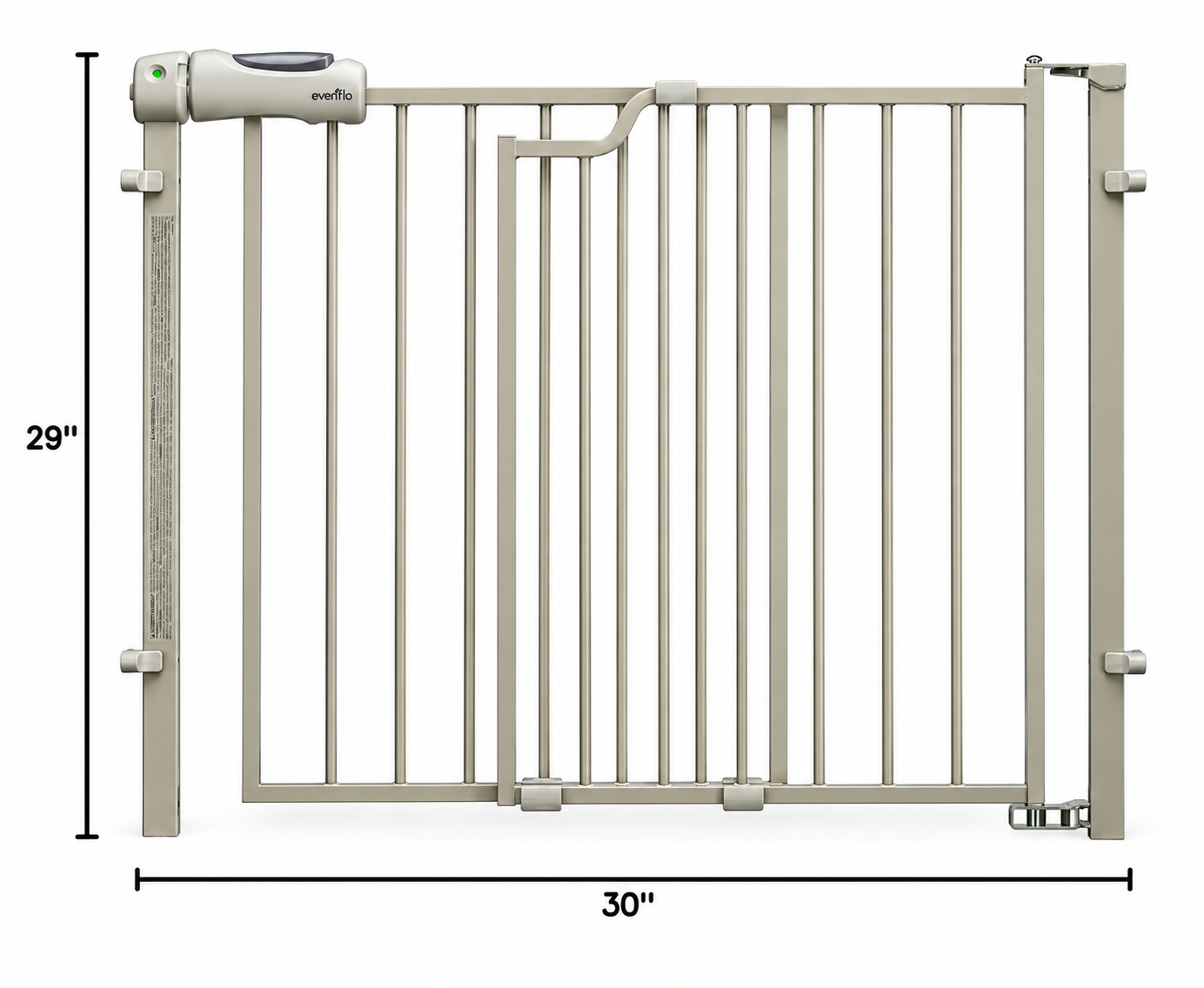

• Extendable gate width from 29 inches to 37 inches
• Indicates when the gate is not properly closed with an audible click
• Suitable for use at the top and bottom of stairs
• Meets or exceeds all applicable safety standards

Parts List of Evenflo Secure Step Gate

Gate Operation

• To open gate, squeeze button J while sliding handle K and swing the gate open.
• When window L is green, gate is latched. When it is red, gate is NOT latched.
• To close gate, push door gently.

Description

The Evenflo Secure Step Gate is a versatile and convenient gate that can be used in a variety of settings. Its pressure-mounted design makes it easy to install, and it can be extended to fit openings between 29 inches and 37 inches. The gate features a one-hand opening system, making it easy to use even when you're holding a child or other items. The gate is also suitable for use at the top and bottom of stairs, providing an added layer of safety for your child. The Evenflo Secure Step Gate is made from durable materials and meets or exceeds all applicable safety standards, giving you peace of mind and assurance that your child is safe and secure.

WARNING! To prevent serious injury or death, securely install gate and use according to manufacturer’s instructions and warnings.

• NEVER use with a child able to climb over, dislodge, or open the gate.
• NEVER leave child unattended.
• NEVER use to keep child away from pool.
• Intended for use with ONLY with children 6 months through 24 months.
• To ensure proper fit, use ONLY on openings between 29 inches (74 cm) and 42 inches (107 cm) wide.
• To prevent entrapment, DO NOT allow space between bottom of gate and floor to exceed 3 inches (7.62 cm).
• Gate MUST ALWAYS swing away from stairs.
• ALWAYS keep gate securely locked in a closed position. Remove gate from opening when not in use.
• Use ONLY with locking mechanism securely engaged.
• To prevent falls, DO NOT step over gate.
• STOP using gate if any parts are missing or become damaged.
• Periodically check all fasteners to be sure they are tight and secure
• This gate will NOT necessarily prevent all accidents.
• For indoor use ONLY.
• When installing against drywall, make sure mounting surface is reinforced with a wall stud.
• STRANGULATION HAZARD:  Pets can force themselves into very small openings. Use this gate only with pets whose head or body WILL NOT fit into openings in the gate, between the gate and the floor, or between the gate and the wall.
• Ensure child is kept away from the gate when closing or opening it to prevent injury to the child, such as from pinching.

Important Information

IMPORTANT: Failure to follow installation instructions could result in serious injury to your child. Read these instructions completely and keep for future reference. The gate MUST be mounted with the screws and hardware provided.

Evenflo Secure Step Gate Before You Begin

Decide where you want to install the gate and go through the following checklist:
The opening must be between 29 and 42 inches (74 and 107 cm). Is the gate at the top or bottom of the stairs?

Use at the top or bottom of stairs ONLY if:
The opening must be between 29 and 42 inches (74 and 107 cm). Is the gate at the top or bottom of the stairs?

Use at the top or bottom of stairs ONLY if:
WARNING! DO NOT use on stairs if the gate is in a location over the open area above a step. The hardware on both sides of the gate must be mounted in solid wood, such as a door jamb, solid wood banister post, or wall stud behind drywall.
WARNING!: DO NOT use if one or both sides of the opening requires mounting in sheet rock, plaster, lath board, or any wall without solid stud support to screw into.

Are there baseboards?
The gate wall brackets must be mounted to a flat surface. If your baseboard moldings have uneven surfaces where the wall brackets need to be mounted, you need to choose another location. Try moving the wall brackets to a different spot on the molding or above the baseboard molding.
WARNING! DO NOT mount on uneven molding or woodwork trim. Hinge bar must be flat against wall. Bottom of hinge bar can be NO MORE than 1 inch (2.5 cm) from floor.

WARNING! The gate MUST be no more than  3 inches (7.62 cm) above the floor.

Install Hinge Bar/Gate Door Assembly

•  Place hinge bar A flat against the wall and no more than 1 inch (2.5 cm) above the floor. Note: The hinge bar MUST BE straight up and down (90º to the floor).
• With the hinge bar A properly positioned against the wall, drill two pilot holes (using the 9/64 inch drill bit [3.5 mm]) 2 inches (5 cm) deep through the hinge bar mounting holes B.
• Secure the hinge bar A to the wall with two of the provided screws C. Use ONLY a handheld Phillips screwdriver when installing screws.

TIP: After positioning the hinge bar,  press it against the wall to mark the  pilot hole locations.

Install Latch Bar of Evenflo Secure Step Gate

1. Place latch bar D flat against the wall directly across from hinge bar.
   IMPORTANT: The latch bar MUST be the same distance from the floor as the hinge bar. The latch bar MUST be straight up and down (90º to the floor).
2. With the latch bar D properly positioned against the wall, drill two pilot holes (using the 9/64 inch drill bit [3.5 mm]) 2 inches (5 cm) deep through the mounting holes E.
3. Secure the latch bar D to the wall with two of the provided screws C. Use ONLY a handheld Phillips screwdriver when installing screws.

Adjust Gate Width

• Loosen six adjustment screws, two in each clamp F, approximately two to three turns with the provided hex key and slide the gate G until the handle is 1/8 inch (3.2 mm) from the latch, as shown. IMPORTANT: ONLY loosen the six adjustment screws. DO NOT completely remove.
• Ensuring both portions of the gate G are parallel to each other, tighten all six adjustment screws with the hex key until they are snug and the clamps are touching the metal frame, then tighten the screws one-and-a-half to two more turns.
• For the safety of children and pets, make sure the bottom of the gate G is NO MORE than 3 inches (7.62 cm) from the floor.

• Test to make sure the gate is secure by firmly shaking the gate assembly.



WARNING! The gate MUST be no more than  3 inches (7.62 cm) above the floor.

Install Swing Control Clip

IMPORTANT: You MUST use the swing control clip whenever this gate is used at the top of stairs. The swing control clip is optional for all other locations. To prevent the gate from swinging over the stairs, install the swing control clip H onto the gate door G and secure with the screw I provided , as shown. Use ONLY a handheld Phillips screwdriver when installing the screw.

Evenflo Secure Step Gate Care and Maintenance

• Wash gate with mild soap and warm water and dry thoroughly before using.
• Metal and plastic parts can be wiped clean with a soft damp cloth and dried with a soft cloth. DO NOT use abrasive cleaners or solvents.
• An occasional drop of vegetable oil may reduce wear and tear on moving parts.

Troubleshooting

If you experience any issues with the Evenflo Secure Step Gate, here are some common problems and solutions:

• Gate won't stay closed: Make sure the gate is properly aligned and closed with an audible click. If the gate still won't stay closed, check for any obstructions that may be preventing it from closing properly.
• Difficulty opening the gate: Make sure you are using the correct technique to open the gate. If you are still having difficulty, try adjusting the pressure on the gate to ensure it is properly secured.
• Gate is difficult to install: Make sure you are following the instructions carefully and that you have selected the correct hardware for your walls. If you are still having difficulty, contact Evenflo customer service for further assistance.

Warranty

For a period of 90 days from the original purchase of this Product, Evenflo warrants to the original end user (“Purchaser”) this Product (including any accessories) against defects in material or workmanship. Evenflo’s sole obligation under this express limited warranty shall be, at Evenflo’s option, to repair or replace any Product that is determined to be defective by Evenflo and determined to be covered by this warranty.

Pros & Cons of Evenflo Secure Step Gate

• Pros
  • Easy to install and use
  • Durable and sturdy construction
  • Extendable gate width
  • Indicates when the gate is not properly closed
  • Suitable for use at the top and bottom of stairs
• Cons
  • May not fit all openings
  • Some users may find it difficult to open with one hand
