Introduction

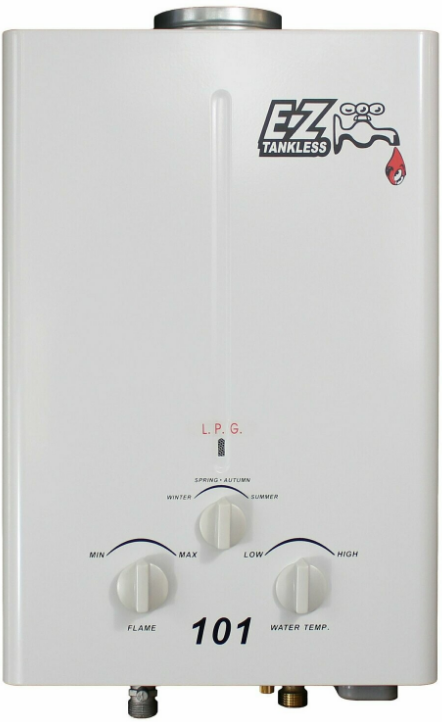

An effective and space-saving option for always having hot water on hand is the EZ-Tankless Portable Water Heater EZ-101. This compact and multipurpose device is ideal for use in cabins, outdoor showers, camping, and other out-of-the-way places. Ideal for usage in off-grid environments, its sophisticated electronic igniting mechanism requires just two D-cell batteries to power it. The EZ-101 can consistently produce immediate hot water at a flow rate of up to 1.6 gallons per minute while operating with low water pressure. No matter where your adventures take you, you'll always have access to hot water because to its compact and lightweight design.

WHAT’S INCLUDED?

Specifications

FEATURES AND BENEFITS

• The EZ Deluxe features our advanced sealed double-chamber forced air intake - exhaust system
• Fully-automatic operation. Once installed, simply turn on the water spigot or shower–instantaneous hot water will arrive in a few moments. After the tap is turned off, the tankless heater will extinguish and cease operation
• Key touch LCD panel with easy to understand display
• High efficiency concentric venting system. Our direct vent system uses a dual-chambered single pipe. Inlet air flowing through the outer chamber keeps the exposed pipe cool while outlet exhaust gases flow through the inner chamber
• Featuring a proportional control valve for both electricity and gas, the EZ Deluxe self-regulates gas flow to maintain a constant water temperature
• Simple and aesthetically pleasing design features – the unobtrusive unit design fits seamlessly in a variety of locations
• Advanced electronic ignition is safer, more convenient, and more energy efficient than a pilot light system
• High thermal efficiency (88%)
• Low water pressure ignition. The heater can function as low as 8PSI water pressure, making it suitable for use at high altitude or for installations using well water with older or less powerful pumping systems
• Dynamic gas and fan control allows for consistent temperatures in proportion to water flow
  • Touch Control Panel
  • Temperature Display
  • Water Inlet
  • Water Outlet
  • Gas Inlet
  • Power Cord

  • Flue Outlet



SAFETY PRECAUTIONS

1. Always check water temperature by hand before entering shower or bath. The temperature may have been changed. Do not touch the unit cover or the flue outlet while in use.
2. Do not insert objects into the flue outlet. On colder days steam may discharge from the flue outlet. This condition is normal for high-efficiency appliances.
3. The vent/air intake should be positioned away from flammable materials such as trees, shrubs, etc.

HOT WATER RISK

1. Hot water is dangerous, especially for the young and the elderly or the infirm. The EZ Tankless water heater allows you to precisely control the temperature of your hot water, ensuring safe water temperature. Water temperature over 125°F can cause severe burns instantly or death from scalding.
2. Hot water can cause first degree burns with exposure for as little as:

• 3 Seconds at 140°F
• 20 Seconds at 130°F
• 8 Minutes at 120°F

1. Test the temperature of the water with your elbow to ensure adequate temperature before placing a child in the bath or shower.
2. Do not leave children or an infirm person in the bath unsupervised.

SCALDS-FIRST AID GUIDANCE

1. Remove clothing - remove all wet clothing, quickly, as wet clothing retains the heat.
2. Apply cold water for 30 minutes - immediately submerge the burnt area in cold water for 30 minutes to reduce the heat in the skin, preventing deeper burning. Never use butter, oils, or ointment to cover the burn, as they may retain the heat.
3. Keep the individual warm - place a blanket around the affected individual.
4. Seek medical advice - call your medical advice hotline and describe the scalding properties, follow their directions to provide further treatment if necessary.

Description

The Ez-tankless Portable Water Heater EZ-101 is a high-quality and reliable water heating solution that is perfect for those on the go. With its compact and lightweight design, this water heater can easily be taken on camping trips, outdoor adventures, or even used as a backup water heater in your home. The EZ-101 is electric-powered, making it a safe and environmentally-friendly option. The adjustable water temperature and LED display make it easy to customize your water heating experience, while the energy-saving mode helps reduce power consumption. Overall, the ez-tankless Portable Water Heater EZ-101 is an excellent choice for anyone in need of a portable and efficient water heating solution.

INITIAL SETUP AND OPERATION

Note: These steps should be followed for every new location or water source

1. ON/OFF SWITCH
   Turn the system's power on. The display will light up with the temperature.



   CELSIUS	FAHRENHEIT
   35	95
   36	97
   37	99
   38	100
   39	102
   40	104
   41	106
   42	108
   43	109
   44	111
   45	113
   46	115
   47	117
   48	118
   49	120
   50	122
   51	124
   52	126
   53	127
   54	129
   55	131
   56	133
   57	135
   58	136
   59	138
   60	140
   61	142
   62	144
   63	145
   64	147
   65	149

2. INITIAL TEMPERATURE SETTING: BETWEEN 40-50°C



3. WATER SOURCE
   Inlet water source should be at least 1 GPM filtered water at a minimum of 8PSI. Lower water flow or a lower water pressure may result in the unit failing to ignite.
4. AFTER FIRST IGNITION ADJUSTMENTS
   If you use mixing valves anywhere in the home we do recommend setting the heater with a lower water temp setting in combination with using more hot water in the mixture. This will guarantee that there is at least 1GPM running through the heater.

SPECIAL NOTES INSTALLATIONS

WELL WATER INSTALLATIONS
Due to the fluctuation in water pressure when using a well water system, users may experience fluctuations in water temperature. Fluctuations can be rectified with use of a water pressure regulator. When using a well system with a pump switch set to 40-60PSI, it is best to set your water pressure regulator at 45PSI. Alternatively, if using a pump switch set to 30-50PSI, it is recommended to set your water pressure regulator at 35PSI.

BASEMENT INSTALLATIONS IN COLD WEATHER CLIMATES
The EZ Deluxe does not come provided with freeze protection. If exposed to freezing temperatures, the water in the heat exchanger can freeze and can damage the pipework within the heat exchanger. When performing a basement wall installation, it is recommended to install on a sub-frame (e.g 2x4) to create an air buffer between the wall and the back of the unit. This is to reduce the risk of freezing through direct contact with basement walls. Typically basement walls are poorly insulated & thus surface temperatures can be much colder than the ambient room air.

MIXING VALVES
Modern mixing valves use a thermostatic temperature valve to control hot and cold water to faucets, showerheads, and tub fixtures. These devices can often cause an issue when used in conjunction with a tankless water heater set at a high temperature. When the water temp is set above 110-120°F, these valves will add cold water to adjust the temperature to keep from scalding. An unwanted effect of this is that the hot water flow may drop below required levels to keep the heater running. There are a number of recommendations to reduce the risk: a. Lower the water temperature setting on the water heater. Suggested settings of approx. 42°C are ideal in many scenarios. b. Adjust the temperature setting on the mixing valve. (See manual for each individual fixture.) c. Replace showerhead with a high flow rate showerhead. It is common for a mixing valve fixture used in conjunction with a water-saving showerhead to cause ignition issues with most tankless water heaters. Be sure to use a showerhead with at least a 2GPM flow rate in conjunction with a mixing valve fixture to limit issues.

USE A SURGE PROTECTOR
The EZ Deluxe uses many sensors that are based on resistors. It is important to protect the electronics of the EZ Deluxe system by plugging the unit's power cord into a surge protector.
This drawing is not an engineered drawing. It is intended for use only as a guide and does not act as a replacement for professionally engineered installation drawings. This drawing is not intended to portray a complete installation system. The project engineer and/or installation contractor should determine the necessary components for the configuration of the system being installed.

This drawing does not imply compliance with local building code requirements. It is the responsibility of the project engineer and/or contractor to ensure that the installation is fully in accordance with the applicable building code through the authority having jurisdiction. Obtain approval with local building code officials prior to installation.

RECOMMENDED EZ DELUXE MAINTENANCE

1. CHECK THE GAS HOSE AND REGULATOR FOR ANY DEFECTS
   Propane regulators, especially single-stage regulators, defect at a high rate predominantly due to age. Most single-stage regulators will eventually allow a higher pressure than the required 11”WC by the EZ Deluxe. When this happens the unit will not ignite. This is the most common fault that causes ignition failure.
2. CHECK THE EXHAUST VENT FOR BLOCKAGE REGULARLY
   Debris, animals, or insects may enter the exhaust vent at any time. Be sure to regularly check the exhaust vent for any blockage. A blockage of the exhaust vent will cause inconsistent water temperatures as well as potential damage to internal components.
3. CLEAN INLET WATER FILTER SCREEN REGULARLY
   Located just inside of the water inlet fitting on the bottom of the EZ Deluxe is a filter screen. This screen is used to keep sediment and small debris from entering the heat exchanger. Be sure to regularly check this screen for any debris that it may have caught. Remove the screen from the inlet using a small pick or screwdriver, blow away or rinse away any debris that may have accumulated and reinstall the filter screen into the water inlet before next use.
4. FLUSH UNIT ONCE A YEAR
   With the heating of water through a heat exchanger comes the buildup of minerals over time throughout the water heater parts and components. It is recommended to flush your tankless water heater with distilled white vinegar at least once per year when used on a regular basis, to ensure continued use and to avoid parts damage.
5. ALWAYS KEEP COVER OF UNIT CLEAN
   The cover of your water heater will become hot during use. It is not recommended to place any stickers, magnets, or other decorative material on the cover of the EZ Deluxe. Be sure to wipe away any dirt or debris that may be on the cover before each use.

TROUBLESHOOTING

WHEN THE HOT WATER TAP IS OPENED, AND THE EZ DELUXE IS NOT RESPONDING.
If you are running water through the system, but do not see a showerhead image on the display, the heater is failing to sense the water flow. This will require one of the following to resolve the issue:

1. Flush the unit. Flushing the unit with Distilled White Vinegar will help to clean the magnetic turbine located inside of the flow sensor housing.
2. Disassemble and clean the flow sensor housing by hand. Please call our tech support department for access to our tech support videos (Note: Tech support videos are intended for advanced technicians only).
3. Replace the flow sensor housing. If after cleaning the flow sensor housing by hand the system still fails to sense water flow, the flow sensor housing may need to be replaced.

THE DISPLAY SHOWS AN ‘E0’ ERROR CODE WHEN TRYING TO IGNITE.
This is an error on the inlet water temperature probe. We recommend trying to clean it before replacing it. It is located on the flow sensor housing located on the bottom right of the unit where the water first enters. It will have a set of two black wires coming off of it and held in by one or two screws. Turn the water off to the unit then remove the two screws holding the temperature probe in place. Once removed, clean the probe with white vinegar and reinstall it. If the unit continues to show an E0 after cleaning the probe then it will need to be replaced.

THE DISPLAY SHOWS AN ‘E1’ ERROR CODE WHEN TRYING TO IGNITE.
Does the unit show an ‘E1’ error code every time the unit tries to ignite or sporadically?

1. Should the unit be showing the ‘E1’ error code only occasionally, we recommend flushing the system with distilled white vinegar.
2. Should the unit be showing ‘E1’ every single time it tries to fire: A. Check to make sure that only EZ Tankless vent is being used. Be sure that the vent is installed in a horizontal manner, through an exterior wall and vented outdoors. Check that there is nothing blocking the proper flow of air through the intake or exhaust. B. After verifying proper flow of air through the vent system, remove the front cover of the unit (Be careful as the display should remain attached for this test.) Once the front cover is removed, while viewing into the combustion chamber windows, open a water source to allow the heater to try to fire. If the unit fires on the right side of the burners, but only the right side before going to the ‘E1’ error code, your unit will need a motherboard replacement.
3. If your unit is showing ‘E1’ error code and the above steps have been taken to address the issue without resolution, please call EZ Tankless Tech Support for further assistance.

THE DISPLAY SHOWS AN ‘E2’ ERROR CODE WHEN TRYING TO IGNITE.
Please call EZ Tankless support for assistance.

THE DISPLAY SHOWS AN ‘E4’ ERROR CODE WHEN TRYING TO IGNITE.
This is an error in the fan sensor, fan motor, or motherboard. Remove the front cover of the EZ Deluxe, keeping the display wires attached. Locate the fan in the bottom left corner of the unit. Run a hot water tap. Watch the fan blades and observe how they are spinning. If the fan increases to high speed when the unit senses water flow, but the unit shows an ‘E4’ error code, the fan sensor is faulty and requires replacement. If the fan spins very slowly and the unit goes to E4, the motherboard needs to be replaced. If the fan does not spin at all, the fan motor is faulty and requires replacement.

THE DISPLAY SHOWS AN ‘E5’ ERROR CODE WHEN TRYING TO IGNITE.
This is an error of the limit switch or limit switch wire. Remove the front cover of the EZ Deluxe, keeping the display wires attached. Locate the limit switch in the top left corner. Remove the wires from the limit switch. Complete the circuit between the two wires using a piece of wire, or by sliding the two tabs together (A video of this test can be found on our website). Run water through a hot water tap connected to your EZ Tankless Deluxe unit kit. If the unit fires and runs while the wires are “jumped”, a new limit switch is required. If, after jumping the limit switch wires, the unit still returns an ‘E5’ error code, the thermal fuse in the wire may have been blown.

1. To Diagnose: Follow the wire back to the motherboard. Remove the wire from the motherboard, and using a flathead screwdriver, complete the circuit between the two prongs inside of the socket from which the limit switch wire had been removed. If the unit runs as it should, a new limit switch is required.

THE DISPLAY SHOWS AN ‘E6’ ERROR CODE WHEN TRYING TO IGNITE.
This is an error on the outlet water temperature probe. We recommend trying to clean it before replacing it. It is located to the left of the fan on the outgoing water line. It will have a set of two white wires coming off of it and held in by one bolt. Turn the water off to the unit then remove the bolt holding the temperature probe in place. Once removed, clean the probe with white vinegar and reinstall it. If the unit continues to show an ‘E6’ after cleaning the probe then it will need to be replaced.

INFORMATIONAL DRAWINGS

EZ-Tankless Portable Water Heater EZ-101 Warranty

WHAT IS COVERED?

The EZ Tankless warranty covers any defects in materials or product workmanship when the product is installed and operated in accordance with written installation instructions contained herein, subject to the terms outlined within this limited warranty document. This warranty is applicable only to products that are installed by a state qualified or licensed contractor, or installations approved by EZ Tankless through the return of included warranty card and documentation demonstrating proof of installation.

Pros & Cons

Pros

• Compact and lightweight design
• Adjustable water temperature
• LED display for easy temperature control
• Electric-powered and environmentally-friendly
• Energy-saving mode for reduced power consumption

Cons

• May take a few minutes to heat up water
• Only suitable for small-scale water heating
• Hoses may require frequent replacement

Customer Reviews

Customers have praised the ez-tankless Portable Water Heater EZ-101 for its compact design, adjustable water temperature, and energy-saving mode. However, some have noted that the water heater may take a few minutes to heat up water and that the hoses may require frequent replacement. Overall, users have given the EZ-101 a positive rating and have recommended it for camping trips and outdoor activities.
