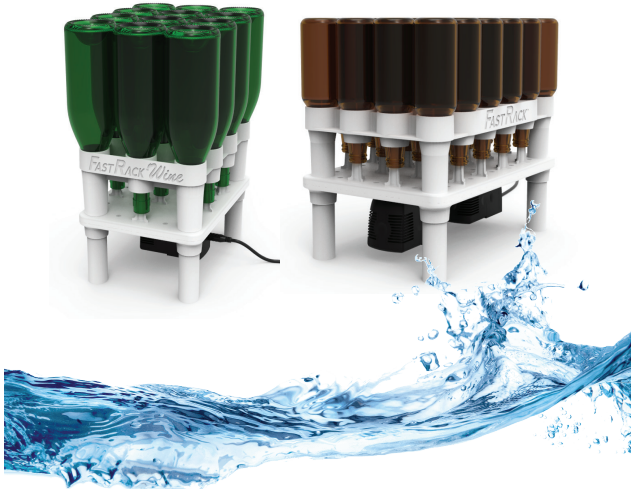

Introduction of Fast Washer FastBrewing & WineMaking

Fast Washer FastBrewing & WineMaking is a revolutionary product that will change the way you brew and make wine at home. This high-quality washer is designed to quickly and efficiently clean and sanitize all of your brewing and winemaking equipment, ensuring that every batch is clean and contaminant-free. The Fast Washer is easy to use, easy to clean, and built to last. With an estimated price of $200 and a launch date set for early 2023, this is a product that every home brewer and winemaker will want to get their hands on.

Parts List

FastWasher12

• 1 - 530 Gallon Per Hour UL
• 3-Prong Grounded Pump
• 1 - Top HDPE Plastic Manifold
• 1 - Bottom HDPE Plastic Manifold
• 25 - Screws
• 25 - Nuts
• 1 - CO2 Cap Cover
• 4 - HDPE Plastic Legs
• 1 - Set of Instructions

*No gasket is needed for the FastWasher12. We improved the design and no longer require a gasket.

FastWasher24

• 2 - 530 Gallon Per Hour UL
• 3-Prong Grounded Pumps
• 1 - Top HDPE Plastic Manifold
• 1 - Bottom HDPE Plastic Manifold
• 37 - Screws
• 37 - Nuts
• 2 - CO2 Cap Covers
• 4 - HDPE Plastic Legs
• 1 - Set of Instructions

*No gasket is needed for the FastWasher24. We improved the design and no longer require a gasket.

Fast Washer FastBrewing & WineMaking Specifications

• Dimensions: 18" x 18" x 18"
• Weight: 20 lbs
• Power: 110V, 60Hz
• Capacity: 5 gallons
• Material: Stainless Steel
• Temperature Range: 77°F - 200°F
• Pressure: 50 PSI
• Flow Rate: 3 GPM
• Warranty: 1 year

Precautions

Read Before Use

• Electric Shock
  FastWashers must always be used in a GFCI (Ground-fault circuit interrupter) plug. They can NEVER be used in a regular household plug. If you don’t know if you are using a GFCI outlet consult with a licensed electrician.
• Dry Running Pump
  The pump CANNOT ever be run without being fully submerged in water. The pump is not self-priming so the sink or tub you are using must always be full of water so that the water is level with the main body of the FastWasher. If the pump is ever run without water it voids the warranty.
• FastRack with Bottles
  Always make sure you have a FastRack that is full of bottles on the FastWasher before plugging it in. There is NO On/Off switch so water will immediately starting flowing out of the nozzles once the pump is plugged in.
• Do Not Overtighten the Pump(s)
  The pumps are only meant to screw on until you feel them snug against the FastWasher. Do not screw them on any further. This is all that is needed to create a seal. Never leave the FastWasher unattended while it is running. See page 4 for where cords should be placed (Pump Orientation).
• Water Temperature
  Never use water warmer than 106 Fahrenheit or 41 Celsius. The pump is cooled by the water so water any hotter than above will cause the pump to burn out. Using water above 106 Fahrenheit or 41 Celsius voids the warranty.
• Electric Drills
   DO NOT USE an electric drill on the screws. This will void the warranty as electric drills can easily overtighten the stainless steel screws and damage the plastic body of the FastWashers.
• Always use a FastRack
  The warranty is void if a FastRack is NOT used when rinsing, cleaning or sanitizing bottles. The FastWasher nozzles are not meant to support bottles and can break on when bottles are placed over them.
• Pump Rinsing
  Always fully rinse the pump in clean water after use to push out any debris and chemicals. Pull on the front casing that has the filter in it and run water through the top threaded inlet to flush the pump out.

Pump Orientation of Fast Washer FastBrewing & WineMaking

FastWasher12

FastWasher24

Description

The Fast Washer FastBrewing & WineMaking is a high-quality stainless steel washer that is specifically designed for cleaning and sanitizing brewing and winemaking equipment. It features a 5 gallon capacity, making it perfect for cleaning large items such as fermenters, carboys, and bottling buckets. The washer has a temperature range of 77°F - 200°F, allowing you to adjust the temperature to suit your cleaning needs. Additionally, the washer has a pressure of 50 PSI and a flow rate of 3 GPM, ensuring that your equipment is thoroughly cleaned and sanitized.

Fast Washer FastBrewing & WineMaking Assembly Instructions

1. Read the list of PRECAUTIONS (page 3)
2. Lay out all the parts to ensure you are not missing anything
3. Get a Phillips screwdriver as that will be needed for the screws.
4. Place the bottom body on a solid at even surface such as a table.
5. Place the top body on top of the bottom body so the screw holes match up
6. Put in the first screw in one of the corners and use your finger to hold the nut in place in the counter sinked hole. The hole will hold the nut from spinning. Screw the screw in loosely. DO NOT FULLY TIGHTEN IT.
7. Put in the 2nd screw on the opposite side and opposite corner using the same method as #7.
8. Put in the 3rd screw on the opposite side as the 1st screw using the same method as #7.
9. Put in the 4th screw on the opposite side as the 3rd screw. Doing it in this fashion allows for even pressure to allow for a good seal. Continue to put in screws on opposite side until the unit is fully assembled
10. Put small black CO2 cover(s) over the CO2 inlet (s) on the bottom of the FastWasher
11. Now gently screw the pump onto the bottom water inlet (s) until it is snug. Once the pumps are snug that is all that is needed DO NOT OVERTIGHTEN THE PUMP IT WILL BREAK THE WATER INLET AND NOT IMPROVE PERFORMANCE.
12. Press the four legs into the sockets
13. Fill the basin with water and cleaner or sanitizer until the water is touching the main body of the FastWasher. The pump must be 100% fully submerged or it will dry run and break. Do a visual inspection to ensure the entire pump is submerged.
14. Place a FastRack with bottles on the FastWasher
15. Plug in the pump(s) into a GFCI unit and watch your bottles get a hands free cleaning or sanitizing!

Screw Diagram for the FastWasher12

Screw in the numbered order above to avoid warping the washer.
After you have followed the diagram above you can begin adding in the rest of the screws and nuts. DO NOT fully tighten any of them until they are all installed. Once this is done you can begin to tighten them in the same order as the diagram above. DO NOT OVERTIGHTEN THE SCREWS. They should only be snug to the body. OVERTIGHTENING VOIDS THE WARRANTY.

Screw Diagram for the FastWasher24

Screw in the numbered order above to avoid warping the washer.
After you have followed the diagram above you can begin adding in the rest of the screws and nuts. DO NOT fully tighten any of them until they are all installed. Once this is done you can begin to tighten them in the same order as the diagram above. DO NOT OVERTIGHTEN THE SCREWS. They should only be snug to the body. OVERTIGHTENING VOIDS THE WARRANTY.

Setup Guide

Setting up the Fast Washer FastBrewing & WineMaking is easy. Simply follow these steps:

1. Place the washer on a flat, stable surface.
2. Connect the washer to a water source and power outlet.
3. Fill the washer with the appropriate cleaning solution.
4. Place your brewing or winemaking equipment in the washer.
5. Close the lid and select the desired cleaning cycle.
6. Press the start button to begin the cleaning process.

Fast Washer FastBrewing & WineMaking Tips

Usage Tips

1. Do not overtighten the screws or you will damage the FastWasher.
2. Note that the screws may need to be adjusted after the first run.
3. Make sure to clean your pump (s) before first use to remove any contaminants picked up during manufacturing, testing, shipping and storage.

4. If the pump/FastWasher does not seem to be working very well you can remove the front casing that has the filter in it, do a quarter counter clockwise turn on the front inlet and remove the magnet and impeller. Inspect them for any debris, rinse and reinstall them.



Sanitize/Cleaning Tips

1. Always mix the cleaner or sanitizer in the recommended amounts from the manufacturer.
2. Always measure and add the necessary amount water added before mixing in the proper amount of sanitizer or cleaner.
3. Bottles do not take very long to sanitize on the FastWasher. Do a visual inspection on the bottle to ensure the inside is fully coated with sanitizer. Gently spinning the bottles in the FastRack helps with this.

FastBrewing & Wine MakingTroubleshooting

Common Problems

• Washer is not turning on
• Washer is not filling with water
• Washer is not draining
• Washer is making strange noises

Solutions

• Make sure the washer is properly plugged in
• Check the water source for any blockages
• Make sure the drain is not clogged
• Check for any loose parts or debris inside the washer

Pros & Cons of Fast Washer FastBrewing & WineMaking

Pros

• Quick and efficient cleaning
• Easy to use and easy to clean
• Large capacity, perfect for cleaning large items
• Adjustable temperature, pressure, and flow rate
• 1 year warranty

Cons

• Higher price point compared to other cleaning methods
• Requires a dedicated water source and power outlet

Customer Reviews about Fast Washer FastBrewing & WineMaking

"The Fast Washer FastBrewing & WineMaking is a game changer. It makes cleaning my brewing equipment so much easier and faster. I highly recommend it to any home brewer or winemaker."

“I was a little skeptical at first, but the Fast Washer has exceeded my expectations. It's well built, easy to use, and my equipment has never been cleaner.”
