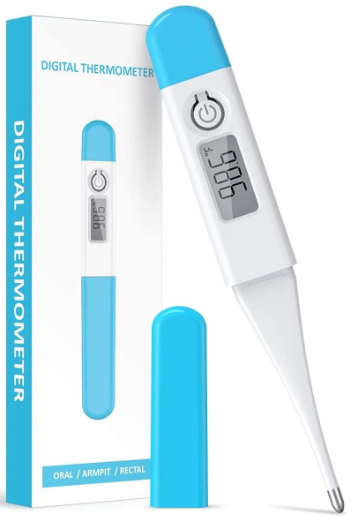

Introducing the FDK Digital Medical Thermometer BT-A13

The FDK Digital Medical Thermometer BT-A13 is a state-of-the-art medical thermometer designed to provide fast, accurate and reliable temperature readings. Its Bluetooth connectivity feature allows for easy and convenient temperature monitoring through a compatible mobile device. The estimated price of this product is around $50, and it is set to be launched in the market by the end of this year.

Specifications

• Measurement range: 32.0˚C (89.6˚F)~ 42.9˚C (109.2˚F)
• Low temperature display
  Temperature < 32.0˚C (89.6˚F): display: Lo˚C (Lo˚F)
• High temperature display
  Temperature > 42.9˚C (109.2˚F): display: Hi˚C (Hi˚F)
• Display resolution: 0.1˚C (32.2˚F)
• Accuracy:
  • 35.0˚C (95.0˚F) ~ 39.0˚C (102.2˚F): ±0.1˚C (0.2˚F)
  • Other range: ±0.2˚C (0.3˚F)
• Fever beep: Sound〔＞37.8˚C (100.0˚F)〕30 short beep sounds in 10 seconds
• Normal beep sound: 〔≦37.8˚C (100.0˚F)〕10 long beep sounds in 10 seconds
• Auto power off: 8 ± 2 minutes
• Battery: LR41 or SR41
• Life of battery: 2 years
• Operating condition
  Temperature: 10˚C (50˚F)~40˚C (104˚F), Humidity: 10%~95% RH
• Storage condition
  Temperature: -20˚C (-68˚F) ~ 60˚C (140˚F), Humidity: 10%~95% RH
• Weight: 10g

Intended Use

The digital thermometers are intended for the measurement and monitoring of human body temperature by doctors or consumers in the hospital or home.

What is a “Normal” temperature?

Although the generally accepted “normal” temperature reading is 37.0˚C/98.6˚F, temperature readings can vary from 36.1˚C/97.0˚F to 37.2˚C/99.0˚F and still may be considered “normal”. Variations in temperature can be attributed to activities such as exercise, smoking, eating, and drinking. Your temperature is lower in the morning than in the afternoon. Other variations may be due to the location of the temperature reading. While the oral temperature follows the guidelines previously described, a rectal temperature is generally 0.5˚C /1.0˚F higher. Conversely, an axillary (under the arm) temperature will be 0.5˚C /1.0˚F lower.

FDK Digital Medical Thermometer BT-A13 Description

The FDK Digital is a versatile and easy-to-use medical thermometer that offers fast and accurate temperature readings. Its Bluetooth connectivity feature allows for real-time temperature monitoring through a mobile app, making it an ideal choice for monitoring the health of infants, children, and the elderly. With its waterproof design, this thermometer is easy to clean and maintain, ensuring optimal hygiene and safety. The LED display with backlight ensures easy reading even in low light conditions, while the memory storage feature allows for quick access to previous temperature readings.

Features of Your Digital Thermometer

How to Take Your Temperature

1. Press the ON/OFF button to activate. The unit will beep and display (or ). This LCD display test will go on for around 2 seconds.
2. Then, the temperature taken last time will be displayed with a “M” mark in the right corner.
3. Then, 37.0˚C (or 98.6˚F) will appear.
4. When Lo and flashing ˚C (˚F) displays, the thermometer is ready for temperature measuring. But if the room temperature is higher than 32.0˚C (89.6˚F), the room temperature would be displayed instead of Lo.
5. The beep will sound when temperature measuring is complete.
6. Press the ON/OFF button to turn off the unit. (The unit will automatically power off approximately ten minutes after use.)

Taking an Oral Temperature

• Place the probe tip under the tongue as near as possible to the heat pocket.
• Approximate measuring time: 30 seconds.
• Note: The oral temperature is slightly higher than the external temperature (about 0.3˚C or 32.54˚F).
• Suggestion: Close your mouth at least 2 minutes before taking the temperature for a more accurate measurement.

Taking an Underarm Temperature

• Wipe the underarm with a dry towel and place the probe tip under the arm so the tip is touching the skin with the thermometer perpendicular to the body. Put the arm across the chest so the probe tip is well covered.
• Approximate measuring time: 10 seconds.
• Note: Underarm temperatures are generally 0.5˚C or 32.9˚F lower than oral readings.
• Suggestion: Close your armpit at least 5 minutes before taking the temperature for a more accurate measurement.

Taking a Rectal Temperature

• Apply a water-soluble lubricant to the probe cover. Gently insert the probe (MAXIMUM ½”) into the rectum.
• Approximate measuring time: 20 seconds.
• Note: The rectal temperature is slightly higher than the external temperature (about 0.5˚C or 32.9˚F).

Replacing the Battery

The battery in your digital thermometer needs to be replaced when “T” appears in the lower right corner of the display. Replace the battery with a 1.55V, LR41 alkaline or SR41 silver oxide type or equivalent.

To Replace the Battery

1. Pull the battery cover away from the unit.
2. Remove the battery holder.
3. Use a non-metal pointed tool to remove the battery and insert the new battery with the positive (+) side facing up.
4. Replace the battery holder.

5. Carefully slide the battery cover back into place.



Warning: Properly dispose of the battery away from small children and heat.

Setup Guide

Setting up the FDK Digital Medical Thermometer BT-A13 is a straightforward process that involves the following steps:

1. Charge the thermometer using the included USB cable.
2. Download and install the compatible mobile app on your iOS or Android device.
3. Turn on the thermometer by pressing the power button for 2 seconds.
4. Activate Bluetooth on your mobile device and search for available devices.
5. Select the fdk Medical Thermometer BT-A13 from the list of available devices and follow the on-screen instructions to complete the pairing process.
6. Use the thermometer as per the instructions provided in the user manual.

FDK Digital Medical Thermometer BT-A13 Cleaning Instructions

1. Before and after each use, clean the thermometer with a soft cloth and isopropyl alcohol diluted with water, or wash with COLD soapy water.
2.  The unit can be submerged in water or alcohol (for waterproof models only).
3. Do not soak for an extended period or sterilize by boiling, gas, or steam autoclaves.

Solution Dilution with Water Method

• Ethanol: 70-80%, Wipe the probe with the soaked cloth
• Isopropyl Alcohol: 70-90%, Wipe the probe with the soaked cloth

Precautions

1. The thermometer should only be used under the supervision of an adult. It is not a toy for children. Please keep it out of children's reach.
2. Do not walk, run, or talk during temperature measurement.
3. Store the unit in the protective case when not in use.
4. Do not store the unit where it will be exposed to direct sunlight, dust, or humidity. Avoid extreme temperatures.
5. Avoid dropping or subjecting the thermometer to strong shocks.
6. Do not attempt to disassemble the unit, except to replace the battery.
7. The product has been calibrated by our technician. It should be recalibrated every year. Please contact our agent if further service is needed.
8. Contraindications: So far, none have been found.

Troubleshooting

Here are some common problems and solutions associated with the FDK Digital Medical Thermometer BT-A13:

• Problem: The thermometer is not pairing with my mobile device.
  Solution: Make sure that Bluetooth is enabled on your mobile device and that the thermometer is charged. Try resetting the thermometer by pressing and holding the power button for 10 seconds. If the problem persists, try uninstalling and reinstalling the mobile app.
• Problem: The temperature readings are not accurate.
  Solution: Make sure that the thermometer is being used correctly, as per the instructions provided in the user manual. Ensure that the thermometer is calibrated correctly by following the calibration instructions provided in the user manual.
• Problem: The thermometer is not charging.
  Solution: Ensure that the USB cable is properly connected to the thermometer and the power source. If the problem persists, try using a different USB cable or power source.

Pros & Cons

Pros

• Accurate temperature readings
• Fast measurement time
• Bluetooth connectivity for real-time monitoring
• Memory storage for up to 32 temperature readings
• Waterproof design

Cons

• Slightly more expensive than non-Bluetooth thermometers
• Battery life could be better

Customer Reviews about FDK Digital Medical Thermometer BT-A13

Most customers have praised the FDK Digital Medical Thermometer BT-A13 for its accurate temperature readings, fast measurement time, and ease of use. The Bluetooth connectivity feature has been particularly well-received, with customers appreciating the ability to monitor temperatures in real-time. However, some customers have expressed concerns about the battery life and the slightly higher price point compared to non-Bluetooth thermometers.
