Introduction

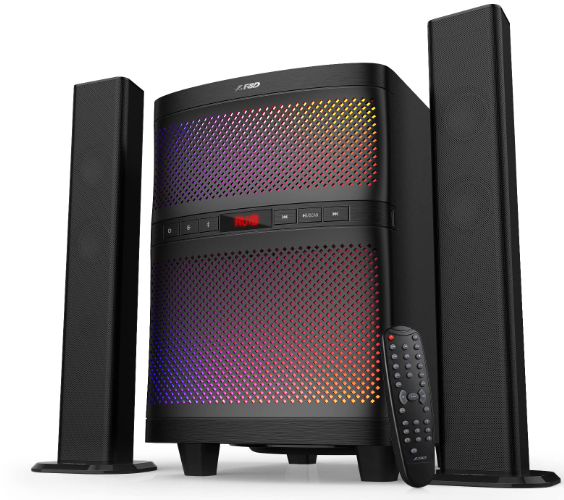

Introducing the Fenda Technology F&D Computer Speaker T-200X, a high-quality audio solution designed for computers and laptops. This speaker system offers powerful sound, stylish design, and easy connectivity, making it an ideal choice for music lovers, gamers, and professionals. The estimated price of the F&D Computer Speaker T-200X is around $70, and it is now available for purchase in major electronics stores and online marketplaces.

System contents

• Subwoofer unit: 1 pc
• Plastic satellite speakers: 2 pcs
• Remote control: 1 pc
• Operation manual: 1 pc
• 3.5mm to RCA stereo cable: 1 pc
• Cato RCA stereo cable (optional): 1 pc

Fenda Technology F&D Computer Speaker T-200X Specifications

• Output power(RMS): 35W+17.5WX2
  Speaker unit

  • Full Range Speaker: 2°X2, Subwoofer: 8°

• Frequency response

  • Subwoofer: 30Ha- 104z

  • Satellite: 135Hz-20KHz

  • Power supply: 220V-240V~50/60Hz 04A

  • Signal input:RCA jack

  • S/N Ratio:270dB

  • Separation:240dB

• Unit size

  • Subwoofer: W240XD345XH354mm

  • Satellite: WAOSXDSOXHGG mm

  • Net Weight: 6.6k

Features

• Bluetooth 4.0 enabled speaker.

• Big 8 Subwoofer driver for thumping Bass effect.

• Digital FM with 100 channels capacity.

• USB Reader.

• Multi color LED (You can choose any color out of 5 options given: Pink, Light Blue, Dark Blue, Green, Red).

• Fluorescence full Function remote control,

INSTALLATION GUIDE

1. Connect the satellite speaker cable to the output port of subwoofer in respective color port

2. Insert Input signal cable(RCA Socket) into subwoofer input port and the other end with output port of your Audio/Video system in respective color port,

Front panel keys

1. Standby button

2. Source button

3. Bluetooth Pairing

4. Previous button and Volume decrease

5. Play/Pause/FM auto scan button

6. Next button and Volume increase

Function of Panel keys

1. :Turn on/off unit.

2. : Switch between BT, AUX, USB and FM mode.

3. : Long press entering pairing mode and the display will flash fast.

4.
   a. USB mode: Short press to decrease volume, long press to select previous song
   b. FM mode: Short press to decrease volume Ong press to select previous stored station
   c. Bluetooth mode: Short press to decrease volume, Jong press to select previous song.

5.
   a. USB Mode: Short press for play/pause music.
   b. FM Mode: Short press to start Auto Search & this will store the found frequencies (channels) automatically.
   c. Bluetooth mode: Short press to play/pause music.

6.
   a. USB mode: Short press to increase volume, long press to select next song
   b. FM mode: Short press to increase volume, Jong press to select next stored station,
   c. Bluetooth mode: Short press to increase volume Ong press to select next song.

Remote control

Remote control keys function

1. A : tum on/off unit.

2. B. AUX, ,USB (For USB Mode) and FM key: short press the keys to switch to respective modes.

3. C. : press it to mute or unmute the sound.

4. D. : decrease or increase the master volume.

5. E. Tune +/-
   FM mode Fine Tuning: Short press to increase or decrease one step (100Khz), Manual Tuning: Long press of this key works for Manual tuning

6. F. MEM: Short press of this key work to store tuned station through Fine or Manual tuning

7. G. CH+/-:FM mode: select stored station.

8. H. Scan: FIM mode: Short press to start Auto Search & this will store the found frequencies (channels) automaticaly.

9. I. Enter: confirm selection and return to main screen.

10. J. 0~9 number keys:

    • USB source: directly press numeric keys through remote to select your favorite song, if you know the song number in the folder. The system will automatically play the last song of the folder if you press number excess of song number of that folder.

    • FM source: directly press numeric keys through remote to select your favorite station if you know the station number (1~100). Or press 3 or 4 digits of frequency to play that station, for example, 1026 for 102.6 MHz station.

11. K. Play/Pause: USB and BT source, short press to play or pause.

12. L. Prev: USB and BT source, short press to select previous song.

13. M. Next: USB and BT source, short press to select next song.

14. N. Folder / : USB source, short press to select next/previous folder.

15. O. Reset: short press to go to default settings.

16. P. : Press it to switch the light color.

17. Q. : Turn ON/OFF the LED light & to change the brightness.

Bluetooth pairing

Switch to Bluetooth mode, T-200X will automatically search the Bluetooth device. If the device paired before, T-200X will connect automatically. If can’t find paired device, F3800X will enter pairing mode automatically, bluetooth LED display under pairing button flashes quickly.

1. Active “Bluetooth” function on your device and search for “T-200X”.Enter “0000” if your device asks for the PIN code.

2. After pairing successfully, bluetooth LED display will be bright, and ready for playing music. Recommend to adjust suitable volume before playing music.

Tips: To make sure your PC or notebook is working well with our Bluetooth speakers, it is recommended that you check with your PC or notebook vendor first. Make sure the correct Bluetooth driver software is installed.
Compatibility
Compatible with Smartphones and tablets supporting Bluetooth (A2DP) protocol

Description

The Fenda Technology F&D Computer Speaker T-200X is a compact and elegant speaker system that delivers crystal-clear sound and rich bass. Its 2.0 channel design features two 2.5 inch full-range drivers that provide a balanced and detailed audio experience. The speakers support multiple inputs, including 3.5mm AUX-in and RCA, allowing you to connect various devices such as computers, laptops, tablets, and smartphones. The T-200X also supports Bluetooth 5.0 for wireless connectivity, with a range of up to 10 meters. Its sleek and modern design, combined with its powerful sound, makes the F&D Computer Speaker T-200X an excellent addition to any desktop or workspace.

Setup Guide

Setting up the Fenda Technology F&D Computer Speaker T-200X is simple and straightforward. Follow these steps to get started:

1. Unbox the speakers and remove any protective packaging.
2. Connect the power adapter to the speakers and plug it into a power outlet.
3. Connect your device to the speakers using the 3.5mm AUX-in cable or RCA cable, or pair it wirelessly via Bluetooth.
4. Adjust the volume level and bass control on the speakers or through your device.
5. Enjoy high-quality sound from your computer or other devices.

Caution

• Do not place the system in the high-temp and humid environment prevent it from raining or rough handing and strong shock.

• In order to avoid electric shock and other accidents,do not open the right side panel cover for repair without any professional guidance.

• In case fragments or other ligiids is accidentally sprinkled inside the cabinet, please switch off the power immediately In case of repair pls Come to the professional maintenance for help.

• Switch off the power and take off the plug from the power jack when the system is not on work.

• Keep it safe from water drops or splashing water, and no liquid container allowed to be put on its top side.

• Keep the cabinet vent far from the wall by 20mm at least and the air vent should not be blocked Do not keep it close to the fire.

Fenda Technology F&D Computer Speaker T-200X Troubleshooting

Assembly Schematic of satellite speaker unit ( soundbar)

Assembly Schematic of satellite speaker unit ( floor stand )

Warranty

The warranty will be effective only if the warranty card is completed and returned to the company within 14 days from the date of purchase. We guarantee the provision of free services of 2 &2 product within the warranty period from its date of purchase from our Authorised Dealer.

• Parts…………………………………….1 year
• Technical service free………………1 year

Pros & Cons

Pros

• Powerful and clear sound with rich bass
• Elegant and modern design
• Multiple input options, including Bluetooth 5.0
• Easy to set up and use

Cons

• No dedicated treble control
• May be too powerful for small spaces

Customer Reviews about Fenda Technology F&D Computer Speaker T-200X

Customers who have purchased the Fenda Technology F&D Computer Speaker T-200X have praised its sound quality, design, and ease of use. Some have noted that the speakers are slightly larger than expected, but this has not affected their overall satisfaction with the product. The most common complaint is that the bass can be overwhelming at higher volume levels, but this can be adjusted through the bass control on the speakers.
