Fezibo 48 Inches Electric Standing Desk Shelves Instruction Manual

Content

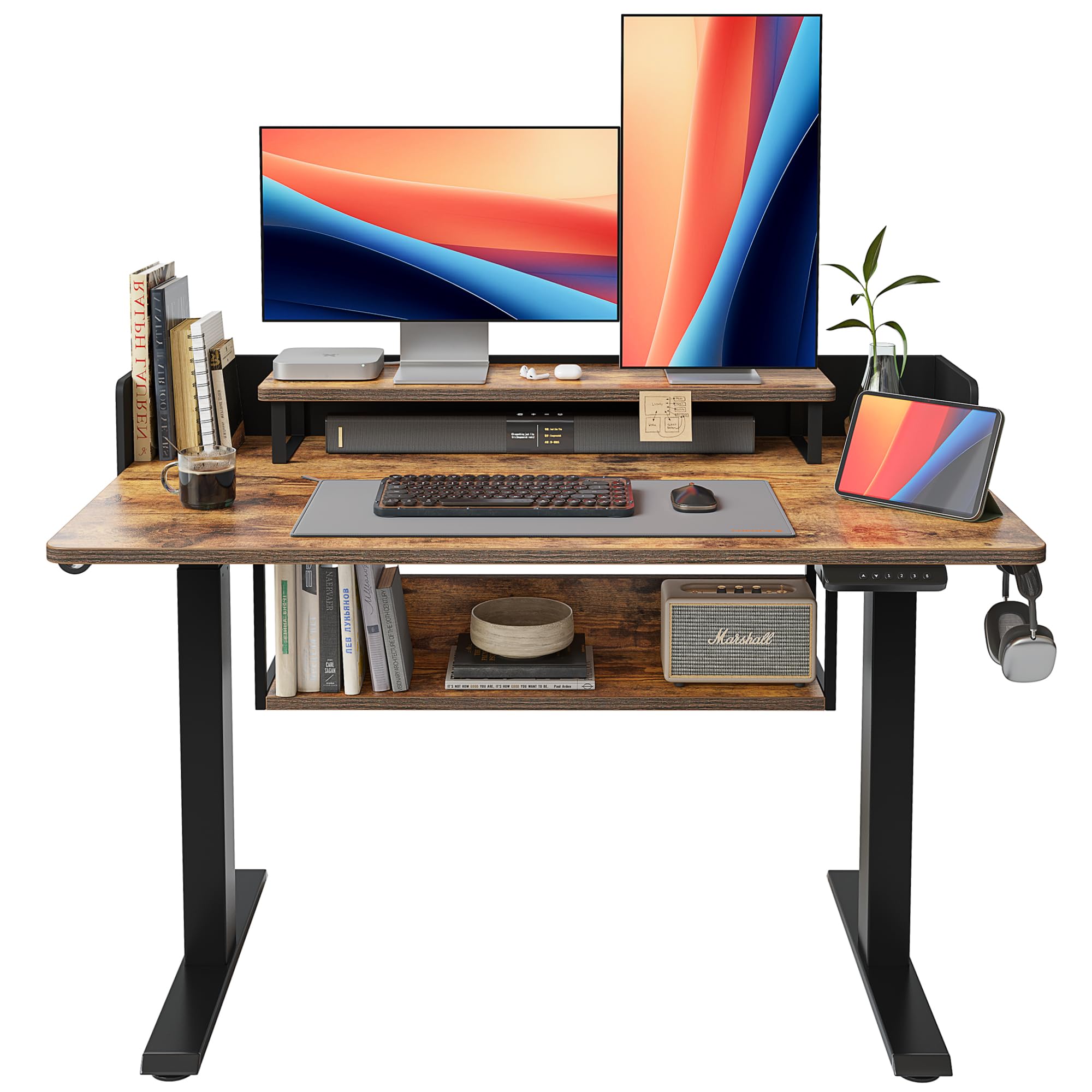

Fezibo 48 Inches Electric Standing Desk Shelves

Introducing the The Fezibo 48 Inches Electric Standing Desk Shelves  are the perfect solution for anyone looking to create a functional and organized workspace. These shelves are designed to fit seamlessly with the Fezibo Electric Standing Desk, providing additional storage and display space. The estimated price of the Fezibo Electric Standing Desk Shelves is $150, and they are set to launch in the coming months.

FEZIBO standing desk


Detailed Specifications

The Fezibo 48 Inches Electric Standing Desk Shelves  are made of high-quality MDF wood and feature a sleek, modern design. They are able to hold up to 33 lbs and come with pre-drilled holes for easy assembly. The shelves measure 23.6" x 11.8" x 0.5" and are available in a natural wood finish. The electric desk itself has a weight capacity of 176 lbs, a height range of 28" - 48", and a spacious desktop measuring 48" x 23.6".

Fezibo 48 Inches Electric Standing Desk Shelves Assembly


Directions For Use


The whole handset surface is a button panel. If there is no press within 30 seconds, the screen is locked and M1/M2/M3/M4 keys are locked correspondingly, you should press Up or Down key first, it can be used when the display screen light up.

Up & Down Keys
Please keep pressing UP/DOWN key to adjust desk height until you get an optimum height.

Display Screen
Display the height value of the desk.

Memory Key M1/M2/M3/M4
After seting memory keys, the desk can lift automatically to memory height.
How to set memory mode
Please keep touching M1/M2/M3/M4 key for 5 seconds, until "di" sound, the memory height is successfully saved. Then light touch M1/M2/M3/M4, the desk moves to memory height automatically.

Set Key(M4)
Press the "S" key when internal parameters need to be set.

Initialization

  1. 1.When"RST”is on the display screen, press the" "button until the desk frame reaches its lowest point. After hearing the "di" sound and desk frame rebounds, initialization is completed. (P.S. The button cannot be released during this operation, otherwise the initialization will fail)
  2. Forced initialization: Press the" "button until the desk frame reaches its lowest point, then release the button and press it again for about 5 seconds until hear the "di" sound and desk frame rebound, and the initialization is completed.
  3. Restore the factory settings: When new controller is changed or the parameters need to be restored to the factory settings, press the" "and" "buttons simultaneously, you will hear the first“ di” sound after about 5 seconds and second“ di” sound after 10 seconds. When the display screen shows "RST", please operate refer to the No.1 item.

Safety Function
When the desktop is on the rise or down, encountered reverse resistance, the desk will rebound.

Handset shows error code and solution

Error codeFault causeSolution
E01, E06, E07Power faultChange power
E04Handset faultUnplug and replug the cable of hand set
E05Anticollision alertRebound reminder, normal condition
E08Desktop slopingCheck the desktop
E11, E21, E40, E41Connection cable failureCheck the connecting cable
E12, E22, E42, E43Controller faultExchange the controller
E14 - E17, E24 - E27Motor faultChange motor
E18, E28OverloadingReduce the loading
HOTOvertime operationAutomatic recovery after stopping use for 20 minutes

Description

The Fezibo 48 Inches Electric Standing Desk Shelves  are the perfect addition to any home or office. They provide extra storage and display space, making it easy to keep your workspace organized and clutter-free. The shelves are designed to fit perfectly with the Fezibo Electric Standing Desk, creating a cohesive and functional workspace. Whether you're working from home or in the office, these shelves will help you stay organized and productive.

Advanced Function Settings

Limited height setting: Press" "and" "key for 5 seconds till heard a bee sound , limited height setting success. (minimum limited height<96,maximum limited height>97). Cancel the function, run to the limit height, press" "and" "again for 5 seconds, hear the buzzer sound, limited height Cancel.
Lock and unlock: Press" "and " S " key for 5 seconds , Screen display "LOC" , system locked up, Press" "and " S " key for 5 seconds, screen display “LOC” turn to number ,system unlocked.


Setup Guide

Setting up the Fezibo 48 Inches Electric Standing Desk Shelves  is easy. Simply follow these steps:

  1. Unbox the shelves and lay all the pieces out
  2. Connect the two shelves together using the pre-drilled holes
  3. Attach the shelves to the desk using the provided screws
  4. Plug in the electric desk and use the keypad to adjust the height

Warranty

To provide the best service to you, don't forget to register your FEZIBO product to confirm your warranty. It only takes a few simple steps and then you can access a wide range of services such as technical support, new product alert, promotions, and warranty service from FEZIBO. Send your name and order ID to [email protected]

Troubleshooting

If you're having trouble with your Fezibo 48 Inches Electric Standing Desk Shelves , here are some common problems and solutions:

  • The shelves are wobbly: Make sure the shelves are properly attached to the desk and that the screws are tight.
  • The electric desk won't move: Make sure the desk is plugged in and that the keypad is functioning properly.
  • The shelves are uneven: Make sure the shelves are level and that they are properly attached to the desk.

Pros & Cons

Pros

  • Provides extra storage and display space
  • Easy to assemble
  • Sleek, modern design
  • Fits perfectly with the Fezibo Electric Standing Desk

Cons

  • May be expensive for some users
  • Limited color options

Customer Reviews

Customers love the Fezibo 48 Inches Electric Standing Desk Shelves  for their added storage and sleek design. However, some have noted that the shelves can be a bit wobbly at times and that the price is a bit high. Overall, the Fezibo Electric Standing Desk Shelves are a great addition to any workspace.

Common Complaints

The most common complaint about the Fezibo 48 Inches Electric Standing Desk Shelves  is that they can be a bit wobbly at times. However, this can be easily fixed by making sure the shelves are properly attached to the desk and that the screws are tight.

PDF

Faqs

How do I adjust the height of the Fezibo Electric Standing Desk?

To adjust the height, use the up and down arrows on the control panel. Press and hold until the desk reaches your desired height.

Are there cable management features included with the desk?

Yes, the desk includes cable management features to help keep your workspace organized.

Can I use a monitor arm with this desk?

Yes, you can use a monitor arm as long as it is compatible with the desk's thickness and design.

How do I save a height setting on the Fezibo desk controller?

To save a height setting, adjust the desk to the desired height, then press and hold one of the memory buttons (1, 2, or 3) until you hear a beep.

Is the desk surface scratch-resistant?

The MDF surface with laminate finish is resistant to scratches, but it's recommended to use desk pads or coasters to protect it from heavy or sharp objects.

How do I reset the desk controller if it stops working?

To reset the controller, press and hold the down arrow until the desk reaches its lowest height and then bounces back slightly.

Does the desk come with anti-collision technology?

Yes, the desk is equipped with anti-collision technology to prevent damage when adjusting heights.

How much space do I need to assemble the desk?

Ensure you have ample space to lay out all parts and tools, ideally in the room where the desk will be used.

How quiet is the motor during height adjustments?

The motor is designed to operate quietly, making minimal noise during height adjustments.

Are replacement parts available for the Fezibo desk?

Yes, replacement parts can be ordered through Fezibo customer support or their website.
