How to Use: Frigidaire Ice Maker User Manual

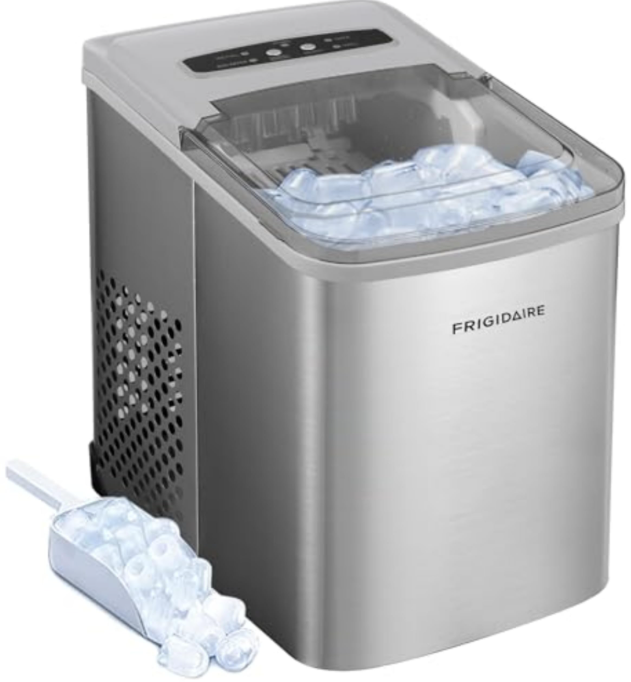

Frigidaire Ice Maker

Introduction

The Frigidaire Ice Maker is a versatile and reliable countertop appliance designed to deliver a steady supply of ice with convenience and style. Perfect for both home and small business use, this compact ice maker enhances any kitchen, bar, or office space by providing quick access to fresh ice without the need for bulky bags or frequent store runs. Its user-friendly design, combined with modern technology, ensures effortless operation for all skill levels, making it ideal for entertaining guests, cooling beverages, and food preservation.

Among its key benefits are rapid ice production, customizable ice sizes, and a sleek stainless steel finish that complements contemporary interiors. The Frigidaire Ice Maker is especially suited for households with frequent entertaining needs, small cafes, or office break rooms where ice demand is consistent but space is limited.

With a price range typically between $100 and $130, this product offers excellent value compared to traditional ice machines, combining efficiency and affordability. It is widely available through major retailers and online marketplaces, ensuring easy purchase and delivery options. The Frigidaire Ice Maker stands out for its balance of performance, design, and cost-effectiveness, making it a top choice for those seeking a portable yet powerful ice-making solution.

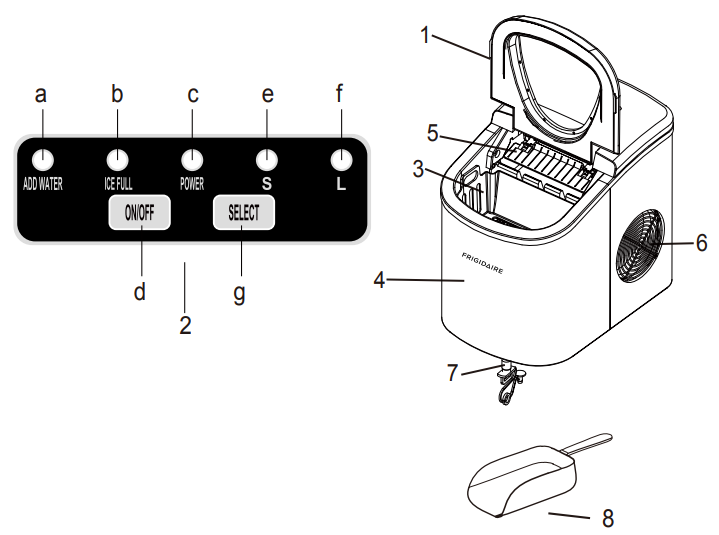

DESCRIPTION OF PARTS

1. Cover
2. Control Panel
   1. Add Water Indicator Light
   2. Ice Full Indicator Light
   3. Power Indicator Light
   4. On/Off Button
   5. ‘S’ Small Ice Size Indicator Light
   6. ‘L’ Large Ice Size Indicator Light
   7. Select Button – to choose ice size
3. Ice Basket
4. Water Reservoir (below Ice Basket)
5. Ice Shovel and Evaporator Fingers (behind Ice Shovel)
6. Air Outlet
7. Drain Plug
8. Ice Scoop

BEFORE FIRST USE

This portable icemaker uses a fully automatic control system, with an advanced microcomputer for easy and convenient ice making. Making ice is simple and fast. Just add water, plug into an outlet, and press the ON button. You can select one of the two ice cube sizes with the touch of a button. When first turning on the unit or during icemaking cycles, the compressor will stay idle for 3 minutes, while energizing.

There are warning indicators that alert you to fill water when the reservoir is empty and to remove ice when the storage basket is full. The icemaker also has built-in safeguards that can limit accidental damage, automatically shutting down the system when necessary.

Please read carefully.

1. The incline angle of the icemaker cabinet should not exceed 45˚ during transportation or use. Do not turn the icemaker upside down.
2. Doing so could cause the compressor or refrigerating system to operate incorrectly. When the icemaker is moved or transported, please allow time for the fluids in the compressor to settle. Before using the icemaker for the first time, please wait 2 hours after the unit has been leveled and positioned in its proper place.
3. Please ensure the icemaker is level and on a stable table or platform
   to avoid malfunction.
4. The machine must be placed on a dry and level surface with sufficient ventilation, far from heat sources such as ovens, heaters,, and corrosive gases. Leave an 8-inch clearance on all sides of the icemaker for proper ventilation. Do not fill the water reservoir with hot water. This may damage the icemaker. It is best to fill the water reservoir with water of room temperature or lower.

USE YOUR ICE MAKER

1. Ensure that the Drain Plug underneath the front of the unit is closed and the Water Tube Screen is in place.
2. Plug the Ice Maker into the wall outlet, et and the green power indicator light will blink (approximately every 5 seconds).
3. Open the Cover and remove the Ice Basket.
4. Fill the Water Reservoir. NOTE: Do not fill above the MAX water level mark at the back of the Water Reservoir.
5. Replace the Ice Basket and close the Cover.
6. Press the Power But,, ton and the green indicator light will remain on.
7. To change between either the small or large ice size, press the Select Button until the light is lit up beside the desired ice size.
8. The first ice-making cycle will last approximately 8 - 13 minutes,, depending on the ice size that is selected. The Theice-makingg cycle starts with water being pumped into the Water Tray situated below the Evaporator Fingers. Over the next 8 - 13 minutes, ice forms on the Evaporator Fingers. Once this has been completed, the Ice Tray will tilt backwards, and the remaining water in the Ice Tray will be drained back into the Water Reservoir. The ice cubes are then dropped from the Evaporator Fingers and pushed forward into the Ice Basket by the Ice Shovel. The Ice Tray will automatically move back into position under the Evaporator Fingers and start the next cycle.
9. The 'Ice Full' LED light will light up when the ice basket is full,, and the Ice Maker will stop the ice-making cycle automatically. Gently remove the ice from the Ice Basket with the Ice Scoop. Once the Ice Basket has been emptied and the Cover closed, the Ice Maker will restart its ice-making function automatically. IMPORTANT: Wait 3 minutes, then press the Power Button to restart the ice-making function.
10. The ‘Add Water’ LED light will light up when there is no more water in
    the Water Reservoir, and the ice-making cycle will stop automatically. Press the Power Button once (the Power Button will flash every 5 seconds). Remove the Ice Basket and add water to the Water Reservoir.
    1. NOTE: Do not fill above the MAX water level mark at the back of the Water Reservoir. Replace the Ice Basket and close the Cover. IMPORTANT: Wait 3 minutes, then press the Power Button to restart the ice-making function.
11. When you have finished making ice, transfer the ice to a freezer.
    1. NOTE: The ice will last in the Ice Maker for up18 hours, depending on the ambient temperature. Stop the ice-making cycle by pressing the Power Button. Unplug the unit from the wall outlet.
12. Open the Cover and allow the Ice Maker to reach room temperature
    and follow the directions in the Care and Cleaning section.

CARE AND CLEANING

1. Stop the Ice ice-making cycle by pressing the Power Button, and the green LED light will go out. Unplug the Ice Maker from the wall outlet. Allow the unit to warm up to room temperature.
2. If the Water Tray is not in the vertical position behind the Evaporator Fingers, gently push the Water Tray back so that all water drains into the Water Reservoir.
3. Open the Drain Plug to drain out excess water.
4. Remove the Ice Basket.
5. Remove the Water Tube Screen and rinse under running water.
6. Clean the Ice Maker interior with a soft cloth dampened in warm water and vinegar. Rinse with a clean,n damp cloth.
7. Replace the Drain Plug and the Water Tube Screen. Wash the Ice Basket and Ice Scoop in warm, soapy water. Rinse and dry.  Clean the exterior of the Ice Maker with a soft, ft damp cloth. Use a mild dishwashing soap, if necessary.
   IMPORTANT NOTE: Do not clean the Evaporator Fingers.

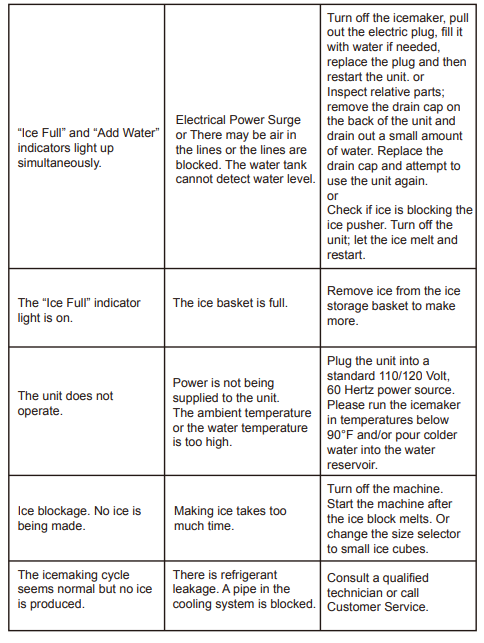

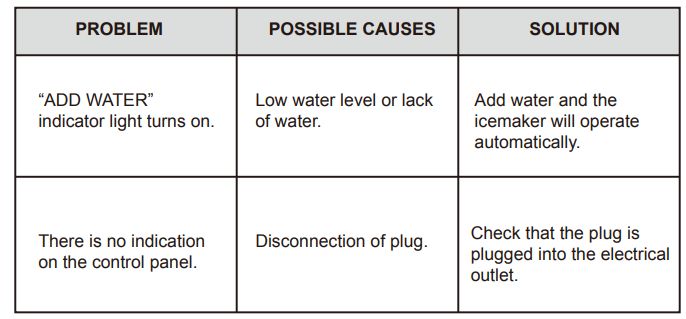

TROUBLESHOOTING GUIDE

1 Year Warranty

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us. If the product or component is no longer available, we will replace it with a similar one of equal or greater value. Prior to a replacement being sent, the product must be rendered inoperable or returned to us.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions., or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as on the specified rating on the label (e.g., 120V-60Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

For faster service, locate the model, type, and serial numbers on your appliance.

Frigidaire Ice Maker Specifications and Features

• Ice Production Capacity: Produces up to 26 pounds of clear, cube-shaped ice per day, suitable for daily household or small commercial use.
• Ice Storage Capacity: Stores approximately 2.2 pounds of ice at a time in an accessible ice basket.
• Dimensions: Compact footprint measuring approximately 13" W x 13.5" D x 14.75" H, ideal for countertops with limited space.
• Ice Cycle Time: First batch ready in as little as 6 minutes, with ongoing production cycles that maintain a continuous supply.
• Water Reservoir: Holds up to 2.3 quarts (about 2.2 liters) of water, minimizing refill frequency.
• Control Panel: User-friendly digital interface with indicator lights alerting when the water is low or the ice basket is full.
• Ice Sizes: Offers two different ice cube sizes, allowing customization for various uses.
• Exterior Finish: Durable stainless steel with a see-through lid to monitor ice production.
• Energy Consumption: Operates efficiently at 500 watts, balancing power usage with performance.

Compared to similar portable ice makers, the Frigidaire model stands out for its rapid production speed and clear ice quality, matching or exceeding industry benchmarks for compact countertop units. Its stainless steel design offers greater durability and aesthetic appeal than many plastic-bodied competitors.

Pros and Cons of the Frigidaire Ice Maker

• Pros:
  • Fast Ice Production: Produces ice in as little as 6 minutes, ensuring quick availability.
  • Compact and Portable: Small footprint and lightweight design make it easy to move and store.
  • Customizable Ice Sizes: The User can select the preferred cube size to suit different beverages and uses.
  • Clear Ice Cubes: Produces attractive, transparent ice cubes that melt more slowly and improve drink quality.
  • Easy to Use: Intuitive controls and indicator lights simplify operation and maintenance.
  • Modern Aesthetic: Stainless steel finish fits well in various kitchen styles.
• Cons:
  • Limited Ice Storage: Holds only about 2.2 pounds of ice at a time, requiring frequent emptying in high-use scenarios.
  • Water Reservoir Size: 2.3-quart capacity may require multiple refills during heavy use periods.
  • Not Suitable for Large Scale Commercial Use: Designed primarily for home or small office use, not industrial scale.
  • Noise Level: Some users note moderate operational noise during ice production cycles.

Overall, the Frigidaire Ice Maker offers excellent value for money, especially for users who prioritize speed, portability, and ice clarity. Compared to alternatives like larger commercial units or cheaper plastic models, it balances quality and cost effectively.

Customer Reviews and Feedback on the Frigidaire Ice Maker

Users consistently praise the Frigidaire Ice Maker for its fast ice production, appealing design, and ease of use. Many highlight the quality of the clear ice cubes, which add a professional touch to home beverages. The quick initial ice production time and straightforward controls receive high marks in customer testimonials, contributing to an average rating of around 4 out of 5 stars.

Common praises include its compact size, making it ideal for small spaces, and the visible window that allows users to monitor ice levels without opening the lid. However, some customers mention that the storage basket fills quickly and requires frequent emptying during gatherings or parties. A few users note the need for regular water refills due to the reservoir’s modest capacity.

Despite minor drawbacks, the majority recommend the Frigidaire Ice Maker for anyone seeking a reliable, portable ice solution that delivers value and convenience consistently.
