Setup & Features: Gree Vireo Gen 3 Indoor Wall-Mounted Split Air Conditioner and Heat Pump Series 3VIR09HP230V1AH User Manual

Content

Gree Vireo Gen 3 Indoor Wall-Mounted Split Air Conditioner and Heat Pump Series 3VIR09HP230V1AH: Overview, Features, and User Guide

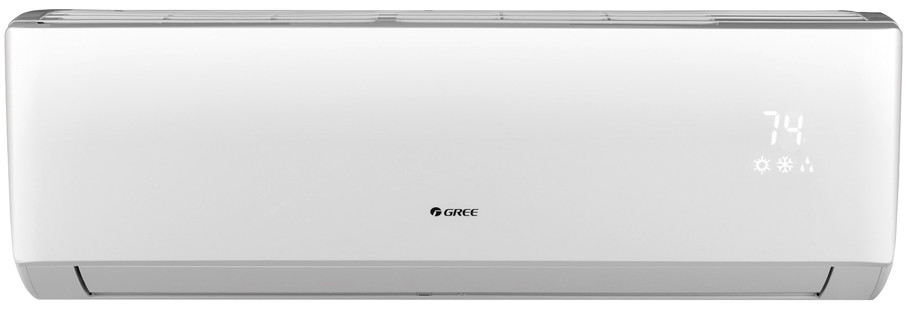

The gree Vireo Gen 3 Indoor Wall-Mounted Split Air Conditioner and Heat Pump Series 3VIR09HP230V1AH is a compact, high-efficiency indoor unit designed for single-zone comfort in bedrooms, home offices, apartments, small living rooms, and light-commercial spaces. It pairs with a compatible outdoor heat pump unit to deliver both cooling and heating in a wall-mounted format that saves floor space while offering quiet, targeted climate control.

This model is built for users who want strong seasonal efficiency, modern mini split convenience, and reliable year-round performance. Key selling points include low indoor sound levels, inverter-style compatibility through the matched outdoor system, and a slim indoor profile that blends into most interiors. The 3VIR09HP230V1AH is especially appealing for homeowners upgrading from window units, as well as contractors specifying a clean single-zone solution for retrofit projects and new installs.

In current market listings, the estimated price range for the indoor unit alone commonly falls around the mid-hundreds, while complete matched systems typically price higher depending on outdoor unit, line set, labor, and accessories. Availability is generally through HVAC distributors, supply houses, and specialty online retailers, though stock can vary by region and season. For buyers searching for a dependable ductless wall-mounted heat pump indoor unit, this model stands out as a practical balance of performance, efficiency, and installation flexibility.

Technical Specifications for the 3VIR09HP230V1AH Wall-Mounted Mini Split Indoor Unit

  • System type: Heat pump indoor unit for single-zone ductless installation
  • Cooling capacity: 9,100 BTU/h nominal
  • Heating capacity: 11,000 BTU/h nominal, with matched-system performance varying by outdoor unit
  • Electrical: 208-230V, 1 phase, 60Hz, powered by the outdoor unit
  • Refrigerant: R410A
  • Airflow: 159 to 353 CFM
  • Sound pressure level: 25 to 40 dB(A)
  • Dehumidification: 1.69 pt/hr
  • Dimensions: 32-1/2 x 11-9/16 x 7-3/4 inches
  • Net weight: 20.9 lbs
  • Refrigerant line set: 1/4 inch liquid line and 3/8 inch gas line
  • Mounting style: Wall-mounted high-wall indoor fan coil

Performance-wise, this model is positioned as a high-efficiency 9k ductless indoor unit for spaces that need quiet operation and stable temperature control. Compared with basic ductless indoor heads, the gree Vireo Gen 3 Indoor Wall-Mounted Split Air Conditioner and Heat Pump Series 3VIR09HP230V1AH offers stronger efficiency credentials and a more refined airflow range. It is best matched to a compatible Gree outdoor condenser designed for single-zone use, which is essential for achieving rated SEER2, EER2, and HSPF2 performance.

Setup Guide: How to Install and Configure the Gree Vireo Gen 3 3VIR09HP230V1AH

Installation should be handled by a licensed HVAC professional because the system requires refrigerant piping, electrical matching, and outdoor unit pairing. Start by choosing an interior wall with enough clearance for service access, airflow, and condensation drainage. Confirm the wall can support the indoor unit and that the refrigerant line path to the outdoor unit is short, protected, and within the approved limits for the matched system.

Next, mount the bracket level, drill the line-set opening, and route the 1/4 inch liquid line, 3/8 inch gas line, condensate drain, and communication wiring to the outdoor unit. Secure all connections, evacuate the line set, and verify leak-free operation before startup. Once powered, use the remote controller to configure fan speed, swing direction, temperature setpoint, sleep mode, timer settings, and heating or cooling mode. If the unit does not start correctly, check polarity, power supply, and whether the indoor and outdoor units are properly matched.

Safety warnings matter: do not power the unit during installation, do not bend refrigerant tubing sharply, and do not block the air inlet or outlet. If connectivity features are included in the installed configuration, follow the pairing instructions in the system guide and verify the wireless controller responds before closing the installation. If airflow feels weak after setup, inspect filters, wall clearance, and indoor coil alignment.

Troubleshooting the gree Vireo Gen 3 Indoor Wall-Mounted Split Air Conditioner and Heat Pump Series 3VIR09HP230V1AH

Most issues with the gree Vireo Gen 3 Indoor Wall-Mounted Split Air Conditioner and Heat Pump Series 3VIR09HP230V1AH come from installation errors, restricted airflow, sensor faults, or mismatched system components. If the unit will not cool, confirm the outdoor unit is running, the thermostat setpoint is lower than room temperature, and the filters are clean. If heating is weak, check outdoor ambient conditions, line-set integrity, and whether the system is in the correct operating mode.

  • Weak airflow: Clean the filter, inspect the blower wheel, and verify nothing blocks the front intake.
  • Water dripping indoors: Check the drain line slope, condensate pan, and wall penetration for blockage.
  • Unit not responding: Replace remote batteries, confirm power at the outdoor unit, and reset the system.
  • Unusual noise: Tighten mounting hardware and inspect for loose panels or vibration against the wall.
  • Temperature swings: Ensure the room size matches the 9k capacity and avoid oversized or undersized pairing.

Error code behavior can vary by matched outdoor unit, so the exact code should be checked against the installed system documentation. Preventive care includes washing filters regularly, keeping the coil clean, and scheduling annual maintenance. Warranty support is typically handled through the dealer or distributor that supplied the equipment, and many sellers provide parts assistance through HVAC support teams. For help, customers should contact the installing contractor or the authorized Gree distributor listed on the purchase paperwork.

Pros and Cons of the Gree Vireo Gen 3 3VIR09HP230V1AH

Pros

  • Quiet indoor operation, making it a strong choice for bedrooms and offices.
  • Compact wall-mounted design saves floor space and looks clean in modern interiors.
  • Strong cooling and heating output for a 9,100 BTU indoor unit.
  • Good efficiency profile for buyers seeking a ductless mini split heat pump.
  • Works well in single-zone applications where precise comfort control is important.

Cons

  • Requires professional installation, which increases total project cost.
  • Performance depends heavily on the correct matched outdoor unit.
  • R410A is less future-focused than newer low-GWP refrigerants used in some alternatives.
  • Indoor unit alone does not provide heating or cooling without the full system.
  • May be more than needed for users who only want basic spot cooling.

For value for money, this model makes sense when paired with a properly sized outdoor unit and installed in the right room size. Compared with basic budget mini splits, it offers a more polished experience and stronger efficiency. Compared with premium alternatives, it is usually more approachable in price while still delivering solid performance.

Customer Reviews and Real-World Impressions of the 3VIR09HP230V1AH

Owners commonly praise the unit for quiet operation, fast room pull-down, and clean wall-mounted styling. Many users describe it as a good fit for bedrooms, small apartments, and home offices where stable comfort matters. Typical star ratings in retailer feedback often land in the 4 to 5 star range when the system is professionally installed and sized correctly.

Common complaints focus on installation cost, the need for a matched outdoor unit, and occasional confusion about remote settings or mode selection. Some users also note that performance can drop if the filters are not cleaned regularly. A typical positive testimonial sounds like this: “It cools the room quickly, stays quiet at night, and looks much better than a window unit.” A common caution sounds like this: “Great system, but make sure the installer sizes everything correctly.” For buyers considering the gree Vireo Gen 3 Indoor Wall-Mounted Split Air Conditioner and Heat Pump Series 3VIR09HP230V1AH, the strongest recommendation is to buy it as part of a complete, professionally matched mini split system.

PDF

Faqs

How do I set up the gree Vireo Gen 3 Indoor Wall-Mounted Split Air Conditioner and Heat Pump Series 3VIR09HP230V1AH for the first time?

Start by confirming that the indoor unit is paired with a compatible outdoor unit and that the system is powered by 208-230V, 1Ph, 60Hz from the outdoor unit. Mount the indoor head level, leave proper clearance for airflow, and make sure the refrigerant lines use the correct 1/4-inch liquid and 3/8-inch gas flared connections. After installation, test cooling, heating, fan speed, and remote settings before regular use.

What size room is the gree Vireo Gen 3 Indoor Wall-Mounted Split Air Conditioner and Heat Pump Series 3VIR09HP230V1AH best suited for?

This 9,000 BTU class indoor unit is typically a good fit for smaller rooms, home offices, bedrooms, or compact living spaces. Its cooling capacity is listed around 9,100 BTU/h, while heating output is about 11,000 BTU/h, so it can handle both summer cooling and winter heating in modest-sized spaces. Actual room coverage depends on insulation, ceiling height, sun exposure, and local climate, so sizing should always account for those factors.

Why is the gree Vireo Gen 3 Indoor Wall-Mounted Split Air Conditioner and Heat Pump Series 3VIR09HP230V1AH not cooling or heating properly?

If performance drops, first check the thermostat or remote mode, set temperature, and fan speed. Also verify that the outdoor unit has power and that filters are clean, since restricted airflow can weaken output. The system uses R410A refrigerant, so low charge, line-set issues, or an installation problem may also cause poor performance. If the unit still underperforms, a licensed HVAC technician should inspect the refrigerant circuit and electrical connections.

What are the key features of the gree Vireo Gen 3 Indoor Wall-Mounted Split Air Conditioner and Heat Pump Series 3VIR09HP230V1AH?

This Vireo Gen 3 indoor unit is designed as a wall-mounted, single-zone heat pump system with efficient year-round operation. It offers a variable airflow range from 159 to 353 CFM and operates quietly, with sound levels as low as 25 dB(A). The unit also supports dehumidification, making it useful in humid climates. Its compact size and high-efficiency design make it a practical option for homeowners who want both comfort and energy savings.

Can the gree Vireo Gen 3 Indoor Wall-Mounted Split Air Conditioner and Heat Pump Series 3VIR09HP230V1AH work with a 230V single-phase setup?

Yes, this model is designed for 208-230V, 1Ph, 60Hz operation. The indoor unit itself is powered by the outdoor unit, so the full system must be installed with the correct electrical supply and compatible outdoor equipment. Before installation, confirm breaker sizing, wiring, and disconnect requirements with the installer. Using the wrong power configuration can damage the system or cause startup problems, so electrical compatibility should be checked early.

How do I reduce noise from the gree Vireo Gen 3 Indoor Wall-Mounted Split Air Conditioner and Heat Pump Series 3VIR09HP230V1AH?

To keep noise low, make sure the indoor head is mounted securely and level, because loose brackets can create vibration. Use the lowest fan speed that still meets comfort needs, since airflow increases sound output. Also keep the filter clean and avoid blocking the air intake or discharge. The unit is designed for quiet operation, but poor installation, dirty filters, or airflow restrictions can make it sound louder than expected.

How often should I clean and maintain the gree Vireo Gen 3 Indoor Wall-Mounted Split Air Conditioner and Heat Pump Series 3VIR09HP230V1AH?

Clean the air filters regularly, especially during heavy cooling or heating seasons, because dust buildup reduces airflow and efficiency. A monthly check is a practical starting point for most homes, with more frequent cleaning in dusty environments. Also wipe the indoor cover, inspect for blocked vents, and schedule professional service if airflow drops or odors appear. Routine care helps preserve comfort, efficiency, and the lifespan of the mini split heat pump system.

What should I check if the gree Vireo Gen 3 Indoor Wall-Mounted Split Air Conditioner and Heat Pump Series 3VIR09HP230V1AH shows weak airflow?

Weak airflow often comes from a dirty filter, blocked return, or fan speed set too low. Check the remote settings first, then inspect the indoor air filter for dust and wash or replace it as needed. Make sure furniture, curtains, or wall decor are not blocking the unit. If airflow remains weak after cleaning, there may be an issue with the blower, coil, or installation that needs professional service.
