Introduction

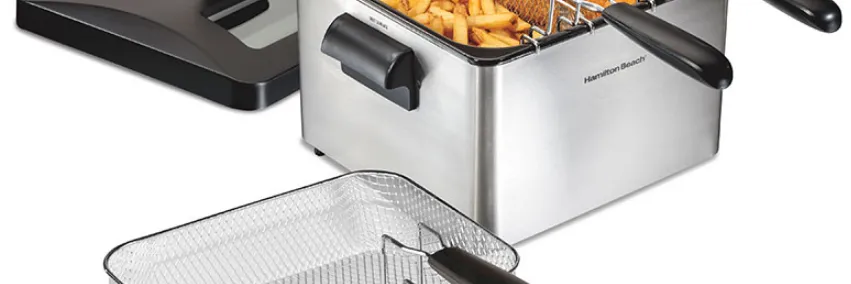

The Hamilton Beach Deep Fryer Machine 35034 is a versatile kitchen appliance designed for frying a variety of foods to perfection. With a 4.7-quart oil capacity, it can handle up to 12 cups of food, making it ideal for family gatherings and parties. Featuring three baskets for simultaneous cooking and a vented lid to minimize splatter, this fryer ensures a cleaner cooking experience. Priced at approximately $79.99, it offers excellent value for achieving restaurant-quality fried dishes at home.

Parts and Features

Specifications

• Capacity: 4 liters
• Adjustable Heat Control: Yes
• Cool-Touch Exterior: Yes
• Secure Lid: Yes
• Non-Stick Basket: Yes
• Dishwasher-Safe Parts: Yes
• Power Consumption: 1800 watts

Description

The Hamilton Beach Deep Fryer Machine 35034 is engineered for both functionality and ease of use. Its robust design ensures durability, while the compact footprint makes it suitable for most kitchen countertops. The adjustable heat control allows for precise temperature settings, making it ideal for cooking a wide range of foods. The secure lid prevents oil splatters and reduces the risk of burns, enhancing user safety. The non-stick basket is easy to clean and dishwasher-safe, further simplifying maintenance tasks.

The deep fryer also includes a power light indicator and an automatic shut-off feature, adding to its safety and convenience. Whether you're frying delicate fish or crispy fries, this machine delivers consistent results without the hassle of manual frying methods.

How to Assemble the Fryer

1. Place base on a stable, flat surface. Insert oil pot into base.
2. Align grooves of heating element assembly with grooves on base. Push down on heating element assembly to connect it to the base.
   NOTE: Heater cannot be turned on unless correctly installed on base.
3. To assemble handle, squeeze tines of handle together. Align tines with round holes on metal bracket inside basket(s).
4. Release tines to allow them to spread and then pull handle back to lock into metal bracket.
5. For storage: Rotate handle into basket(s).
6. Align vent cover and vent of lid toward heating element assembly. Lid snaps into place.

How the Timer Works

The timer counts down. It can be set for any time between 1 and 30 minutes.

1. To set timer, rotate past 10 minutes and then to desired frying time or rotate timer to STAY ON.
2. Timer will start counting down selected time shortly after you stop turning the TIMER knob.
3. Timer will beep when it reaches OFF and fryer turns off automatically.

NOTE: Do not use STAY ON for more than 60 minutes in a 2-hour period.

Frying

WARNING Burn Hazard.

• Never fill oil above MAX fill mark.
• Never move fryer when it is in operation or when fryer contains hot oil.
• Never leave fryer unattended while in use.
• Remove as much moisture from food as possible. Do not add water or ice to oil.
• Escaping steam may cause burns to hands or fingers. Open lid carefully.

BEFORE FIRST USE: Thoroughly clean and dry fryer. See “Cleaning Your Fryer” section.
NOTE: Never operate unit without oil in tank or unit will exceed temperature limit and will require resetting. See “How to Reset” section for details.

1. Place assembled fryer on a stable, level, heat-resistant surface out of reach of children. Lift lid to open.
2. Remove basket(s) from fryer.
3. Fill fryer with about 15 cups (3.5 L) but no more than about 19 cups (4.5 L) of oil to top indicator mark on removable oil pot.

4. Make sure fryer is turned to MIN. Attach magnetic end of cord assembly to fryer socket. Magnetic end of cord will only go in one way. Be careful not to disturb magnetic connection when plugging cord into electrical outlet.



   NOTE: The low magnetic force allows the cord to “break away” which prevents unit from accidentally being pulled off a countertop.
   FRYING TIP: READY light may go out after frying a batch of food. When oil has reached selected temperature, READY light will come back on. Unit is now ready to fry next batch of food.

5. Replace lid. Plug in unit. Set thermostat to desired setting. Preheat fryer until READY light comes on (10 to 15 minutes). For more information on temperature selection, check food package or Frying Chart. READY light will come on when oil has reached preset temperature. Remove lid before frying.
6. To fry food, place food in basket(s).
   TO FRY UNBATTERED FOOD: Place food in basket and proceed with Step 7.
   TO FRY BATTERED FOOD (such as tempura batter): Lower basket into oil; then carefully place food directly into oil.
   NOTE: Do not exceed maximum amount of food to be fried in one batch.
7. Carefully place basket(s) in fryer. Replace lid.
   NOTE: Never operate unit without oil in pot or unit will exceed temperature limit and will require resetting.
8. When frying is done, remove lid, raise basket(s), and hook over removable oil pot to drain.
   NOTE: Do not allow condensation to drain into oil pot while removing lid or while unit is off.

9. Carefully empty food from basket(s) and place in a bowl, colander, or tray lined with paper towel. Fill basket(s) and repeat as needed to complete frying. Set thermostat to MIN and unplug appliance after use.



Frying Chart

Setup Guide

To operate the Hamilton Beach Deep Fryer Machine 35034,

1. Carefully open the package and put the parts together first. Keep kids and pets away from the fryer by placing it on a sturdy surface.
2. Use the recommended kind and quantity of oil in the oil container. Turn on the fryer by plugging it in. To adjust the heat control to the desired temperature, use it.
3. Place your meal into the non-stick basket with caution after the oil has heated. After lowering the basket into the heated oil, cover it tightly.
4. Give your dish time to cook as directed by the recipe. Turn off the machine after cooking and allow it to cool before cleaning.

Cleaning Your Fryer

WARNING Burn Hazard.
To avoid eruptions and/or spatter of hot oil, dry all fryer components thoroughly before using.

1. Unplug from wall outlet. Wait until oil has cooled. This can take several hours.
2. Remove lid and remove basket(s) from fryer.
3. Lift heating element assembly from base and allow oil to drain into oil pot.
   Do not immerse heating element assembly in water.
   NOTE: To avoid damaging fryer, use care when cleaning heating element assembly. Gently wipe with soft cloth dampened with hot, soapy water.
4. Lift oil pot from base and pour out oil. Wipe all excess oil or oil film from oil pot.
5. Clean base, lid, and vent cover with hot, soapy water. Dry thoroughly. Position lid vertically to drain and allow to dry thoroughly.

DISHWASHER-SAFE
DO NOT use the “SANI” setting when washing in the dishwasher. “SANI” cycle temperatures could damage your product.

Frying Tips

SELECTING AND CHANGING THE FRYING OIL:

• Use a good quality vegetable or peanut oil.
• Frying foods in butter, margarine, olive oil, or animal fat is NOT recommended because of low temperature smoke point.
• DO NOT mix two types of oil.
• Change oil regularly to maintain optimum frying and flavor quality.
• Oil used for french fries can be used 10 to 12 times before changing if oil is filtered after each use. Oil used for food that is high in protein (such as meat or fish) should be changed more frequently.
• To filter oil, allow oil to cool completely. Cheesecloth or paper towel may be used as a filter to strain oil.
• Always follow food package directions.
• DO NOT add fresh oil to used oil.
• Always change the oil when it has a strong smell or taste, or when it turns dark and/or syrupy.

BEFORE FRYING:

• Remove any excess water from fresh food by blotting with a paper towel. Excess water or ice particles can cause hot oil to splatter or foam.

GENERAL TIPS:

• DO NOT use plastic utensils in hot oil.
• Season food AFTER frying.
• If food is not as crisp as desired, reduce batch size.

DISPOSING OF OIL:

• Pour cool oil into its original (resealable) empty plastic bottle.

BASKET USAGE WITH FRESHLY BATTERED FOODS:

• Freshly battered foods should be carefully placed directly into oil. First, lower basket completely and then carefully place each piece of battered food into hot oil. Use basket to remove fried battered foods.

STORAGE:

• Basket handle can be disengaged and rotated into basket. Place oil pot in base and then place basket and power cord in oil pot.
• It is best to store all oils in the refrigerator or a cool, dark, dry place for up to six months.

COOKING:

• Length of cooking time and temperature may vary based on batch size and weight.
• For best results, fry a single layer of food for each batch.
• Frozen, uncooked chicken should be thawed, excess water removed, and patted dry with paper towel prior to cooking.
• Always follow package directions.
• When cooking meat, poultry, or fish, use cooking thermometer to determine internal temperatures.

Visit foodsafety.gov for more information on safe internal cooking temperatures.

Hamilton Beach Deep Fryer Machine 35034 Troubleshooting

HOW TO RESET:
If your unit is not heating or will not turn on, your unit may need to be reset.

1. Make sure fryer and oil are cold.
2. Turn temperature control to MIN.
3. Unplug magnetic cord from the wall outlet.
4. Remove removable control panel and heater element.
5. Use a thin pointed object such as a wooden skewer or thin screwdriver to push in RESET button.

Hamilton Beach Deep Fryer Machine 35034 Pros & Cons

Pros

• Ease of Use: Simple operation with adjustable heat control.
• Safety Features: Cool-touch exterior and secure lid prevent burns.
• Efficient Cleaning: Non-stick basket and dishwasher-safe parts make cleaning easy.
• Compact Design: Suitable for most kitchen countertops.
• Affordable Price: Excellent value for its features and performance.

Cons

• Limited Capacity for Large Families: The 4-liter capacity might be insufficient for larger families.
• No Timer Feature: Users need to manually monitor cooking times.
• Oil Extraction Challenges: Some users find it difficult to drain the oil after use.
• Noisy Operation: Some users report that the fryer can be noisy during operation.

Customer Reviews

Customers generally praise the Hamilton Beach Deep Fryer Machine 35034 for its ease of use, safety features, and efficient cleaning process. Many appreciate its ability to deliver crispy and evenly cooked foods without much hassle. However, some users note that it may not be ideal for large families due to its capacity and lack of a timer feature.

Common complaints include difficulties in draining the oil after use and some noise during operation. Despite these minor issues, most customers find it to be a reliable and affordable addition to their kitchen appliances.

Warranty

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace it with a similar one of equal or greater value.
