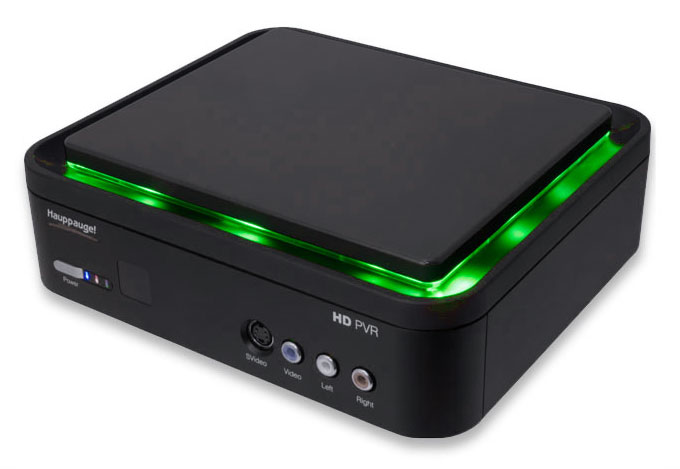

Introducing the Hauppauge HD PVR 60FPS HD Video Recorder

The Hauppauge HD PVR 60FPS HD Video Recorder is a state-of-the-art device designed for gamers, streamers, and content creators who want to capture and share their gaming experiences in high definition. This powerful recorder supports 60 frames per second (FPS) recording, allowing for smooth and fluid video playback. The HD PVR 60FPS is compatible with a wide range of gaming consoles, including PlayStation, Xbox, and Nintendo Switch. It also works with PC games, making it a versatile solution for all your gaming and recording needs. With an estimated price range of $150 to $200, the HD PVR 60FPS is a must-have tool for any serious gamer or content creator.

Included with HD PVR 60

• HD PVR 60 recorder: 60 frame per second H.264 high definition video recorder, USB
• HDMI cable
• USB 2.0 cable
• Quick Install Guide (this guide)
• Download instructions for the Hauppauge Capture application for Windows 10, 8, 7, Vista and Windows XP

Overview

The Hauppauge HD PVR 60 records PC or console gameplay video at up to 1080p60 HD using HDMI. Hauppauge Capture is used to record, trim and upload videos from your game console and has a convenient one-click upload to YouTube. The HD PVR 60 has a lag-free video pass through: there is NO lag when watching your gameplay on a monitor connected to the HDMI output connector on HD PVR 60. HD PVR 60 recordings are made onto a computer’s hard drive in a compressed H.264 format. It will record at 1080p60, 1080p30, 720p60 or 720p30 or 480p at data rates from 1Mbit/sec up to 16Mbits/sec.  Audio can be supplied to the HD PVR 60 from the HDMI cable and recording is done in two channel stereo audio.
There are three types of HD PVR 60 record formats:

• TS: this is a native H.264 format used by Hauppauge Capture. TS files are often used to burn Blu-ray discs. The TS files recorded with the HD PVR 60 can be edited with Sony Vegas (all versions). TS files can also be imported and edited with Adobe Premiere
• M2TS: this is a format which is popular with some video editors.
• MP4: this is similar to the TS file but has an index at the beginning of the file. In the Edit tab of Hauppauge Capture, click ‘Export to MP4’ to create an MP4 file without losing video quality.

Detailed Specifications

The Hauppauge HD PVR 60FPS HD Video Recorder boasts the following key features:

• 60FPS recording for smooth and fluid video playback
• Compatible with a wide range of gaming consoles and PC games
• High-quality H.264 video encoding for small file sizes and HD video
• Passthrough support for uncompressed video and audio while recording
• HDMI and component video inputs for maximum compatibility
• S/PDIF and RCA audio inputs for high-quality audio capture
• Microphone input for voiceovers and commentary
• USB 2.0 interface for easy connection to your computer
• Includes HD PVR software for recording and editing video

Installing the HD PVR 60

1. Boot into Windows on your PC
   HD PVR 60 works with laptops or desktop PCs with Windows 10, 8, 7, Vista and Windows XP.
2. Plug the USB cable into HD PVR 60
   USB connection: After your PC has booted to Windows, plug one end (the square end) of the supplied USB cable into the HD PVR 60’s USB cable connector. HD PVR 60 is compatible with USB 2.0 (high speed) only. Plug the other end into your PC.
3. Connect the HD PVR 60 HDMI cables
   Connect your PC, Xbox One, Xbox 360 or PS4 to HD PVR 60 using HDMI Plug your game console’s HDMI cable into the HDMI port on your game console and into the HDMI in on the HD PVR 60. Plug the HDMI cable (supplied) to HDMI Out on the HD PVR 60. Connect the other end of this HDMI cable into a TV or video monitor.
   Note
   • Your PC or game console must be set to 1080p, 720p or 480p at 50 or 60Hz. Please see this page for setting up the video and audio on a PC gaming system: https://www.hauppauge.com/pages/support/support_hdpvr2.html#pcrecording
   • On the Xbox 360, you might need to change the video mode. See these instructions: https://www.hauppauge.com/pages/support/support_hdpvr2.html#xboxsetup

   • On the PS4, you might need to disable HDCP in order to record video. See these instructions: https://www.hauppauge.com/pages/support/support_ps4.html



4. Download the Hauppauge Capture application from the Hauppauge website
   The Hauppauge Capture application includes both the Windows drivers and the Hauppauge Capture application, plus some utilities. You can download Hauppauge Capture from:
   https://www.hauppauge.com/pages/support/support_ps4.html. The download normally goes into the ‘Downloads’ directory on your Windows PC.
5. Install the HD PVR 60 Windows driver and applications
   Once you have downloaded Hauppauge Capture (Step 4), simply run it.
   Note: If a 'Found New Hardware' wizard appears, please cancel it.
   Click Next. The HD PVR 60 applications will be installed. The Hauppauge Capture application is for recording game play and uploading the game recordings to YouTube.
   Once complete, you will be asked to restart. Please do so.

Using Hauppauge Capture

After restarting your PC, you will see the Hauppauge Capture icon on your Windows desktop. Click this icon to start Hauppauge Capture. For more information on Hauppauge Capture, how-to videos and the latest version of Hauppauge Capture, please look here: https://www.hauppauge.com/pages/support/support_capture.html

Capture tab

Edit tab

YouTube tab

Detailed Description

The Hauppauge HD PVR 60FPS HD Video Recorder is a powerful and easy-to-use device that allows you to capture and share your gaming experiences in high definition. With support for 60FPS recording, you can create smooth and fluid video that looks great on any screen. The HD PVR 60FPS is compatible with a wide range of gaming consoles, including PlayStation, Xbox, and Nintendo Switch, as well as PC games. The recorder supports both HDMI and component video inputs, ensuring maximum compatibility with your gaming devices. The HD PVR software included with the device makes it easy to record and edit your video, and the passthrough support allows you to play your games in high definition while recording.

Setup Guide

Setting up the Hauppauge HD PVR 60FPS HD Video Recorder is easy:

1. Connect the HD PVR 60FPS to your gaming console or PC using the HDMI or component video cables.
2. Connect the audio cables to the S/PDIF or RCA inputs on the HD PVR 60FPS.
3. Connect the HD PVR 60FPS to your computer using the USB 2.0 cable.
4. Install the HD PVR software on your computer.
5. Launch the HD PVR software and select the input source for your gaming console or PC.
6. Start recording your gaming sessions and share your experiences with the world.

Troubleshooting

What do the lights on front of HD PVR 60 mean?

• Blue light: When HD PVR 60 is powered on and the Windows driver is running, the blue light is on. If the blue light is blinking, the HD PVR 60 is not ‘seen’ by your PC. Either you have not installed Hauppauge Capture application yet or the HD PVR 60 is not ‘seen’ by your PC. Check the USB cable and if the light is still blinking, re-install Hauppauge Capture.
• Green light is on after you start Hauppauge Capture: this is good and means HD PVR 60 detects video and you are ready to record. You should also see video in the Preview window. Note: It sometimes takes a few seconds before the green light goes on.
• Red record ring: indicates that HD PVR 60 is recording or streaming video.
• Red light: this means the video encoder inside HD PVR 60 cannot send data to your PC. There are a number of reasons this could happen. If your PC is running slowly and cannot get data from HD PVR 60 quickly enough, the red light might go on for a few seconds until the PC can accept data. Change to another USB port on your PC, then power down HD PVR 60, wait a few seconds and power up again. If you continue to see the Red light while recording and have checked your cabling, contact Hauppauge technical support.

No video in the Hauppauge Capture preview window

1. Make sure HD PVR 60 is listed in the Capture tab. If not, then please check your USB cables and make sure the blue light is on solid (not blinking) on the front of HD PVR 60. If you can-not see HD PVR 60 listed in the Capture tab, reinstall Hauppauge Capture. Power cycle the HD PVR 60 and reboot your PC after reinstalling the drivers.
2. Check the video mode of your console. It must be set at either 1080p60 or 720p. If you are using a PC game system, check our website at: www.hauppauge.com/pcsetup
3. Make sure your game console is not using HDCP copy protection. HDCP will pre-vent you from seeing video in the Preview window. The Xbox One will turn on HDCP after you watch TV or Netflix. The PS4 turns on HDCP unless you disable it.
4. Check your cables. When using HDMI cables, try swapping the HDMI cables (in cable with the out cable).
5. Check the Video setting of your game console. If the HD PVR 60 green light is not on, then either you have the HDCP on your video game, your game console is not turned on or the game console is in a video mode which needs to be changed.
6. If the green light is on the front of HD PVR 60 and you still see a black preview window, try recording some video. If you can successfully playback a recording but you cannot see live video in the Preview window, there might be a video rendering problem (video card drivers, hardware acceleration…) Check device settings for video decoder details. To enable hardware acceleration, select “Hardware acceleration” in the Settings menu in Hauppauge Capture.
   If recording fails, it is likely something is wrong with the video input to HD PVR 60. Please contact Hauppauge Technical Support at [email protected]

Pass through video problems

• No video on my TV set: Open Hauppauge Capture and verify the correct Video input is selected. Video and audio input must be set initially for passthrough to work (if you power cycle the HD PVR 60, it may revert to its default setting and will need to be set again). Also, check the video mode on your Xbox 360: the video mode should be 1080p or 720p.
• No video on my TV set but I can see video in the Capture tab: Check that the HDMI cable from the HD PVR 60 (HDMI out) is connected to your TV monitor and the TV is set to the correct HDMI port if multiple are available on your TV. Try changing the output resolution from your game console. Some TV monitors may not support all HDMI output resolutions.

Customer Reviews

Customers love the Hauppauge HD PVR 60FPS HD Video Recorder for its high-quality video capture and ease of use. Many reviewers praise the device's compatibility with a wide range of gaming consoles and PC games, while others appreciate the passthrough support for uncompressed video and audio while recording. The HD PVR software is also a hit with users, who find it easy to use and intuitive.

However, some customers have reported issues with audio sync and software compatibility. These issues are typically easy to resolve with a software update or by adjusting the audio settings.
