Introduction of Honeywell C-Wire Adapter
The Honeywell C-Wire Adapter is a game-changer in the world of HVAC systems. This innovative device provides a solution for homeowners who want to upgrade their thermostats but lack the necessary "C" wire for power. The adapter is easy to install, affordable, and compatible with most HVAC systems. The estimated price of the Honeywell C-Wire Adapter is around $30-$40, and it is now available for purchase in home improvement stores and online retailers.
Detailed Specifications
The Honeywell C-Wire Adapter boasts several key features that make it a must-have for any HVAC system. These features include:
- Universal compatibility with most HVAC systems
- Easy installation with no need for an electrician
- Provides continuous power to thermostats
- Prevents battery drainage
- Compact and unobtrusive design

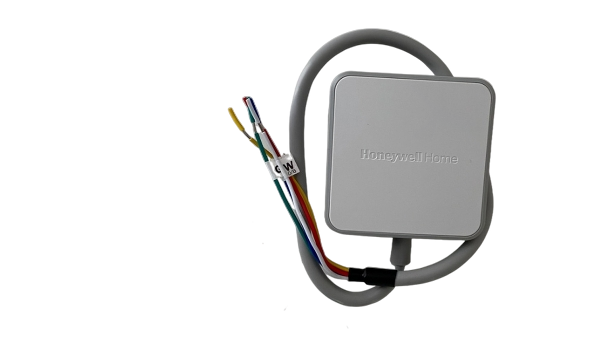

Honeywell C-Wire Adapter Overview
This product provides a C wire (common wire) to power a thermostat. Only install if you do not have a C wire available to connect to your thermostat.
ZONING CONTROL PANEL CHECK
For zoned systems, install the C Wire Adapter between the thermostat and the zoning panel, NOT between the zoning panel and HVAC equipment.

Turn the power off at the breaker box or control switch for your HVAC* system.
*Heating, ventilation, and air conditioning. Remove your old thermostat from the wall plate.
WARNING: Do not remove any wires at this time!
- Take a picture of the wiring.
- Ensure the terminal labels and wires are in the image.
You may need to reference the picture later.
- Confirm that you do not have a wire in the C terminal. If you have a wire in the
- C terminal, then you do not need this product.
- Look for an unused wire. If you have an unused wire, then you do not need this product. Connect one end of that wire to the C terminal at the HVAC and the other to the C terminal at the new thermostat.
The C wire (common) might be labeled as B rather than C on certain thermostats.
Go to your HVAC system. It may be located in your attic, crawl space, or basement.
Open the HVAC system’s cover to reveal the control board.Take a picture of the wires on the control board. Ensure the terminal labels and wires are in the image. You may need to reference the picture later. O or B terminal may also be used.
Use stickers to label the following connected wires
G
R or Rc
W or W1
Y or Y1
NOTES: Not all systems will have a W or W1-wire. On a heat pump application, the wire coming from O/B on the old thermostat would match to either O or B at equipment rather than W. If multiple wires are connected to a terminal, only label the the wire running to your thermostat.

Disconnect ONLY the wires that you just labeled:
G
R or Rc
W or W1
Y or Y1
WARNING: Do NOT disconnect wires that you did not label. If multiple wires are connected to a terminal, only remove the wire running to your thermostat. On a heat pump application, the wire coming from O/B on the old thermostat would match to either O or B at equipment rather than W.
Insert the wires you just disconnected into the C-Wire Adapter terminals.
This will convert the G and Y-wires into C and K-wires.
Take a picture of the wires you inserted into the C-Wire Adapter.
Ensure the terminal labels and wires are in the image.
You may need to reference the picture later.Connect the wires from the “Equipment” labeled side of the C-Wire Adapter to the matching terminals on the control board.
If there are separate wires to W and O, leave the W and O wires attached to HVAC and do not connect them to the C-Wire Adapter.
Description
The Honeywell C-Wire Adapter is a simple yet effective solution for homeowners who want to upgrade their thermostats but lack the necessary "C" wire for power. The adapter is designed to provide continuous power to thermostats, preventing battery drainage and ensuring accurate temperature readings. The device is easy to install and compatible with most HVAC systems. Its compact and unobtrusive design allows it to blend seamlessly with any home decor. With the Honeywell C-Wire Adapter, homeowners can enjoy the benefits of a modern thermostat without the need for expensive rewiring.
Honeywell C-Wire Adapter 12 Checkpoint
Your C-Wire Adapter should now be installed between your thermostat wiring and the control board.
Before mounting, check to make sure the surface is clean enough to ensure good adhesion.
Attach the C-Wire Adapter to the inside wall of the furnace using the magnet on the back of the C-Wire Adapter.
Note: Earlier versions of this product had an adhesive pad and mount rather than a magnet.
Close the HVAC system’s cover.
WARNING: Leave the power off.
Go back to your thermostat.
Label your now converted wires as shown.


The wires you label C and K are the wires you inserted into the C and K terminals in step 9.

Label ALL of the remaining wires according to their terminals.
* O/B terminal may also be used.
Confirm you have labeled ALL of your wirings.
Disconnect the wires from the old wall plate.
* O/B terminal may also be used.

Refer to your new thermostat’s installation guide for detailed instructions to complete the following tasks below.

A Remove the old wall plate and mount the new one.
B Wire the new thermostat.
Refer to the labels you applied when inserting the wires. When done wiring, you should have wires in the C and K-terminals. You should not have wires in the Y or G-terminals.
C Complete your new thermostat installation by attaching the thermostat to the wall plate, restoring the power, and configuring the thermostat.
Setup Guide
Installing the Honeywell C-Wire Adapter is a straightforward process that can be completed in a few simple steps. Here's how:
- Turn off the power to your HVAC system.
- Locate the "C" wire terminal on your HVAC control board.
- Connect the adapter to the "C" wire terminal.
- Connect the adapter to your thermostat.
- Turn the power back on to your HVAC system.
Honeywell C-Wire Adapter Troubleshooting
While the Honeywell C-Wire Adapter is designed for easy installation, there are a few common issues that homeowners may encounter. These issues include:
- Incorrect wiring: Make sure that the adapter is connected to the correct terminal on your HVAC control board.
- Thermostat compatibility: Not all thermostats are compatible with the Honeywell C-Wire Adapter. Check your thermostat's manual to ensure compatibility.
- Power issues: If your HVAC system is not receiving power, check the adapter's connection to the "C" wire terminal.
Pros & Cons
Pros
- Universal compatibility with most HVAC systems
- Easy installation with no need for an electrician
- Provides continuous power to thermostats
- Prevents battery drainage
- Compact and unobtrusive design
Cons
- May not be compatible with all thermostats
- Some users may find the installation process challenging
Customer Reviews about Honeywell C-Wire Adapter
Customers who have used the Honeywell C-Wire Adapter have praised its ease of installation and functionality. Many have noted that the device has allowed them to upgrade their thermostats without the need for expensive rewiring. The most common complaints include issues with thermostat compatibility and difficulty with installation.
