Setup: Hubble Connected Nursery Pal Cloud Wifi Monitor User Guide

Hubble Connected Nursery Pal Cloud Wifi Monitor

Introduction

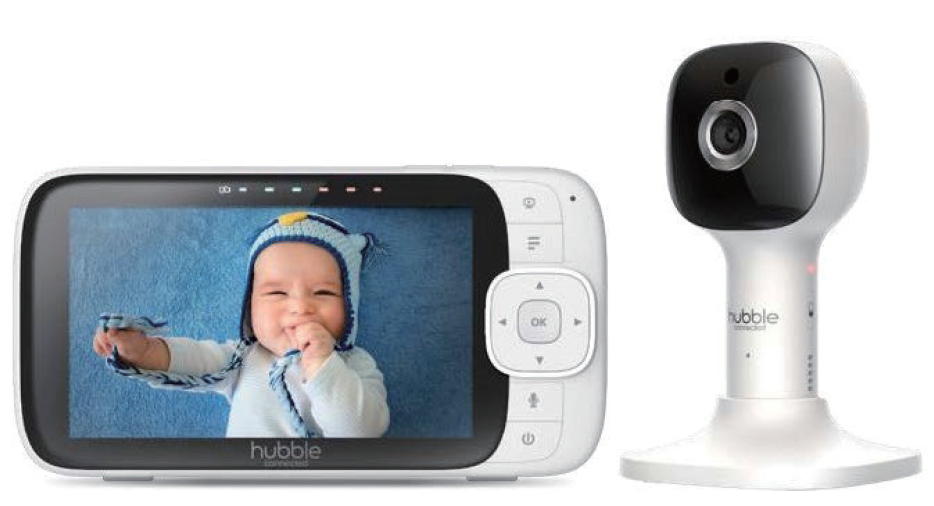

The Hubble Connected Nursery Pal Cloud Wifi Monitor is a cutting-edge baby monitoring system designed to provide parents with peace of mind and real-time updates on their baby's well-being. This innovative device is part of the Hubble Connected ecosystem, known for its user-friendly and feature-rich products. The Nursery Pal Cloud Wifi Monitor is expected to be available in the market starting from early 2024, with an estimated price range of $150 to $200, making it an affordable yet high-quality option for parents.

This monitor is equipped with advanced features such as high-definition video streaming, night vision, motion detection, and temperature sensing. It also includes two-way audio communication, allowing parents to soothe their baby remotely. The device is compatible with both iOS and Android devices, ensuring seamless connectivity via the Hubble Connected app. With its robust set of features and user-friendly interface, the Nursery Pal Cloud Wifi Monitor is poised to become a staple in many nurseries.

Using the Baby Monitor

Setting Up
Place the Baby Unit in a convenient location (e.g.,, on a table) and point the camera lens towards the area you want to monitor. Adjust the angle of the Baby Unit's camera until you are satisfied with the image shown on the Parent Unit.
Note:
Do not place the Baby Unit within the baby’s reach! If there is interference with the picture or sound, try moving the units to different locations, and ensure they are not close to other electrical equipment.

Night Vision Mode
The Baby Unit has 8 high-intensity infrared LEDs for picking up clear images in the dark. When the built-in Light sensor on the top of the Unit detects a low level of ambient light, the LEDs will automatically activate , and the screen on the Parent Unit will display in black and white. The icon will be displayed at the top of the screen.

Talk Mode
Press and hold the TALK button on the Parent Unit to talk to your baby through the Baby Unit’s loudspeaker.   The icon will be displayed at the top of the LCD screen.

Video ON/OFF
Press the   Display On/Off button to turn the LCD screen on or off; audio will remain on while the screen is off.
Temperature Display (HH °C / °F or LL °C / °F)
The temperature reading from the temperature sensor at the back of the Baby Unit will be displayed at the top of the LCD screen. The readings will turn RED if the temperature goes above 29°C / 84°F or below 14°C / 57°F. The reading will change to HH °C / °F if the temperature goes above 36°C / 97°F and to LL °C / °F if the temperature goes below 1°C / 34°F.

Setup Guide

To set up the Hubble Connected Nursery Pal Cloud Wifi Monitor, start by unpacking the device and placing it in the desired location in the nursery. Ensure it is at least 3 feet away from the baby's bed for clear video and audio capture.

Next, download and install the Hubble Connected app on your smartphone or tablet. Follow the in-app instructions to connect the monitor to your Wi-Fi network. Once connected, you can configure various settings such as motion detection alerts, temperature thresholds, and two-way audio.

The monitor comes with a power cord and wall adapter; plug it in and turn it on. The device will automatically connect to the app, and you can begin monitoring your baby immediately.

Cleaning

Clean the Baby Monitor with a slightly damp cloth or a baby monitor anti-static cloth. Never use cleaning agents or abrasive solvents.

Cleaning and care

• Do not clean any part of the product with thinners or other solvents and chemicals – this may cause permanent damage to the product,, which is not covered by the warranty.
• Keep the Baby Monitor away from hot, humid areas or strong sunlight, and don’t let it get wet.
•  Every effort has been made to ensure high standards of reliability for your Baby Monitor. However, if something does go wrong, please do not try to repair it yourself – contact Customer Service for assistance.
• IMPORTANT
  Always switch off and disconnect the power adaptor before cleaning your baby monitor.

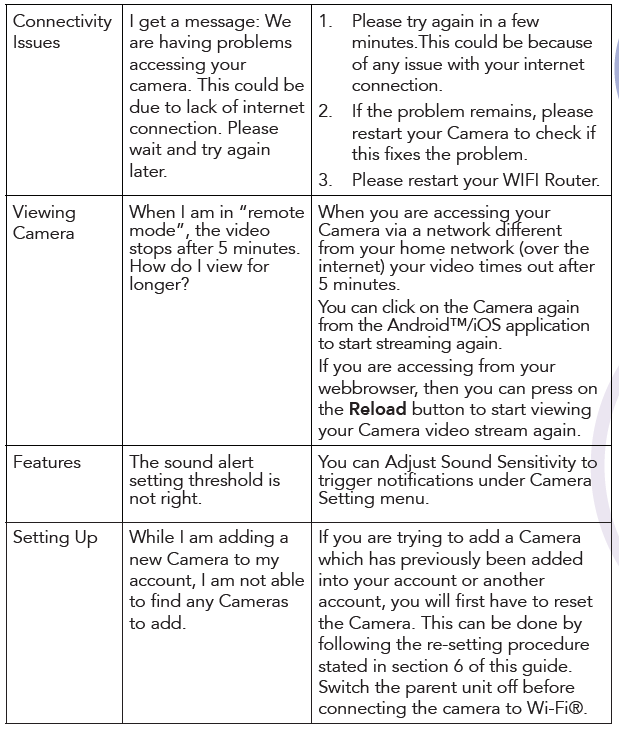

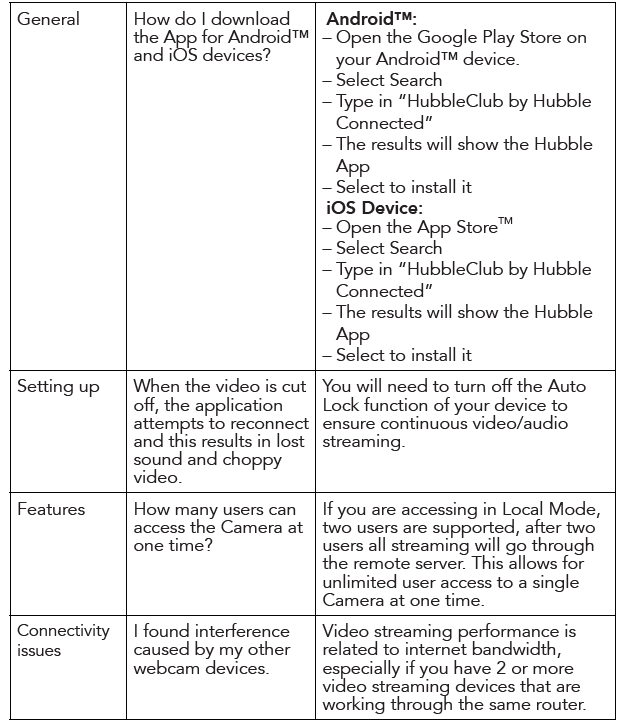

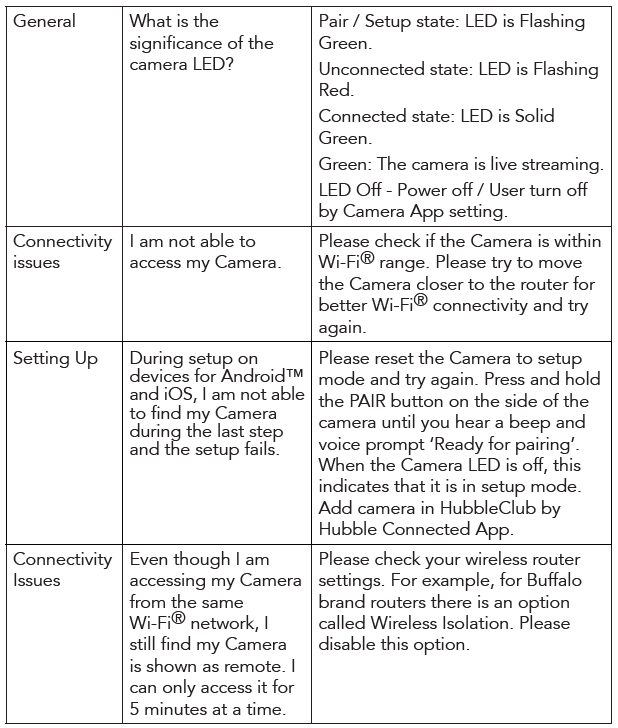

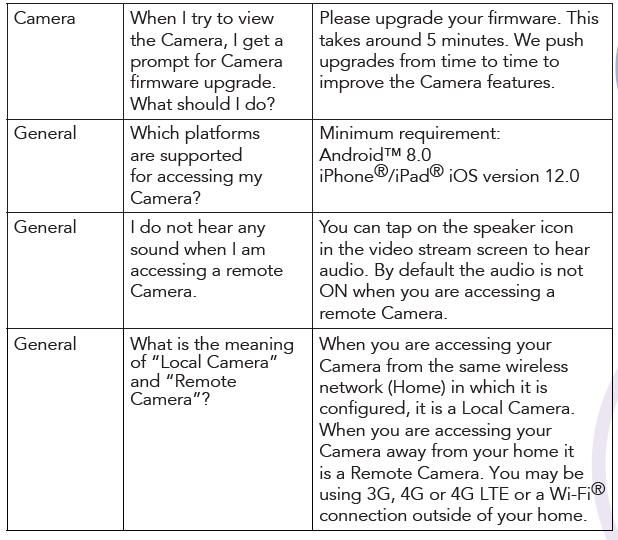

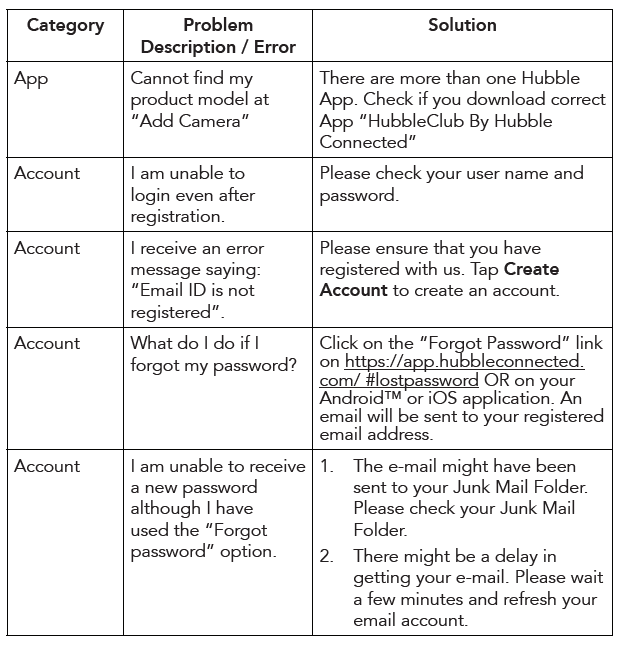

Troubleshooting for Wi-Fi® Internet Viewing

General Information

• If your product is not working properly, read this User Guide.+
• Contact Customer Service:
• Live Chat: hubbleconnected.com
• Email: support@hubbleconnected.com
• Online warranty registration: https://hubbleconnected.com/warranty Online Product Registration:
  • https://hubbleconnected.com/apps/product-registration
• Consumer Products and Accessories Limited Warranty

(“Warranty”)

• Thank you for purchasing this Hubble SmarNursery-branded product manufactured by Hubble Baby (HK) Limited ("HUBBLE").  What Does this Limited Warranty Cover?
  Subject to the items listed below in the section “What is not Covered” HUBBLE warrants that this Hubble connected branded product (“Product”) will be free from defects in material and workmanship under normal use for a period of 1 year from the date of purchase and that any certified accessory (“Accessory”) sold for use with this product will be free from defects in materials and workmanship under normal use for a period of 90-days from the date of purchase. This Limited Warranty is your exclusive warranty and is not transferable.

What is not covered?

• This Limited Warranty excludes and does not cover:
• Normal deterioration or wear resulting from use;
• Damage caused by or resulting from misuse, abuse, or accident;
• Damage caused by or resulting from improper operation or storage;
• Damage caused by or resulting from contact with foreign substances, including, but not limited, to, liquid, water, rain, humidity, perspiration, sand, dirt, and/or food;
• Damage caused by or resulting from the use of Non-Hubble Smart Nursery-branded or certified Products or Accessories or other peripheral equipment;
• Damage caused by or resulting from modifications, alterations, tampering, improper installation, or repairs by someone other than Hubble Connected or their authorized representatives;
• Defects, damages, or the failure of Products or Accessories due to any communication service or signal you may subscribe to or use with the Products or Accessories; and,
• Periodic maintenance, repair, and replacement of parts due to normal wear and tear.

What Other Limitations Are There?

• THIS LIMITED WARRANTY SETS FORTH THE ENTIRE LIABILITY OF HUBBLE AND CONTAINS YOUR SOLE AND EXCLUSIVE REMEDY. OTHER THAN THIS LIMITED WARRANTY, HUBBLE MAKES NO ADDITIONAL REPRESENTATIONS OR WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IF YOUR STATE DOES NOT PERMIT THE DISCLAIMER OF WARRANTIES, THEN THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE IS LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. REPAIR OR REPLACEMENT IS YOUR SOLE AND EXCLUSIVE REMEDY AGAINST HUBBLE AND Hubble Smart Nursery. IN NO EVENT SHALL HUBBLE OR Hubble Smart Nursery’s LIABILITY TO REPAIR OR REPLACE YOUR PRODUCT OR ACCESSORY EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT AND ACCESSORY AND HUBBLE AND Hubble Smart Nursery’s TOTAL LIABILITY FOR DAMAGES ARISING FROM THIS LIMITED WARRANTY SHALL NOT EXCEED THE PRICE YOU PAID FOR THE PRODUCT AND ACCESSORY REGARDLESS OF WHETHER SUCH CLAIM ARISES UNDER CONTRACT, STATUTE, TORT OR OTHERWISE. IN NO EVENT AND UNDER NO CIRCUMSTANCES WILL HUBBLE OR Hubble Smart Nursery BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, SPECIA, L OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATI, ON OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE  THE PRODUCTS OR ACCESSORIES. ALL DISCLAIMERS, LIMITATIONS OF LIABILITY,, MODIFICATIONS OF WARRANTIES STILL APPLY EVEN  IF THE LIMITED REMEDY OF REPAIR AND REPLACEMENT FAILS OF ITS ESSENTIAL PURPOSE.
  Some jurisdictions do not allow the limitation or exclusion of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from one jurisdiction to another.

Who is covered?

• This Warranty extends only to the first consumer purchaser and is not transferable.

What will HUBBLE do?

• HUBBLE or its authorized distributor,, at its sole discretion,n will, at no charge, repair or replace any Products or Accessories that do not conform to this Warranty. If replacement is necessary to remedy a defect
  In material or workmanship, HUBBLE may use new or remanufactured products, accessories,, or parts of equal quality to the original Product or Accessory.

How to Obtain Warranty Service or Other Information?

• To obtain service or information, please contact us by:
  • Live Chat: hubbleconnected.com
  • Email: support@hubbleconnected.com
  • Online warranty registration: https://hubbleconnected.com/warranty Online Product Registration:
    • https://hubbleconnected.com/apps/product-registratio
• You will receive instructions on how to ship the Products or Accessories at your expense and risk, to a HUBBLE Authorized Repair Center.
• You must include: (a) the Product or Accessory; (b) the original proof of purchase (receipt) which includes the date, place,,e and seller of the Product; (c) if a warranty card was included in your box, a completed warranty card showing the serial number of the Product; (d) a written
• description of the problem; and, (e) your name, address, email address, and telephone number
• These terms and conditions constitute the complete warranty agreement between you and HUBBLE regarding the Products or Accessories purchased by you, and supersede any prior agreement or representations, including representations made in any literature publications or promotional materials issued by HUBBLE or representations made by any agent, employee or staff of HUBBLE, that may have been made in connection with your purchase of any Product and/or Accessory.

Technical Specifications

BABY UNIT

• Frequency 2400 MHz to 2483.5 MHz
• Image sensor color CMOS 2M Pixels
• IR LED 8 pcs
• OperatingTemperature 41oF - 104oF
• Power Adaptor:
  Input: 100-240V AC, 50/60Hz, 300mA;
  Output: 5.0V DC, 1000mA

PARENT UNIT

• Frequency 2400 MHz to 2483.5 MHz
• Display 5” diagonal TFT LCD
• Display Colors 16.7M color LCD
• OperatingTemperature 41oF - 104oF
• Brightness Control 8 steps
• Volume Control 8 steps
• Power Adaptor:
  • Input:  00-240V AC, 50/60Hz, 300mA;
  • Output: 5.0V DC, 1000mA

WARNING

• Use only with the provided power supply.
• Battery (built-in) TMB i9300
• 3.8V, 2100mAh Lithium-Ion Polymer, rechargeable
• battery pack

WARNING

• Do not attempt to replace the battery; but contact
• Customer Service, if it needs replacing.

Specifications are subject to change without prior notice.

Pros & Cons

Pros:

• High-Resolution Video: Offers clear 1080p video streaming with night vision.
• Advanced Sensors: Includes temperature, humidity, and motion sensors for comprehensive monitoring.
• Two-Way Audio: Allows for real-time communication with the baby.
• Wi-Fi Connectivity: Enables remote access and notifications through the Hubble Connected app.
• User-Friendly App: Easy to set up and navigate, with customizable settings.

Cons:

• Dependence on Wi-Fi: Requires a stable internet connection to function optimally.
• Battery Life: The monitor is not battery-powered and requires a constant power supply.
• Additional Costs: May incur additional costs for cloud storage and premium app features.
• Interference Issues: Can be susceptible to interference from other wireless devices.

Customer Reviews

Customers have praised the Hubble Connected Nursery Pal Cloud Wifi Monitor for its high-quality video feed and reliable connectivity. Many appreciate the ease of setup and the intuitive app interface. However, some users have noted occasional connectivity issues and the need for a stable internet connection.

A common complaint is the lack of battery power, which means the monitor must always be plugged in. Despite these minor drawbacks, the overall satisfaction rate is high, with many parents recommending this product for its comprehensive set of features and peace-of-mind assurance.
