Setup: Huion Inspiroy Battery-free Pen Tablet H950P User Manual

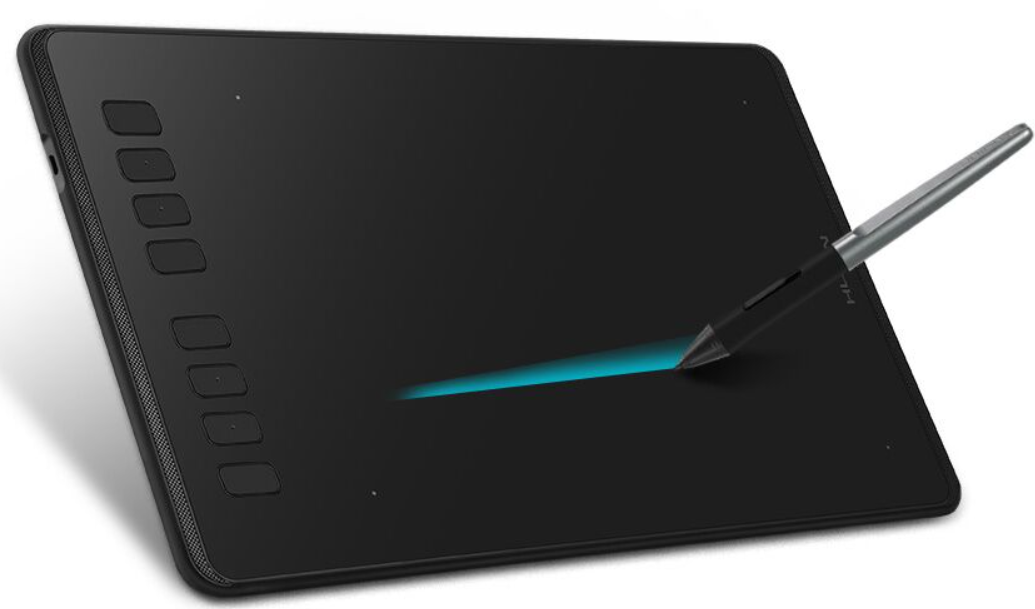

Huion Inspiroy Battery-free Pen Tablet H950P

Introduction

The Huion Inspiroy Battery-free Pen Tablet H950P is a cutting-edge digital drawing tablet designed for artists, designers, and anyone looking to enhance their creative workflow. This tablet is part of Huion's Inspiroy series, known for its high quality and user-friendly design. The H950P is notable for its battery-free pen, which eliminates the need for frequent charging or battery replacements, making it a convenient option for continuous use.

The Huion Inspiroy H950P is intended for a wide range of creative tasks, including graphic design, digital painting, and sketching. It is compatible with both Windows and macOS, making it versatile for different user environments. The estimated price for this tablet is around $100-$150, depending on the region and retailer. It was launched in the market to cater to the growing demand for affordable yet high-performance digital drawing solutions.

Product Overview

Tablet Introduction
Thanks for choosing HUION® INSPIROY® H640P/H950P graphics tablet. This is a new generation of professional battery-free drawing tablet, which can greatly improve your work efficiency in painting and creation, and is full of fun. You can freely paint and write, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience.

To give you a better understanding of and use of your tablet, please read this user manual carefully. The user manual only shows the information under Windows; unless otherwise specified, this information applies to both Windows and Macintosh systems.

Product and Accessories

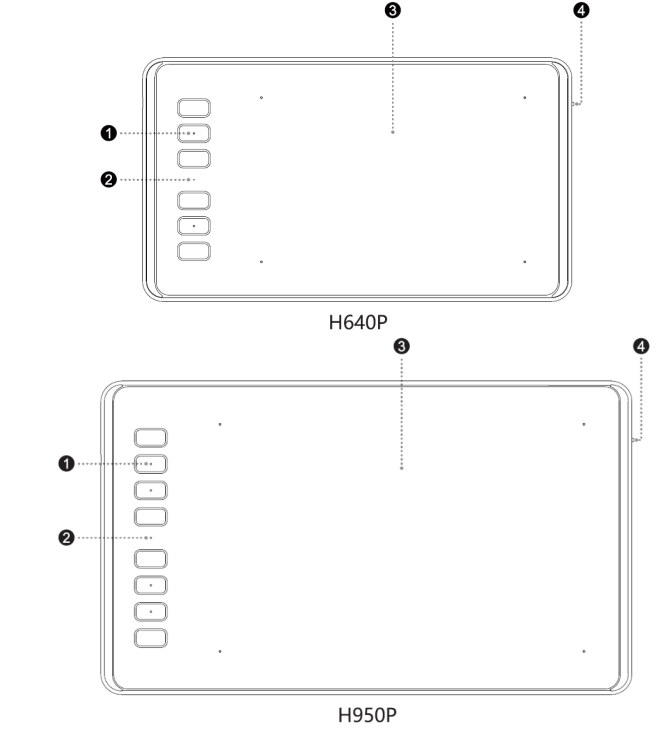

Graphics Tablet

1. Press Keys
2. LED Indicator
3. WorKing Area
4. Press Key Lock

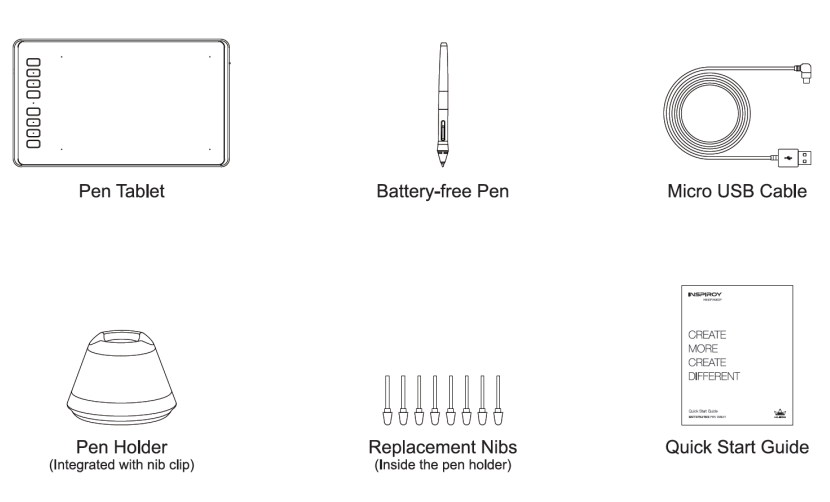

Packing List

Connecting to Compute

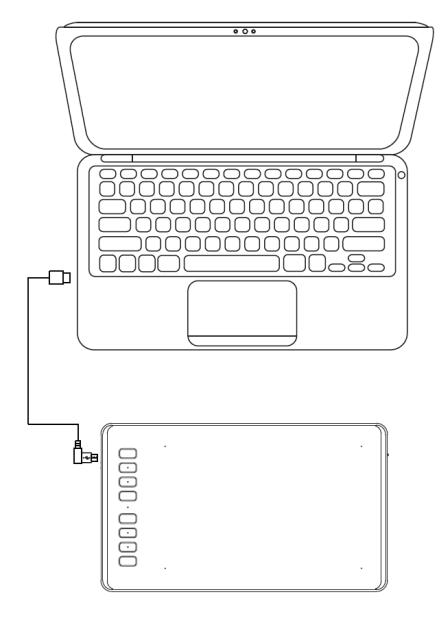

Connect the tablet

Installation

1. OS Support: Windows 7 or later，macOS 10.11 or later
2.  Please download the driver from our website: www.huion.com/download
   After finishing installation, you can find the driver icon in the system tray area, which means the driver was installed successfully; when you connect the tablet to the computer, the icon will change to a color , which means the driver has already recognized the tablet, and you can start using it now.
   Notice：
   • Before installing, you need to uninstall other drivers of similar products, including the old driver of this product.
   • Before installing, please close all graphics software and anti-virus software to avoid unnecessary mistakes.

Connecting tan o an Android Phone

1. Please make sure your phone & pad OS is as follows: Android OS 6.0 or later.
2. For some models, you need to go phone or pad "Settings" then enable the "OTG" function.

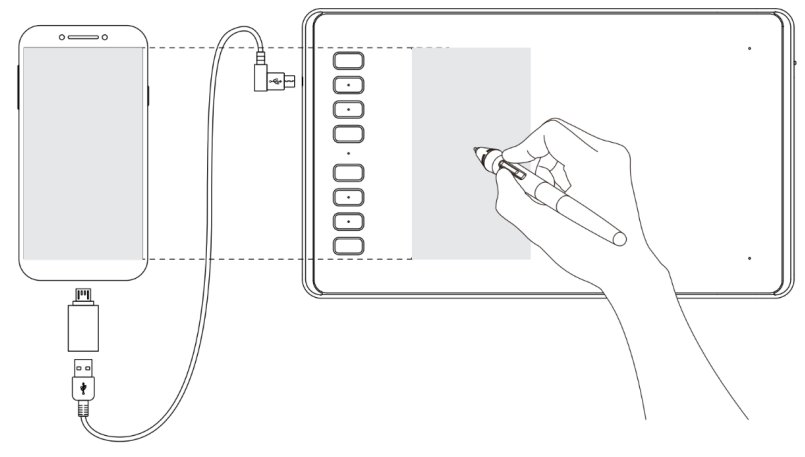

3. Choose the right OTG Adapter from the package, which depends on the USB port type of your phone, then connect the pen tablet to your phone following the illustrations below:

Notes:

1. The pen tablet can work without installing any driver inonour phone.
2.  Once connected, the tablet will automatically enter phone mode, in which the pen can only work in the left gray area(138x86.2mm).
3. Please note that the press keys of the pen tablet and digital pen are not supported in phone mode.

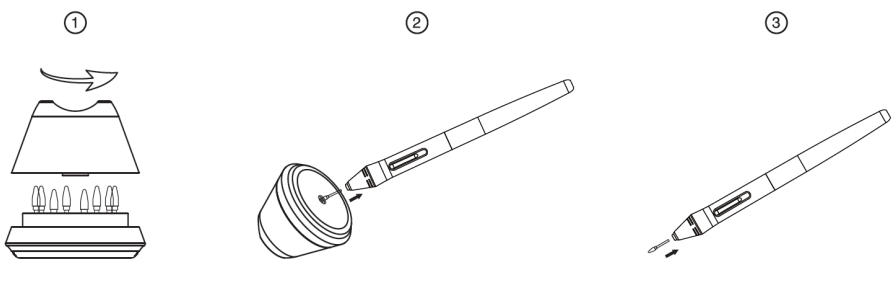

Pen Nib Replacement

The nib will be wear off after using for a long time, then you need to replace a new nib.

1. Anticlockwise rotate the pen holder to open the cover, and take a new nib out.
2. Insert the pen nib into the hole on the bottom of the holder and tilt the pen to pull out the old nib.
3. Insert the new nib straight into the the pen and push the nib slowly and firmly until it stops. c

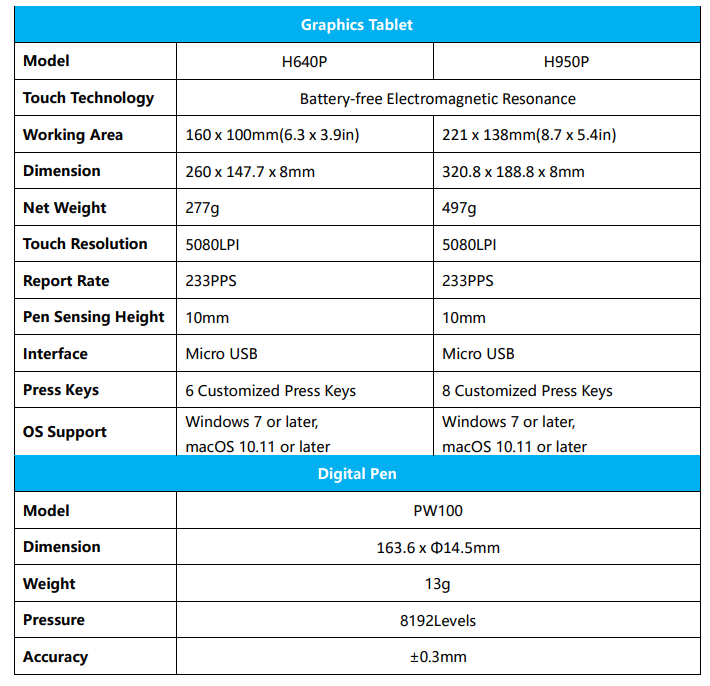

Specification

Trouble Shooting

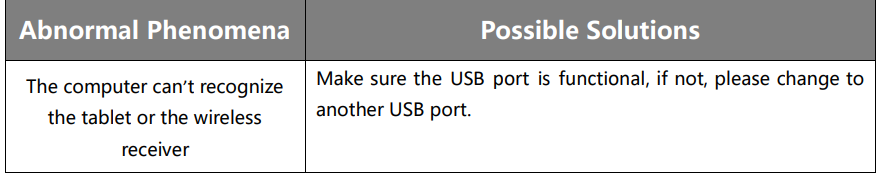

Possible Breakdowns Related to TABLET

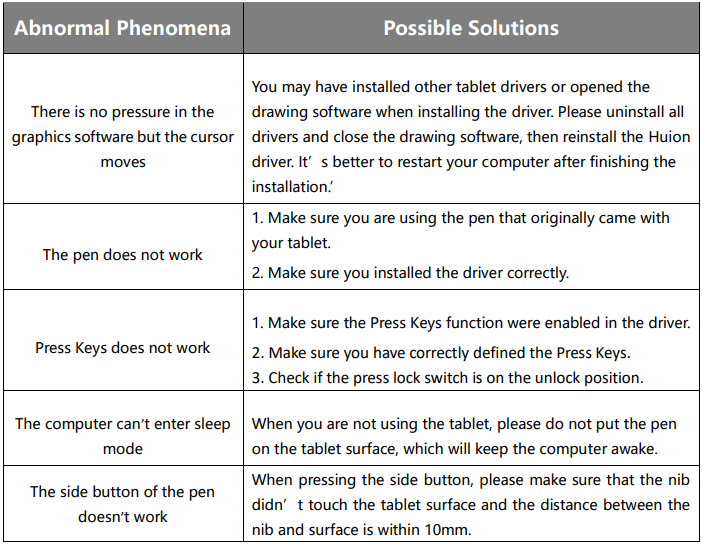

Possible Breakdowns Related to SYSTEM

Pros & Cons

Pros:

• Battery-free pen eliminates the need for frequent charging.
• High resolution and report rate ensure precise drawing experiences.
• Large active area provides ample space for detailed work.
• Customizable express keys enhance workflow efficiency.
• Compatible with both Windows and macOS.
• Affordable pricing compared to similar products in the market.

Cons:

• No built-in screen; requires a separate monitor.
• Some users may find the tablet's weight slightly heavy for prolonged use.
• Limited portability due to its size and weight.
• No ergonomically designed stand included; users may need to purchase one separately.

Customer Reviews

Customers have generally praised the Huion Inspiroy H950P for its accuracy and responsiveness. Many appreciate the battery-free pen, which they find convenient and reliable. Some users have noted that the tablet is sturdy and well-built, although a few have mentioned that it could be lighter for easier portability.

Common complaints include the lack of an ergonomic stand and some initial difficulties with driver installation. However, overall feedback indicates that this tablet offers great value for its price.
